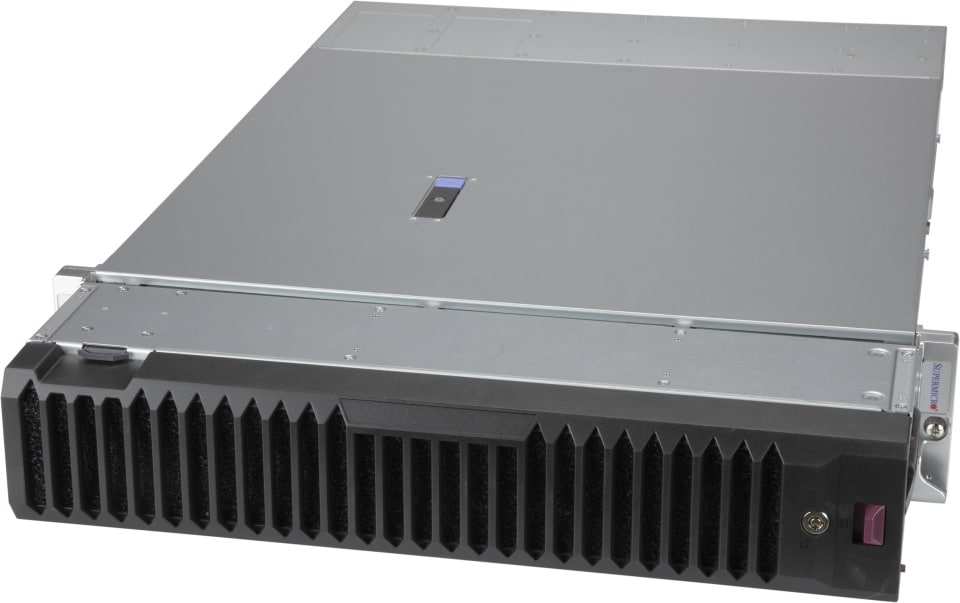

SuperServer SYS-220HE-FTNR-NEBS (Complete System Only)

SYS-220HE-FTNR-NEBS Main
Integrated Board: X12DHM-6
Learn more

Key Applications

  • 5G Core and Edge
  • Telecom Micro Data Center
  • AI Inference and Machine Learning
  • Network Function Virtualization
  • Cloud Computing

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  3. 3 PCIe 4.0 x16 slots with GPU/Accelerator support (Default);
     1 PCIe 4.0 x16 expansion slots (Optional)
  4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
  6. 6 heavy duty hot-swap fans with optimal fan speed control Front I/O, tool-less design
  7. Redundant 2000W redundant AC power supplies
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-220HE-FTNR-NEBS
Motherboard
Super X12DHM-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPU(s)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2 V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350-AM2 (optional)
  • 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional)
  • 2x 10GbE SFP+ with Intel® X710-BM2 (optional)
  • 4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
  • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
  • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
  • 4x 1GbE BaseT with Intel® i350-AM4 (optional)
  • View AOC Options
  • View AIOM Options
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HE211-R000NFP
Note
  • 2U Front Bezel
  • Replaceable UL900-2004 certified air filter
  • Standard sliding rail kit: Post to Post 19.1" ~ 26.4“
Dimensions and Weight
Height
  • 3.5" (88.9mm)
Width
  • 17.2" (436.88mm)
Depth
  • 22.6" (574mm)
Package
  • 9.7" (H) x 23.5" (W) x 36.9" (D)
Weight
  • Net Weight: 34.4 lbs (15.6 kg)
  • Gross Weight: 47.4 lbs (21.5 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity LED
  • LAN1 activity
  • LAN2 activity
  • Power Fail
  • Power status LED
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 4.0 x16 or x8 FHFL slot(s)
  • 1 PCIe 4.0 x8 FHFL slot(s)
  • 2 PCIe 4.0 x8FHFL slot(s)
  • 2 PCIe 4.0 x8 FHHL slot(s)
  • View AOC Options
Note
  • If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; (Optional) If Slot 7 is configured as PCIe x16, Slot 8 will be disabled.
Drive Bays / Storage
Hot-swap
M.2
System Cooling
Fans
  • 6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s)
Power Supply
2000W Redundant Titanium (certification pending) Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz (for UL only)
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A (100Vac-127Vac)
  • Max: 150A (200Vac-220Vac)
  • Max: 165A (220Vac-230Vac)
  • Max: 166A (230Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature:
       5°C ~ 35°C (41°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Note
  • Operating Relative Humidity: 5% to 85% with excursion of
  • Operating Temperature: Continuous: 5°C ~ 40°C (41°F ~ 104°F), Short term: -5°C ~ 55°C (23°F ~ 131°F)


Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DHM-6

CSE-HE211-R000NFP
1

1
Super X12DHM-6 Motherboard

2U Chassis
Add-on Card / Module AOM-AIOM-2X8-P 1 2nd AIOM board (cable solution) for Hyper-E2Usystem,RoHS
AOM-HE211-AIOM-P 1 AIOM connection for Hyper-E 2U system,RoHS
AOM-HS119-IO-P 1 Hyper IO Board,RoHS
Backplane BPN-NVME4-HE211N-S6 1 1U 6-Slot BPN Supports 6 x SAS3/SATA3/NVMe4 Storage Device,HF,RoHS
Cable CBL-GNZ4-1221LP-85 1 Genz4C (STR) to 2x SlimlineLP x8 (STR),21/23CM,85 OHM,R
CBL-PWEX-1136-40 2 MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG,RoHS
CBL-SAST-1218LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,19CM,85
CBL-SAST-1222LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),27CM,85 OHM,
CBL-SAST-1223LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,12CM,85
CBL-SAST-1226LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),25CM,85 OHM,
CBL-SAST-1229LP-85 3 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85
CBL-SAST-1230LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,29CM,85 O
CBL-SAST-1232LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,32CM,85 O
CBL-SAST-1243LP-85 1 SlimlineLP x8 (STR to STR),INT,30CM,85 OHM,RoHS
CBL-SAST-1249LP-85 1 SlimlineLP x8 (STR) tp 2x SlimlineLP x4 (STR),49/61CM,8
CBL-PWEX-1142-40 OR 1 MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS
CBL-PWEX-1142B-40 MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
CBL-OTHR-1117 OR 1 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS
CBL-CDAT-1060-30 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS
CBL-CDAT-1290F 1 [NR] FRONT CNTL,20 TO 20 PIN,P0.5,FLAT,90CM,STD,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1104-8 1 [NR] 2x4,PH3.0,M to 2x3,PH2.0,F,3A/pin,22AWG,8CM
Fan FAN-0215L4 6 60x60x56 mm, 17K-17K RPM, Counter-rotating Cooling Fan for 2U Hyper-E (CSE-HE211) Series Servers
Front Bezel MCP-210-21101-0B 1 2U Black Front Bezel with NEBs Filter for HE211 Front Chassi
Power Supply PWS-2K08F-1R 2 1U 2000W 100-240VAC/50-60Hz, reverse airlfow
Riser Card RSC-H2-6888G4 1 2U LHS Hyper riser card with one PCIe 4.0 x16 and three PCI
RSC-H2-68G4 2 2U LHS Hyper riser card with one PCIe 4.0 x16 and one PCIe
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078PR 2 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers
*Front Panel FPB-FP826-T 1 Chassis front control board for SC826
*Drive Tray(s) MCP-220-00178-0B 6 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
NEBS Qualified Parts List
Part Number Qty Description
Add on Cards GPU-NVTA100-40-PS 1 NVIDIA A100 40GB CoWoS HBM2 PCIe 4.0-- Passive Cool
AOC-E810-XXVDA4 1 Intel E810-XXVDA4 PCIe 4-port 25GbE SFP28 Gen4x16, RoHS
AOC-A25G-b2SM 1 AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
AOC-STGF-I2S 1 Std LP 2-port 10G SFP+, Intel X710
AOC-A100G-B2CM 1 AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 with 0.5U Bracket,RoHS
AOC-STG-I4T 1 PCIe Low Profile form factor, Quad 10GBase-T Ports (RJ45),
AOC-STG-I4S 1 Standard LP 4-port 10G SFP+
AOC-S3908L-H8IR-16DD 1 Boardcom 3908L SAS controller
CPU P4X-ICX6338T-SRKXF 2 ICX 6338T 2P 24C/48T 2.1G 36M 11.2GT 165W 4189 M1
Memory MEM-DR416L-SL02-ER32 4 Samsung 16GB DDR4-3200 ECC RDIMM
MEM-DR432L-HL03-ER32 4 Hynix 32GB DDR4-3200 ECC RDIMM
MEM-DR464L-HL02-ER32 4 Hynix 64GB DDR4-3200 ECC RDIMM
MEM-DR432L-CL05-ER32 4 Micron 32GB DDR4-3200 ECC RDIMM
MEM-DR464L-CL03-ER32 4 Micron 64GB DDR4-3200 ECC RDIMM
MEM-DR432L-SL02-ER32 4 Samsung 32GB DDR4-3200 ECC RDIMM
MEM-DR416L-CL06-ER32 4 Micron 16GB DDR4-3200 ECC RDIMM
MEM-DR464L-SL01-ER32 4 Samsung 64GB DDR4-3200 ECC RDIMM
Storage HDS-X2A-XS800ME70045 1 Seagate 2.5" LangeBP 800GB SAS 12Gb/s,15mm,10DWPD SSD,HF
HDS-IUN0-SSDPE2KE032T8 1 Std LP 2-port 10G SFP+, Intel X710
HDS-SUN1-MZQLB960HAJR07 1 Samsung PM983 960GB NVMe PCIe3x4 V4 TLC 2.5" 7mm (1.3 DWPD)
HDS-SMN1-MZ1LB960HAJQ07 1 Samsung PM983 960GB NVMe PCIe3x4 V4 M.2 22x110mm (1.3 DWPD)
HDS-IMT0-SSDSCKKB960G8 1 Intel D3 S4510 960GB M.2 SATA 6Gb/s 3D TLC 22x80mm 1DWPD
HDS-M2T-MTFDDAK960TDS1AW 1 Micron 5300 PRO 960GB, SATA, 2.5", 3D TLC, 1.5DWPD
HDS-S2T1-MZ7LH960HAJR05 1 Samsung PM883 960GB SATA 6Gb/s V4 TLC 2.5" 7mm (1.3 DWPD)
HDS-I2T0-SSDSC2KG480G8 1 Intel D3-S4610 480GB SATA 6Gb/s 3D TLC 2.5" 7mm 3DWPD Rev.2
TPM security module AOM-TPM-9670V-S-P 1 SPI capable vertical TPM 2.0 provisioned for server,RoHS
