SuperServer SYS-E200-12A-8C

Embedded Mini-ITX Box Based on 8-Core Intel Atom Processor C5000 SoC

SYS-E200-12A-8C Main SYS-E200-12A-8C Angle SYS-E200-12A-8C Top SYS-E200-12A-8C Front SYS-E200-12A-8C Rear
Integrated Board: A3SPI-8C-LN6PF
Learn more

Key Applications

  • Virtualization Server
  • Virtual-CPE White Box
  • Entry-level Network Appliance

Key Features

  1. Optional Wall / Rack Mount Bracket, Dual System Tray

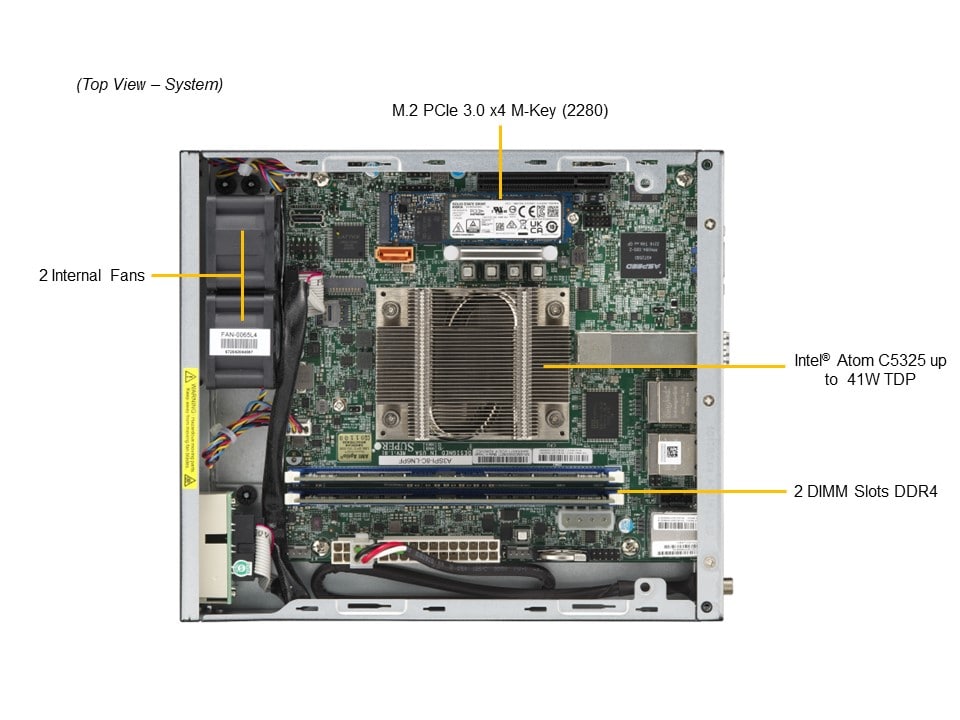

  2. Intel® Atom® Parker Ridge processor C5325, TDP 41W
  3. Up to 128GB ECC RDIMM DDR4-2933MHz, in 2 DIMM slots
  4. 1x M.2 B-Key 3052, 1x M.2 M-Key 2280

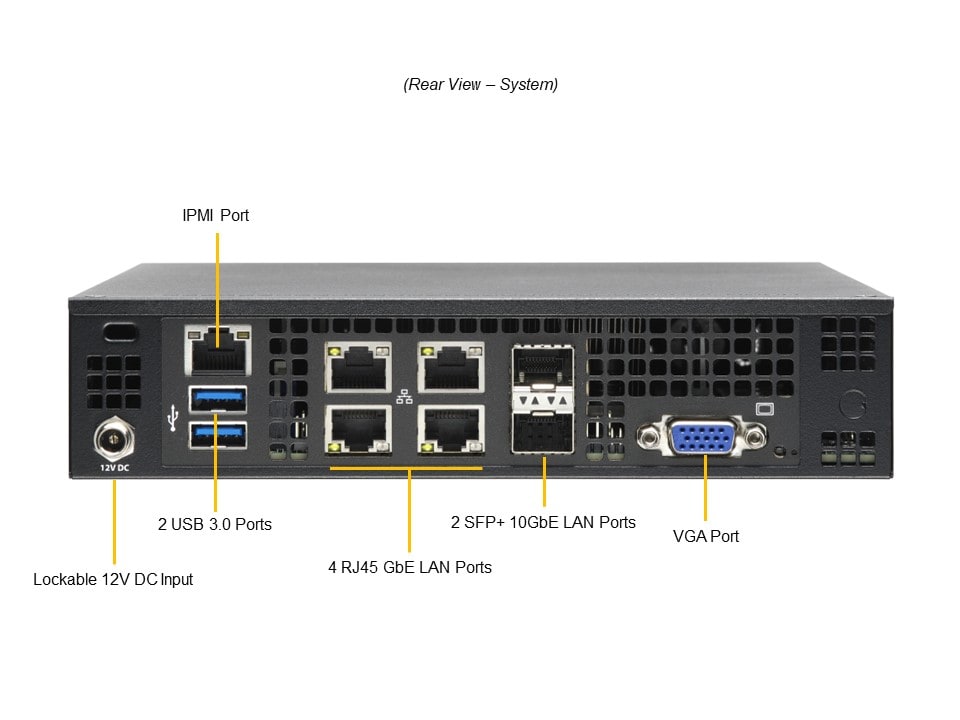

  5. 1x dedicated LAN for IPMI, 4x GbE RJ45 LAN ports, 2x 10GbE SFP+ LAN ports
  6. Lockable 12V DC 150W Power Adapter
  7. Intel® Quick Assist Technology
  8. VGA via BMC, 2 USB 3.0 ports
...
...
SYS-E200-12A-8C
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-E200-12A-8C
Motherboard
Super A3SPI-8C-LN6PF
Processor
CPU
  • Single FCBGA-2106
  • Intel® Atom® processor C5325
Core Count
  • Up to 8C/16T; Up to 9MB Cache
Note
  • Supports up to 41W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 2 DIMM slots
  • Max Memory (2DPC): Up to 128GB 2933MT/s ECC DDR4 RDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® SoC
Network Connectivity
  • 4 RJ45 1GbE with Intel® C5000 SoC
  • 2 SFP+ 10GbE with Intel® C5000 SoC
  • View AOC Options
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 SFP+ 10 GbE LAN port(s)
  • 4 RJ45 1 GbE LAN port(s)
USB
  • 2 USB 3.0 port(s)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB UEFI
BIOS Features
  • UEFI 2.7
  • ACPI 6.0 or later
  • SMBIOS 3.0 or later
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • CPU thermal trip support for processor protection
  • +12V DC Power Input
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Chassis
Form Factor
  • Mini-ITX
Model
  • CSE-101F
chassisWeight
  • Net Weight: 2.76 lbs (1.25 kg)
  • Gross Weight: 7.5 lbs (3.4 kg)

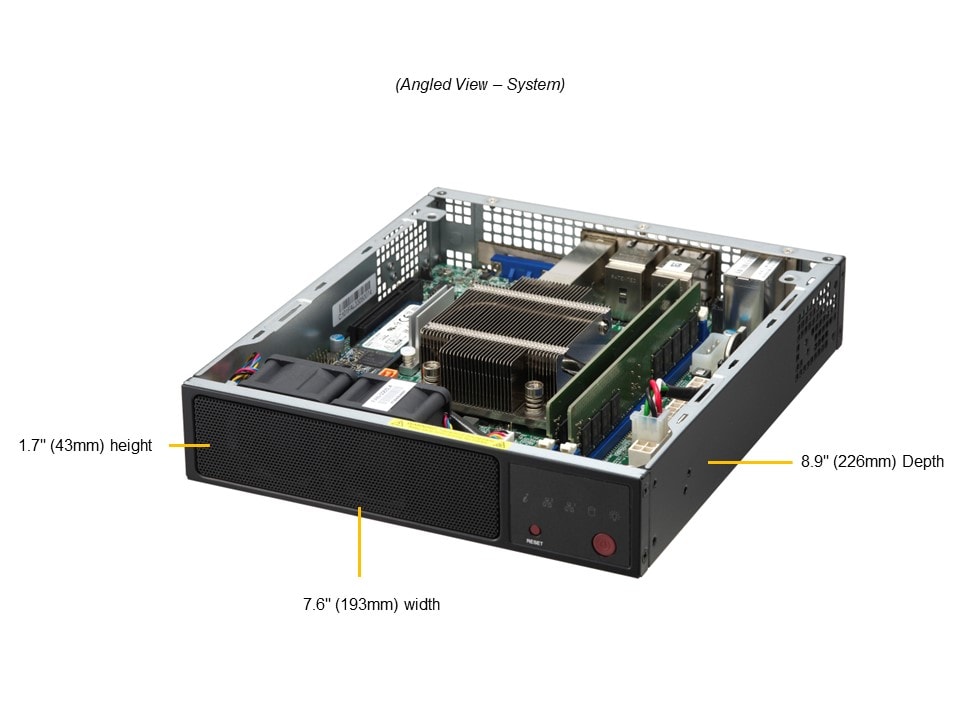

Dimensions and Weight
Height
  • 1.69" (43 mm)
Width
  • 7.68" (195 mm)
Depth
  • 8.89" (225.8 mm)
Package
  • 11.22" (H) x 14.96" (W) x 5.47" (D)
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 2.76 lbs (1.25 kg)
Available Color
  • Black

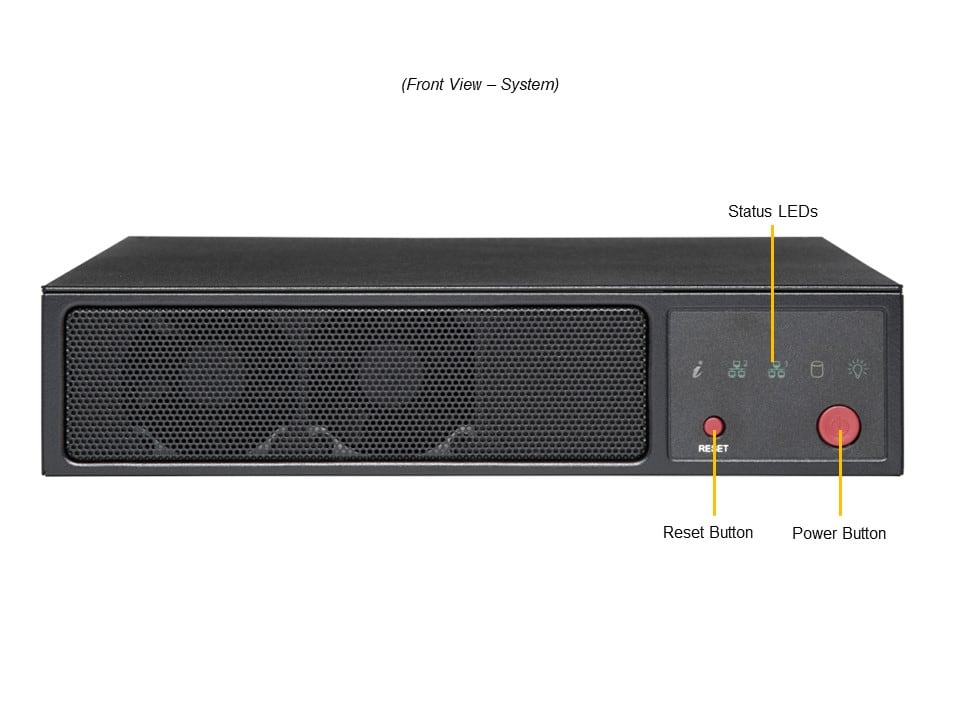

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Unit Identification (UID) LED
Expansion Slots
M.2
  • 1 M.2 NVMe/SATA slot(s) (B-key 3052)
PCI-Express (PCIe) Configuration
Drive Bays / Storage
M.2
Drive Bays Configuration
System Cooling
Fans
  • 2x 4-PIN PWM 40x40x28mm Fan(s)
Power Supply
150W power supply
AC Input
  • 150W: 100-240Vac / 47-63Hz
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-A3SPI-8C-LN6PF

CSE-101F 		1

1 		Super A3SPI-8C-LN6PF Motherboard

Mini-ITX Chassis
Fan FAN-0065L4 1 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Power Supply MCP-250-10128-0N 1 150W Lockable Power Adapter with US power cord
Parts MCP-260-00175-0B 1 1U E300/E200 I/O Shield for A3SPI with EMI Gasket
Optional Parts List
Part Number Qty Description
Dual System Tray Bracket MCP-290-10119-0B 1 Dual System Tray Bracket
Mounting Brackets MCP-290-10111-0B 1 Wall-Mount Bracket Kit
Rack Mounting Brackets MCP-290-10110-0B 1 Rack Bracket
