SuperServer SYS-821GV-TNR (Complete System Only)

8U Dual Processor (4th Gen Intel® Xeon) System with 8 Intel® Max Series 1550 GPU, Ponte Vecchio

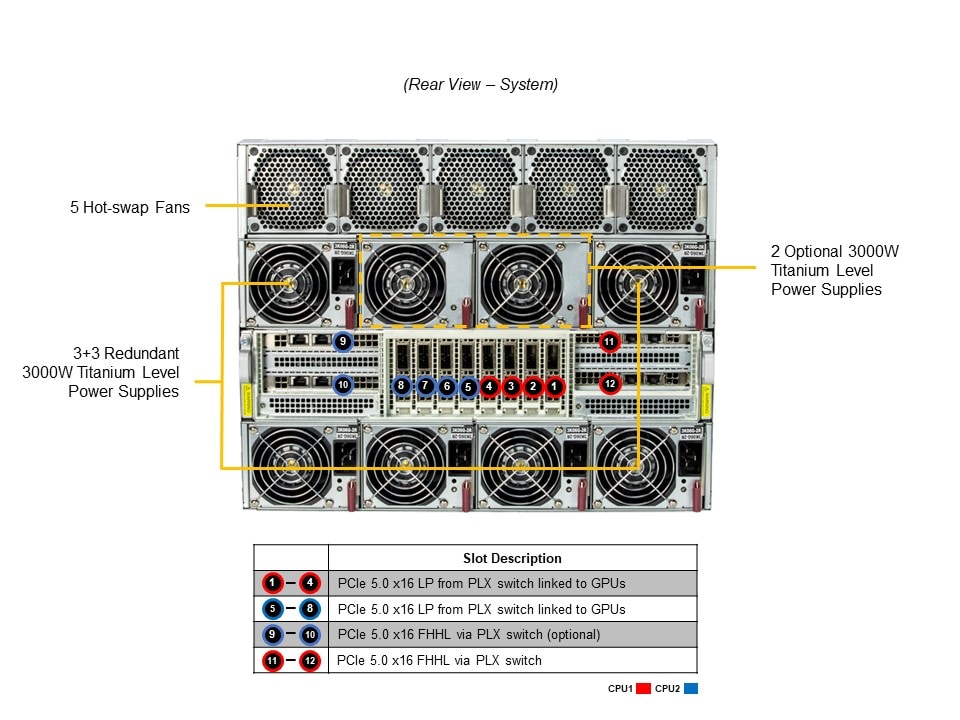

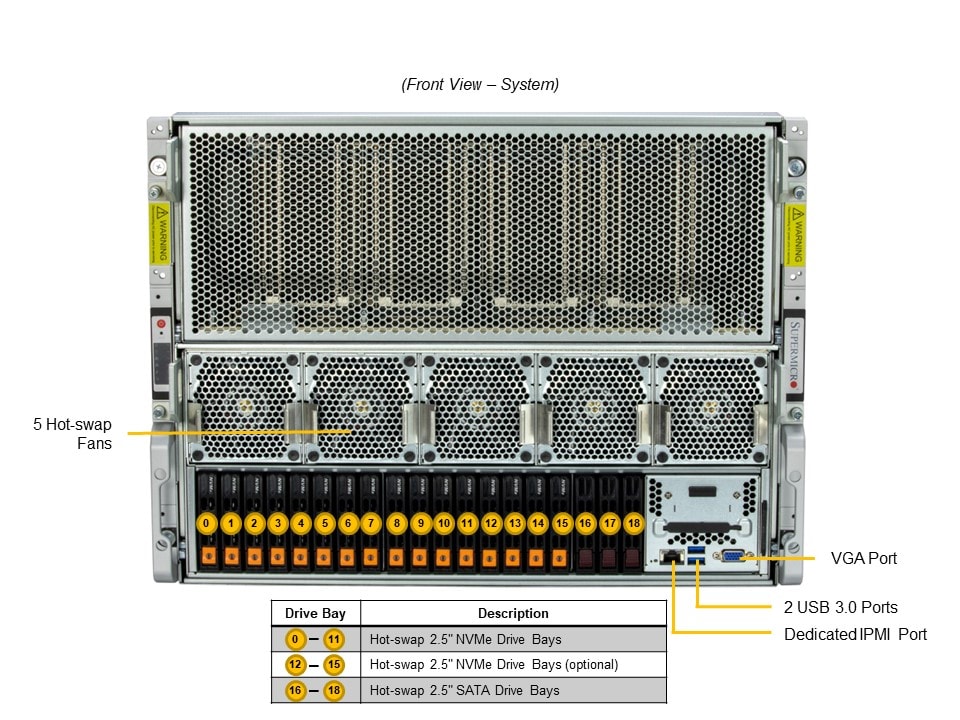

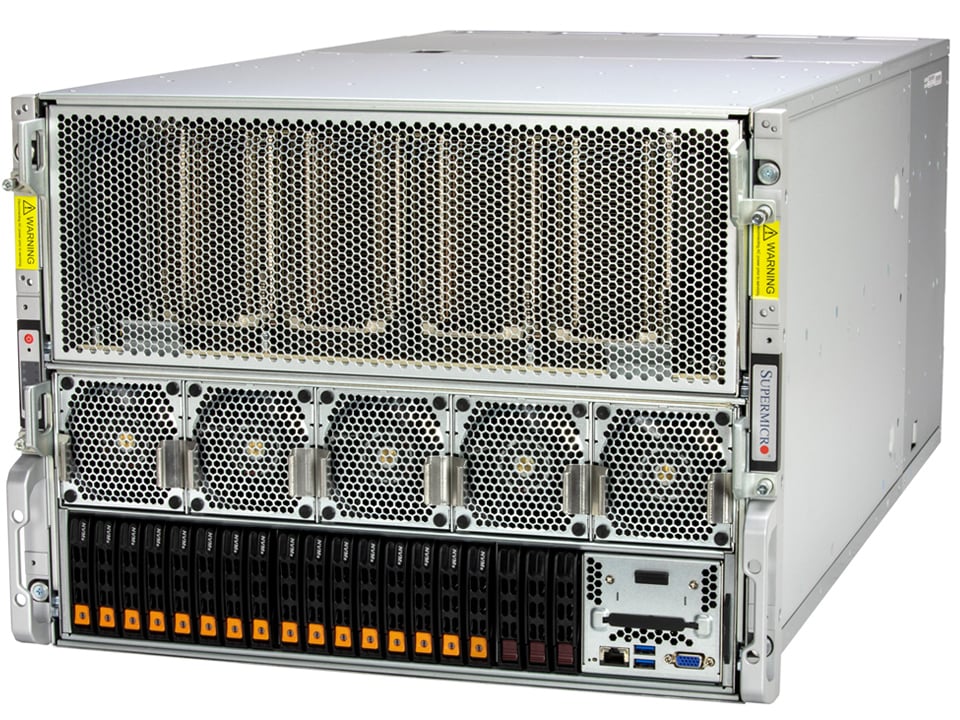

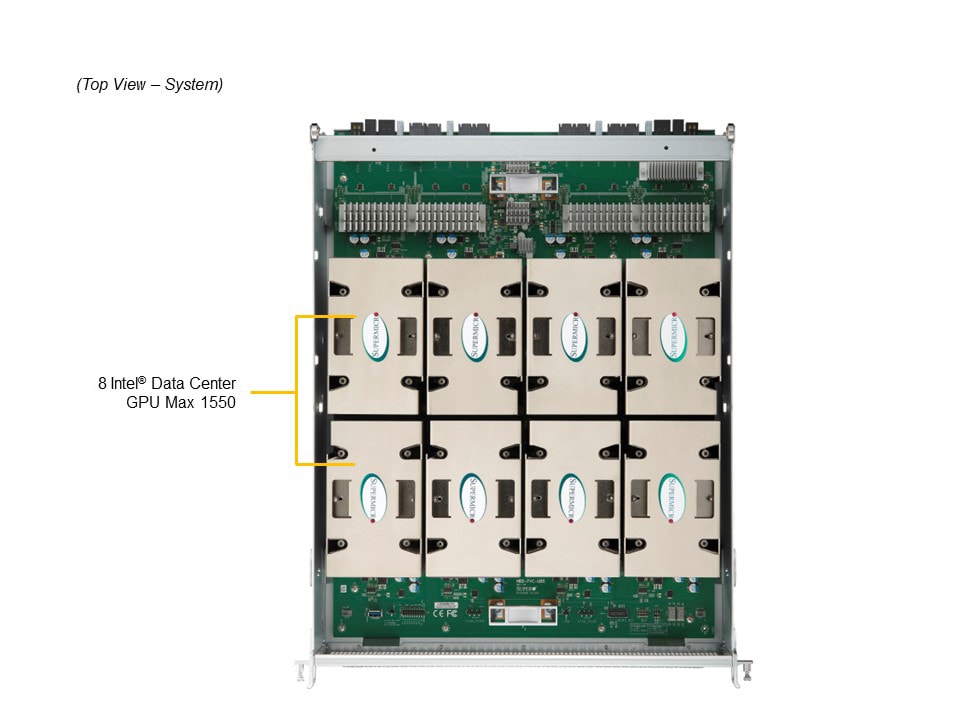

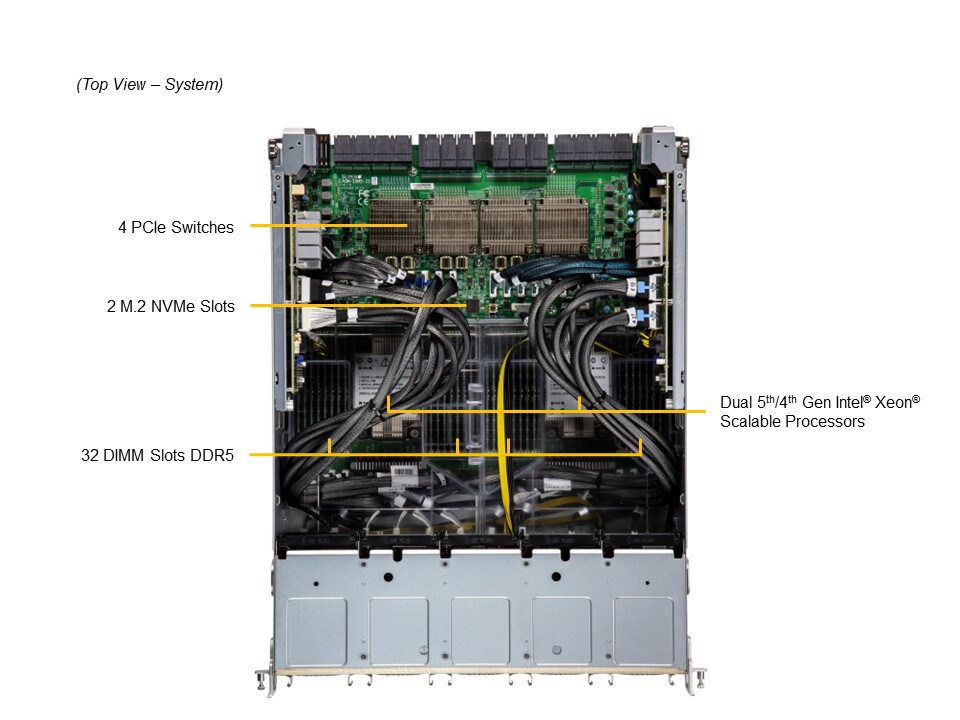

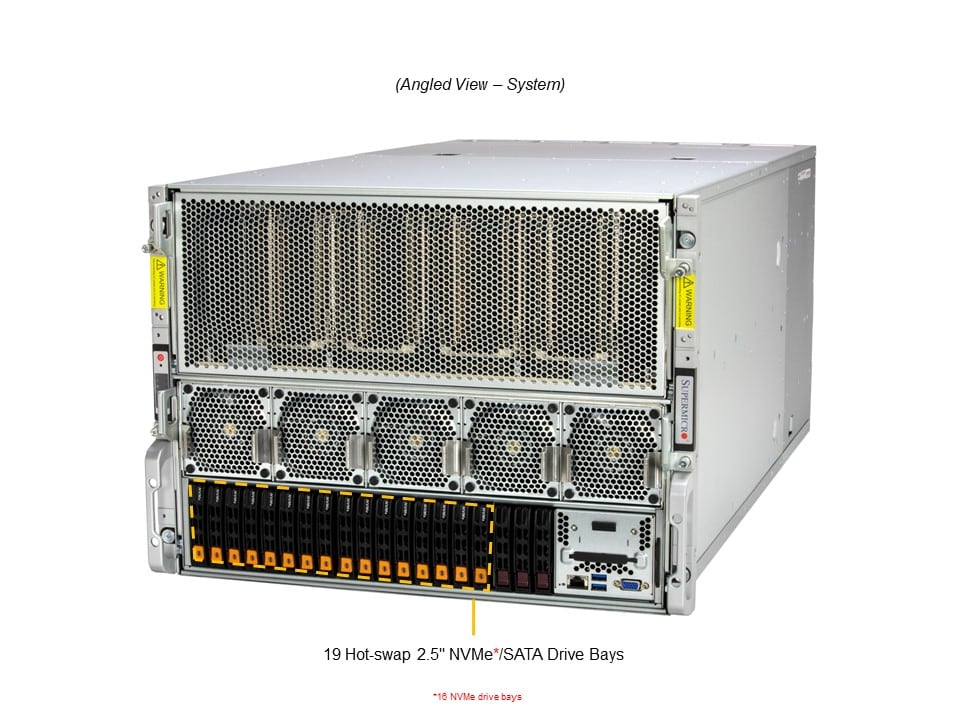

SYS-821GV-TNR Main SYS-821GV-TNR Angle SYS-821GV-TNR Top SYS-821GV-TNR Top1 SYS-821GV-TNR Front SYS-821GV-TNR Rear
Integrated Board: X13DEG-PVC
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Industrial Automation
  • Business Intelligence & Analytics
  • Climate and Weather Modeling
  • Biomedical
  • Generative AI
  • Finance Services and Fraud Detection

Key Features

  1. Dual 4th Gen Intel® Xeon® Scalable processors With PCIE Gen 5 Platform
    GPU Memory Bandwidth: 3276.8 GB/s
    GPU Memory: 1TB HBM2
    GPU to GPU Interconnect: 742 GB/s XeLink Scale Up Bandwidth
    High Density Computing: 8 x Intel® Data Center GPU Max 1550 (600W) OAM
    Open Ecosystem with oneAPI
    Performance: 6.7 petaFLOPS FP16/BF16
  2. 32x DIMM slots, ECC DDR5 up to 8TB and 4800MTS
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-821GV-TNR (Silver)
Motherboard
Super X13DEG-PVC
Processor
CPU
Core Count
  • Up to 56C/112T; Up to 105MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 8 onboard GPU(s)
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • Intel® Xe Link Bridges
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 DRAM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550-AT2 (optional)
Input / Output
LAN
  • 1 RJ45 1GbE (Dedicated IPMI port)
USB
  • 2 USB 3.2 Gen1 port(s) (2 Front_USB)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP801TS-R000NPF
Dimensions and Weight
Height
  • 13.8" (356mm)
Width
  • 17.7" (447mm)
Depth
  • 33.2" (843mm)
Package
  • 27.6" (H) x 51" (W) x 29.5" (D)
Weight
  • Net Weight: 130.07 lbs (59 kg)
  • Gross Weight: 196.21 lbs (89 kg)
Available Color
  • Silver
Front Panel
Buttons
  • UID button
LEDs
    Expansion Slots
    PCI-Express (PCIe)
    • 8 PCIe 5.0 x16 LP slot(s)
    • 4 PCIe 5.0 x16 FHHL slot(s)
    Drive Bays / Storage
    Hot-swap
    • 19x 2.5" hot-swap NVMe/SATA drive bays (16x 2.5" NVMe dedicated)
    M.2
    • 2 M.2 NVMe OR 2 M.2 SATA3
    • M-Key, 22110, 2280
    System Cooling
    Fans
    • 10 Removable heavy-duty 8CM Fan(s)
    Power Supply
    6x 3000W Redundant Titanium Level power supplies
    Dimension

    (W x H x L)
    • 106.5 x 82.1 x 245.5 mm
    AC Input
    • 3000W: 0240Vdc / 50-60Hz (for CQC only)
    • 2880W: 200-207Vac / 50-60Hz
    • 3000W: 207-240Vac / 50-60Hz
    +12V
    • Max: 91.66A / Min: 0A (200Vdc-240Vdc)
    12V SB
    • Max: 3A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Certification Titanium Level94%+   Titanium Level



      [ Test Report ]
    Operating Environment
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)


    Resources
    Component Options
    CPU ListCompatible GPU ListDrive OptionsTested AOC ListTested M.2 ListTested Memory
    Documentation
    Manuals
    Software
    BIOS DownloadBMC DownloadDrivers & Utilities
    Parts List
    Standard Parts (Parts Included)
    Part Number Qty Description
    Motherboard / Chassis MBD-X13DEG-PVC

    CSE-GP801TS-R000NPF     		1

    1     		Super X13DEG-PVC Motherboard

    8U Chassis
    Add-on Card / Module AOM-528G-FAN-CAS2-P 2 FAN board with 5 FAN connectors and 4 2x4 power connect
    AOM-DP801-IO-P 1 IO board for Delta-Next GPU system,RoHS
    AOM-DP801-PCIE-P 2 NIC Riser board(After Mid-Plane) for Delta-Next GPU Syst
    AOM-DP801-SW-P 2 NIC adaptor board with PLX switch for Delta-Next GPU sys
    AOM-DXF-IO-P 1 Delta Next IO module, VGA, RJ45 LAN, USB3.0, COM, UID,Ro
    AOM-GP801-LPIO-P 1 NIC card carrier board for Delta-Next GPU system,RoHS
    AOM-SXM5-IO-P 1 PCIE Gen5 switch board for 4U 8 SXM5 GPU system,RoHS
    Backplane BPN-GPU-GP801 1 Midplane for 8U Delta-Next GPU system SYS-821GE-TNHR (chassis CSE-GP801).,RoHS
    BPN-NVME5-HS219N-S24 1 NVMe Gen5 24-slot direct-attached backplane, support NVMe Gen5/SAS4/SAS3/SATA HDD/SSDs.,RoHS
    BPN-PDB-GP802 2 Power distribution board (extension board) used in Habana Gaudi2 GPU system,RoHS
    Cable CBL-0223L 6 BLADE PWS POWER CORD C-19 TO C-20, PBF
    CBL-CDAT-1062 2 PicoBlade 1.25, 1x4 to 1x4,SB,45cm,3x 26AWG,RoHS
    CBL-MCIO-1255M5 12 MCIO x8 (STR to STR),55CM,30AWG,RoHS
    CBL-MCIO-1265M5 4 MCIOx8/ STR to MCIOx8/ STR, 65cm,30AWG,RoHS
    CBL-MCIO-1324M5 3 MCIO (x8 to x8), STR, 24cm,G5,32AWG, RoHS,RoHS
    CBL-MCIO-1326M5 3 MCIO (x8 to x8), STR, 26cm,G5,32AWG, RoHS,RoHS
    CBL-MCIO-1330M5 3 MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS
    CBL-MCIO-1332M5 3 MCIO (x8 to x8), STR, 32cm,G5,32AWG, RoHS,RoHS
    CBL-PWEX-1142-40 1 MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS
    CBL-PWEX-1142-60 3 MicroHi,(2X4 to 2X4) P3.0,60CM,8A/pin,18AWG,RoHS
    CBL-PWEX-1142B-40 1 MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
    CBL-SAST-1245-100 1 Slimline x4 (STR) to Slimline x4 (STR),42.5CM,100 OHM,R
    CBL-SAST-1265A-85 1 Slimline x8 (STR) to Slimline x8 (STR),65CM,85 OHM,RoHS
    CBL-SAST-1286-100 2 Slimline x4 (STR) to Slimline x4 (STR),INT,85CM,100 OHM,
    Fan FAN-0238L4-1 5 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan for GP801,Ro
    FAN-0246L4 5 80x80x80mm, 48V 14.6K/12.2K RPM Counter-rotator, rear fan, c
    Parts MCP-180-45801-0V 2 MCP,UBB Handle,P8-99-240,RoHS
    Power Supply PWS-3K06G-2R 6 AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
    PWS-DF009-2F 2 8080 FAN module use with PWS-3K06G-2R
    Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
    Heatsink / Retention SNK-P0090AP4 2 4U Active CPU HS for X13 Gen. Intel Eagle Stream Platform
    Optional Parts List
    Part Number Qty Description
    Intel® VROC RAID Key Options AOC-VROCPREMOD • 1 Intel VROC Premium, RAID 0, 1, 5, 10
    AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Network Card(s) AOC-STGS-i2T-O 1 2x 10GbE RJ45 Intel X550-AT2, Gen3 x4 LP
    AOC-623106AN-CDAT 1 2x 100GbE ConnectX-6 Dx Ethernet AdapterCard, QSFP56
    AOC-CX766003N-SQ0 1 Nvidia 900-9X766-003N-SQ0 PCIe 1-port IB and Ethernet 400GbE OSFP Gen5x16 CX7
    GPU SuperServer SYS-821GV-TNR (Complete System Only )
