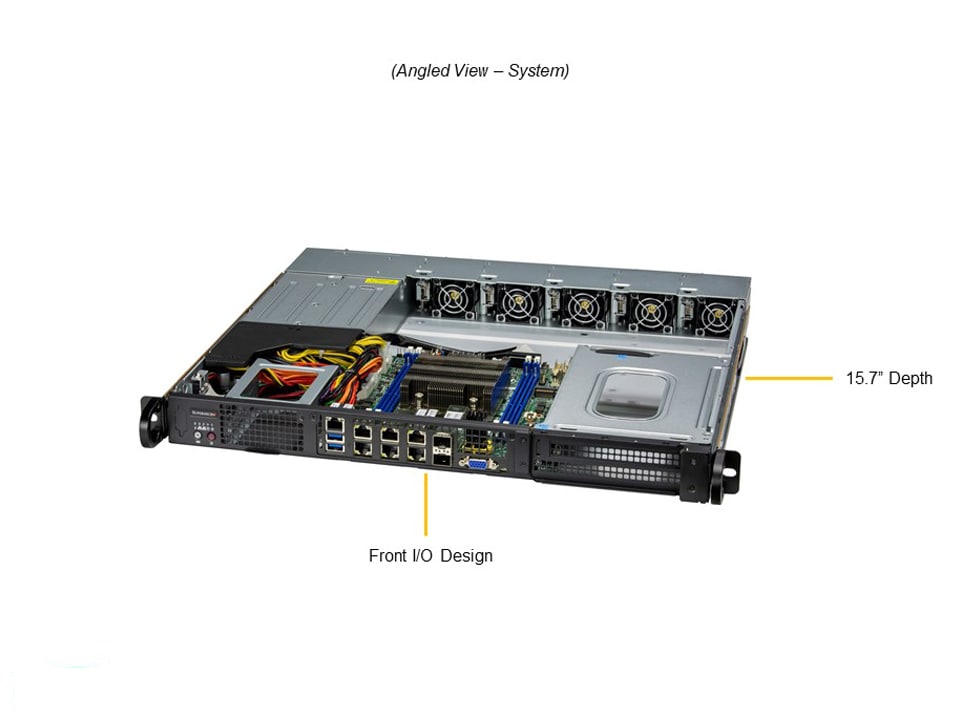

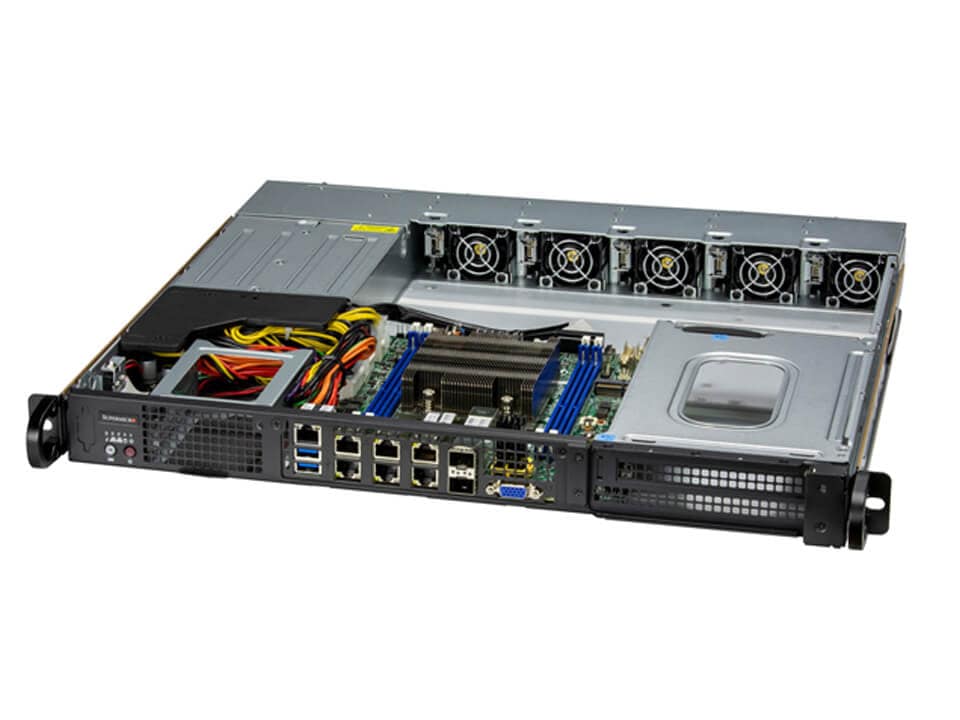

SuperServer SYS-110D-16C-FRDN8TP

Integrated Board: X12SDV-16C-SPT8F
Learn more

Key Features

  1. Intel® Xeon® Processor D-2775TE, CPU TDP 100W
  2. Up to 256GB Registered ECC RDIMM, DDR4-3200MHz; Up to 512GB LRDIMM LRDIMM, DDR4-3200MHz, in 4 DIMM slots
  3. 2x Internal 2.5" drive bays(2x PCI-E 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
  4. 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
  5. 1x M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
  6. 5x 40x56mm Hot-swap Counter-rotation PWM Fans
  7. Redundant 600 W, -48 Vdc
...
...
Resources
Specifications
Product SKUs
SYS-110D-16C-FRDN8TP
  • SuperServer SYS-110D-16C-FRDN8TP (Silver)

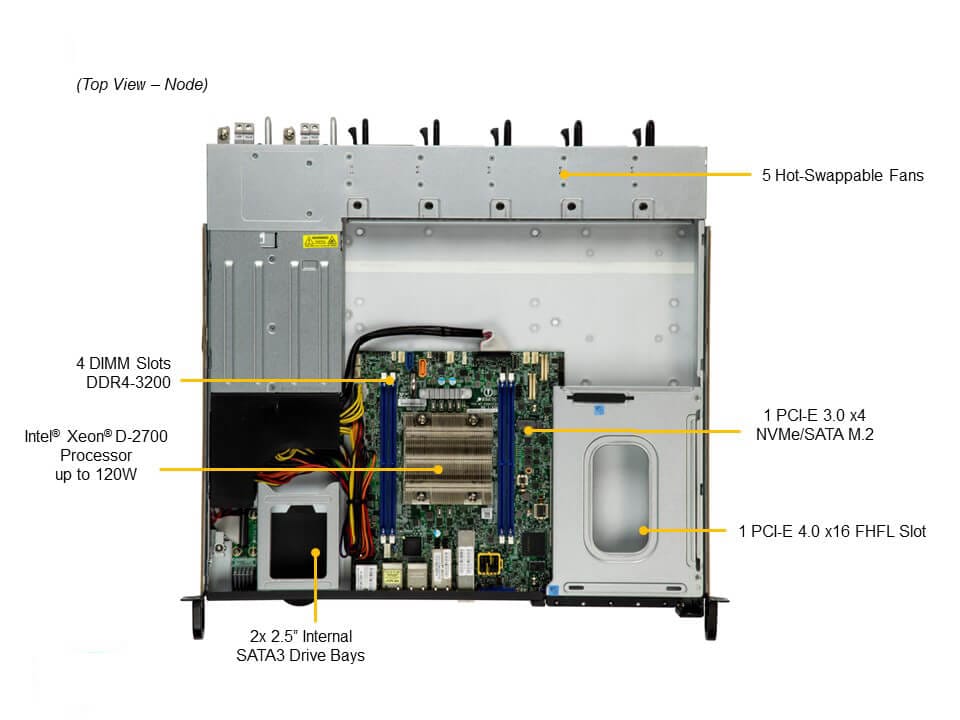

Motherboard


Super X12SDV-16C-SPT8F

Processor
CPU
  • Single FCBGA-2579
  • Intel® Xeon® Processor D-2700 Series
  • Support CPU TDP 100W

System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 256/512GB: ECC RDIMM/LRDIMM
  • Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
Chipset
  • Intel® SoC
Network Connectivity
  • 4x 1GbE GbE
  • 2x 25GbE SFP28
  • 2x 10GbE Base-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video
  • 1 VGA port(s)

Management
Software
  • SuperDoctor® 5
  • IPMI 2.0
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515M-R000NP2

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 15.7" (399mm)
Package
  • 7.9" (H) x 26.7" (W) x 23.8" (D)
Weight
  • Net Weight: 18 lbs (8.16 kg)
  • Gross Weight: 29 lbs (13.15 kg)
Available Color
  • Silver

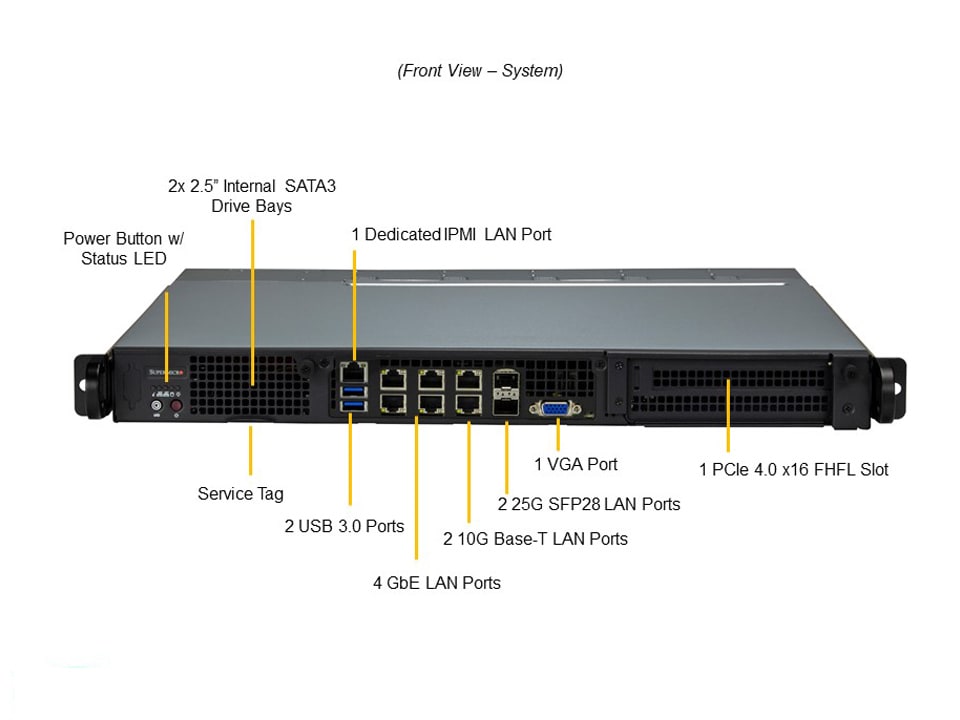

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 6: 1 PCIe PCI-E 4.0 x16 FHFL

Drive Bays / Storage
Drive Bays
  • 2x 2.5" SATA/PCIe drive bays
M.2
  • 1 M.2 NVMe OR 1 M.2 SATA3
  • M-Key, 2242/2280

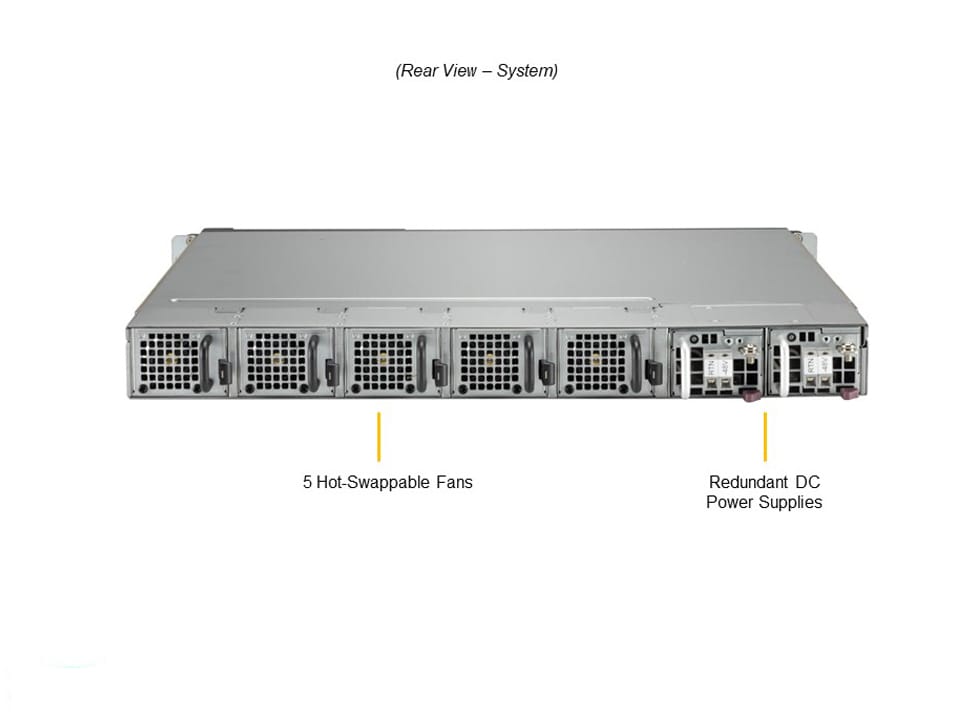

System Cooling
Fans
  • 5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s)

Power Supply
600W Redundant DC -48V Power Supplies with PMBus
Total Output Power
  • 600W : (-44) - (-65) Vdc
Dimension

(W x H x L)
  • 54.5 x 40 x 220 mm
+12V
  • Max: 50A
5V SB
  • Max: 3A / Min: 0A
Certification

  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
