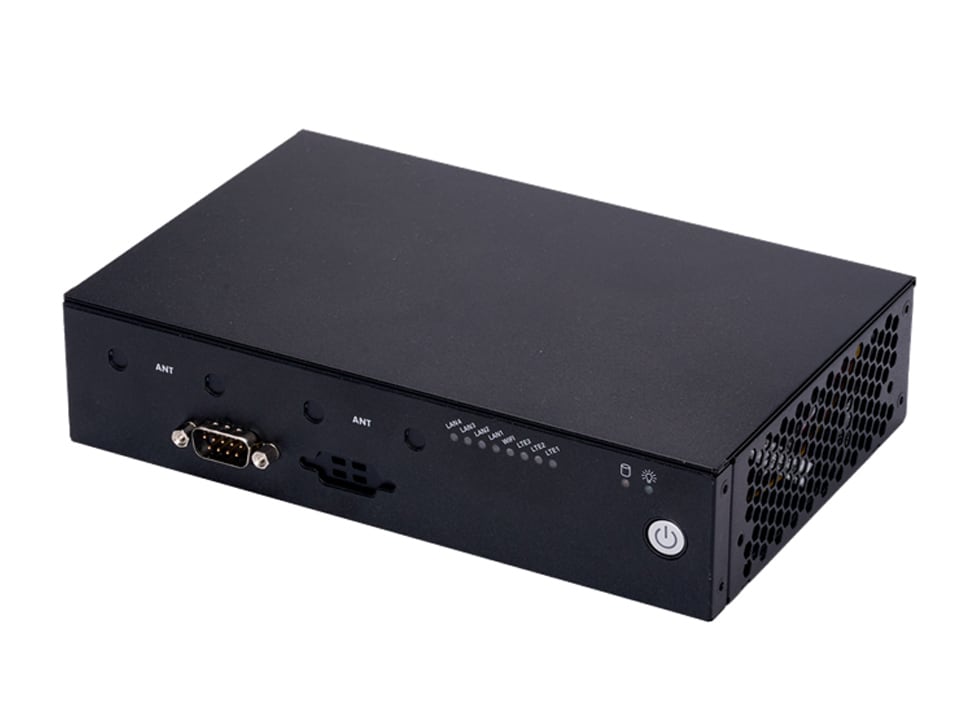

SuperServer SYS-E102-9AP-LN4-C

Integrated Board: A2SAN-LN4-C
Learn more

Key Applications

  • IoT Gateway
  • Network Security Appliance
  • SD WAN
  • Embedded Networking Applications

Key Features

  1. Intel® Atom E3940/J3455 4C/4T Processor with up to 8GB DDR3L 1866MHz SODIMM
  2. Intel® HD Graphics
  3. 4x Gigabit LAN Ports ( C: Intel® I211 AT)
  4. 1x 2.5” 7mm Storage Drive
    3x M.2 B Key (USB) 2242/3042 with 3x Nano SIM Slot, 1x M.2 E Key 2230
  5. 2x USB 3.2 Ports Gen1, 1 HDMI Port, 1 COM Port
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-E102-9AP-LN4-C (Black)
Motherboard
Super A2SAN-LN4-C
Processor
CPU
  • Single Single Socket FCBGA-1296 supported
  • Intel® Celeron® Processor J3455
  • Support CPU TDP 10W
Cores
  • Up to 4C/4T; Up to 2MB Cache
System Memory
Memory
  • Memory Capacity: 1 DIMM slots
  • Up to 8GB: SO-DIMM
  • Memory Type: 1866MHzMHz DDR3L up to 8GB
On-Board Devices
SATA
  • SATA3 (6Gbps)
Chipset
  • intel System on Chip
Network Connectivity
  • 4x 1GbE BaseT

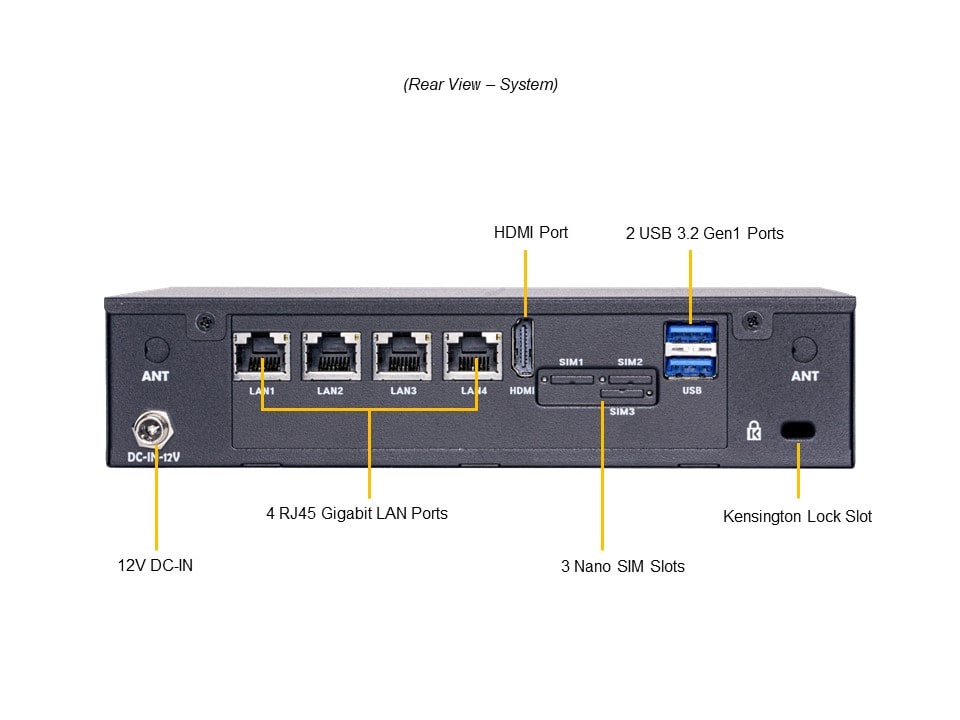

Input / Output
LAN
  • 4 RJ45 GbE LAN ports
Serial Port
  • 1 COM Port(s) (1 front)
System BIOS
BIOS Type
  • AMIUEFI
BIOS Features
  • SMBIOS 3.0
  • UEFI 2.5
Management
Software
  • SuperDoctor® 5
Power Configurations
  • Restore on AC Power Loss
  • Power Button Function
  • Watch Dog Function
  • DeepSx Power Policies
Chassis
Form Factor
  • 3.5" SBC
Model
  • CSE-E102TF

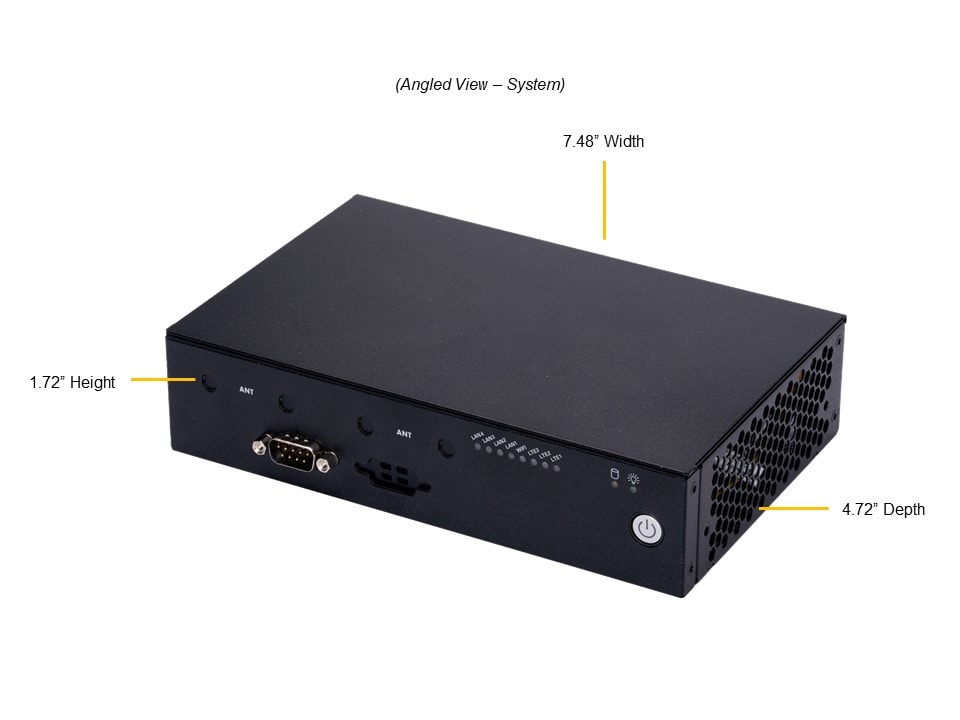

Dimensions and Weight
Height
  • 1.72" (44mm)
Width
  • 7.48" (190mm)
Depth
  • 4.72" (120mm)
Package
  • 1.72" (H) x 11.81" (W) x 4.72" (D)
Weight
  • Net Weight: 2.65 lbs (1.2 kg)
  • Gross Weight: 4.5 lbs (2.04 kg)
Available Color
  • Black

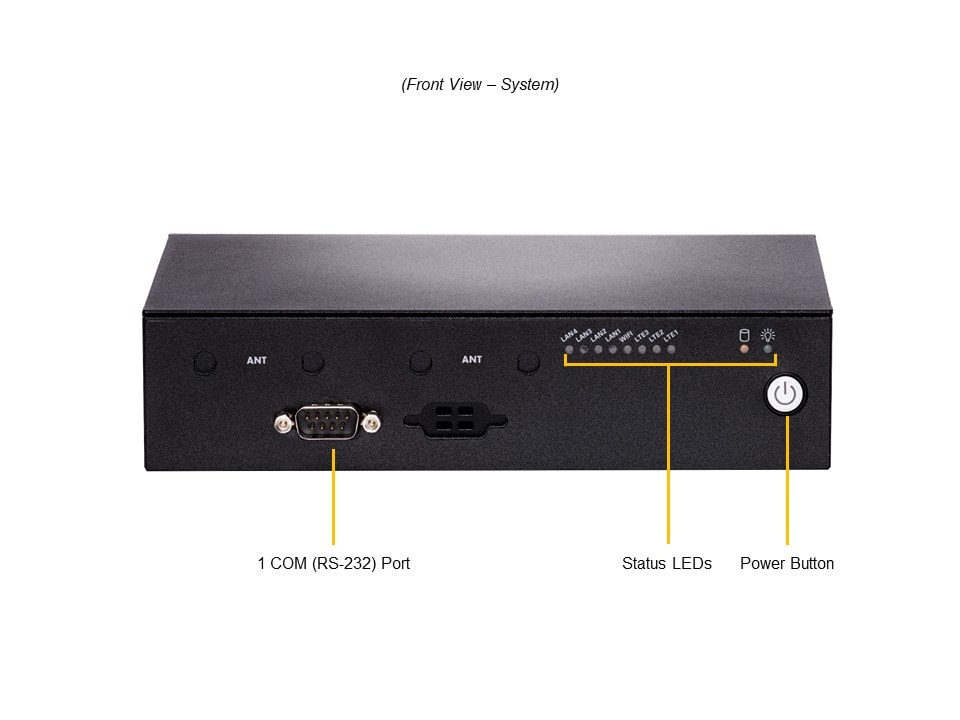

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • HDD Status
  • LAN1 activity
  • LAN2 activity
  • LAN3 activity
  • LAN4 activity
  • LTE1 activity
  • LTE2 activity
  • LTE3 activity
  • Power status
  • System information
  • WIFI activity
Drive Bays / Storage
Drive Bays
  • 1x 2.5" drive bays
M.2
  • 1 M.2 SATA3
System Cooling
Fans
  • 1x 40mmcm heavy duty fans with optimal fan speed control
Power Supply
FSP 12V 60W Lockable Power Adapter 90-264VAC input w/o power cord - EN62368
Dimension

(W x H x L)
  • 110 x 31.5 x 62 mm
AC Input
  • 60W: 100-240Vac / 5A Max / 47-63Hz
Operating Environment
Environmental Spec.
  • Operating Temperature:
       0°C ~ 50°C (32°F ~ 122°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-A2SAN-LN4-C

CSE-E102TF
1

1
Super A2SAN-LN4-C Motherboard

3.5" SBC Chassis
Cable CBL-OTHR-1061-15 1 D-SUB 9/M to PH2.0 2X5P,15CM,28AWG,RoHS
CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
CBL-PWEX-0982 1 PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
CBL-SAST-0881 1 SATA,INT,6G,FLAT,ST-RA,25CM,30AWG,BLK,No Latch,RoHS
Power Supply MCP-250-10134-0N 1 60W Lockable Power Adapter w/o power cord - EN62368
Manual MNL-2473-QRG 1 E102-9AP-LN4-E/-C Quick Reference Guide
*Fan FAN-0232L4 1 40x40x10 mm, 8K RPM Cooling Fan for SYS-E102-9AP-LN4-C/E Emb
*Parts MCP-160-10201-0B 1 CSE-E102 Default Front Panel mylar without any opening
MCP-160-10206-0B 1 FP mylar with LTE antenna port for CSE-E102TF
MCP-260-10207-0B 1 Black CSE-E102TF I/O shield for MBD-A2SAN-LN4
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
