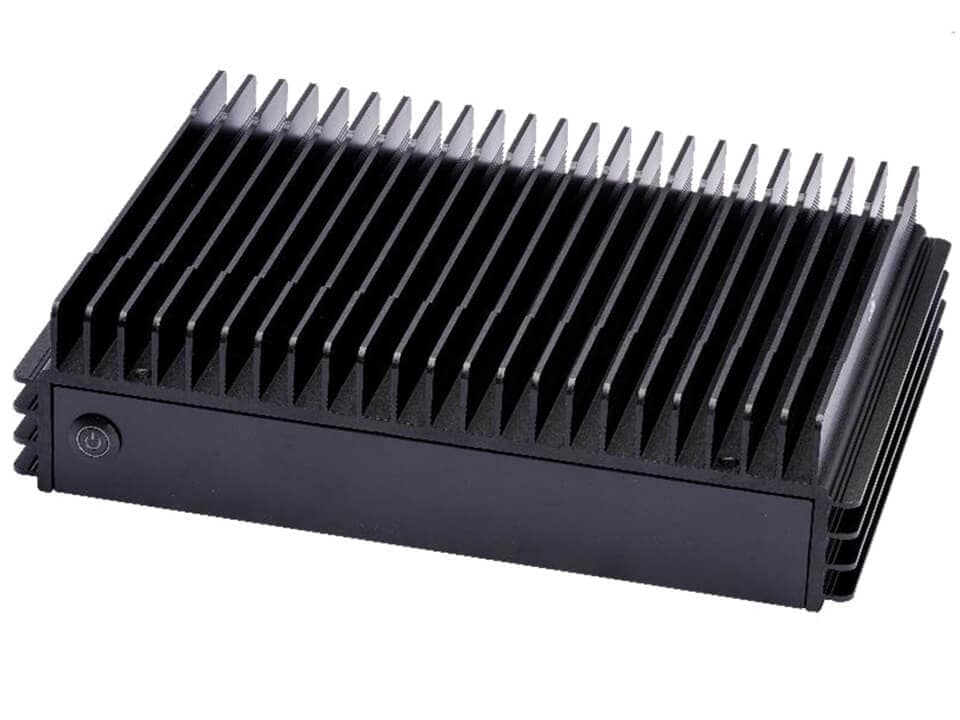

SuperServer SYS-E302-12A-4C (Complete System Only)

Key Applications

IoT Gateway
Network Security Appliance
SD WAN
Embedded Networking Applications
Retail
Industrial Automantion
Artificial Intelligence
Machine Learning

Key Features

Optional Wall / VESA Mount Bracket
Intel® Atom® Parker Ridge processor C5315, TDP 38W
Up to 128GB ECC RDIMM DDR4-2400MHz, in 2 DIMM slots
1x M.2 B-Key 3052, 1x M.2 M-Key 2280
1x dedicated LAN for IPMI, 6x Networking Interface (2x 10G SFP+, 4x 1G RJ45)
1x 2.5" SATA drives
Fanless Cooling, Operating Temperature: 0°C to 45°C (32°F to 113°F)
Lockable 12V DC 150W Power Adapter
Intel® Quick Assist Technology

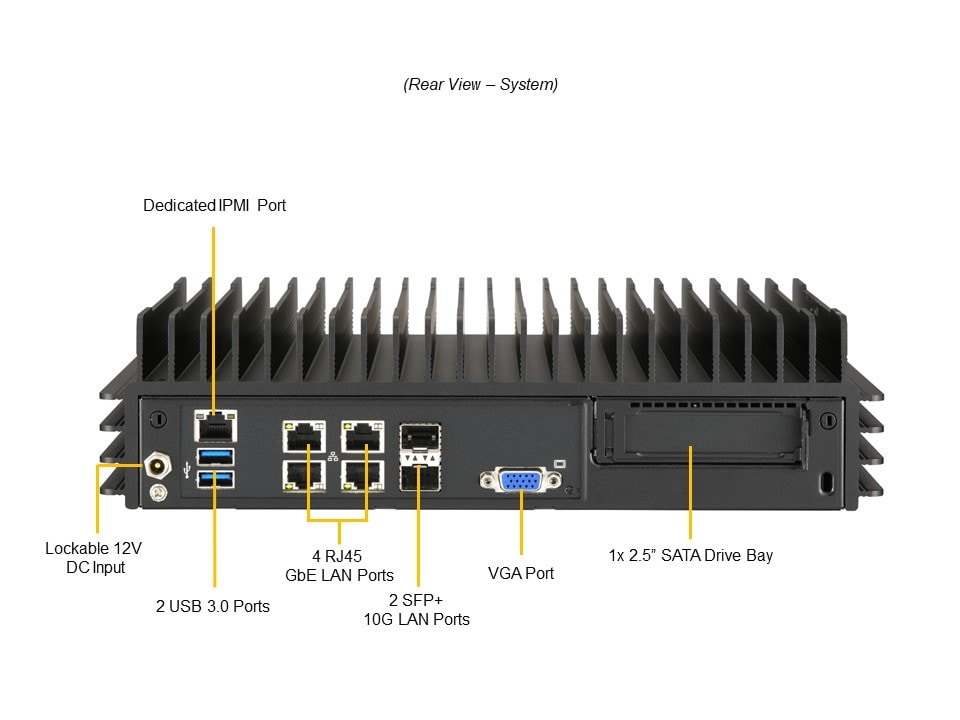

VGA via BMC, 2 USB 3.0 ports

...

...

Specifications

Product SKUs
SuperServer SYS-E302-12A-4C (Black)

Motherboard
Super A3SPI-4C-LN6PF

Processor
CPU	Single FCBGA-2106 Intel® Atom® processor C5315
Core Count	Up to 4C/8T; Up to 9MB Cache per CPU
Note	Supports up to 38W TDP CPUs (Air Cooled)

System Memory
Memory	Memory Capacity: 2 DIMM slots Up to 128GB: ECC RDIMM, DDR4-2400MHz Memory Type: 2400MHz ECC DDR4 RDIMM
Memory Voltage	1.2 V
Error Detection	ECC

On-Board Devices
SATA	SoC controller for 1 SATA3 (6 Gbps) port
Chipset	Intel® SoC
Network Connectivity	2x 10GbE SFP+ with Intel® C5000 SoC 4x 1GbE BaseT port(s)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port 2 SFP+ 10GbE 4 RJ45 Gigabit Ethernet LAN ports
USB	2 USB 3.0 port(s) (2 USB)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB UEFI
BIOS Features	ACPI 6.0 or later SMBIOS 3.0 or later UEFI 2.7

Management
Software	IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Server Manager (SSM) Redfish API
Power Configurations	+12V DC Power Input CPU thermal trip support for processor protection Power-on mode for AC power recovery

Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates System Lockdown

Chassis
Form Factor	Fanless Embedded
Model	CSE-E302iL3

Dimensions and Weight

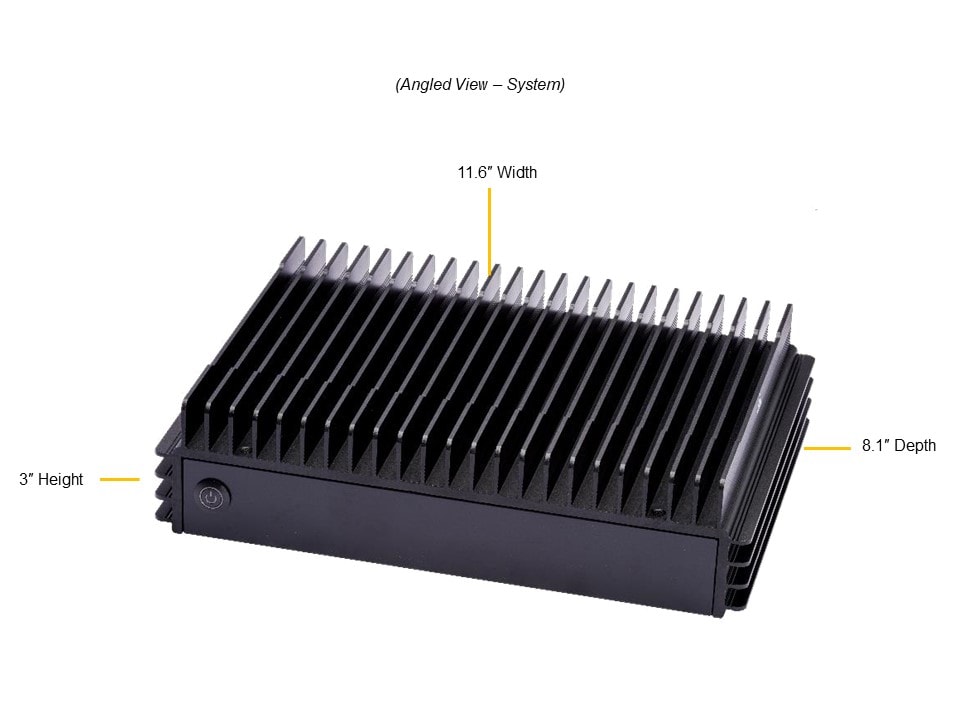

Height	3" (76mm)
Width	11.6" (295mm)
Depth	8.1" (206mm)
Package	12" (H) x 16.45" (W) x 7.6" (D)
Weight	Net Weight: 8 lbs (3.63 kg) Gross Weight: 12 lbs (5.44 kg)
Available Color	Black

Front Panel

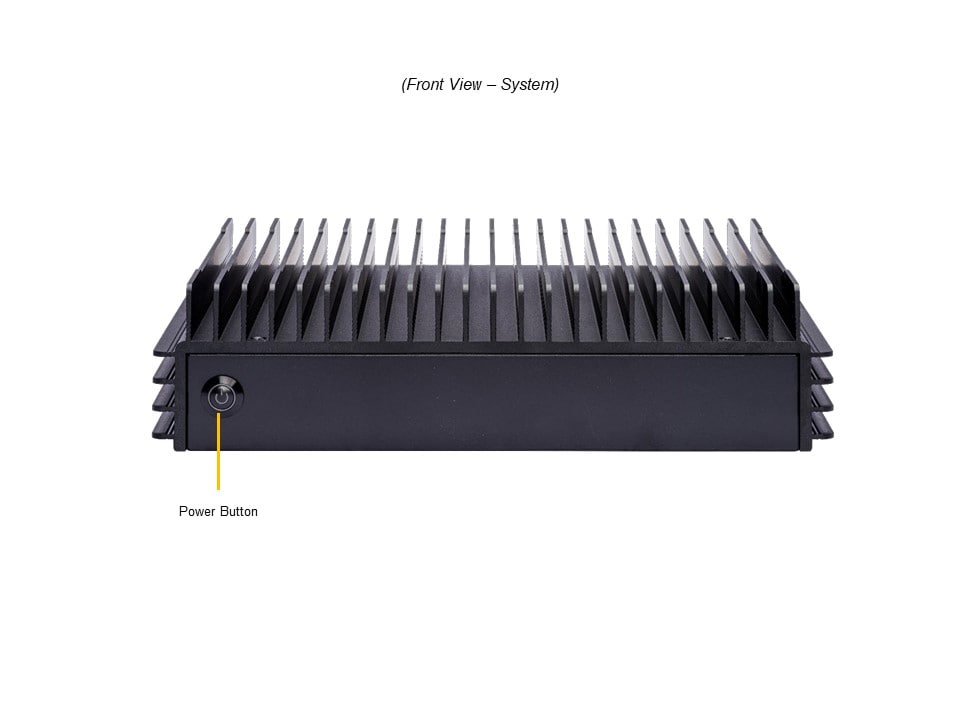

Buttons	Power On/Off
LEDs	Power status

Drive Bays / Storage
Drive Bays	1x 2.5" SATA drive bays
M.2	1x M-Key 2280 (PCIe 3.0 x4) 1x B-Key 3052 (PCIe 3.0 & SATA3 & USB3.0)

System Cooling
Fans	N/A

Power Supply
150W Level power supply
AC Input	150W: 100-240Vac / 47-63Hz

Operating Environment
Environmental Spec.	Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Resources

Component Options

Drive Options Tested AOC List Tested M.2 List Tested Memory

Documentation

Software

BIOS Download BMC Download Drivers & Utilities OS Certification

Parts List

Standard Parts (Parts Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-A3SPI-4C-LN6PF CSE-E302iL3	1 1	Super A3SPI-4C-LN6PF Motherboard Fanless Embedded Chassis
Power Supply	MCP-250-10128-0N	1	150W Lockable Power Adapter with US power cord
*Cable	MCP-180-30202-0N	1	Y split,DC lockable input ,DC5.5 to 2x4P, 40cm, 22AWG,RoHS
Notes: Parts with * are inside the chassis Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
	Part Number	Qty	Description
Cable	CBL-SAST-1214T3PY31	1	SATA signal & power

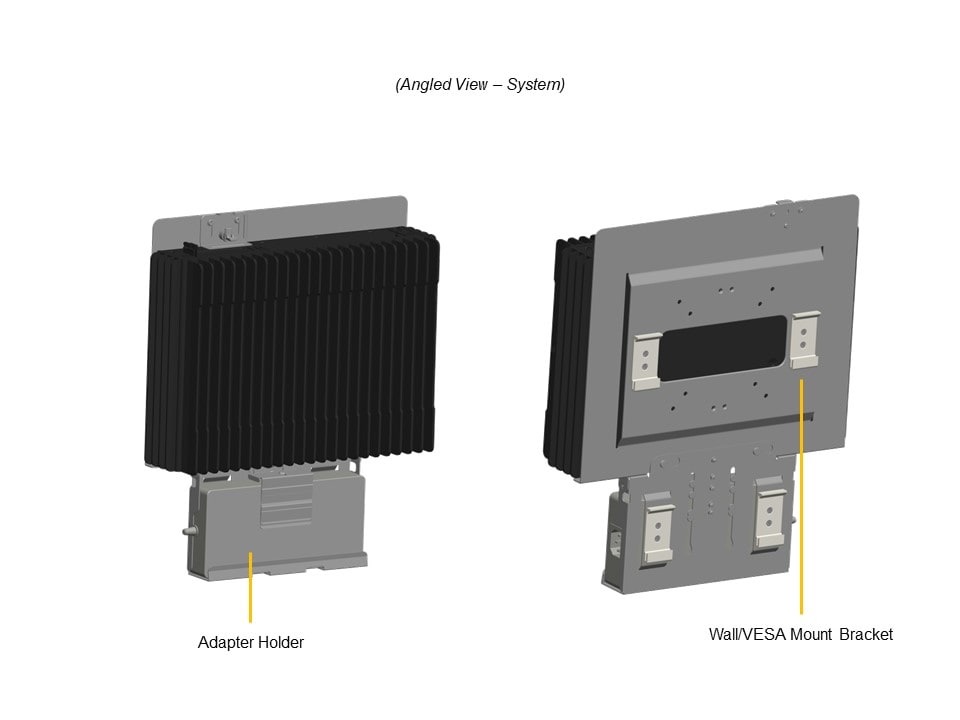

Wall mount/VESA mount	MCP-290-30201-0B	1	WALL / VESA mount kit with adapter holder
