SuperServer ARS-111M-NR (Complete System Only)

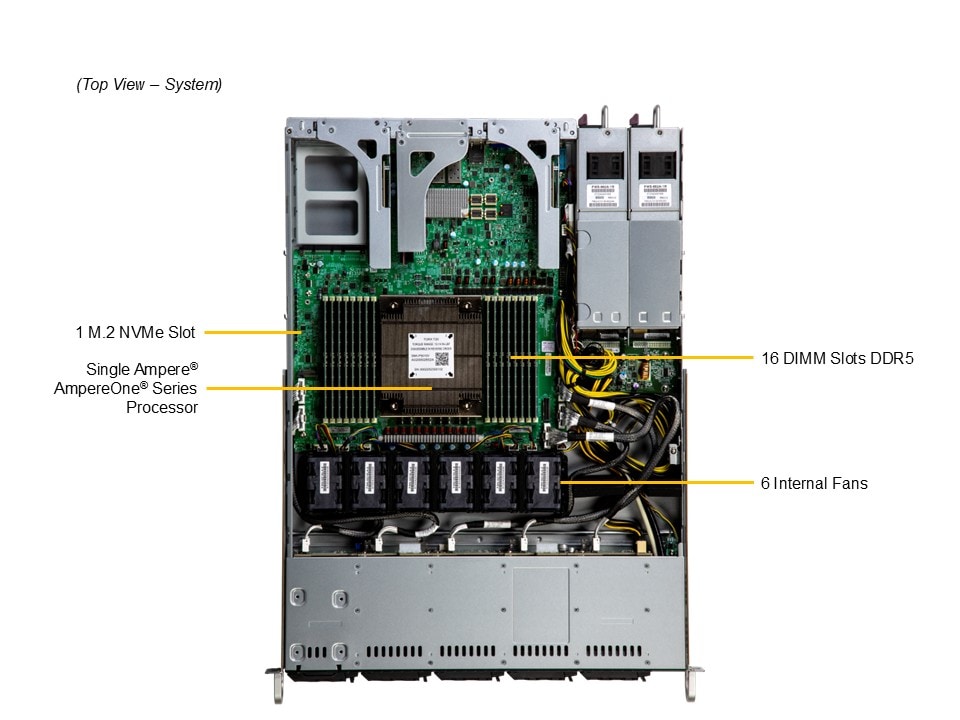

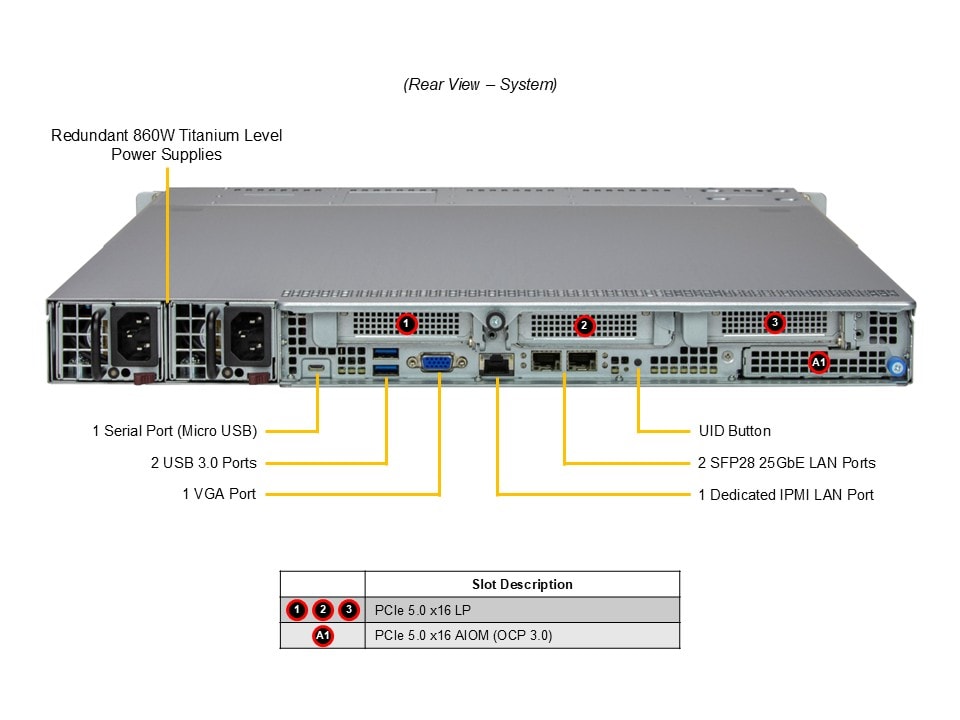

ARS-111M-NR Main ARS-111M-NR Angle ARS-111M-NR Front
Integrated Board: R13SPD

Key Applications

  • Enterprise Server
  • Hyperscale Data Center
  • Front End Server
  • Infrastructure

Key Features

  1. Single Socket Ampere® AmpereOne® Processor (Up to 192 Cores; Up to 3.0Ghz) ; Up to 250W TDP
  2. 16 DIMMs; Up to 4TB ECC Registered DDR5-4800MHz RDIMM/LRDIMM
  3. 3 PCIe 5.0 x16 (LP) Slots, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
  4. 2x 25Gb LAN SFP28 Ports via BCM57414 Controller w/NC-SI
  5. 12x 2.5" U.2 NVMe Hot-Swap Drive Bays
  6. 860W Redundant Titanium Level High-efficiency Power Supplies
  7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
...
...
Specifications Resources Parts List
Specifications
Product SKUs
ARS-111M-NR (Black)
Motherboard
Super R13SPD
Processor
CPU
  • Single processor(s)
  • Ampere® AmpereOne® processor
Note
  • Supports 200W - 250W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Memory Type: 4800MHz ECC DDR5 RDIMM; LRDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • 2x 25GbE SFP28 with Broadcom
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2x 25Gb SFP28 Ethernet LAN Ports
USB
  • 2 USB 2.0 port(s) (2 Front_USB)
  • 2 USB 3.0 port(s) (2 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 Serial (Micro USB) Port
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R804AMP2
Dimensions and Weight
Height
  • 1.7" (43.18mm)
Width
  • 17.2" (436.88mm)
Depth
  • 23.5" (596.9mm)
Package
  • 7.5" (H) x 23.5" (W) x 31.5" (D)
Weight
  • Net Weight: 25 lbs (11.3 kg)
  • Gross Weight: 46 lbs (20.9 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 5.0 x16 LP slot(s)
  • 1 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap
  • 12x 2.5" hot-swap NVME drive bays (12x 2.5" NVMe dedicated)
M.2
  • 1 M.2 NVMe
  • M-Key, 22110
System Cooling
Fans
  • 6 Heavy Duty 4cm Fan(s)
Power Supply
860W Level power supply
AC Input
  • 800W: 100-127Vac
  • 860W: 200-240Vdc
  • 860W: 200-240Vac
+12V
  • Max: 66.67A / Min: 0A (100Vac-127Vac)
  • Max: 71.67A / Min: 0A (200Vdc-240Vdc)
  • Max: 71.67A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Certification

  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Resources
Component Options
Tested AOC List
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-R13SPD

CSE-LB16TS-R804AMP2 		1

1 		Super R13SPD Motherboard

1U Chassis
Backplane BPN-NVME5-HS119N-S4R 1 1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,RoHS
BPN-NVME5-HS119N-S8L 1 1U 8-slot backplane support 8x SAS3/SATA3/NVME5 storage devices for Hyper-S platform,RoHS
Cable CBL-MCIO-1235M5 6 [NR] MCIO x8 (STR to STR),35cm,85OHM,RoHS
CBL-PWEX-1077 1 PWR EXT,2X4F to 2x6, 25CM,18AWG, 8.5A/pin,RoHS
Air Shroud MCP-310-LB008-0B 1 Air block for LB16-AM 1U Mega DC with R12SPD-A
Power Supply PWS-862A-1R 2 1U redundant 800/860W Titanium AC power supply 54.5x40x220mm
Riser Card RSC-D-6G5+ 2 [NR]1U LHS DCO Riser card with one PCIe 5.0 X16 slot,HF,RoH
RSC-PR-6G5 1 1U RHS TwinPro Riser card with one PCIe 5.0 X16 slot,HF
Heatsink / Retention SNK-P5010V 1 1U Passive CPU Heat Sink for ARM-based CPU R13 Systems
