SuperServer SSG-540P-E1CTR60L (Complete System Only)

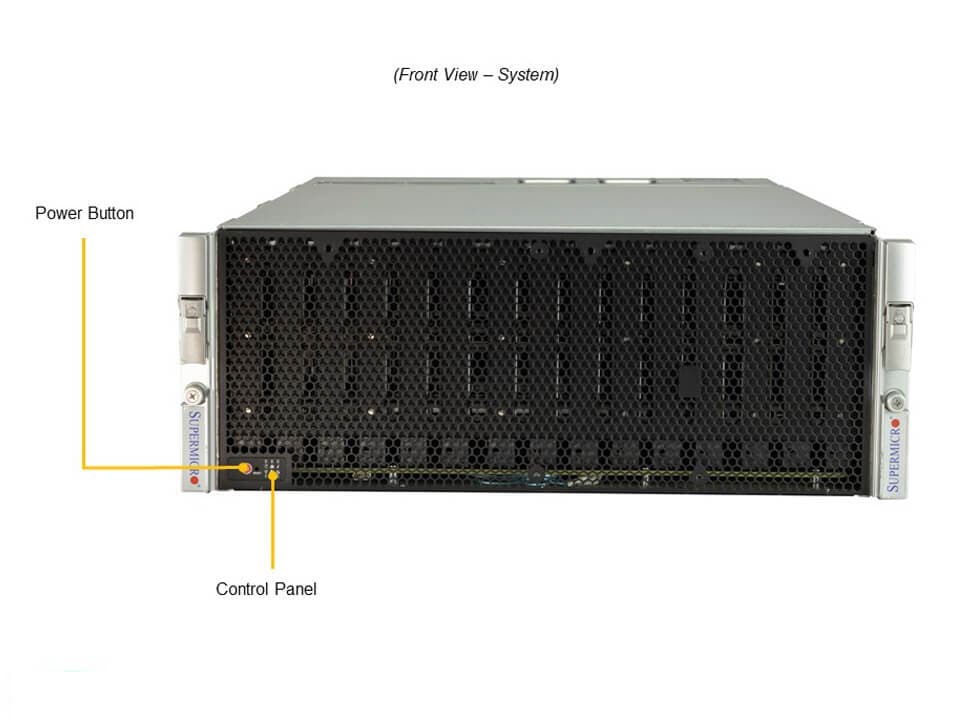

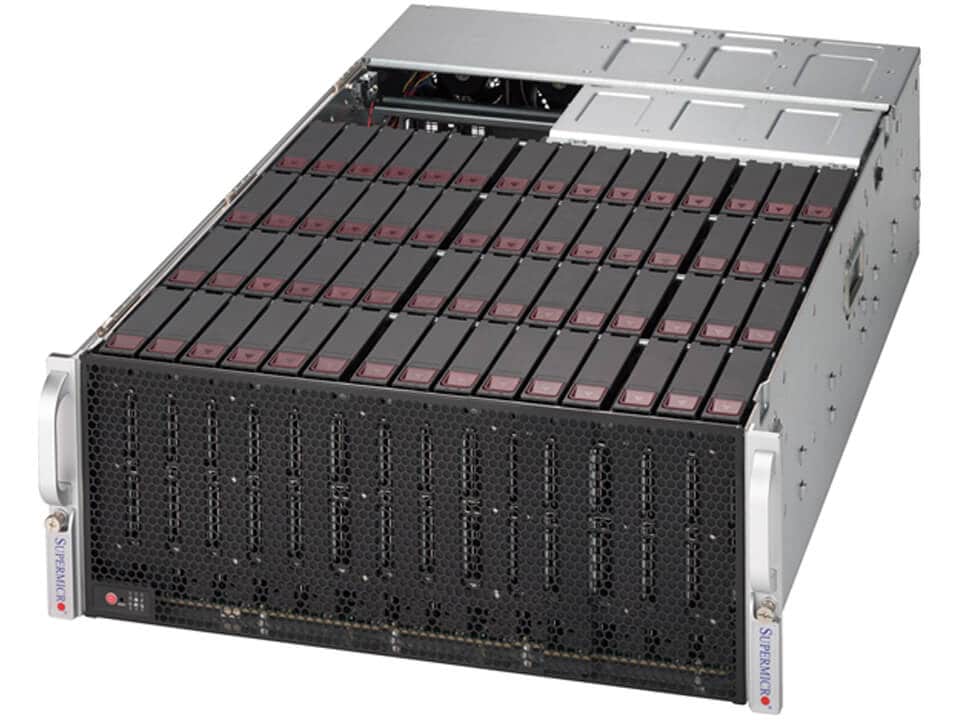

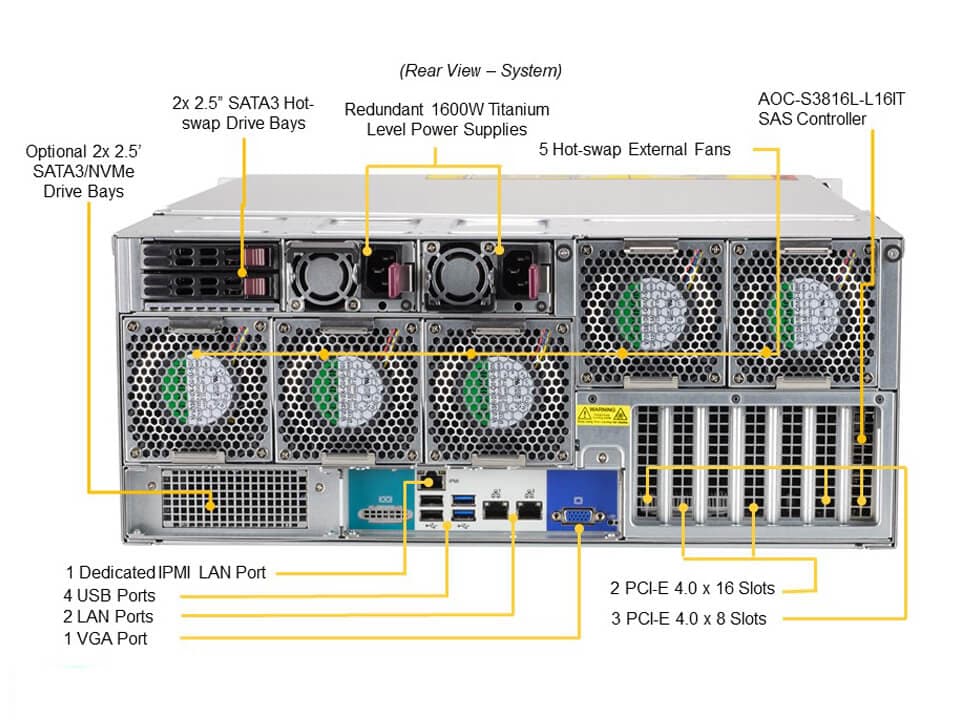

SSG-540P-E1CTR60L Main SSG-540P-E1CTR60L Angle SSG-540P-E1CTR60L Top SSG-540P-E1CTR60L Front SSG-540P-E1CTR60L Rear
Integrated Board: X12SPI-TF
Learn more

Key Applications

  • Database Applications
  • Backup Storage, Cold Storage
  • Data Warehousing, Archiving

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45

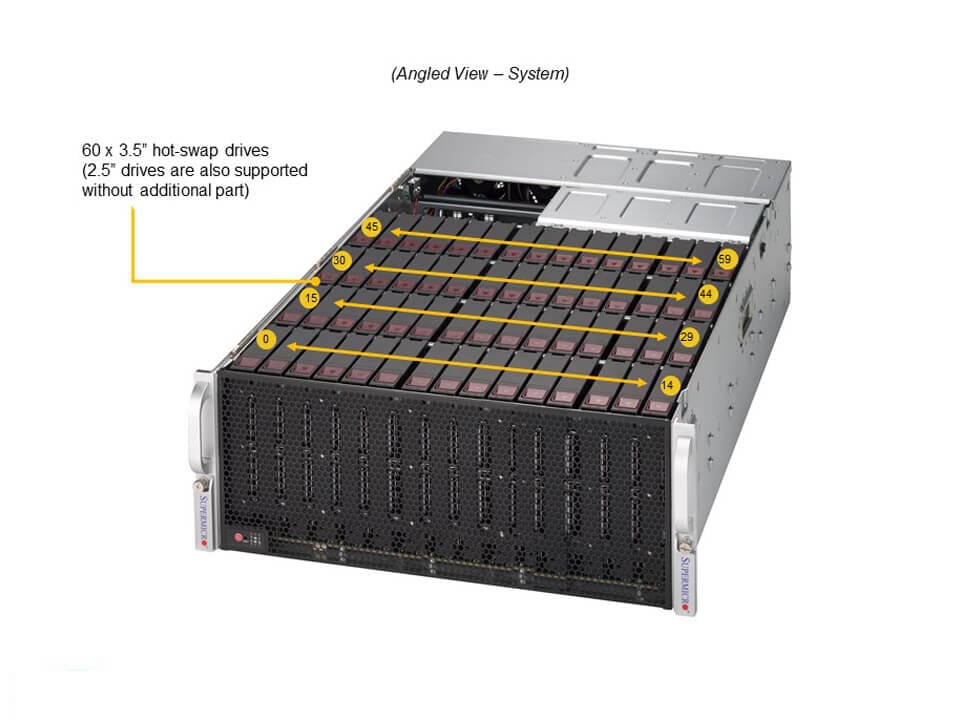

  5. 60x Top-loading hot-swap 3.5" or 2.5" SAS3/SATA3 drive bays, 2x Hot-swap 2.5" SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" SATA3/NVMe (rear, optional)
  6. 5 Hot-Swap 8cm redundant PWM fans
  7. Redundant Titanium 1600W Power Supply
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SSG-540P-E1CTR60L (Black)
Motherboard
Super X12SPI-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support
SAS
  • SAS3 (12Gbps) via Broadcom 3816 (IT mode)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ-45 10Gbase-T ports
USB
  • 4 USB 3.0 port(s) (4 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSV-946STS-R1K6LPP
Dimensions and Weight
Height
  • 7"
Width
  • 17.2"
Depth
  • 30.2" (767mm)
Package
  • 33.25" (H) x 28" (W) x 42.5" (D)
Weight
  • Net Weight: 117 lbs (53 kg)
  • Gross Weight: 169.5 lbs (76.9 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 4.0 x8 LP slot(s)
  • 2 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap
  • 60x 3.5" hot-swap SATA3/SAS3 drive bays
M.2
  • 1x PCIe 3.0 x4 and SATA
System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
  • 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Resources
Component Options
Drive OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
Manuals
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPI-TF

CSV-946STS-R1K6LPP  		1

1 		Super X12SPI-TF Motherboard

4U Chassis
Add-on Card / Module AOC-S3816L-L16IT-P 1 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA - LP,122 HDD w/exp
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
BPN-SAS3-946SEL1-1 2 30bay top-load SAS3 single expander E1C BPN for 946S (use 2 per 60-bay system),RoHS
Cable CBL-CDAT-0728 2 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-PWEX-0861 1 Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S
CBL-PWEX-0862 1 Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S
CBL-PWEX-0863 1 Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
CBL-PWEX-0864 1 Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S
CBL-SAST-1281-100 2 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
CBL-0160L 2 US POWER CORD 16AWG, PB FREE
CBL-0303L 1 4PIN POWER CABLE, ST TO RA, 40CM
CBL-0459L 2 AC Power Cord Latch Clamp
CBL-0481L 2 30 AWG 81CM SATA Cable S-S
CBL-CDAT-0841 1 2X4F to 2X4F,PH2.54,round SGPIO cable,81CM,28AWG,RoHS
Parts MCP-160-94602-0B 2 New mylar for BPN-SAS3-946SEL1-1 use in SC946S chassis; Rohs
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K63A-1R 2 1U 1000W/1600W redundant single output power supply with inp
*Power Distributor PDB-PT946S-L824 1 4U PDB support over 2KW for SC946S and 45bay system.,RoHS
*Fan FAN-0184L4 5 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
*Front Panel FPB-FP829H 1 Front Control Board for SC829H chassis
*Drive Tray(s) MCP-220-00117-0B 2 Black gen-3 hot-swap tool-less 2.5- inch HDD tray
MCP-220-94601-0N 60 SC946ED 3.5\" / 2.5\" tool-less HDD tray
*Rear Window MCP-220-94612-0N 1 SC946L MB tray assembly for UP MB, 7x slots
*Rail Set MCP-290-00133-0N 1 Cable Management Arm, 2U height, 4
MCP-290-00137-0N 1 Rail set, Auto-latch, quick/quick, default 4U 17.2"W
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
2x 2.5" NVMe Cage (Rear) MCP-220-82620-0N +CBL-1231-85 + CBL-PWEX-1276 + CBL-0303L (female to female) 1 Rear hot-swap 2x 2.5" NVMe drive kit
2x 2.5" SATA/SAS Cage (Rear) MCP-220-82616-0N •+ 1x CBL-SAST-0699 • + 1x CBL-0234L • 1 Rear hot-swap 2x 2.5" SATA/SAS drive kit
Intel VROC RAID Key for NVMe AOC-VROCPREMOD • 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
Network Cards AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
More - AOC Compatibility Matrix (Select Storage & X12)
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
Power Cord CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
TPM AOM-TPM-9671V-S-O 1 TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server
TPM Module AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
