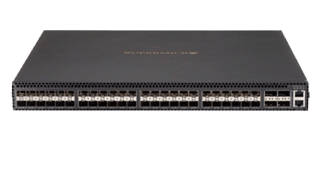

10G Ethernet Switch SSE-X3348S
  Products  Networking   [ SSE-X3348S ]
Layer 3 10G Ethernet Switch (Stand-alone) - Discontinued SKU (EOL). Please contact sales-rep for alternative options.

High-Performance, High Density, Advanced Switching Capabilities for Meeting 10-Gigabit Ethernet Networking Requirements scaling from Small Business to the Enterprise

SSE-X3348S Layer 3 Ethernet Switch both offer forty-eight 10-Gigabit Ethernet ports allowing data center friendly connectivity to 10GE routers, servers, backbones. They also offer four ports running at 40Gbps for access to high-speed backbone networks or storage servers. The 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments. An optional rail kit facilitates rack-mounting installations. And the SSE-X3348S model provides a data-center-friendly reverse air-flow for improved cooling when installed in the rear of a rack.

A comprehensive routing and protocol software suite ensures optimal performance in even the most demanding enterprise-class networking environments. These switches are ideal for organizations with growing and consolidated data centers.

Compliance
RoHS 5/6

Download
Datasheet - Standard ToR Ethernet Switches [ Download ]
Specifications - Quick Reference Guide [ Download ]
- Standards Supported [ Download ]
Manuals - CLI Manual [ Download ]
- Switch User's Manual [ Download ]
- 40G-to-10G Port Split Guide [ Download ]
- Rack Installation Manual [ Download ]
- Switch Installation Guide [ Download ]
Config. Guides - MLAG Config. Guide [ Download ]
- LLDP Config. Guide [ Download ]
- IPv6 Config. Guide [ Download ]
- ACL Guide [ Download ]
- System Config. Guide [ Download ]
- PIM Config. Guide [ Download ]
- IGMP Snooping Config. Guide [ Download ]
- SNMP Config. Guide [ Download ]
- Link Aggregation Config. Guide [ Download ]
- VLAN Config. Guide [ Download ]
- Spanning Tree Config. Guide [ Download ]
- Quick Config. Guide for CLI [ Download ]
- Quick Config. Guide for Web GUI [ Download ]
- Switches IP Config. Guide [ Download ]
- IGMP Config. Guide [ Download ]
- QoS Config. Guide [ Download ]
- RMON Config. Guide [ Download ]
SNMP MIB Files - SNMP MIB Files [ Download ]
Firmware - Firmware [ Download ]

Specifications - Features
  • Switching Features:
     - Link Aggregation - 24 groups w/ 8 members per group
     - LACP Support
     - MLAG Support
     - Link Layer Discovery Protocol (802.1AB)
     - Jumbo Frame Support
     - Port Mirroring - N to 1. Tx & Rx Configurable

  • Routing Features:
     - Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3 & BGP
     - IPv4 and IPv6 Routing
     - VRRP (Virtual Router Redundancy Protocol)
     - DVMRP (Distance Vector Multicast Routing Protocol
Specifications
  • Port Attributes:
     - 48 Ten Gigabit Ethernet ports - SFP+ Connectors
     - 4 Forty-Gigabit Ethernet ports - QSFP Connectors
     - 2 One-Gigabit Ethernet ports - RJ45 Connectors
     - Out-of-band RS-232 Management port
  • Performance:
     - Switching capacity: 1284 Gbps
  • Availability:
     - Spanning Tree (802.1D)
     - Rapid Spanning Tree (802.1w)
     - Multiple Spanning Trees (802.1s)
     - Virtual Redundant Routing Protocol (VRRP)
  • VLAN:
     - 802.1Q tagging, port and protocol based
     - 4K VLANs
     - Dynamic VLAN Support (GVRP)
  • Quality of Service and DiffServ:
     - 8 priority queues per port
     - Adjusted WRR and Strict Priority Scheduling
     - Layer 2 / 3 / 4 Prioritization
     - Marking
     - Metering / Rate limiting
  • Multicast:
     - IGMP Snooping v1/ v2/ v3
     - IGMP v1/ v2/ v3
     - PIM SM, PIM DM
     - PIM SMv6
  • Security:
     - 802.1x Port Based Authentication
     - Switch access password protection
     - Layer 2 / 3 / 4 Access control Lists
     - RADIUS and TACACS+ Authentication
     - SSH / SSL Encryption
  • Management:
     - Web-based management interface
        - HTTP, HTTPS
        - Telnet (4 sessions)
     - Industry standard CLI with telnet, SSH or
        local management port
         - Scripting capability
         - Command completion
         - Context sensitive "Help"
     - Multiple levels of user privileges (CLI and Web UI)
     - SNMP v1/v2/v3
     - Four RMON Groups - (1, 2, 3 and 9)
     - Logging - syslog
     - Dual firmware images
     - Configuration file - upload / download
  • Dimensions:
     - 17.3" W x 18.6" D x 1.7" H
        (440mm W x 473mm D x 43mm H)
  • Weight:
     - 18.1 lbs / 8.18 kg
  • Power:
     - Dual 400W Hot-swap Redundant Power Supplies
     - Power Consumption of 326W
  • Operating Temperature:
     - 0°C to 40°C

Standard Parts List (Included in the box)
   - Switch
   - Power Cords - 2 (US style)
   - Console Cable
   - Mounting flanges (2)
   - Miscellaneous screws
   - Rubber foot-pads
Parts List
  Part Number Qty Description
Layer 2/3 10G
Ethernet Switch		 SSE-X3348S 1   Regular Airflow (front to back)

Optional Parts List
  Part Number Qty Description
SFP+ Cable CBL-0347L - 39.37" (100cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-NTWK-0456 - 78.74" (200cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-0348L - 118.11" (300cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-0349L - 196.85" (500cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-NTWK-0719 - 40GbE/QSFP+ to 4x 10GbE/SFP+,PASSIVE,1M,30AWG
SFP+ Cable CBL-NTWK-0720 - 40GbE/QSFP+ to 4x 10GbE/SFP+,PASSIVE,3M,30AWG
SFP+ Cable CBL-NTWK-0721 - 40GbE/QSFP+ to 4x 10GbE/SFP+,PASSIVE,5M,25AWG
QSFP+ Cable CBL-NTWK-0417-01 - 1.0m, QSFP+ to QSFP+
QSFP+ Cable CBL-NTWK-0325-02 - 2.0m, QSFP+ to QSFP+
QSFP+ Cable CBL-NTWK-0446-01 - 3.0m, QSFP+ to QSFP+
QSFP+ Cable CBL-NTWK-0422-01 - 5.0m, QSFP+ to QSFP+
Rails Kit CSE-PT52L - Rails Kit for Rack Mount
SFP+ Transceiver AOC-E10GSFPSR - SFP+ Transceiver for use with fiber cable connections
QSFP+ Transceiver AOM-TQSFP-79EQDZ-AVG - QSFP+ Transceiver for use with 40GE fiber cable connections
SFP+ to RJ45 Transceiver Module AOM-AQS-107-B0C2-CX (revision 01) - Supermicro 10G SFP+ to RJ45 10GBASE-T/1000BASE-T Optical Transceivers
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
