SuperStorage 1029P-NMR36L (Complete System Only)

  Products  Systems   SuperStorage   [ 1029P-NMR36L ]





Integrated Board

X11DSF-E
X11DSF-E

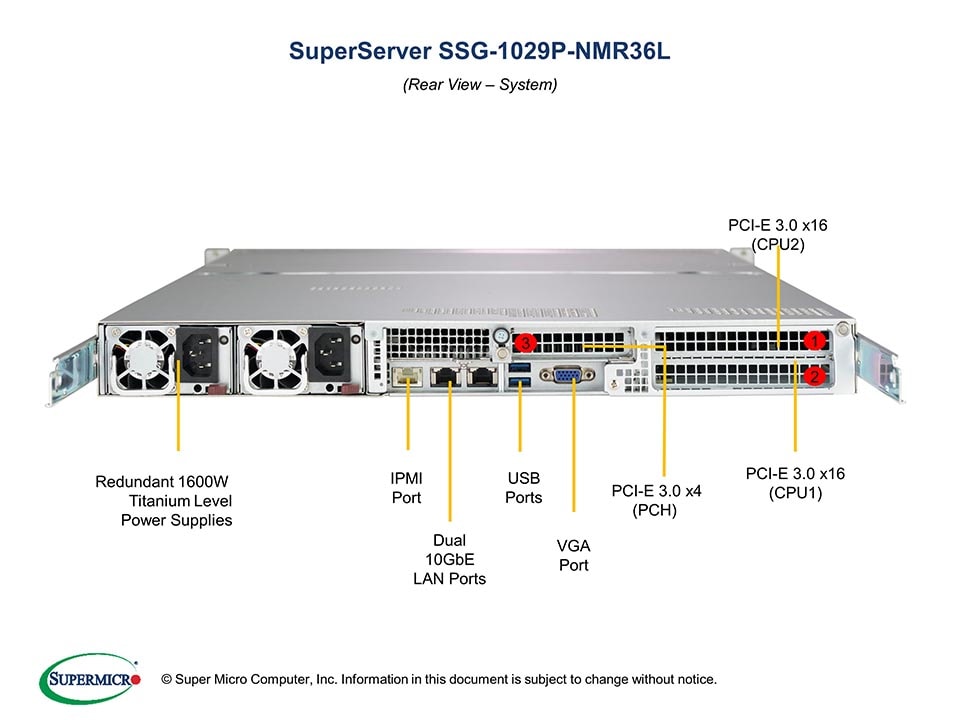

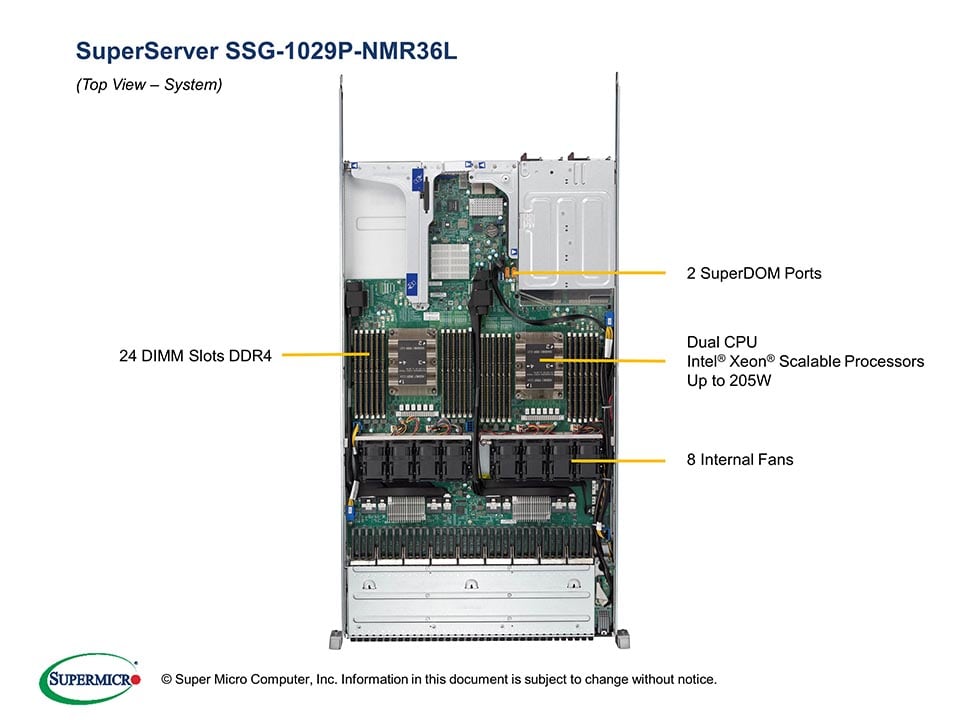

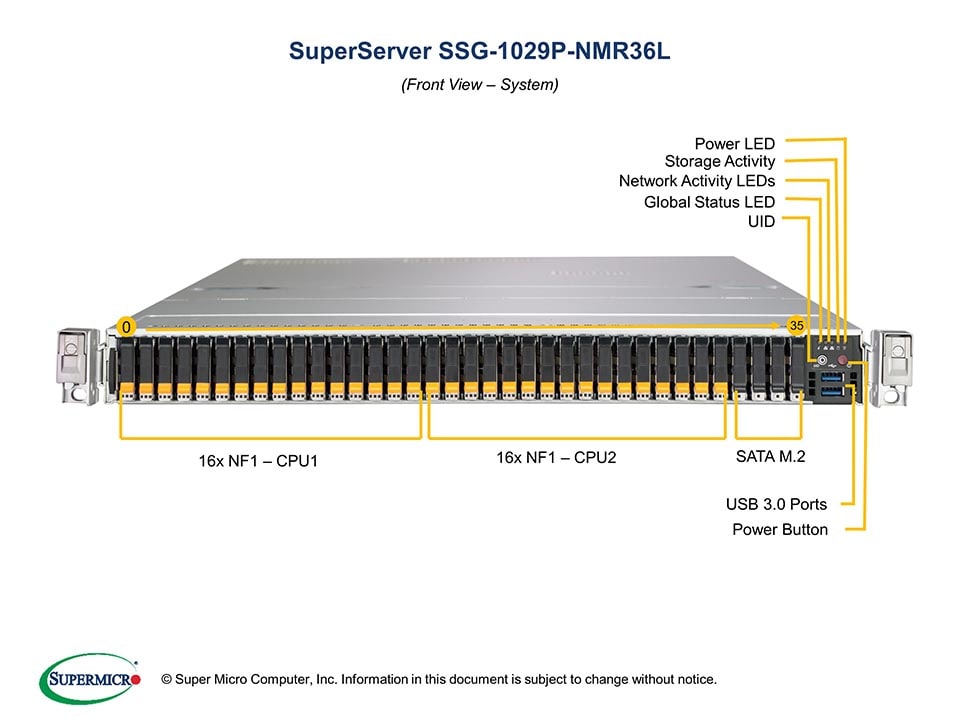

Views: | Angled View | Top View |
| Front View | Rear View |

 Key Applications
  - IOPS Intensive Storage App.
  - Database App. (MySQL, Casandra)
  - Hyperconverged Infrastructure /
    Scale-out Architectures


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x16 slots,
    1 PCI-E 3.0 x4 slot
4. 32 Hot-swap PCI-E NF1 drive bays,
    4 SATA3 M.2 drive bays support M.2
    Form Factor 22x42/60/80/110
5. 2x 10GBase-T LAN ports via Intel X550
6. 8 Heavy duty 4cm counter-rotating
    fans with air shroud
7. 1600W Redundant Power Supplies
    Titanium Level (96%)



       Flyer / White Paper
       NF1 SSD Details
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs and 4 NF1).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Quick-References Guide

Product SKUs
SSG-1029P-NMR36L
  • SuperStorage 1029P-NMR36L (Black)

Motherboard

Super X11DSF-E

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C627 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1
Network Connectivity
  • Intel® X550 Dual Port 10GBase-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA D-Sub connector port
Serial Header
  • 1 COM port (header)

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-121NF-R1K62P

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.26" (438.4mm)
Depth
  • 30.04" (763mm)
Weight
  • Net Weight: 40 lbs (18.1kg)
  • Gross Weight: 52 lbs (23.6kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x4 (Low profile) slot

Drive Bays
Hot-swap
  • 32 Hot-swap PCI-E NF1 drive bays
  • 4 SATA3 M.2 drive bays support M.2 Form Factor 22x42/60/80/110

System Cooling
Fans
  • 8 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DSF-E
CSE-121NF-R1K62P		 1
1		 Super X11DSF-E Motherboard
CSE-121NF-R1K62P Chassis
Backplane BPN-NGS3-121P1-S4 1 1U 36-slot NGSFF NF1/M.2 NVMe backplane, support 32x NF1/M.2 NVMe SSDs, plus 4x M.2 SATA devices,RoHS
Cable 1 CBL-PWEX-1026 1 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS
Cable 2 CBL-PWEX-1027 1 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS
Cable 3 CBL-SAST-1019 2 SLIMLINE SAS, INT,34.7CM, 41.9CM, 31.5/42.2CM,RoHS
Cable 4 CBL-SAST-1023 1 SLIMLINE SAS x4- SLIMLINE SAS x8, INT, 51.3CM, 30AWG,RoHS
Manual MNL-2143-QRG 1 1029P-NMR36L/LR Quick Reference Guide
Riser Card RSC-R1UU-E8R+ 1 RSC-R1UU-E8R+ REV 1.00, PBF
Riser Card RSC-X-66 1 1U LHS Passive Storage Risercard w/ 2 PCI-E x16slots,HF,RoHS
Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
* Cable 5 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 6 CBL-0335L 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
* FAN 1 FAN-0163L4 8 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
* Front Panel FPB-TMP-002 1 Thermal Sensor board with 40cm I2C cable
* Drive Tray(s) MCP-220-12102-0N 32 SC121NF NGSFF cage (cost-effective)
* Drive Tray(s) MCP-220-12103-0N 4 SC121NF M.2 cage kit with M.2 adapter
* Rear Window MCP-240-12103-0N 1 Rear window for SC121M3
* Front Panel MCP-280-11605-0N 1 116U FP kit,2* USB3.0,slim bracket, 50cm cable
* Rail Set MCP-290-11809-0N 1 Rail set, Quick/Quick, Auto Latch, travel 609.1mm Short Version, RACK POST=26.5, 1U 17.2 SC118GQE 1U 4xGPU
* Air Shroud MCP-310-12101-0N 1 SC121 PWS Air Shroud
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
