SuperServer 1029GP-TR

  Products  Systems   GPU   [ 1029GP-TR ]

1U Dual Processor (Intel) 3 GPU System





Integrated Board
X11DPG-SN

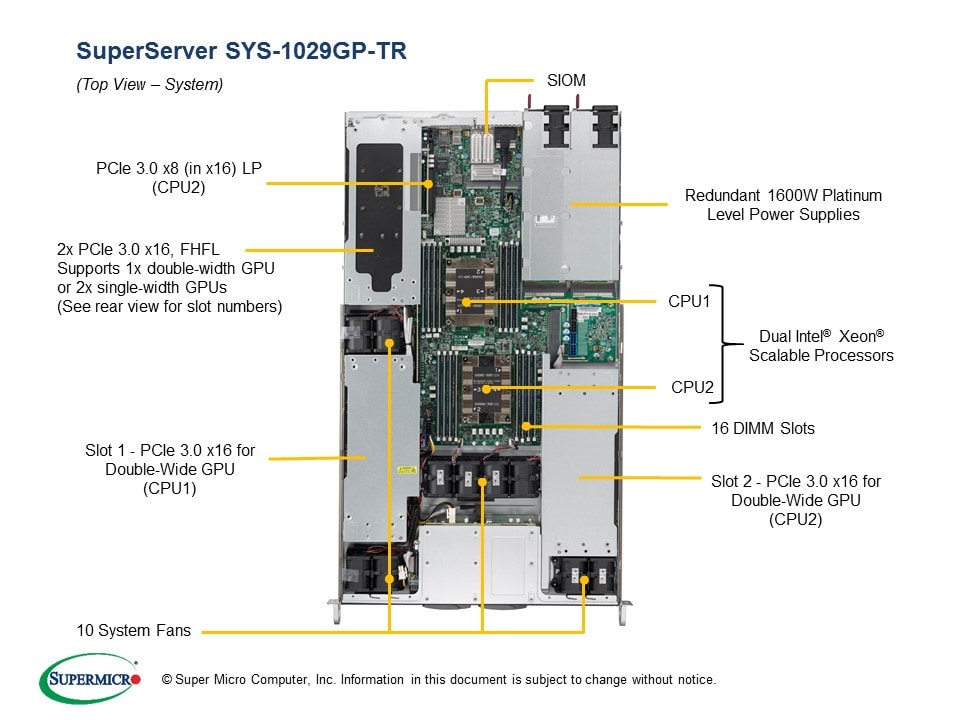

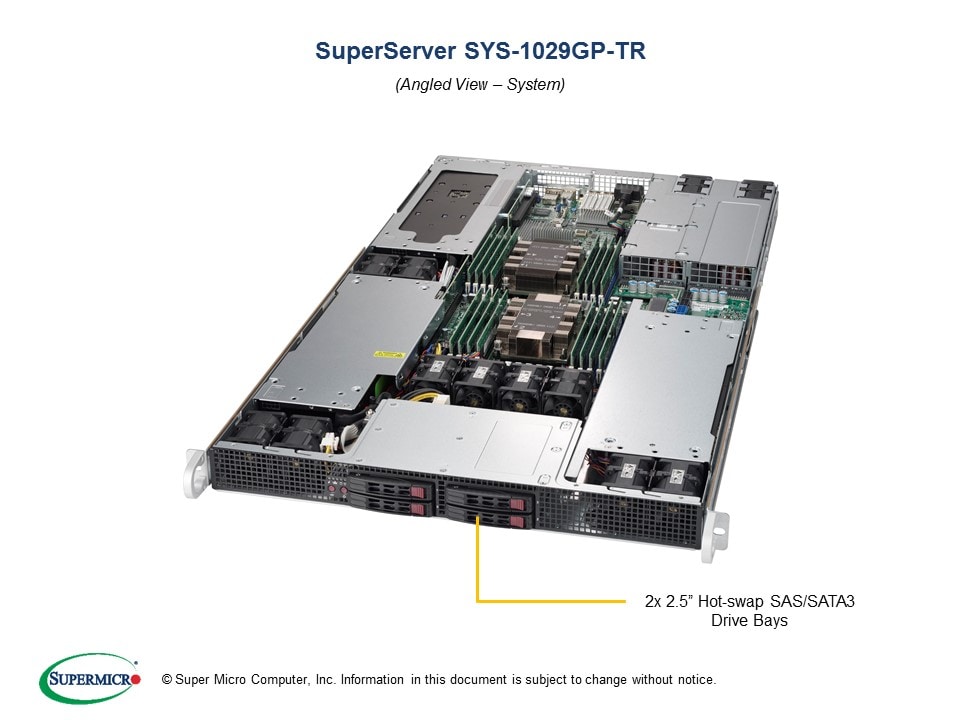

Views: | Angled View | Top View |

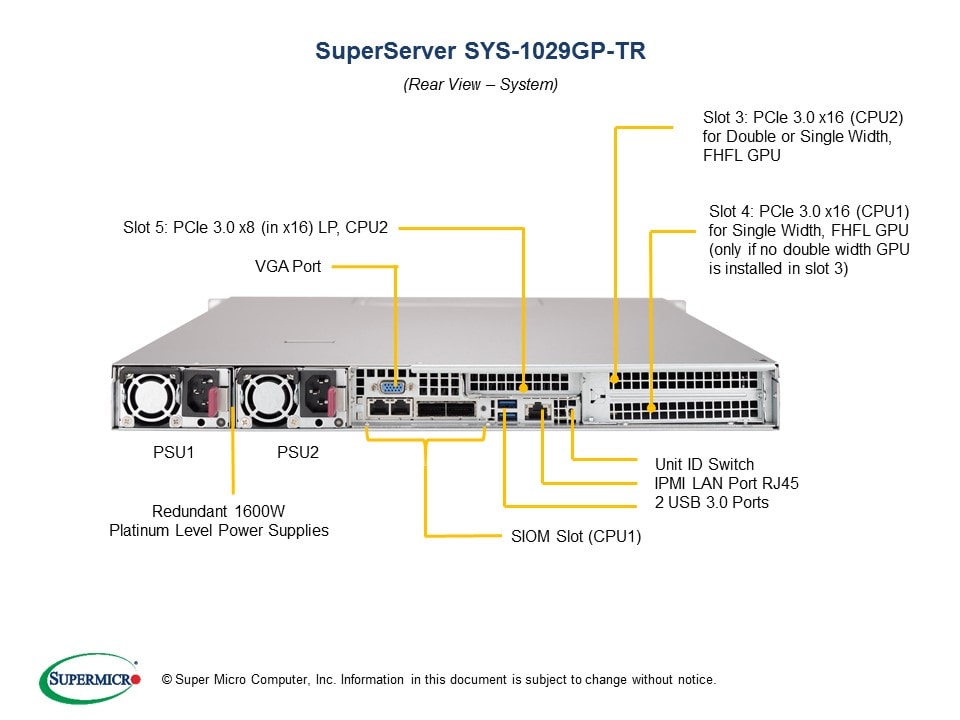

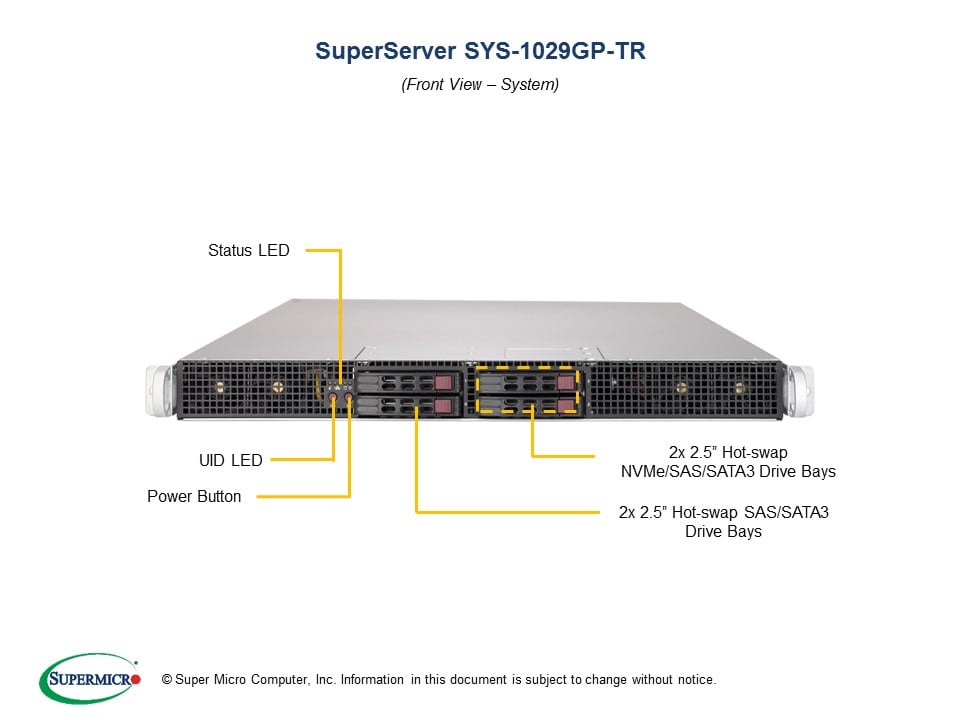

| Front View | Rear View |

Key Applications
  - 3D/2D and CAD Applications
  - Cloud Computing
  - Edge Computing
  - Oil and Gas Exploration
  - VDI
  - AI/ML, Deep Learning Training and Inference


Key Features
1. Supports 3x double width GPU
    or 4 single width GPUs;
    Support for passively cooled GPUs
2. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
3. 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
4. 4 PCI-E 3.0 x16 (FHFL) slots,
    1 PCI-E 3.0 x8 (in x16, LP) slots
5. 2 Hot-swap 2.5" SAS/SATA drive bays,
    2 Hot-swap 2.5" SATA/NVMe
    drive bays
6. 1 SIOM for flexible Networking
7. 10 Counter rotating fans with
    optimal fan speed control
8. 1600W Redundant Power Supplies
    Platinum Level (94%)

Barebones and Complete System must be installed with at least one SIOM or network card per system

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Drive Options   NVMe Options   Manuals   Quick-References Guide  OS Certification Matrix   Compatible GPU List

Product SKUs
SYS-1029GP-TR
  • SuperServer 1029GP-TR

Motherboard

Super X11DPG-SN

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-165W*
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU
Supported GPUs
  • 3 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
  • 4 Single-Width GPUs
  • NVIDIA V100, M10, T4, Quadro RTX
  • Compatible GPU list
CPU-GPU Interconnect
  • PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
Serial Header
  • 1 Fast UART 16550 header

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GH-R1K66B2

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 30.6" (777mm)
Weight
  • Net Weight: 45 lbs (15.9 kg)
  • Gross Weight: 58 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 (FHFL) slots - supporting up to 4 GPUs
  • 1 PCI-E 3.0 x8 (in x16, LP) slot

Drive Bays
Hot-swap
  • 4 Hot-swap 2.5" drive bays

System Cooling
Fans
  • 10 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

Power Supply
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 1600W: 200 – 240Vac
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-127Vac / 12.9A Max / 50-60Hz
  • 200-240Vac / 9.5A Max / 50-60Hz
+12V
  • Max: 82A / Min: 0.1A (100-127Vac)
  • Max: 132A / Min: 0.1A (200-240Vac)
12V SB
  • Max: 2A / Min: 0.2A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level Certified94%+  Platinum Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPG-SN
CSE-118GH-R1K66B2
1
1
Super X11DPG-SN Motherboard
CSE-118GH-R1K66B2 Chassis
Backplane BPN-SAS3-118GH-N2 1 1U 4-Port Hybrid Backplane Supports 2 x 2.5" SAS3/SATA3 HDD/SSD and 2 x 2.5" SAS3/SATA3/NVMe Storage Device for GPU Platform,HF,RoHS
Cable 1 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable 2 CBL-0296L 5 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 3 CBL-PWEX-1027 2 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS
Cable 4 CBL-PWEX-1028 1 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 5 CBL-PWEX-1064 1 8pin CPU 12V to 4pin x 2pcs 280mm,16AWG,RoHS
Cable 6 CBL-SAST-0974-1 2 OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
Cable 7 CBL-SAST-1020 1 MINI SAS HD(LA)-MINI SAS(LA),INT,85CM,30AWG
FAN 1 FAN-0141L4 10 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Drive Tray(s) MCP-220-00047-0B 4 Black gen 3rd hot-swap 2.5inch HDD tray
Parts MCP-240-00112-0N 1 GPU 1U Top Cover Bracket (SC118GH-R1/L1/L2), come with SC118GH Chassis
Parts MCP-240-11803-0N 1 SC118GH 1U 3xGPU Universal Bracket Set for nVidia K10 / K20 / P2040 GPUs
Air Shroud MCP-310-11810-0B 1 Air Shroud for X11DPG-SN in CSE-118GH-R1K66B,HF,RoHS/REACH
Fan Holder MCP-320-81801-0B 5 SC818G 2x 4056 fan tray,HF,RoHS,PBF
Power Supply PWS-1K66P-1R 2 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
Riser Card RSC-G-A66-X 1 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs
Riser Card RSC-R1UG-E16AR+II 1 RSC-R1UG-E16AR+II
Riser Card RSC-R1UG-E16R+II 1 RSC-R1UG-E16R+II
Riser Card RSC-R1UG-E16-X9 1 RSC-R1UG-E16-X9
Heatsink / Retention SNK-P0067PS 1 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0067PSMB 1 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster
Rail Set MCP-290-00054-0N 1 Rail set, quick/quick, optional for 1U 17.2"W SC815
Optional Parts List
  Part Number Qty Description
Bracket Set MCP-240-11813-0N 2 pcs SC118GH NVidia T4 GPU Bracket (2x pcs per chassis)
Bezel MCP-210-11601-0B 1 Black Front Bezel for SC118GH
GPU Cable CBL-PWEX-0665 3 M10 GPU Model Cable
Cable Management Arm MCP-290-00165-0N 1 1U SMC Cable Managent Arm, 3rd Gen
Storage Control Card and Cable(s) AOC-S3008L-L8e
& 1x CBL-SAST-0593
AOC-S3008L-L8e+
& 1x CBL-SAST-0593
AOC-S3008L-L8i
& CBL-SAST-0593
AOC-S3108L-H8iR
& CBL-SAST-0593
AOC-S3108L-H8iR-16DD
& CBL-SAST-0593
- Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter
Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter with IPMI support
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD,
RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD,
RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD,
RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
Super Cap for LSI 3108 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 - Supercap mounting bracket for PCI-E location
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1
1
1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
2.5" NVMe Drive Trays MCP-220-00121-0B
MCP-220-00167-0B
- Black Gen-3 2.5" NVMe or drive tray, orange tab with lock
Tool-less balck hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design)
TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
