SuperStorage 2029P-DN2R24L (Complete System Only)

  Products  Systems   Storage Bridge Bay (SBB)   [ 2029P-DN2R24L ]




Integrated Board
Super X11DSN-TS

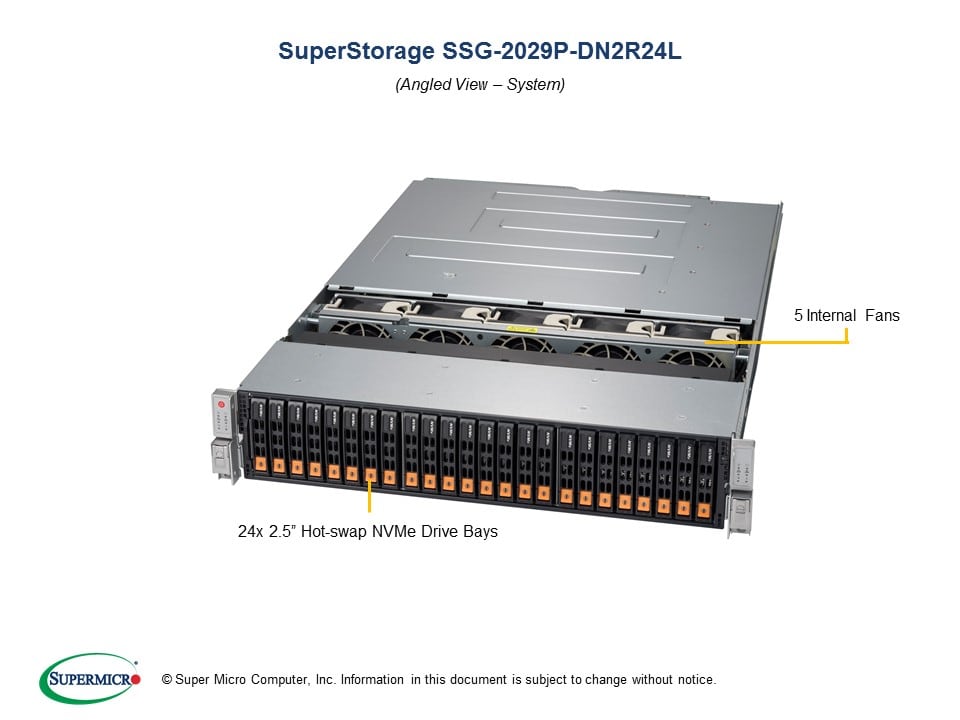

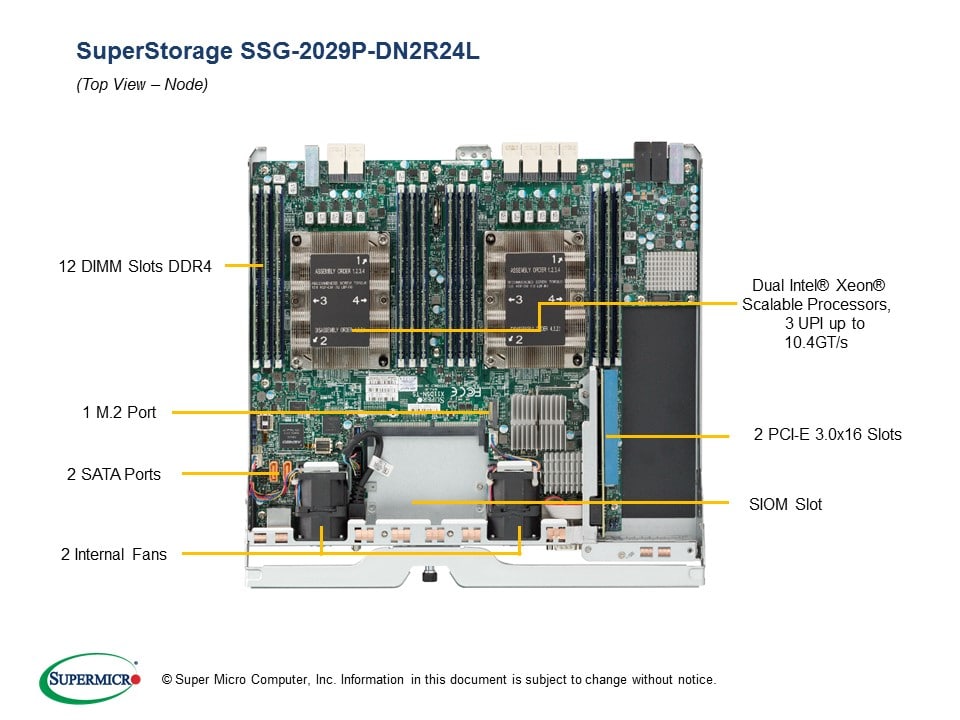

Views: | Angled View | Top View |

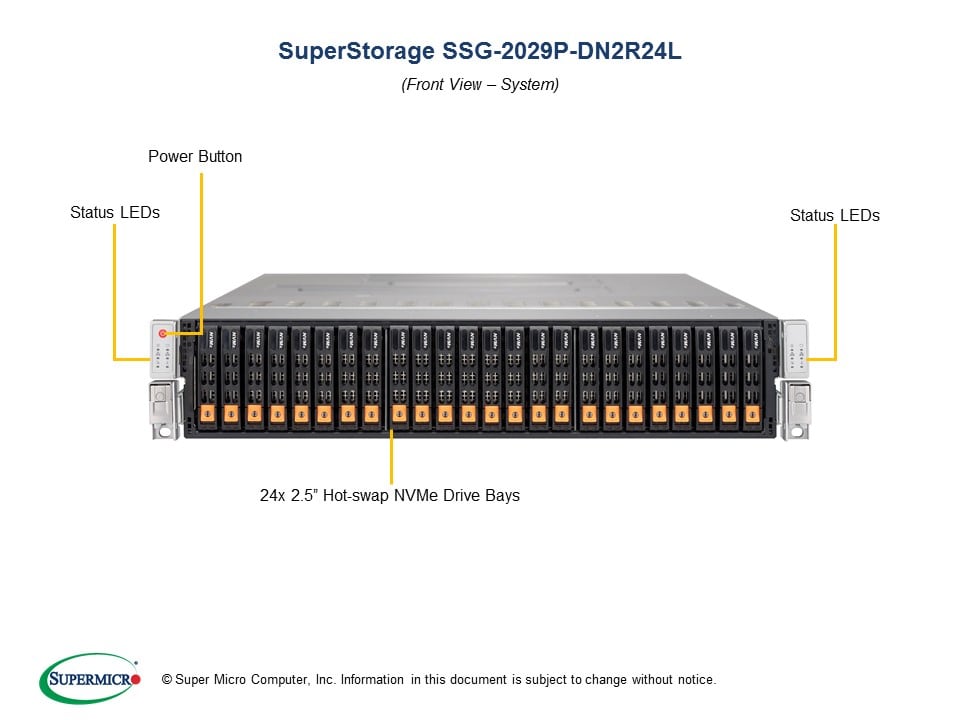

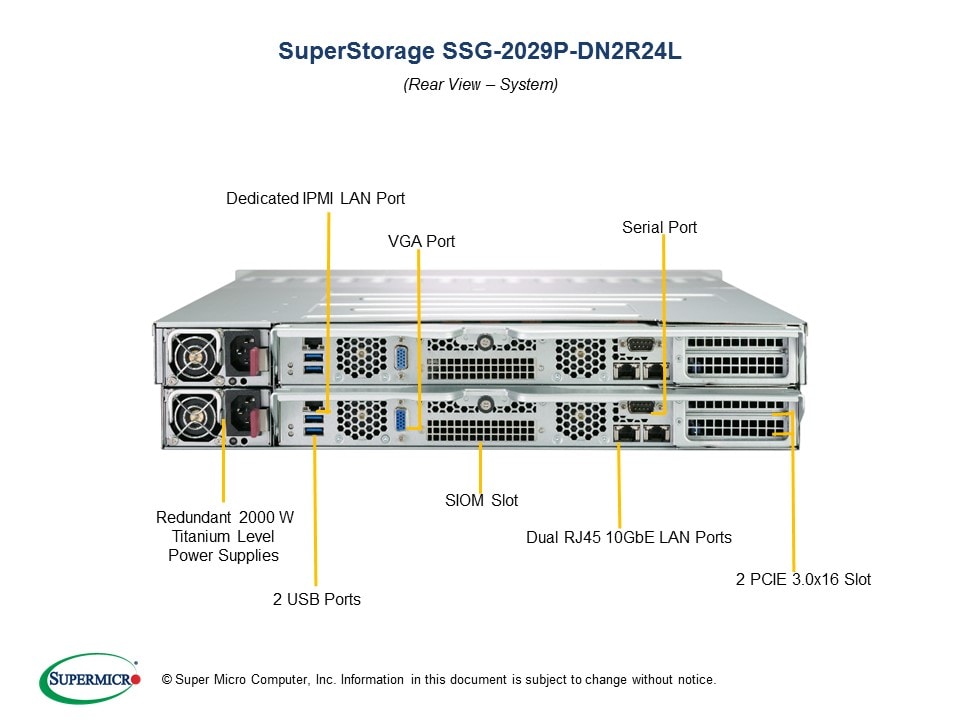

| Front View | Rear View |

Key Features
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 12 DIMMs; up to 3TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 24 U.2 Hot-swap dual-port NVMe
    drive bays
4. 2 PCI-E 3.0 x16 HHHL slots,
    1 PCI-E 3.0 x16 SIOM
5. Dedicated node to node connectivity
    featuring high performance PLX NTB
    PCI-E 3.0 x8 and IPMI for robust
    node fail-over support
6. Dual port 10GBase-T (Intel® X557-AT2),
    Dual 10G private ethernet between
    controller nodes
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 5x 8cm high-performance PWM fans
9. 2000W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 4 DIMMs and 6 dual port NVMe).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals   Tested SIOM  OS Certification Matrix

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SSG-2029P-DN2R24L
  • SuperStorage 2029P-DN2R24L (Black)

Motherboard (Two per System)

Super X11DSN-TS

Processor (per Node)
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-165W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory (per Node)
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices (per Node)
Chipset
  • Intel® C624 series chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1
Network Controllers
  • Intel® X557-AT2 Dual Port 10GBase-T
  • Dual 10G private Ethernet between controller nodes
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output (per Node)
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 1 Type A
Video
  • 1 VGA D-Sub Connector port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)

System BIOS
BIOS Type
  • AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-227TS-R2K05P3

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.6" (650mm)
Weight
  • Gross Weight: 67 lbs (30.4 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 x16 HHHL slots
  • 1 PCI-E 3.0 x16 SIOM
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2242/2260/2280

Drive Bays
Hot-swap
  • 24 U.2 Hot-swap dual-port NVMe drive bays

Backplane
2U 24-Port SBB Backplane for 24x 2.5" Dual-Port NVMe SSD

System Cooling
Fans
  • 5x 8cm high-performance PWM fans

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DSN-TS
CSE-227TS-R2K05P3
2
1
Super X11DSN-TS Motherboard
2U Chassis
Backplane BPN-NVME3-227NB 1 2U 24-Port SBB Backplane for 24x2.5
Backplane BPN-NVME3-227NL 2 2U Gen3 PCIe Switch Daughter Board for Dual Port NVMe SSD (Note: This daughter board is integrated to BPN-NVMe3-227NB)
Backplane BPN-NVMe3-227SSB-2 1 227S and 227 SBB Series NVMe Platform Mid-plane for power distribution, PCIe pass-through and NTB link with PLX
Cable 1 CBL-SAST-0819 8 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Parts MCP-110-00015-0N 8 Pan head screw, #6-32 x 6L
Riser Card RSC-X-66-C 2 1U LHS Passive Storage RSC w/ 2 PCI-E x16 slots,HF RoHS
Heatsink / Retention SNK-P0067PS 4 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-2K05A-1R 2 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
FAN 1 FAN-0163L4 4 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
FAN 2 FAN-0168L4 5 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)


Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
