SuperStorage 6029P-E1CR24L (Complete System Only)

  Products  Systems   Simply Double   [ 6029P-E1CR24L ]





Integrated Board
Super X11DSC+

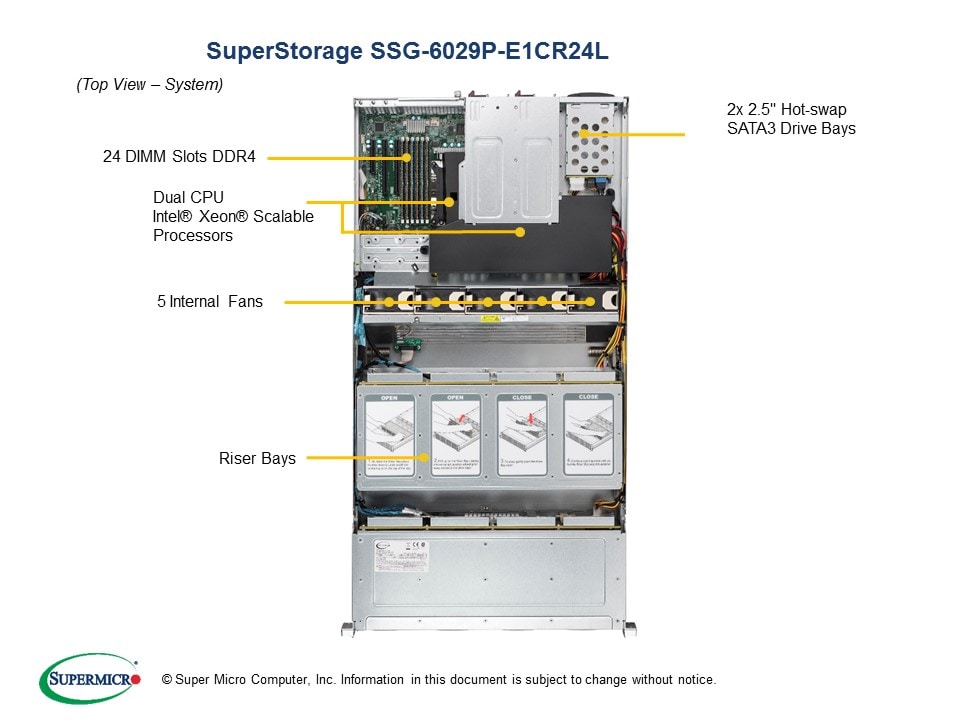

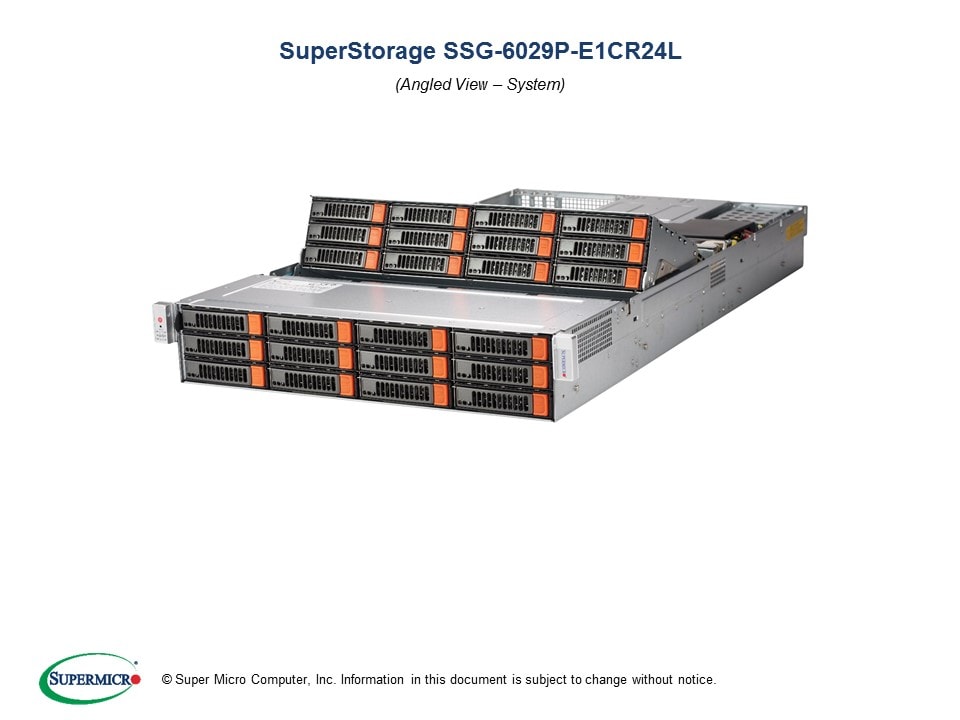

Views: | Angled View | Top View |

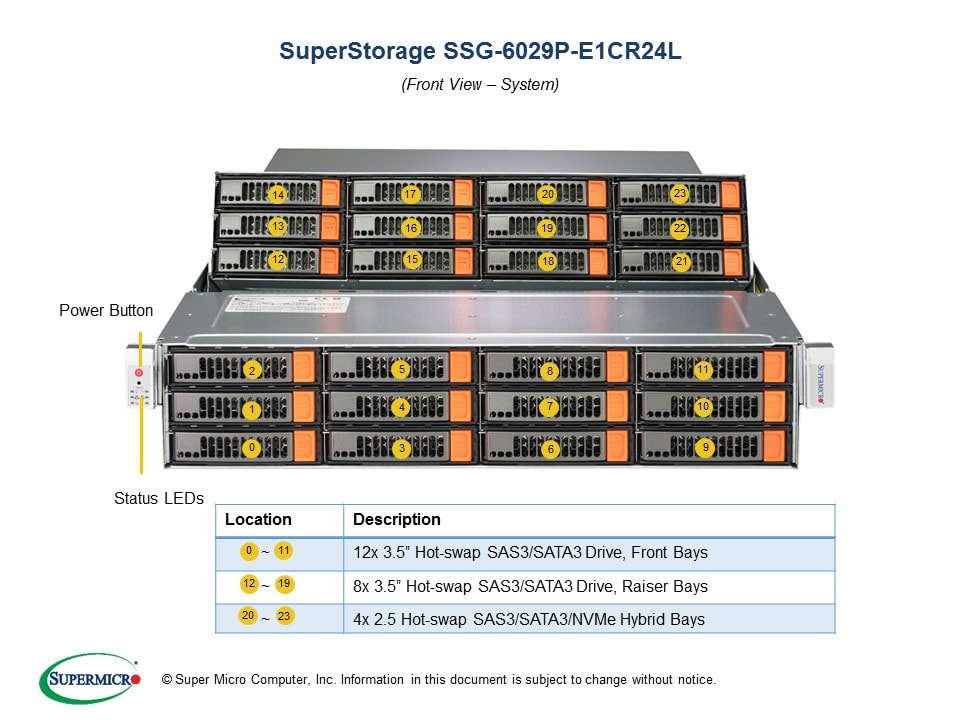

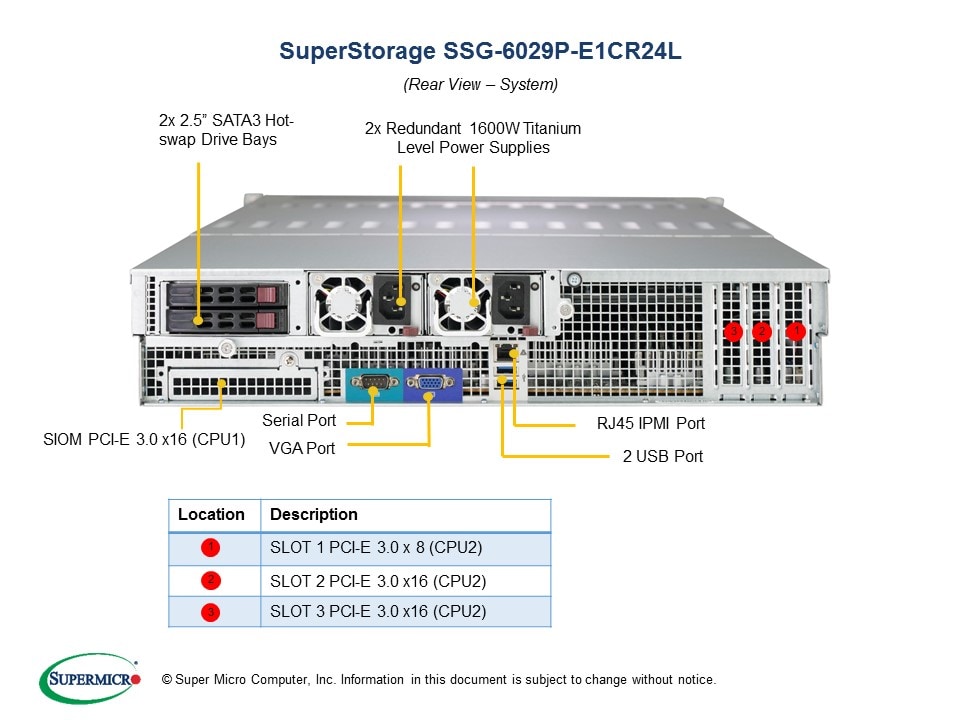

| Front View | Rear View |

Key Applications
  - Corporate Database
  - Database Processing & Storage
  - Enterprise Server
  - HPC, Data Center
  - iSCSI SAN


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM
    card support (flexible networking)
    Note: must bundle with Network card
4. 24 Hot-swap 3.5" SAS3/SATA3 drive bays;
    2 hot-swap 2.5" SATA3 drive bays (rear)
    Expander based backplane
5. Broadcom 3008 SAS3, IT mode
6. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
7. 5x 8cm high-performance PWM fans
8. 1600W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 6 HDDs and 1 NIC or SIOM card).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs
SSG-6029P-E1CR24L
  • SuperStorage 6029P-E1CR24L (Black)

Motherboard

Super X11DSC+

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-165W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008; IT Mode
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
Serial ATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 1 Type A
Video
  • 1 VGA D-Sub connector port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type
  • AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826STS-R1K62P1

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 34" (863mm)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slot
  • 1 SIOM card support
    (must bundle with network card)

Drive Bays
Hot-swap
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays
  • 2 Hot-swap 2.5" SATA3 drive bays (rear)

Backplane
Expander based backplane

System Cooling
Fans
  • 5x 8cm high-performance PWM fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DSC+
CSE-826STS-R1K62P1
1
1
Super X11DSC+ Motherboard
2U Chassis
Add-on Card / Module AOM-S3008M-L8-P 1 Mezz card with LSI 3008 controller
Backplane BPN-SAS3-826SEL1-N4 2 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1 CBL-PWEX-0702 1 PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED
Cable 2 CBL-SAST-0835 2 SLIMLINE SAS to MiniSAS HD, INT, 100CM, 32AWG
Cable 3 CBL-SAST-0836 2 MINI SAS HD,INT,SAS3 SSD,48CM,32AWG
Parts MCP-220-82616-0N 1 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
FAN 1 FAN-0168L4 5 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)


Optional Parts List
  Part Number Qty Description
Converter Tray MCP-220-00140-0B - Hot-swap 3.5" to 2.5" converter tray
4 NVMe Drives Support CBL-SAST-0929

MCP-220-00140-0B
4

4
OCuLink 0.91 to MiniSAS HD,INT,PCIe NVMe SSD, 57CM,34AWG
Hot-swap 3.5" to 2.5" converter tray
2x 2.5" rear SATA drive bay to support (2+2) drive bays CBL-PWEX-0650
MCP-240-22604-0N
MCP-240-22605-0N
MCP-220-82616-0N
1
1
1
1
8-pin female to 2 Right Angle big 4-pin female power, 47/62cm
2U Rear plate support (2 + 2) 2.5HDD for SC226S/826S
2U Rear Window support (2+2) 2.5HDD for SC226S/826S, X11DSC
Rear 2.5 x 2 Hot swap HDD kit
SIOM Network Card(s) AOC-MGP-I2
AOC-MGP-I4
AOC-MTG-I2T
AOC-MTG-I4T
AOC-MTGN-I2S
AOC-MTG-I4S
-
-
-
-
-
-
SIOM 2-port GbE, Intel i350-AM2
SIOM 4-port GbE, Intel i350-AM4
SIOM 2-port 10GBase-T, Intel X550
SIOM 4-port 10GBase-T, Intel X550
SIOM 2-port 10G SFP+, Intel 82599ES
SIOM 4-port 10G SFP+, Intel XL710
Network Card(s) AOC-S25G-m2S
AOC-STGN-i1S/i2S
AOC-STG-i4S
AOC-STG-i2T
AOC-S100G-m2C
More
-
-
-
-
-
-
Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard 100G Mellanox ConnectX-4 EN based
AOC Compatibility Matrix
TPM security module
(optional, not included)
AOM-TPM-9670V
AOM-TPM-9671V
1
1
TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1
1
1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Short Rail MCP-290-11808-0N - Supermicro 1U Rail Kit (Note: If short rail is used, system will not support cable management arm)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
