SuperServer 5039MD18-H8TNR

  Products  Systems   MicroCloud   [ 5039MD18-H8TNR ]





Integrated Board
X11SDD-18C-F

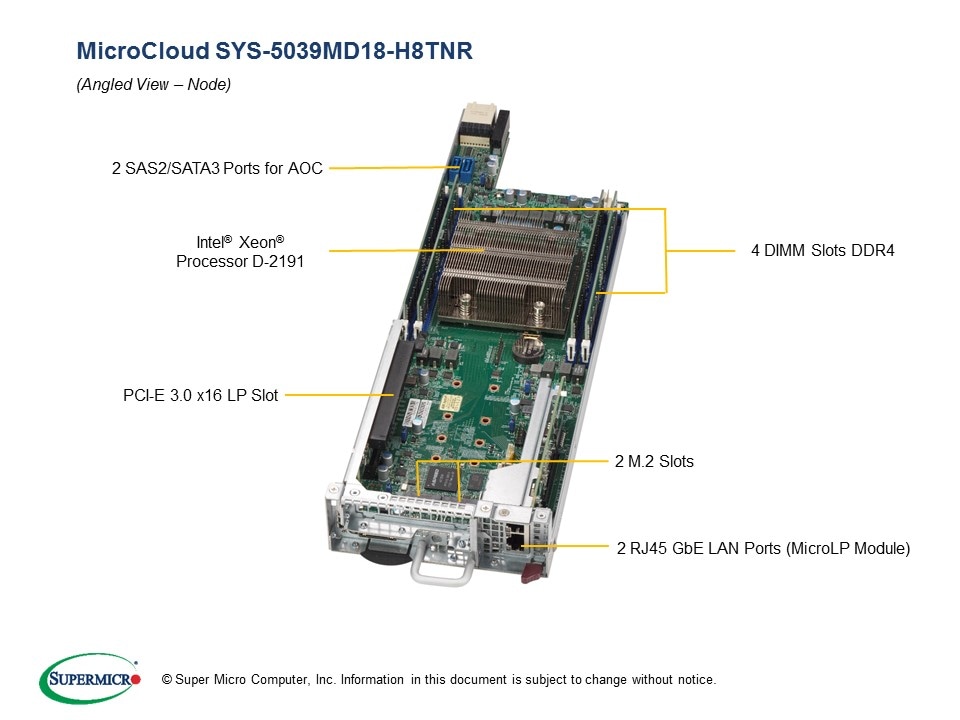

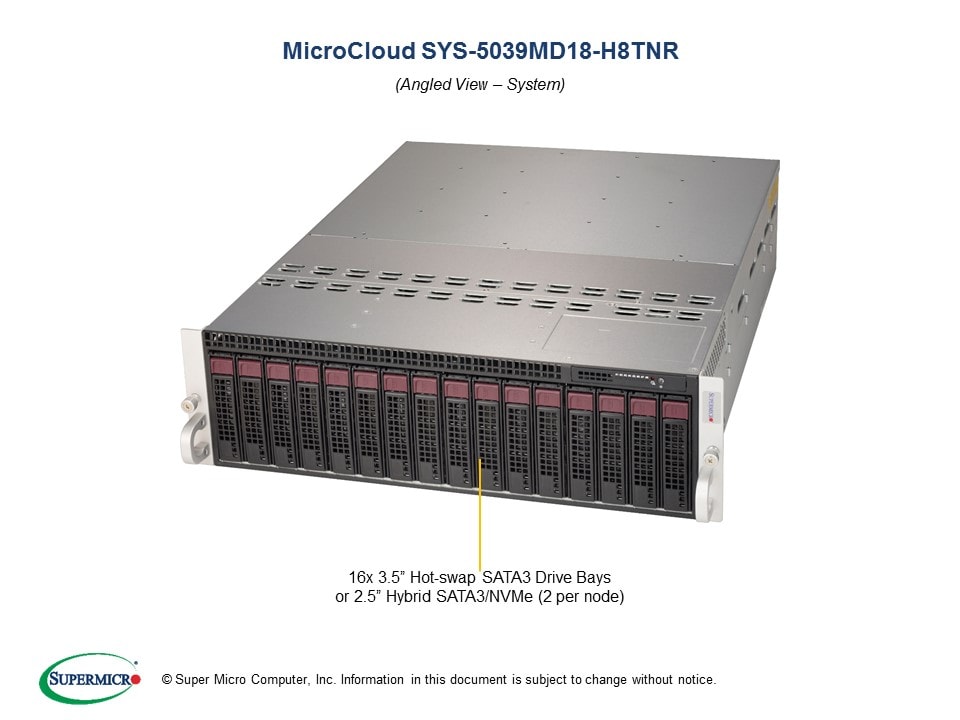

Views: | Angled View | Node View |

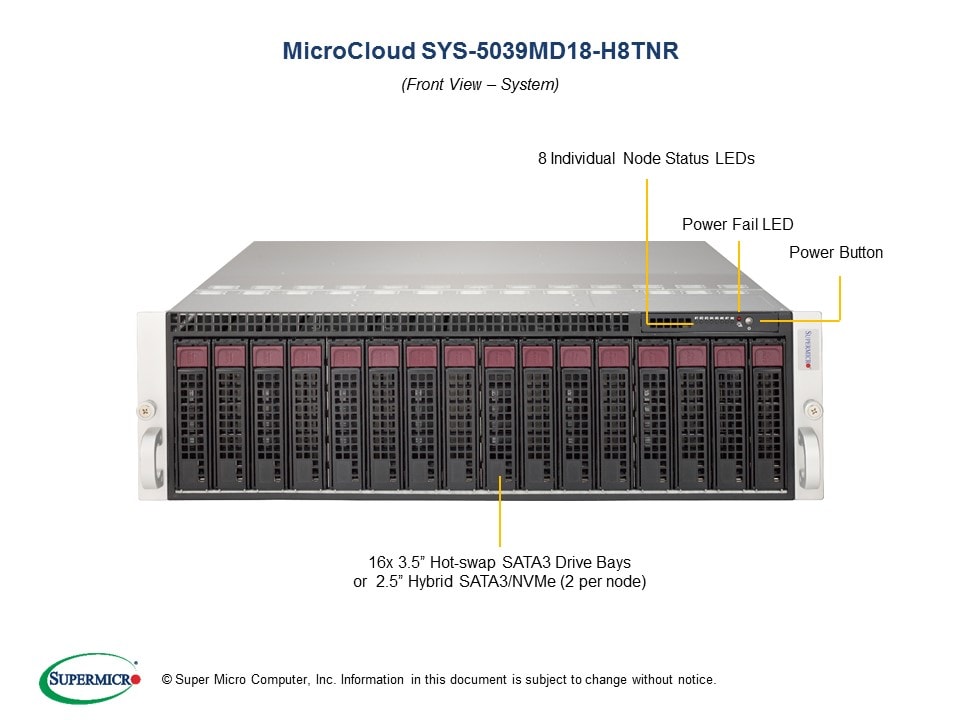

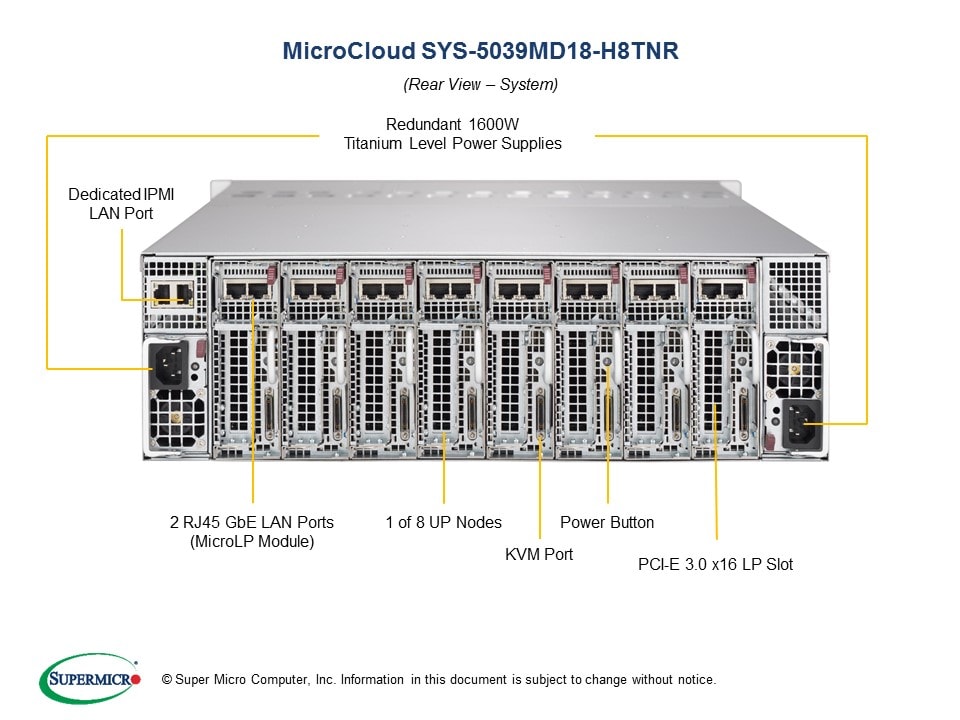

| Front View | Rear View |

 Key Features (per node)
• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking, CDN
1. Intel® Xeon® Processor D-2191I,
    18-Cores, 36 Threads
2. 2x 3.5" SATA3 by default; 2x 2.5"
    hybrid SATA3/NVMe w/ Optional kits
3. Up to 512GB ECC LRDIMM,
    Up to 256GB ECC RDIMM, up to
    DDR4-2400MHz; in 4 DIMM slots
4. 2 GbE LAN ports via Intel i350
5. 1 PCI-E 3.0 x16 (low-profile),
    1 Micro-LP, and 2 M.2
6. 2 USB 2.0, 1 VGA, 1 COM port,
    (with KVM dongle)
7. 4 heavy duty hot-swap 8cm fans with
    optimal cooling zone (per system)
8. 1600W Redundant power supplies
    Titanium Level Certified (per system)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SuperServer
  • SYS-5039MD18-H8TNR (Black)

Motherboard
Super X11SDD-18C-F

Processor/Cache (per Node)
CPU
  • Socket FCBGA1667
  • Intel® Xeon® Processor D-2191I
  • CPU TDP support 86W
Cores / Cache
  • 18-Cores, 36 Threads

System Memory (per node)
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 512 GB ECC LRDIMM
  • Up to 256 GB ECC RDIMM
Memory Type
  • 2400/2133MHz ECC DDR4 LRDIMM and RDIMM
DIMM Sizes
  • 32GB, 16GB, 8GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

Network Devices (per node)
Micro-LP NIC

On-Board Devices (per node)
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) via SoC
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2500 BMC
Graphics
  • ASPEED AST2500 Graphics (BMC with Graphic controller)

Input / Output (per node)
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
KVM
  • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Management
Software

Rear Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-938NH-R1K68BP

Dimensions and Weight
Height
  • 5.2" (132 mm)
Width
  • 15.26" (387 mm)
Depth
  • 23" (585 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Net Weight: 62.2 lbs (28.21 kg)
  • Gross Weight: 88 lbs (39.92 kg)
Color
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Node status LED

Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 3.0 x16 (Low-profile) slot
  • 1 Micro-LP PCI-E 3.0 x8 slot
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4
  • M.2 Form Factor: 2280/22110
  • M.2 Key: M-Key

Drive Bays (per node)
Internal
  • 2x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits); up to 16 HDDs total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4 Hot-swap 8cm cooling fans fan speed control

Power Supply (76mm Width)
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 140Vac
  • 1600W: 180 – 240Vac
Dimension
(W x H x L)
  • 76 x 40.4 x 336 mm
Input
  • 100-140Vac / 10-7A / 50-60Hz
  • 180-240Vac / 11-8A / 50-60Hz
+12V
  • Max: 67A / Min: 0A (100-140Vac)
  • Max: 133A / Min: 0A (180-240Vac)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level Certified96%  Titanium Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11SDD-18C-F
CSE-938NH-R1K68BP 		8
1		 Super X11SDD-18C-F Motherboard
3U Chassis
Add-on Card / Module AOC-CGP-I2-P 8 AOC-CGP-I2-O-P
Add-on Card / Module AOM-BPN-938NH-P 1 AOM-BPN-938NH, Backplane module for 8-node Microcloud system, 16xU.2, 2 per node, Dual PSU, Management LAN switch, chassis node ID.,HF,RoHS
Add-on Card / Module AOM-LAN-MC8-P 1 AOM-LAN-MC8, LAN front panel module for 8-node Microcloud system,HF,RoHS
Add-on Card / Module AOM-PDB-PT938-LSG-P 1 AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,HF,RoHS
Add-on Card / Module AOM-PDB-PT938-RSG-P 1 AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,HF,RoHS
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-0355L 2 ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG
Cable 3 CBL-0458L 1 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG
Cable 4 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Cable 5 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
FAN 1 FAN-0194L4 4 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
Drive Tray(s) MCP-220-00094-0B 16 Black gen 6.5 hot-swap 3.5 inch HDD Tray
Air Shroud MCP-310-93805-0B 16 Mylar air shroud for 2-DIMMs (quick install on DIMM latch)
Riser Card RSC-RR1U-E16 8 RSC-RR1U-E16 with PIC-E x16 output
Rail set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2" W
Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF


Optional Parts List
  Part Number Qty Description
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller,
Vertical form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller,
Vertical form factor
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD		 1
1
1		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Cable CBL-SAST-0610 - For AOC-S3008L-L8i/AOC-S3108L-H8IR
Storage Controller Card(s) AOC-S3008L-L8i
AOC-S3108L-H8IR
AOC-S3108L-H8IR-16DD		 - Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
Network Card(s) AOC-CTGS-i2T
AOC-CTG-i1S
AOC-CTG-i2S
AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-i2
AOC-STG-i2T
AOC-STGN-i1S
AOC-STGN-i2S
AOC-S100G-m2C
AOC-SHFI-I1C		 - MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
MicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard LP 2-port 100GbE with 2 QSFP28, Mellanox CX-4 EN
Standard LP 1-port Omni Path controller, Intel 100HFA016LS
Drive Tray(s) MCP-220-93801-0B - Black gen 6 hot-swap 3.5-to-2.5 HDD tray
Drive Tray(s) MCP-220-00158-0B - Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
