SuperWorkstation 5049A-T

  Products  Systems  4U   [ 5049A-T ]





Integrated Board
Super X11SPA-TF

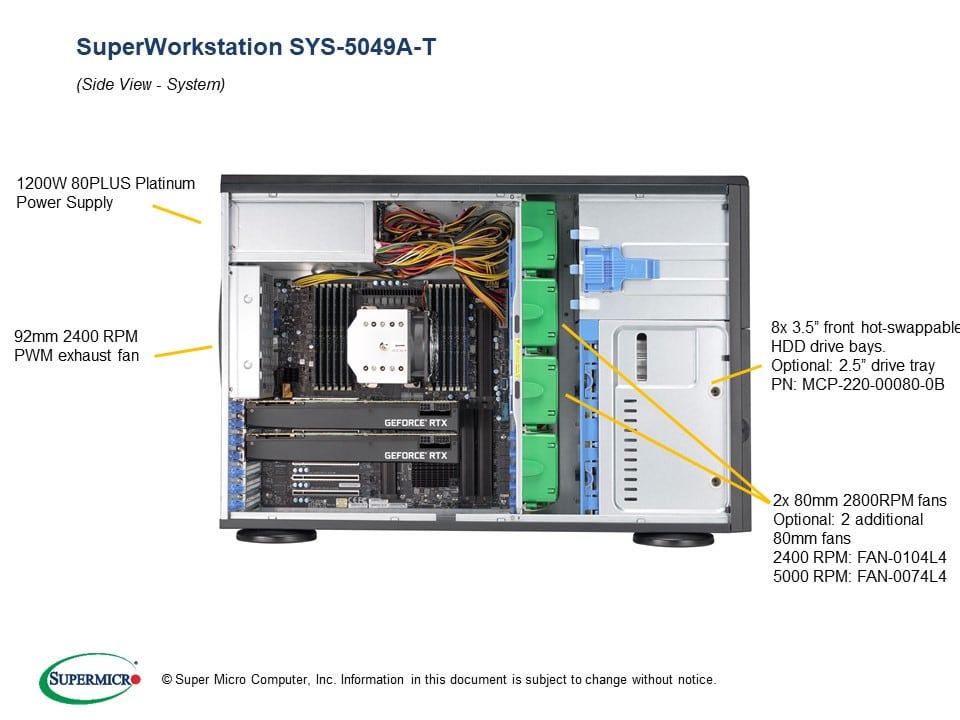

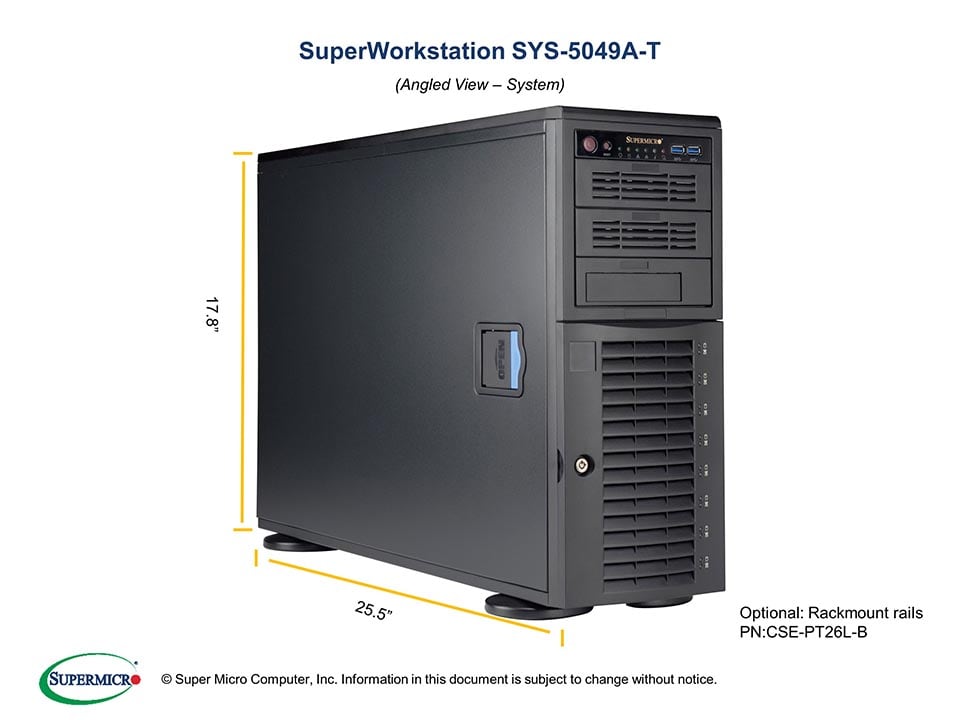

Views: | Angled View | Side View |

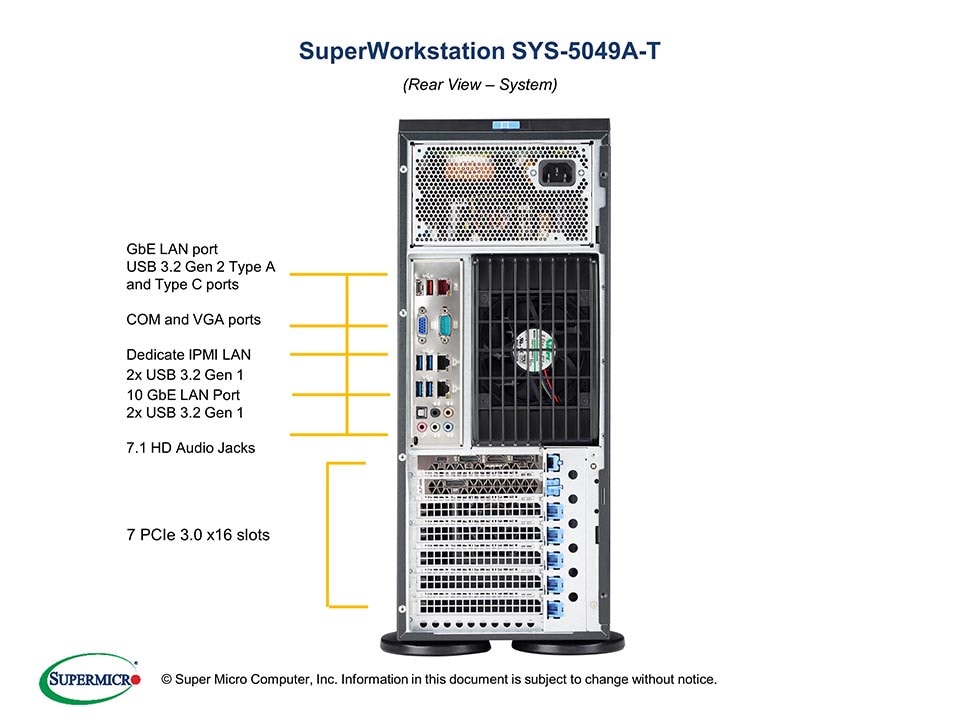

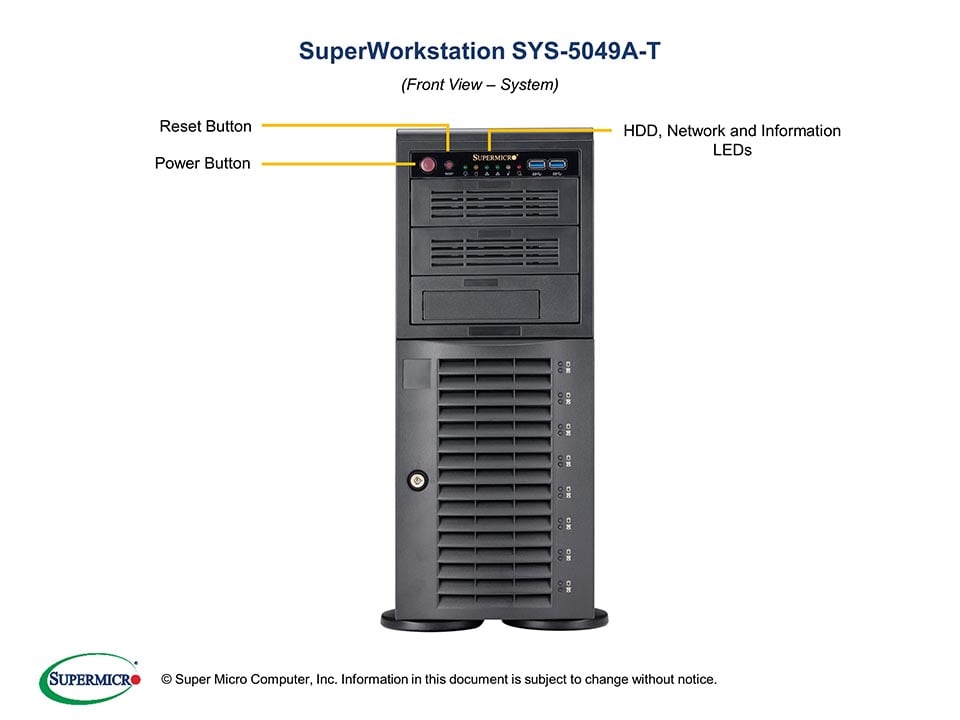

| Front View | Rear View |

Key Features
1. Single Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 12 DIMMs; up to 3TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM
3. 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8
    (in x16) slots,
    M.2 Interface: 4 PCI-E 3.0 x4
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key
* M.2 support RAID 0,1 (up to RAID 5, 10), VROC key is required for RAID 1
4. 1x 10GBase-T and 1x 1GbE LAN ports
5. 7.1 HD Audio
6. 8 Hot-swap 3.5" SAS3/SATA3 drive bays
    with SGPIO
7. 1000/1200W Multi-output Power Supply
    Platinum Level Certified

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals  OS Certification Matrix   Quick-References Guide  Compatible GPU List  Drive Options

Product SKUs
SuperWorkstation
  • SYS-5049A-T (Black)

Motherboard

Super X11SPA-TF

Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Support CPU TDP up to 205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Aquantia® AQC107 10G Ethernet Controller
  • Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
IPMI
  • ASPEED AST2500
Audio
  • 7.1 channel HD Audio by Realtek ALC888S

Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Gigabit Ethernet LAN port
  • 1 RJ45 10GBase-T Ethernet LAN port
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.1 Gen1 ports (4 rear, 2 headers)
  • 4 USB 3.1 Gen2 ports (1 rear Type A, 1 rear Type C, 1 Type A header, 1 Type C header)
  • 2 USB 2.0 ports (2 headers, Type A)
Audio
  • 7.1 HD Audio with optical S/PDIF
Video
  • 1 VGA port via AST2500 BMC
Serial Port / Header
  • 2 COM ports (1 rear, 1 header)
TPM
  • 1 TPM 2.0 Header

System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-743TS-1200BP-SQ

Dimensions and Weight
Height
  • 17.8" (452mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 71 lbs (32.2 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat / Fan Fail LED
Ports
  • 2 front USB 3.0 Ports

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 3 PCI-E 3.0 x8 (in x16 slot)
M.2
  • M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key
  • M.2 support RAID 0, 1 (up to RAID 5, 10), VROC key is required for RAID1

    *NOTE: When M.2 slots C01 or C02 is installed, PCIe slot 1 is disabled. When M.2 C03 or M.2 C04 is installed, PCIe slot 4 works x8.

Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
Peripheral Bay(s) [90o Rotatable]
  • 3x 5.25" drive bays

Backplane
Supports 8 SATA3 or 8 SAS3 HDD

System Cooling
Fans
  • 2 Super quiet PWM chassis fans (support up to 4 fans)
  • 1 Super quiet rear fan with optimal fan speed control

Power Supply
1200W high-efficiency power supply w/ PMBus
AC Input
  • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
  • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output
1000W max
1200W max
  • +3.3V / +5V / +12V / -12V / +5VSB
  •   20A /  20A /   83A /  0.3A /   3A
  •   20A /  20A /   99A /  0.3A /   3A
Note:
  • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification Platinum Level Certified94%+    Platinum Certified


Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SPA-TF
CSE-743TS-1200BP-SQ
1
1
Super X11SPA-TF Motherboard
4U Chassis
Backplane BPN-SAS3-743A 1 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Cable 1 CBL-SAST-0631 2 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG
Parts MCP-260-00142-0N 1 STD I/O Shield for X11SPA-TF with EMI Gasket
Manual MNL-2196-QRG 1 SYS-5049A-T Quick Reference Guide
* Power Supply PWS-1K25P-PQ 1 PS2 1200W Multi Output High Efficiency P
* Cable 2 CBL-0084 1 Front control cable 16 pin split, 6
* Cable 3 CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
* Cable 4 CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 5 CBL-0216L 4 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
* FAN 1 FAN-0103L4 1 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
* FAN 2 FAN-0104L4 2 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
* Drive Tray(s) MCP-220-00092-0B 8 Black Hot-swap 3.5inch HDD Tray (w/o logo)
* Parts MCP-110-00020-0N 2 #632*5L flat head screw (for hot-swap 3.5" HDD tray)
* Drive Tray(s) MCP-220-00081-0N 1 3.5" dummy HDD (hollow-panned) for MCP-220-00075-0B,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Heat Sink SNK-P0071APS4 - 4U Active CPU Heat Sink Supporting SYS-5049A-T Extreme X11 UP Workstation
Mounting Rails CSE-PT26L-B - Chassis Mounting Rails (Black)
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00080-0B - Black hot-swap 3.5" to 2.5" HDD tray - Add QTY 1 per drive
Storage Control Card and Cable(s) AOC-S3008L-L8e
2x CBL-SAST-0593
AOC-S3008L-L8i
2x CBL-SAST-0593
AOC-S3108L-H8iR
2x CBL-SAST-0593

- Std LP, 8 WIO L ports, 12Gb/s per port-gen3, 122HDD, HBA
Internal Mini-SAS HD to Mini-SAS HD 60cm, 30AWG, 12Gb/s
Std LP, 8 WIO L ports, 12Gb/s per port-gen3, 63HDD, RAID 0,1,1E
Internal Mini-SAS HD to Mini-SAS HD 60cm, 30AWG, 12Gb/s
Std LP, 8 WIO L ports, 12Gb/s per port-gen3, 240HDD, RAID 0,1,5,6,10,50,60
Internal Mini-SAS HD to Mini-SAS HD 60cm, 30AWG, 12Gb/s
DVD-ROM DVM-LITE-DVDRW24-HBT
1x CBL-SAST-0624
1x CBL-0082L
- BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF

SATA,INT,ROUND,ST-ST,70CM,30AWG
Y split, big 4 pin to two RA SATA power extension 15cm, 18AWG
Hide Parts List
