SuperWorkstation 5049A-TR

  Products  Systems  4U   [ 5049A-TR ]





Integrated Board
Super X11SPA-T

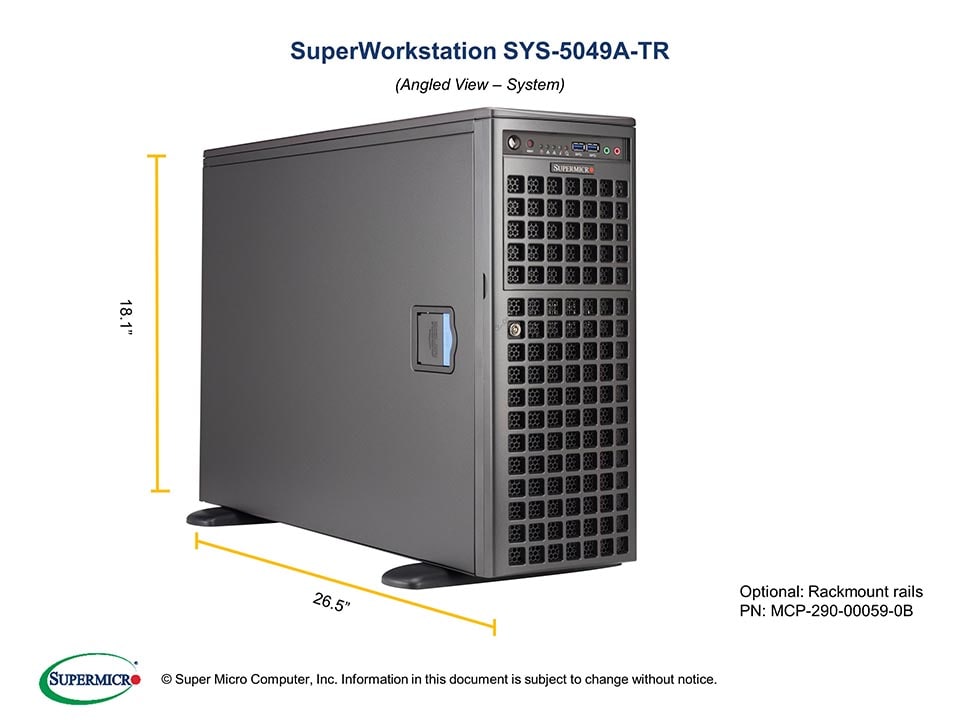

Views: | Angled View | Side View |

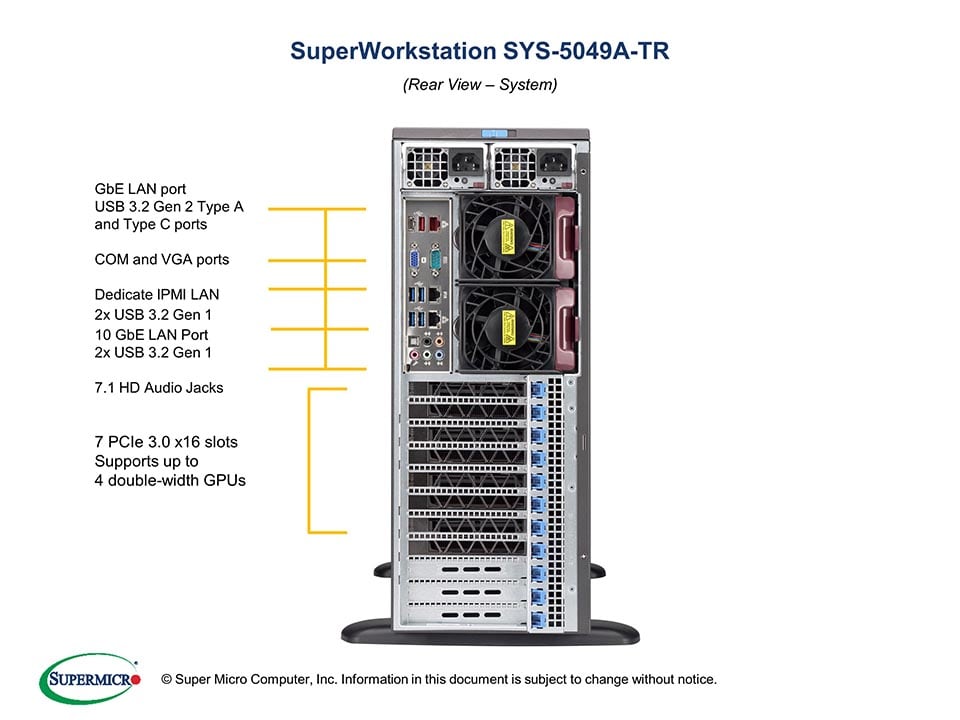

| Front View | Rear View |

Key Features
1. Single Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
    Intel® Xeon® W-32xx processor
2. Intel® Xeon® Scalable Processors:
    Up to 3TB 3DS ECC RDIMM,
    DDR4-2933MHz; up to 2TB 3DS
    ECC LRDIMM, DDR4-2933MHz; or
    3TB DCPMM, DDR4-2666MHz,
    in 12 DIMM slots.

    Intel® Xeon® W-3200 Processors:
    Up to 2TB 3DS ECC L/RDIMM;
    up to 1TB 3DS L/RDIMM.
3. 4 PCI-E 3.0 x16,
    3 PCI-E 3.0 x8 (in x16 slot)
    M.2 Interface: 4 PCI-E 3.0 x4, RAID 0, 1
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key
4. 1x 10GBase-T and 1x 1GbE LAN ports
5. 8 Hot-swap 3.5" SAS/SATA bay
    with SGPIO
6. 1 VGA port, VGA connector is dedicated for IPMI
7. 7.1 HD Audio
8. 2200W Redundant (1+1) Power
    Supplies Titanium Level Certified

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals  OS Certification Matrix   Quick-References Guide  Compatible GPU List  Drive Options

Product SKUs
SuperWorkstation
  • SYS-5049A-TR (Black)

Motherboard

Super X11SPA-T

Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Intel® Xeon® W-32xx Processors
  • Support CPU TDP up to 205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 12 DIMM slots
  • Intel® Xeon® Scalable Processors: Support up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots.
  • Intel® Xeon® W-3200 Processors: Support up to 2TB 3DS ECC RDIMM/LRDIMM; up to 1TB 3DS RDIMM/LRDIMM.
Note This system doesn't support DCPMM

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Aquantia® AQC107 10G Ethernet Controller
  • Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Audio
  • 7.1 channel HD Audio by Realtek ALC888S

Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Gigabit Ethernet LAN port
  • 1 RJ45 10GBase-T Ethernet LAN port
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.1 Gen1 ports (4 rear, 2 headers)
  • 4 USB 3.1 Gen2 ports (1 rear Type A + 1 Rear Type C)
  • 2 USB 2.0 ports (2 headers, Type A)
Video
  • 1 VGA port
Audio
  • 7.1 HD Audio with optical S/PDIF
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM 2.0 Header

System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-747BTS-R2K20BP

Dimensions and Weight
Height
  • 18.1" (460mm)
Width
  • 7.0" (178mm)
Depth
  • 26.5" (673mm)
Weight
  • Gross Weight: 72 lbs (32.66 kg)
  • Net Weight: 57 lbs (25.85 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat / Fan Fail LED
Ports
  • 2 front USB 3.0 Ports

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 3 PCI-E 3.0 x8 (in x16 slot)
  • PCI-E x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8) (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8)
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110
  • Key: M-Key
  • M.2 shares PCI-E lanes with PCI-Ex16 slot#1, VROC key is required for RAID

Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" SAS2/SATA3 drive bays (SATA3 default)
Peripheral Bay(s) [90o Rotatable]
  • 3x 5.25" drive bays

Backplane
Supports 8 SATA3 or 8 SAS2 HDD

System Cooling
Fans
  • 4x 92mm hot-swap fan(s)
  • 2x 80mm rear hot-swap exhaust PWM fan(s)

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SPA-T
CSE-747BTS-R2K20BP
1
1
Super X11SPA-T Motherboard
4U Chassis
Backplane BPN-SAS-747TQ 1 4u, SAS Backplane,x8 3.5" HDD; SC747's; AMI 9072 support I2C & GPIO.
Cable 1 CBL-0484L 8 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2 CBL-CDAT-0661 2 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Parts MCP-260-00142-0N 1 STD I/O Shield for X11SPA-T with EMI Gasket
Manual MNL-2219-QRG 1 SYS-5049A-TR Quick Reference Guide
* Power Supply PWS-2K20A-1R 2 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
* Cable 3 CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AW
* Cable 4 CBL-0286L 2 4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG
* Cable 5 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 6 CBL-0216L 4 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
* FAN 1 FAN-0138L4 2 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
* FAN 2 FAN-0082L4 2 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
* FAN 3 Fan-0114L4 2 92x38mm 4-PIN PWM FAN W/ HUS for SC747
* Drive Tray(s) MCP-220-00094-0B 8 Black gen 6.5 hot-swap 3.5 inch HDD Tray
* Drive Tray(s) MCP-220-00073-0B 3 Black 5.25 drive tray w/o rail (SC747)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
CPU Heatsink SNK-P0071APS4 - High Performance 4U Active CPU Heatsink
M.2 Heatsink SNK-C0121L-1 - M.2 Heatsink
Cable (PCIe) CBL-PWEX-1040 - Adapter cable converts 8M/CPU to two (2x3F+2x1F)/PCIe. This is required for GeForce and Quadro video cards
Fan Kits for Various GPU Population MCP-320-74703-0N-KIT 1 Fully-polulated with Full-height Double-width Passive GPU cards
MCP-320-74703-0N-KIT
MCP-240-00096-0N
1
-
Partially-populated with Full-height Double-width Passive GPU cards
MCP-310-74706-0B 1 Fully-populated with Full-height Double-width Active GPU cards (30°C operating temp.)
MCP-310-74706-0B
MCP-240-00096-0N
1
-
Partially-populated with Full-height Double-width Active GPU cards
MCP-320-74704-0N-KIT 1 Fully-populated with Low-profile Single-width Passive GPU cards
MCP-310-74705-0B
MCP-240-00169-0N
FAN-0148L4
MCP-320-00040-0N
1
-
2
2
Partially-populated with Low-profile Single-width Passive GPU cards
HDD Converter MCP-220-93801-0B - Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
Storage Control Card and Cable(s) AOC-S3008L-L8i
2x CBL-SAST-0699
AOC-S3108L-H8iR
2x CBL-SAST-0699
AOC-S3108L-H8iR-16DD
2x CBL-SAST-0699

- Std LP, 8 WIO L ports, 12Gb/s per port-gen3, 63HDD, RAID 0,1,1E; Mini SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
Std LP, 8 WIO L ports, 12Gb/s per port-gen3, 240HDD, RAID 0,1,5,6,10,50,60; Mini SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; Mini SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
Super Cap for LSI 3108 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 - LSI Supercap w 8GB CV 24 cable (whole kit) & Supercap mounting bracket for PCI-E location
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1
1
1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Mounting Rails MCP-290-00059-0B 1 Rail set+handles, quick/quick, optional for 4U 17.2"W tower
Front Bezel MCP-210-74703-0B 1 Front bezel cover (for 5.25" bay) for rackmount
DVD Kit DVM-LITE-DVDRW24-HBT1
CBL-0082L
CBL-SAST-0624
1
1
1
BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
SATA,INT,ROUND,ST-ST,70CM,30AWG
TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
