SuperServer SYS-751GE-TNRT-NV1

Liquid-cooled AI Development Platform with NVIDIA AI Enterprise

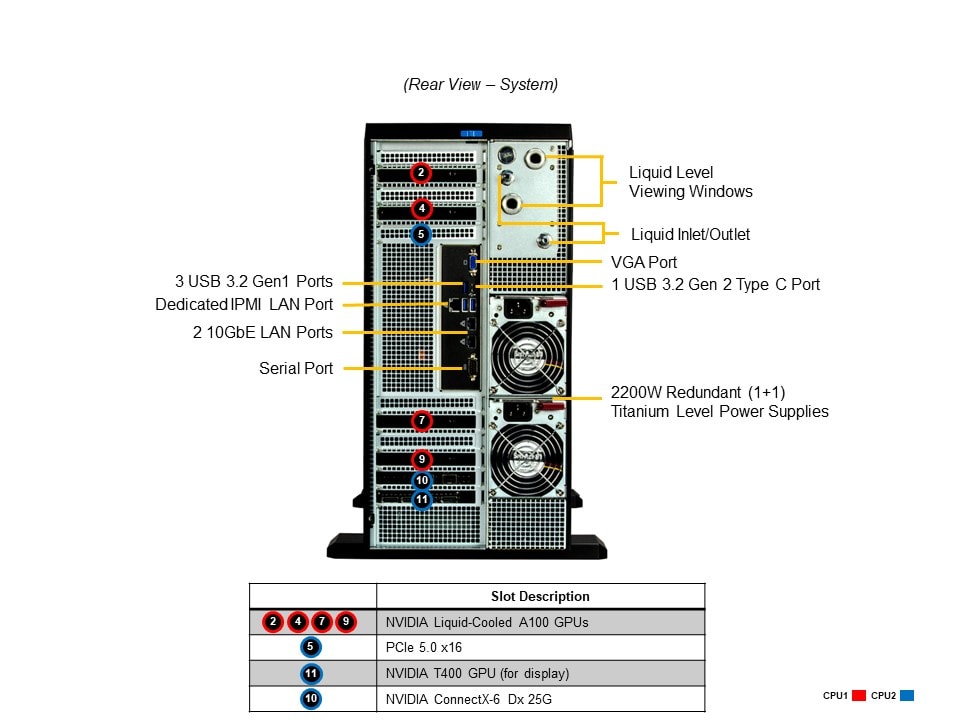

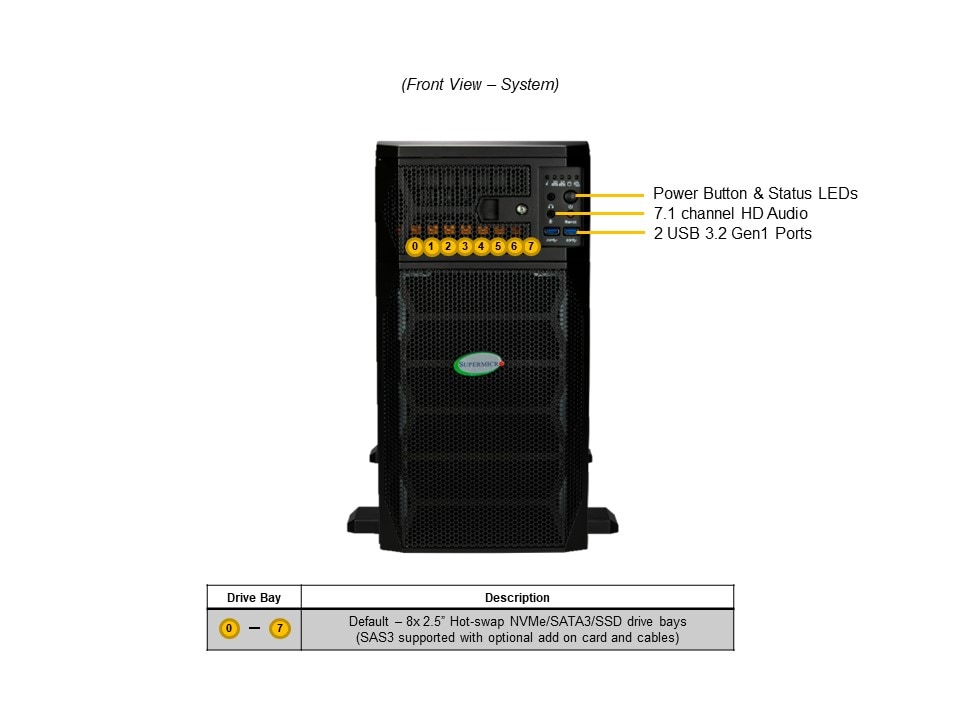

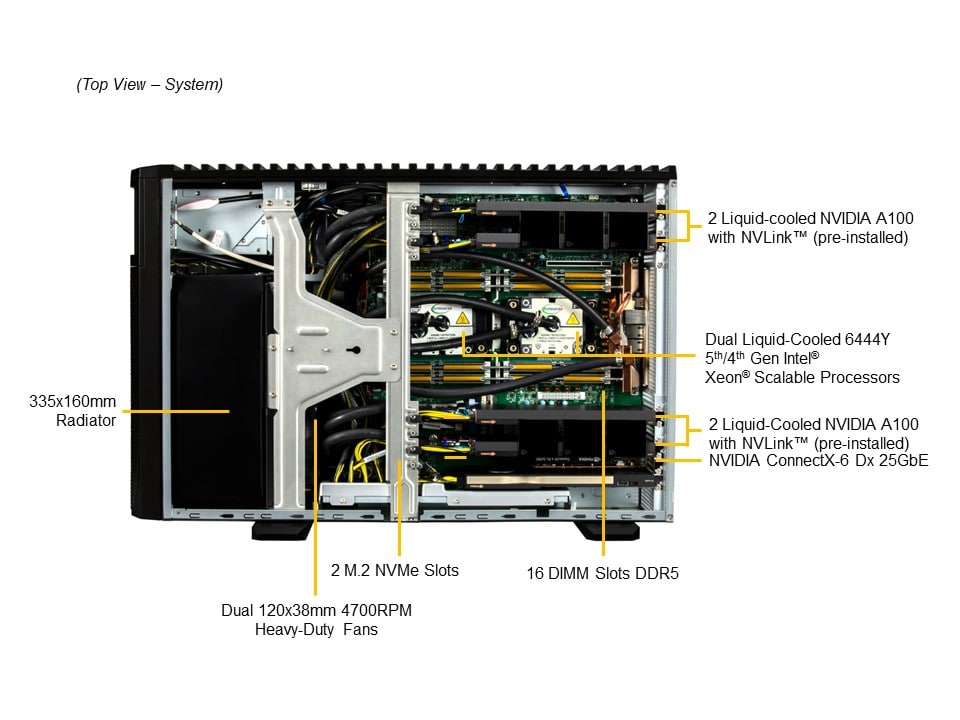

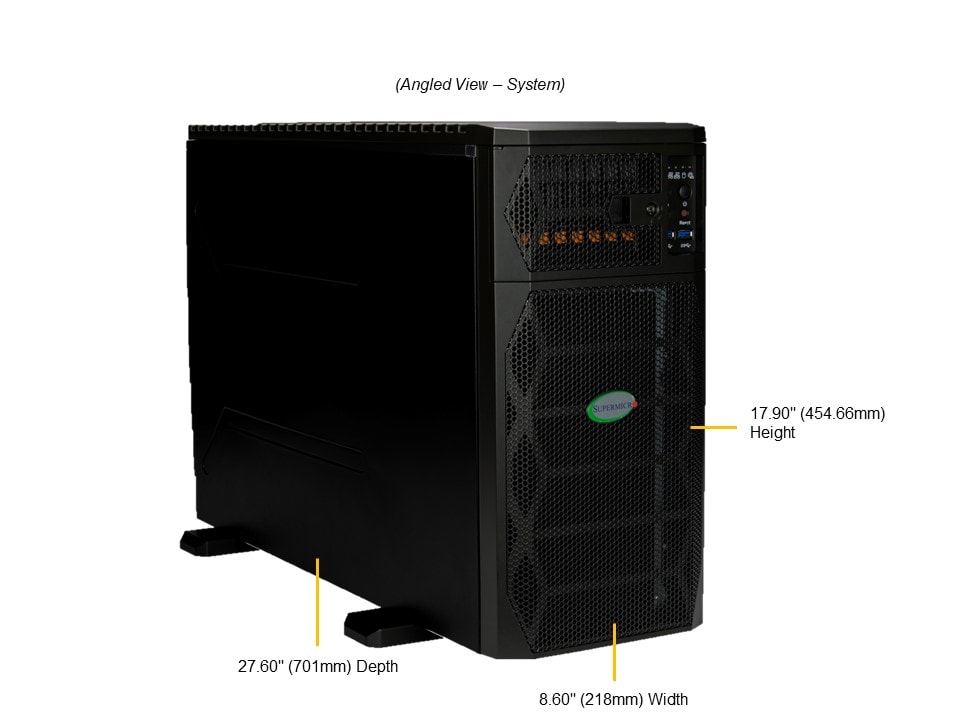

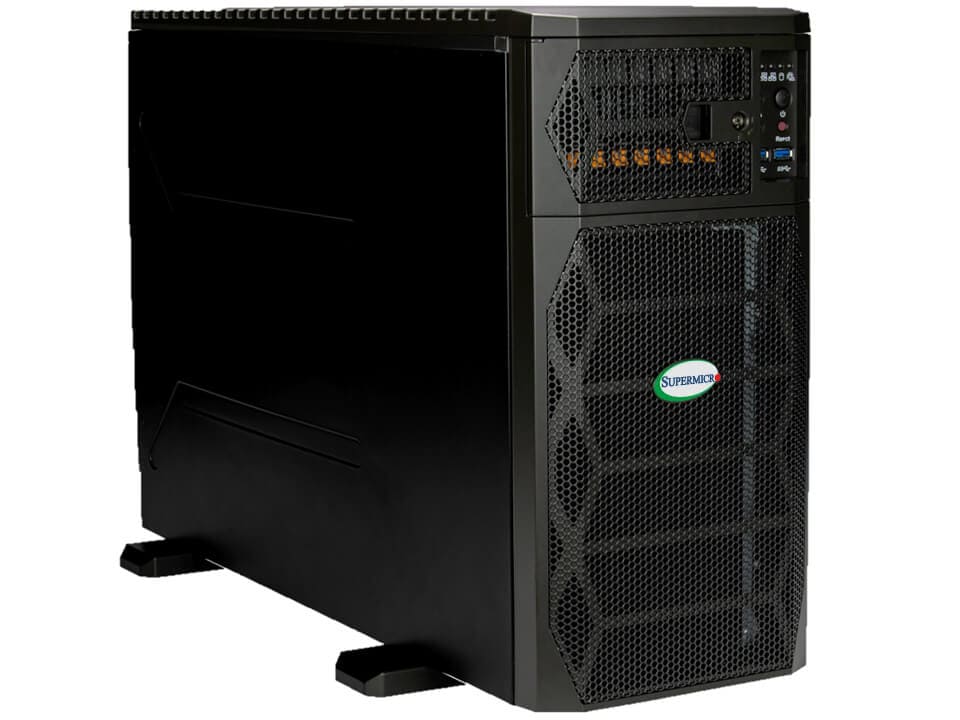

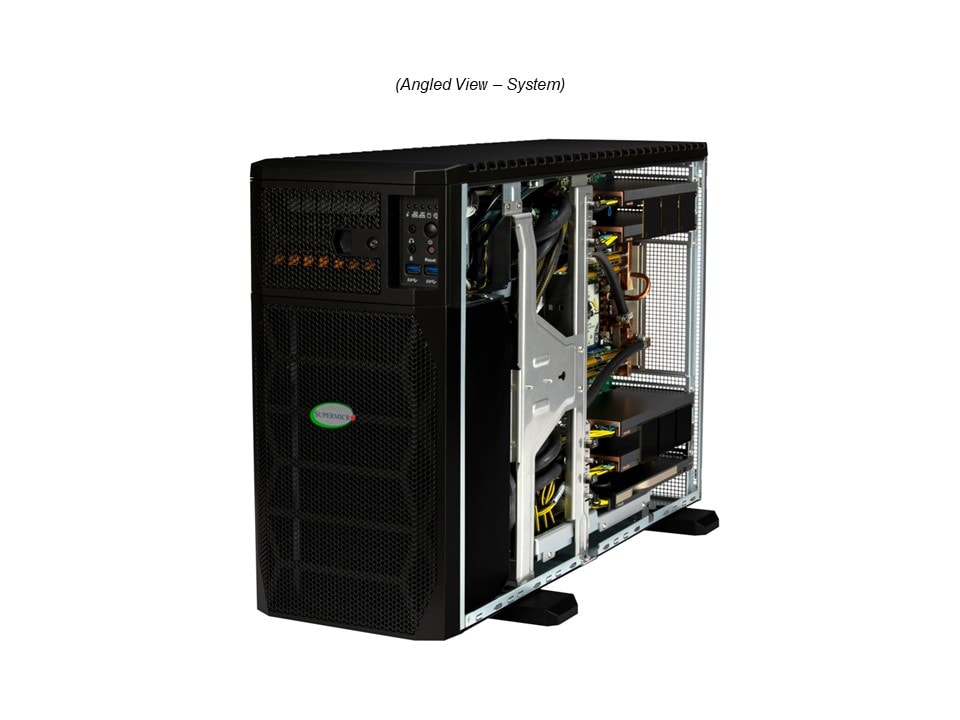

SYS-751GE-TNRT-NV1 Main SYS-751GE-TNRT-NV1 Angle SYS-751GE-TNRT-NV1 Front SYS-751GE-TNRT-NV1 Rear SYS-751GE-TNRT-NV1 Side
Integrated Board: X13DEG-QT
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • AI Development

Key Features

  1. Acoustically optimized for quiet operation
    Closed-loop liquid cooling for CPUs and GPUs
  2. 4 liquid-cooled NVIDIA A100 GPUs installed
  3. Dual 4th Gen Intel® Xeon® Scalable Processors, 6444Y (16 cores at 3.6Ghz) installed
  4. Dual-port active-cooled NVIDIA Connect-X6 Dx 25G Network Adapter installed
  5. NVIDIA AI Enterprise 3 years subscription and support
  6. NVIDIA RTX A4000 GPU for display output installed
  7. Ubuntu 22.04 LTS installed
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-751GE-TNRT-NV1 (Black Front & Black Body)
Motherboard
Super X13DEG-QT
Processor
CPU
Cores
  • 16C; 30MB Cache
Note
  • Dual 4th Gen Intel® Xeon® Scalable 6444Y (16 cores at 3.6Ghz) installed
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • 512GB: 16x 32 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 DRAM
Note
  • 16x 32GB 4800MHz ECC DDR5 RDIMM DRAM installed
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C741
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550-AT2
  • 1x 1GbE BaseT with ASPEED AST2600
  • 1x 25GbE SFP28 with NVIDIA Connect-X-6 Dx
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
SATA
  • 2 SlimSAS port(s)
  • 2 SuperDOM port(s)
NVMe
  • 4 NVMe U.2
LAN
  • 1 RJ45 1GbE (Dedicated IPMI port)
  • 1 SFP28 25GbE
  • 2 RJ45 10GbE
USB
  • 2 USB 3.2 Gen1x2; port(s) (2 Front_USB)
  • 1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB)
  • 3 USB 3.2 Gen1 port(s) (3 Rear_USB)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Tower or 5U Rackmount
Model
  • CSE-759TS-R2K21BP
Dimensions and Weight
Height
  • 8.6" (218.4mm)
Width
  • 17.9" (454.7mm)
Depth
  • 27.6" (701mm)
Package
  • 25.8" (H) x 15.3" (W) x 37.6" (D)
Weight
  • Net Weight: 88 lbs (44 kg)
  • Gross Weight: 121 lbs (55 kg)
Available Color
  • Black Front & Black Body
Front Panel
Buttons
  • Power On/Off button
  • Reset button
LEDs
  • HDD activity LED
  • Information LED
  • Network 1 activity LED
  • Network 2 activity LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe)
  • 7 PCIe 5.0 x16 FHFL slot(s)
Note
  • 4 NVIDIA Liquid-cooled A100, NVIDIA RTX A4000, NVIDIA Connect-X6 Dx 25G Network adapter installed
Drive Bays / Storage
Hot-swap
  • 8x 2.5" hot-swap NVMe/SATA drive bays (2 1.92TB NVMe Drives RAID 1 (OS), 4 1.92TB NVMe Drives (Data) installed)
M.2
  • 2 M.2 NVMe
System Cooling
Fans
  • 1 fan 8CM Fan(s)
  • 2 fan 12CM Fan(s)
Power Supply
2U 2200W Redundant Power Supply for Workstation
Dimension

(W x H x L)
  • 106.5 x 82.1 x 203.5 mm
AC Input
  • 1200W: 100-127Vac / 9.5A-12A / 50-60Hz
  • 1800W: 200-220Vac / 9.5A-10A / 50-60Hz
  • 1980W: 220-230Vac / 9.5A-10A / 50-60Hz
  • 2200W: 220-240Vac / 9.6A-11.8A / 50-60Hz (UL/cUL only)
  • 2090W: 230-240Vac / 9.8A-10A / 50-60Hz
  • 2090W: 230-240Vdc / 9.8A-10A / 50-60Hz (China only)
Output Type
  • Backplanes (connector)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 25°C (50°F ~ 77°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
CPU ListCompatible GPU ListDrive OptionsTested AOC ListTested M.2 ListTested Memory
Software
BIOS DownloadBMC DownloadDrivers & Utilities
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DEG-QT

CSE-759TS-R2K21BP 		1

1 		Super X13DEG-QT Motherboard

Tower or 5U Chassis
Add-on Card / Module AOC-621202AS-ADAT 1 [NR]Nvidia MCX621202AS-ADAT 2p 25GbE Gen4x8,Active cooling
AOC-VROCINTMOD 1 Intel VROC HW key (RSTe), enable RAID functions, HF,RoHS
AOM-TPM-9670V-P 1 SPI TPM 2.0 using SLB9670,RoHS
Backplane BPN-NVME5-HS219N-S8 1 2U 8-port Hybric backplane support up to 8x SAS3/SATA2/NVMe5
Cable CBL-MCIO-1250M5-Z 2 MCIO x8 (STR to STR),50cm,30AWG,RoHS
CBL-MCIO-1260M5 2 MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
CBL-PWEX-0962Y-20 2 12VHPWR 2x6+4S to McHi 2x4Y,PH3.0,20cm,6.25A/p,16#,RoHS
CBL-PWEX-0962Y-50 2 12VHPWR 2x6+4S to McHi 2x4Y,PH3.0,50cm,6.25A/p,16#,RoHS
CBL-PWEX-1040 1 PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
CBL-PWEX-1142-60 1 MicroHi,(2X4 to 2X4) P3.0,60CM,8A/pin,18AWG,RoHS
CBL-PWEX-1148-20 1 MicroHi,2x4,PH3. to 2x4,PH4.2,MiniFit,20CM,8.5A/p,18AWG,
CBL-SAST-1245-100 2 Slimline x4 (STR) to Slimline x4 (STR),42.5CM,100 OHM,R
CBL-0156L 1 ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE
CBL-CDAT-0560 1 Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF
CBL-CUSB-0860 1 USB 3.0,INT,20 PIN/F TO 20PIN/F,60CM,30/26AWG
SSD HDS-IUN0-SSDPF2KX019T1M 6 IntelD7-P5520 1.92TB NVMe PCIe4.0 X4 3DTLCU.2 15mm<2DWPD
Parts MCP-260-00180-0B 1 STD I/O Shield for X13DEG-QT with EMI Gasket & Black Mylar
Memory MEM-DR532L-CL01-ER48 16 32GB DDR5-4800 2RX8 LP (16Gb) ECC RDIMM
CPU P4X-SPR6444Y-SRMGQ-MCC 2 SPR 6444Y 2P 16C 3.6G 270W(12/3.6/225,8/3.8/200)45M BI(1000)
Software SFT-CNC-CO4VU1902-3Y 1 Canonical Weekday L1 Support per node for Ubuntu Infra 3 yr
SFT-DCMS-SINGLE 1 Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF
SFT-NVAIE-S-3Y 2 NVAIE Subscription License&Support 3yrs
Heatsink / Retention SNK-P3067-ABT 1 Liquid Cooling Loop for X13 liquid cooling SYS-751GE-TNRT-1
SNK-P3068-ABT 1 Liquid Cooling Loop for X13 liquid cooling SYS-751GE-TNRT-2
SNK-P3074 1 Liquid Cooling Cold Plate of DIMM for SYS-751GE-TNRT,RoHS
*Power Supply PWS-2K21A-SQ 2 1200W/2200W, Titanium efficiency, Redundant power supply, W1
*Power Distributor PDB-PT759-DHG 1 5U GPU PDB input Ultra PWS redundancy and output support 6K
PDB-PT759-DSG 1 5U GPU PDB gold finger input and output support up to 6KW,Ro
*Fan FAN-0074L4-2 1 80x80x38 mm, 6.1K RPM, Cooling Fan for SYS-751GE-TNRT-1,RoHS
FAN-0243L4 2 120x120x38 mm, 4.7K RPM Exhaust Fan for SYS-751GE-TNRT,RoHS
*Control Board FPB-FP759 1 Front Panel LED board for CSE-759 chassis, RoHS
*Front Bezel MCP-210-75901-0B 1 Plastic front bezel for SC759
*Drive Tray(s) MCP-220-00196-0B 8 Metallic black gen-3 hot-swap 2.5 NVMe tool-less tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Optional rack mount rail set MCP-290-00057-0N • 1 Rail set, quick/quick, default for 4U 17.2" W
