SuperServer SYS-221GE-NR (Complete System Only)

DP Intel 2U PCIe GPU System with up to 4 NVIDIA H100, H100 NVL, L40S, or A100

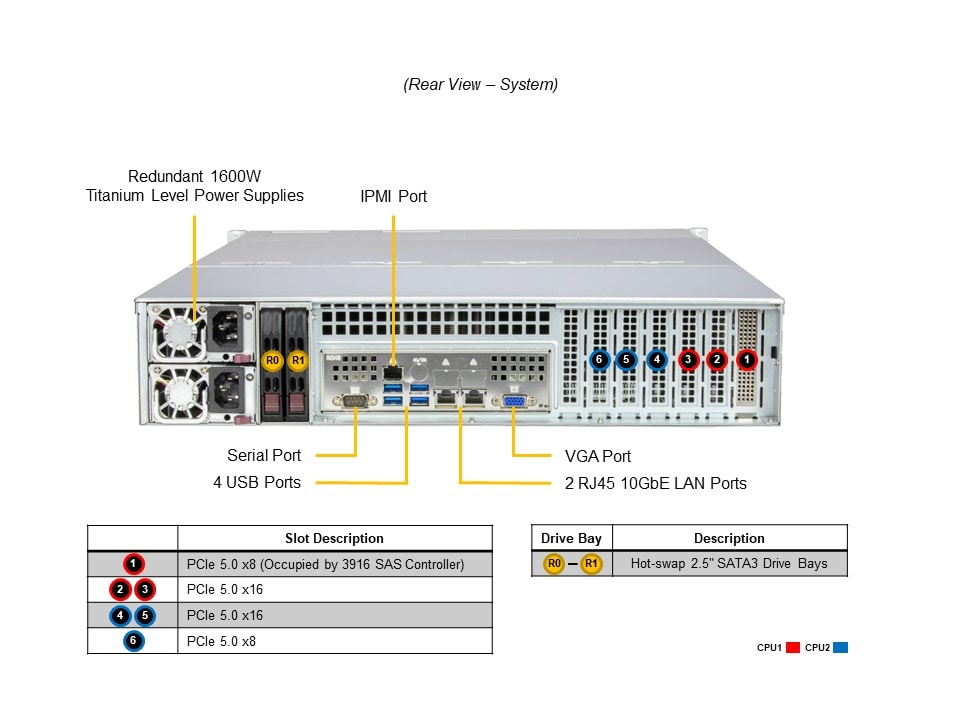

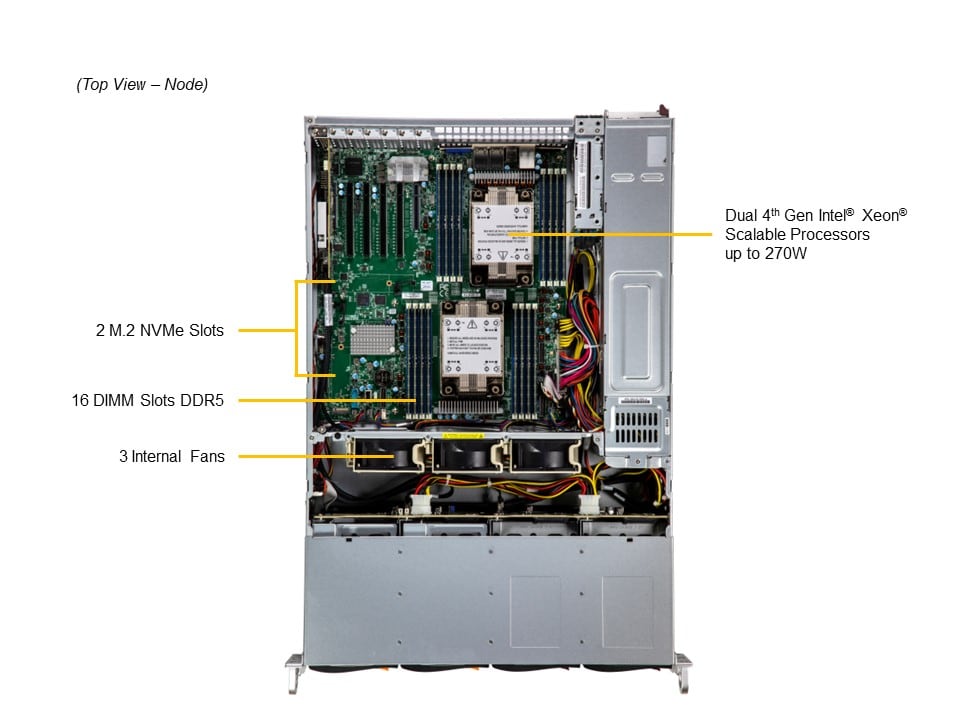

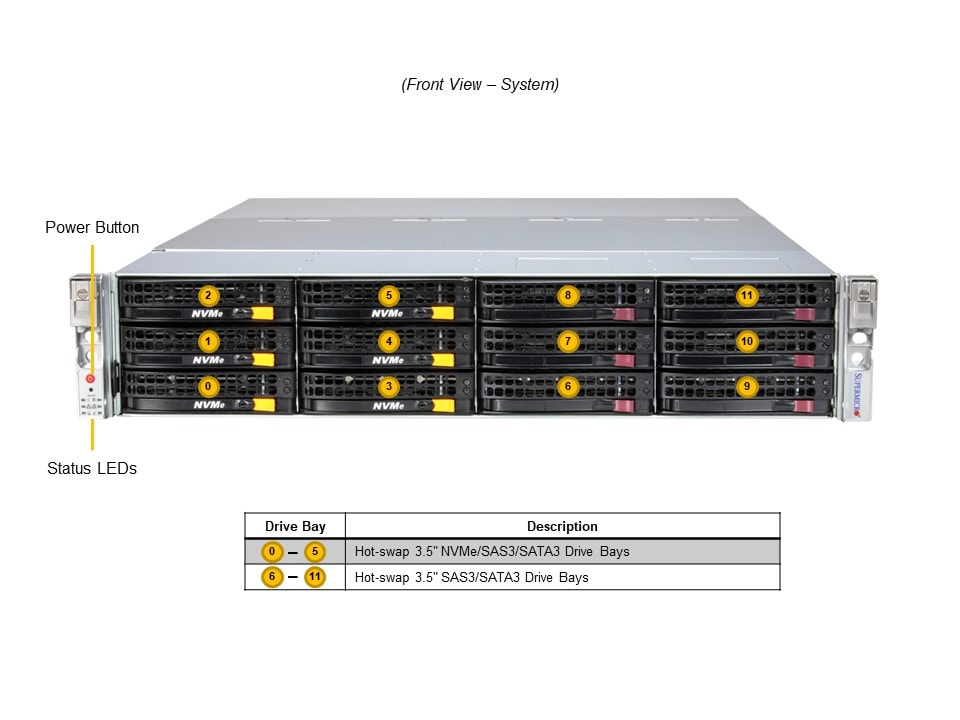

SYS-221GE-NR Main SYS-221GE-NR Top SYS-221GE-NR Front SYS-221GE-NR Rear
Integrated Board: X13DEH
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Large Language Model (LLM) Natural Language Processing

Key Features

  1. High density 2U GPU system with up to 4 NVIDIA® H100 PCIe GPUs
    Highest GPU communication using NVIDIA® NVLINK™
    PCIe-based H100 NVL with NVLink Support
  2. 5th/4th Gen Intel®  Xeon® Scalable processor support
  3. 32DIMM slots Up to 4TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  4. 7 PCIe 5.0 x16 FHFL Slots
  5. NVIDIA BlueField-3  Data Processing Unit Support for the most demanding accelerated computing workloads.
  6. E1.S NVMe Storage Support
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-221GE-NR
Motherboard
Super X13DEH
Processor
CPU
Core Count
  • Up to 56C/112T; Up to 112.5MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 4 double-width GPU(s)
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video
  • 1 mini-DP port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GP201TS-R000NP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.25" (438.4 mm)
Depth
  • 35.43" (900 mm)
Package
  • 11" (H) x 22.5" (W) x 45.5" (D)
Weight
  • Gross Weight: 86.5 lbs (39.2 kg)
  • Net Weight: 67.5 lbs (30.6 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap E1.S NVMe drive bay(s)
M.2
System Cooling
Fans
  • 6 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2000W Redundant Titanium Level power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz (for UL only)
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc / 50-60Hz (for CQC only)
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DEH

CSE-GP201TS-R000NP
1

1
Super X13DEH Motherboard

2U Chassis
Add-on Card / Module AOM-GP101-IPMI-P 1 2U Sapphire Rapids LEGO Server, 2U Grace C2 LEGO Server,
AOM-PCIE5-GP201-2-P 1 Cable Riser, 600mm, 2 MCIO to 1 PCIE x16 Slot,RoHS
AOM-PCIE5-GP201-4-P 5 Cable Riser, 450mm, 2 MCIO to 1 PCIE x16 Slot,RoHS
AOM-PCIE5-GP201-5-P 1 Cable Riser, 700mm, 2 MCIO to 1 PCIE x16 Slot,RoHS
AOM-SCM-NV-P 1 BMC Module, Vertical, 1U DC-SCM, DC-SCI 2.0, AST2600, Ro
Backplane BPN-E1S5-GP101M 1 1U 8-slot E1.S Gen5 backplane for Nvidia MGX platform
Cable CBL-CDAT-1033-07 1 1x3 to 1x3, BMC control, PH0.8, 7cm, 32AWG, RoHS,RoHS
CBL-CDAT-1120-25 1 Picoclasp SB,NCSI,2x10 to 2x10,25cm,28AWG,1A/p,RoHS
CBL-LCIO-1247RM5 2 MCIO x8 (STR to LP RA),47CM,30AWG,RoHS
CBL-PWEX-0910-25 1 MicroFit (2x1 to 2x1),PH3.0,25cm,11A/p,16AWG,RoHS
CBL-PWEX-0910-50 1 MicroFit (2x1 to 2x1),PH3.0,50cm,11A/p,16AWG,RoHS
CBL-PWEX-1090-50 1 MicroFit,(2x4 to 2x4),PH3.0,50CM,9A/pin,16AWG,RoHS
CBL-PWEX-1093-40 1 MicroFit,(2x2F to 2x2F), PH3.0,40CM,10A/pin,16AWG,RoHS
CBL-PWEX-1181RFT-84 1 MicroFit (2x6 to 3 2x2),PH3.0,84cm, 9A/p,16AWG,RoHS
CBL-PWEX-1317RFY-6083 2 2x12VHPWR(12P+4S)+MicroFit 2x2,60/83cm,8.4A/p,16AWG,RoHS
CBL-PWEX-1317RFY-86C0 2 2x12V-2x6 H++(12P+4S)+McFit 2x2,86/120cm,8.4A/p,16AWG,Ro
CBL-SAST-1250S4-85 1 SlimSAS x8 (STR to STR),50cm,SAS4,30AWG,RoHS
CBL-MCIO-1330M5 OR 4 MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS
CBL-MCIO-1328M5 MCIO (x8 to x8), STR, 28cm,G5,32AWG, RoHS,RoHS
CBL-PWCD-0160-IS 3 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWCD-1301-1 1 PWCD-Kit, Dual Cable, C14-C13, 250v, 10A, RoHS
CBL-PWCD-1302-1 1 PWCD-Kit, Single Cable, C14-C13, 250v, 10A, RoHS
Power Supply PWS-2K09F-1R 3 AC-DC 1U 2000W 80 Plus Titanium CRPS, reverse airflow, W73.5
Software SFT-DCMS-SINGLE 1 Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
*Power Distributor PDB-GP201-2U4PH 1 2U PDB support redundant powers up to 6KW total output.,RoHS
*Front Panel FPB-FP826-T 1 Chassis front control board for SC826
*Rail Set MCP-290-20104-0N 1 37.3
*Fan FAN-0241L4 OR 6 60x60x56 mm, 23.3K RPM, Counter Rotating Fan Module, RoHS,Ro
FAN-0242L4 60x60x56 mm, 22.3K RPM, Counter Rotating Fan Module, RoHS,Ro
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Trusted Platform Module Options AOM-TPM-9672V-O 1 TPM 2.0 with 10 pins SPI,RoHS
GPU SuperServer SYS-221GE-NR (Complete System Only ) New
