SuperServer SYS-210GT-HNC8F (Complete System Only)

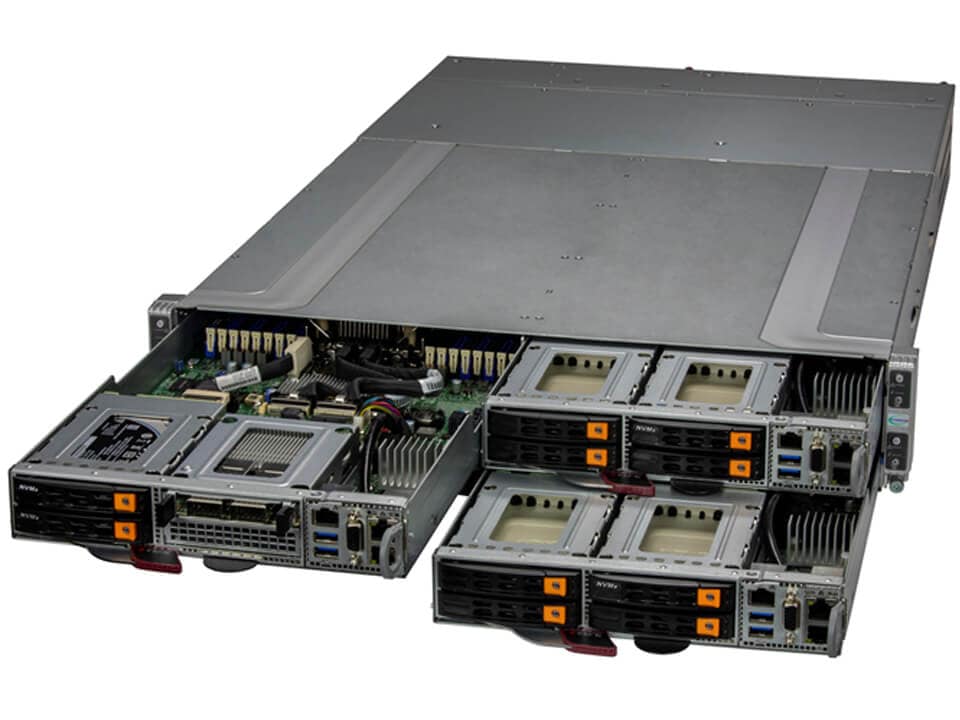

SYS-210GT-HNC8F Main SYS-210GT-HNC8F Angle SYS-210GT-HNC8F Node SYS-210GT-HNC8F Front SYS-210GT-HNC8F Rear
Integrated Board: X12SPT-GC
Learn more

Key Applications

  • HPC
  • Cloud Gaming
  • MEC (Multi-Access Edge Computing)
  • Multi-Purpose CDN
  • High-availability Cache Cluster
  • Telco Edge Cloud
  • EDA (Electric Design Automation)
  • Mission Critical Web Applications

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Single-Socket, 3rd Gen Intel® Xeon® Scalable processors up to 270W TDP
  2. Intel® C621A
  3. 16 DIMM Slots up to 4TB
  4. Optional: AIOM PCIe 4.0 x16 LP (OCP 3.0 compliant)
  5. Two optional storage modules. Each module supports 2x NVMe or SAS/SATA drive bays
  6. 2x cooling fans per 2U enclosure, 16.5K RPM Heavy Duty; Shared Cooling Design
  7. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  8. Built-in SAS3 Support via Broadcom 3808; IT Mode
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-210GT-HNC8F
Motherboard
Super X12SPT-GC
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
  • View Memory Options
On-Board Devices (per Node)
SAS
  • SAS3 (12Gbps) via Broadcom® 3808 (IT mode)
Chipset
  • Intel® C621A
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 3.0 port(s) (2 USB)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT214BF-R2K21BP
Dimensions and Weight
Height
  • 3.46" (88mm)
Width
  • 17.67" (449mm)
Depth
  • 28" (711.2mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Net Weight: 68 lbs (30.8 kg)
  • Gross Weight: 88 lbs (39.9 kg)
Available Color
  • Black front & silver body

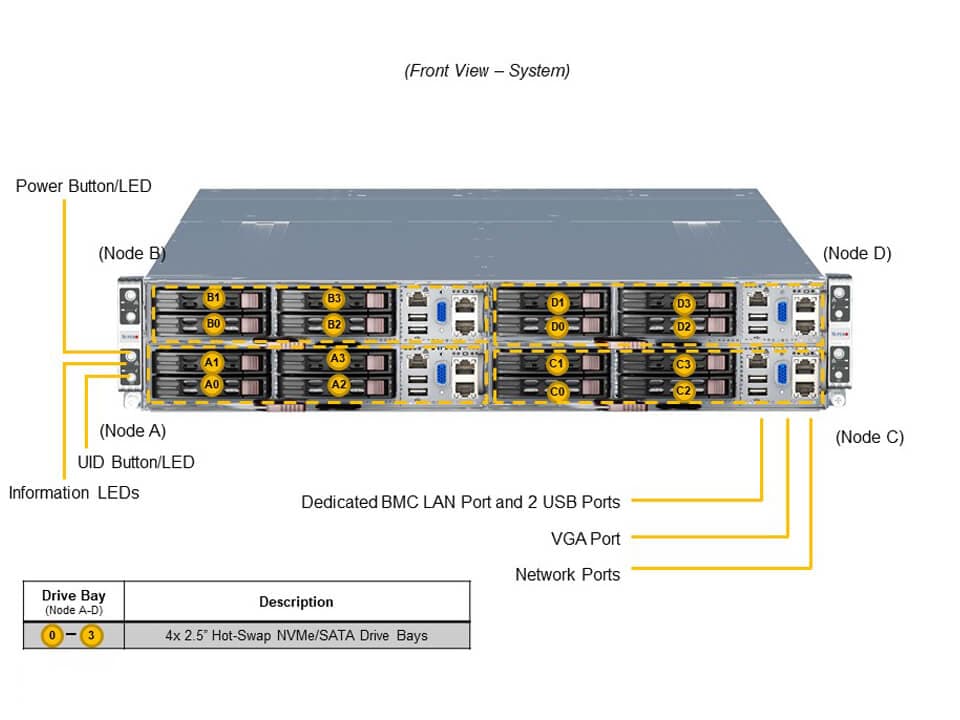

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
Drive Bays / Storage (per Node)
Hot-swap
  • 4x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated)
M.2
System Cooling
Fans
  • 2x 16.5K RPM Heavy Duty 8cm Fan(s)
Power Supply

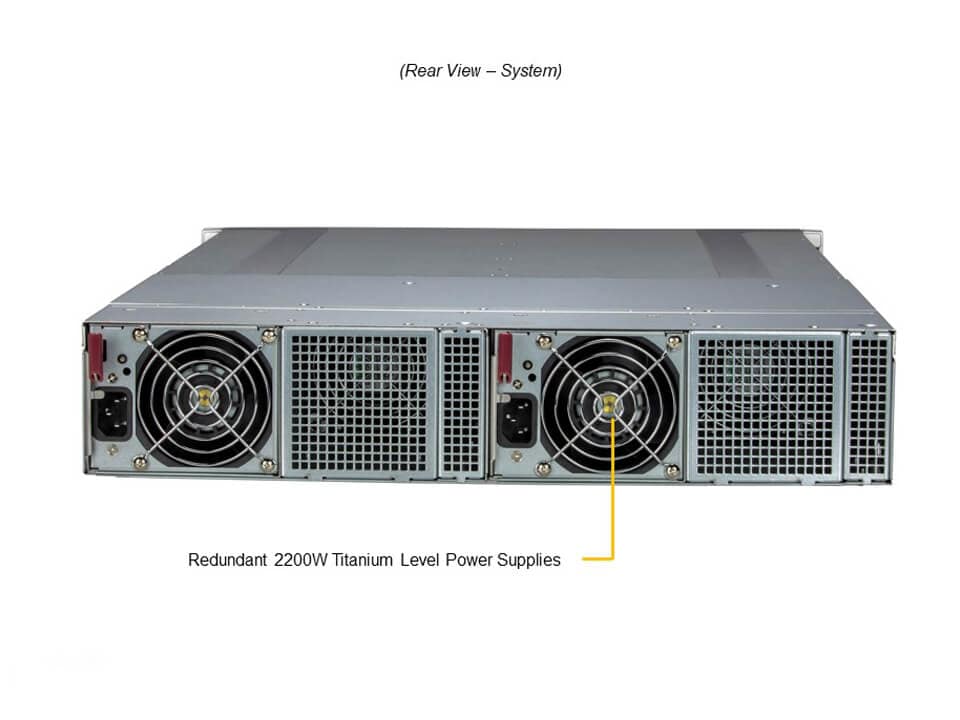

2200W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 106.5 x 84 x 245.3 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
  • 2090W: 230-240Vdc / 50-60Hz (for CQC only)
  • 2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
  • Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
  • Max: 174.17A (230Vac-240Vac)
12V SB
  • Max: 2A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       5°C ~ 40°C (41°F ~ 104°F)
  • Non-operating Temperature:
       -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity:
       8% to 80% (non-condensing)
  • Non-operating Relative Humidity:
       8% to 90% (non-condensing)


Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPT-GC

CSE-GT214BF-R2K21BP
4

1
Super X12SPT-GC Motherboard

2U Chassis
Cable CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
Air Shroud MCP-310-21403-0B 4 GT214 GrandTwin Intel 1st gen X12 only plastic air shroud
Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 4 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-2K21A-BR 2 2200W MicroBlade redundant Power Supply, Titanium Level
*Power Distributor BPN-PDB-GT214 1 Power Distribution for GrandTwin
*Fan FAN-0183L4 2 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers
*Rail Set MCP-290-00172-0N 1 2U non-tip rail set, quick release, default for 2,3U 17.6
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
AIOM Dummy Tray MCP-120-21406-0N 1 GT214 FIO AIOM dummy bracket
AIOM Enablement Kit MCP-450-21403-ASM 0 - 1 GT214 Gen4 AIOM kit,RoHS
GrandTwin I/O Module 2x10GbE AOC-GTG-B2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
AOC-GTG-I2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
GrandTwin I/O Module 2x25GbE AOC-G25G-M2S-O 1 Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
HDD Dummy Tray MCP-120-21401-0N 0 - 2 GT214 FIO HDD dummy bracket(1slot)
NVMe Enablement Kit MCP-450-21402-ASM 0 - 2 GT214 2 port Gen4 NVMe U.2 Enablement Kit, RoHS
SAS/SATA Enablement Kit MCP-450-21405-ASM 0 - 1 GT214 2 Port SATA/SAS U.2 Enablement kit, RoHS
MCP-450-21404-ASM 0 - 1 GT214 4 Port SATA/SAS U.2 Enablement kit, RoHS
SPI Capable TPM 1.2 AOM-TPM-9671V-S-P - SPI Capable TPM 1.2 Provisioned for Server, Vertical Form Factor
SPI Capable TPM 2.0 AOM-TPM-9670V-S-P - SPI Capable TPM 2.0 Provisioned for Server, Vertical Form Factor
VROC Premium AOC-VROCPREMOD - Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD - Intel VROC Standard, RAID 0, 1, 10
