SuperServer ASG-2015S-E1CR24L (Complete System Only)

2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays and PCIe 5.0

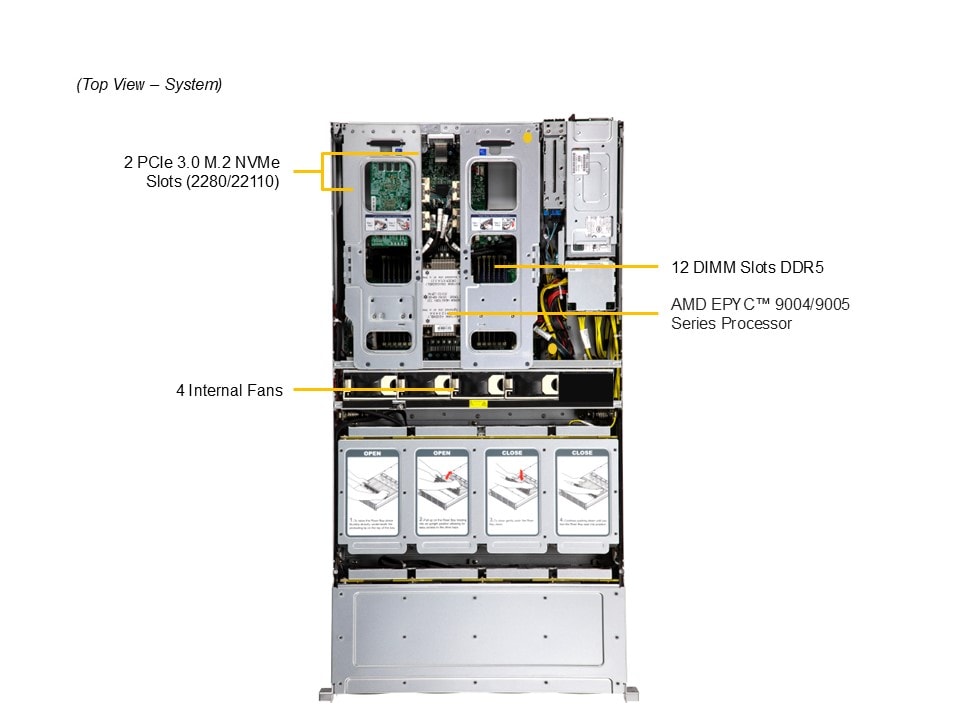

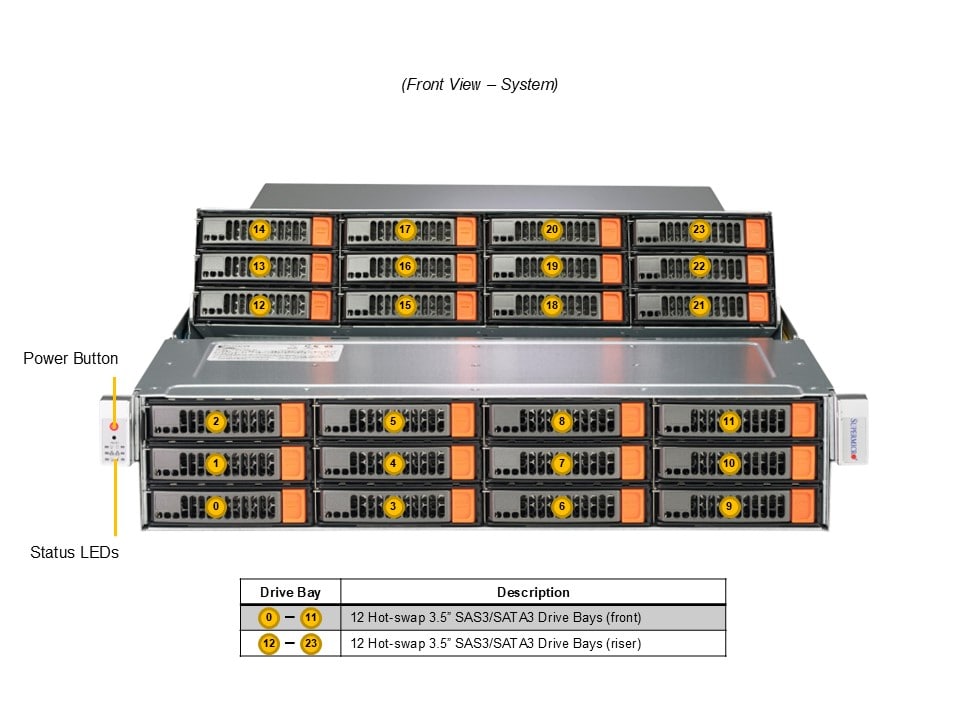

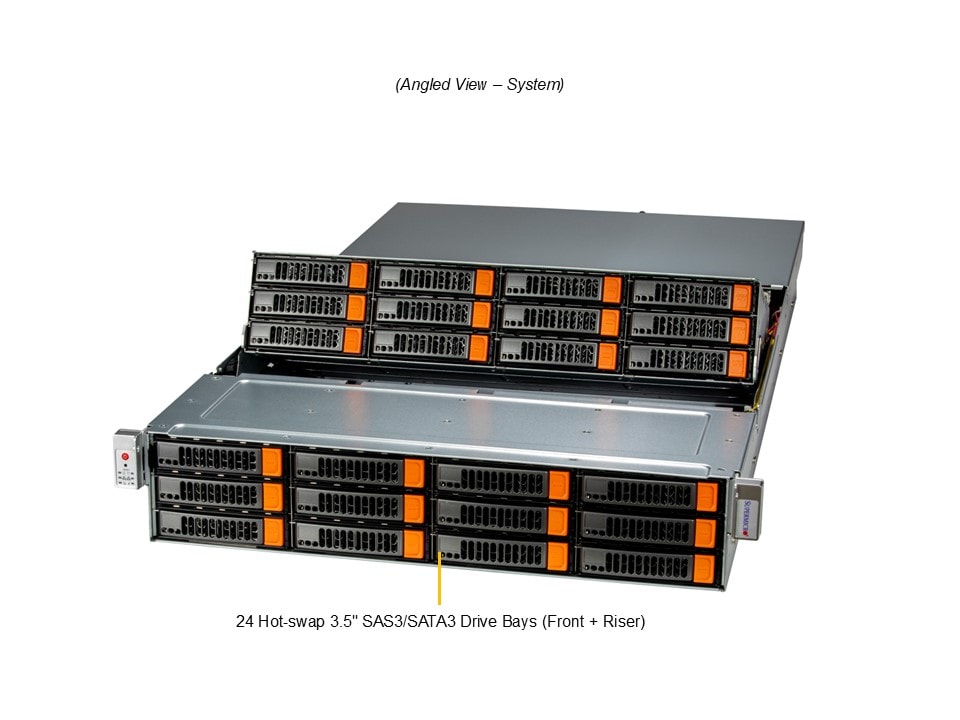

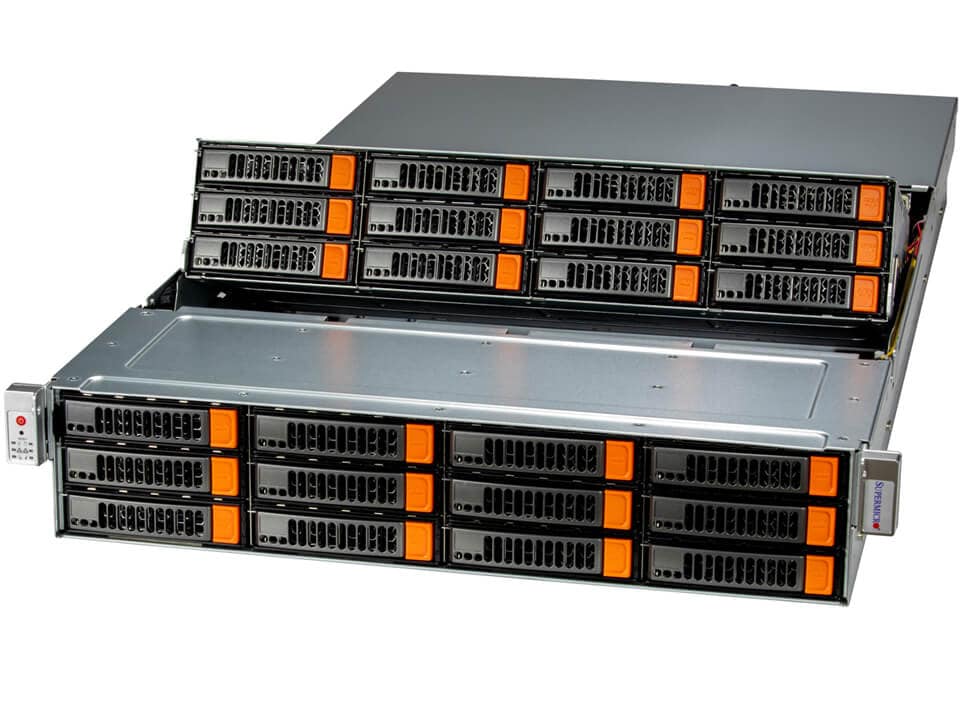

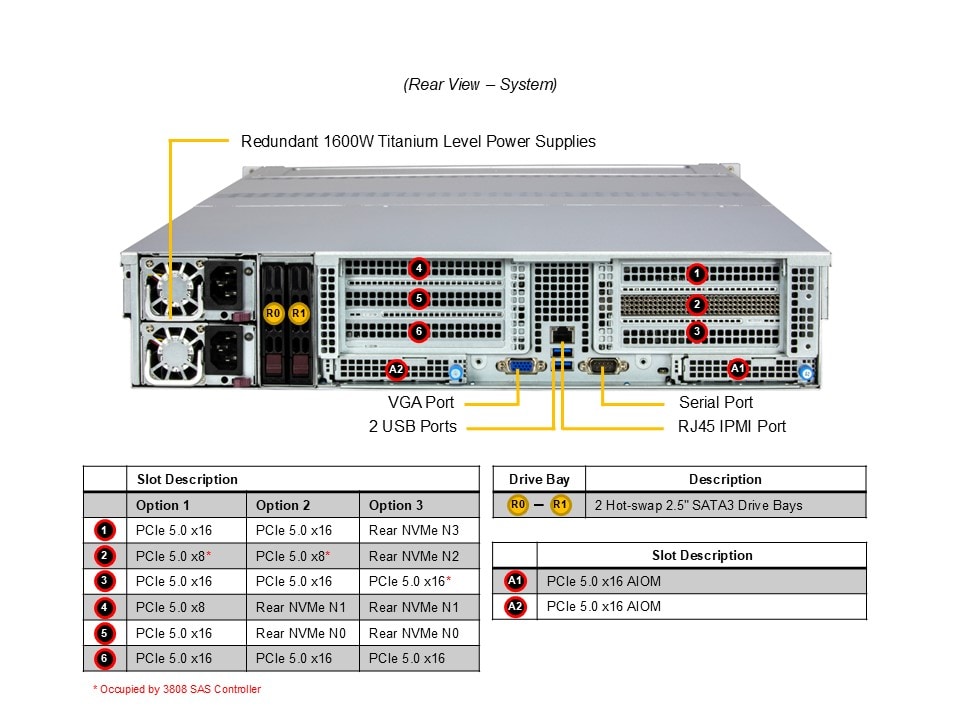

ASG-2015S-E1CR24L Main ASG-2015S-E1CR24L Angle ASG-2015S-E1CR24L Top ASG-2015S-E1CR24L Front ASG-2015S-E1CR24L Rear
Integrated Board: H13SSW
Learn more

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. Single Socket SP5 4th Generation AMD EPYC™ 9004 Scalable Processors. Up to 290W TDP.
  2. 12 ECC DDR5-4800: LRDIMM/RDIMM
  3. Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
    Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3808 controller)
  4. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  5. 24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe M.2 (form factor: 2280/22110)
  6. 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
  7. 1600W Redundant Power Supplies Titanium Level (96%)
  8. HBA Controller support via Broadcom® 3808
...
...
ASG-2015S-E1CR24L
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server ASG-2015S-E1CR24L
Motherboard
Super H13SSW
Processor
CPU
Core Count
  • Up to 84C/168T; Up to 384MB Cache
Note
  • Supports 200W - 290W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (2DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826S3TS-R1K62P1
chassisWeight
  • Net Weight: 52 lbs (23.59 kg)
  • Gross Weight: 74.5 lbs (33.79 kg)
Dimensions and Weight
Height
  • 3.5"
Width
  • 17.2"
Depth
  • 34"
Package
  • 12" (H) x 29" (W) x 52" (D)
Weight
  • Gross Weight: 74.5 lbs (33.79 kg)
  • Net Weight: 52 lbs (23.59 kg)
Available Color
  • Silver
Front Panel
LED
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 5 PCIe 5.0 x16 FHHL slot(s)
    • 1 PCIe 5.0 x8 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • Option A
    • 3 PCIe 5.0 x16 FHHL slot(s)
    • 1 PCIe 5.0 x8 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • Option B
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 26 bay(s)
    • 12 front hot-swap 3.5" SAS/SATA drive bay(s)
    • 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s)
    • 2 rear hot-swap 2.5" SATA drive bay(s)
  • Option A: Total 28 bay(s)
    • 12 front hot-swap 3.5" SAS/SATA drive bay(s)
    • 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s)
    • 2 rear hot-swap 2.5" SATA drive bay(s)
    • 2 rear hot-swap 2.5" NVMe drive bay(s)
  • Option B: Total 30 bay(s)
    • 12 front hot-swap 3.5" SAS/SATA drive bay(s)
    • 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s)
    • 4 rear hot-swap 2.5" NVMe drive bay(s)
    • 2 rear hot-swap 2.5" SATA drive bay(s)
  • View Drive Options
M.2
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
Output Type
  • Backplanes (gold finger)
Certification
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Network Cards AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
More - AOC Compatibility Matrix (Select Storage & Generation)
NVMe Kit (Up to 2 NVMe Drive Support) RSC-DR-6G5 1 1U RHS DCO Riser card with one PCIe 5.0 X16 slot (rear left)
MCP-240-00207-0N 1 2U riser card bracket-R 1*PCIe and 2*2.5" Nvme for SC826S3 (left looking from rear)
CBL-PWEX-1136-40 1 Power Cable
CBL-MCIO-1232M5 1 MCIO x8 (STR to STR),32cm,85OHM,RoHS
CBL-0296L 1 Fan Cable (1 Per NVMe Kit)
NVMe Kit (Up to 4 NVMe Drive Support) CBL-PWEX-1136-40 1 Power Cable
RSC-D-6G5 1 1U LHS DCO Riser card with one PCIe 5.0 X16 slot (rear right)
RSC-DR-6G5 1 1U RHS DCO Riser card with one PCIe 5.0 X16 slot (rear left)
CBL-0296L 2 Fan Cable (1 Per NVMe Kit)
CBL-MCIO-1232M5 2 MCIO x8 (STR to STR),32cm,85OHM,RoHS
CBL-PWEX-1136-70 1 Power Cable
MCP-240-00206-0N 1 2U riser card bracket-L 1*PCIe and 2*2.5" Nvme for SC826S3 (right looking from rear)
MCP-240-00207-0N 1 Gen 5 NVMe cage, includes BPN and drive trays
Power Cord CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
TPM AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor, provisioned for server
Storage A+ Server ASG-2015S-E1CR24L (Complete System Only ) New
