SuperServer SSG-640SP-E1CR90 (Complete System Only)

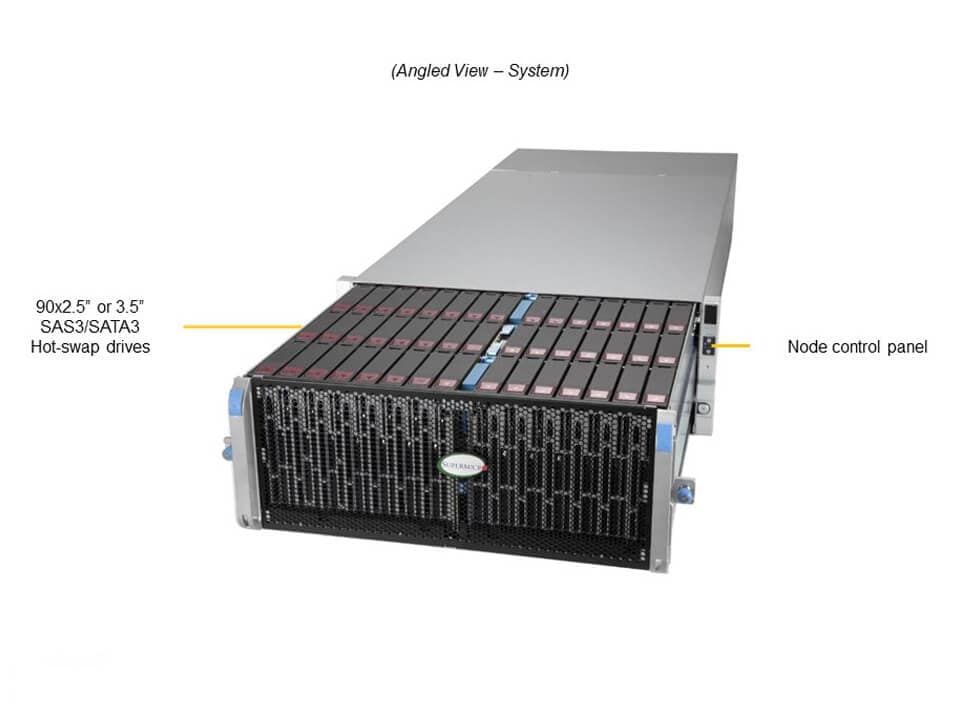

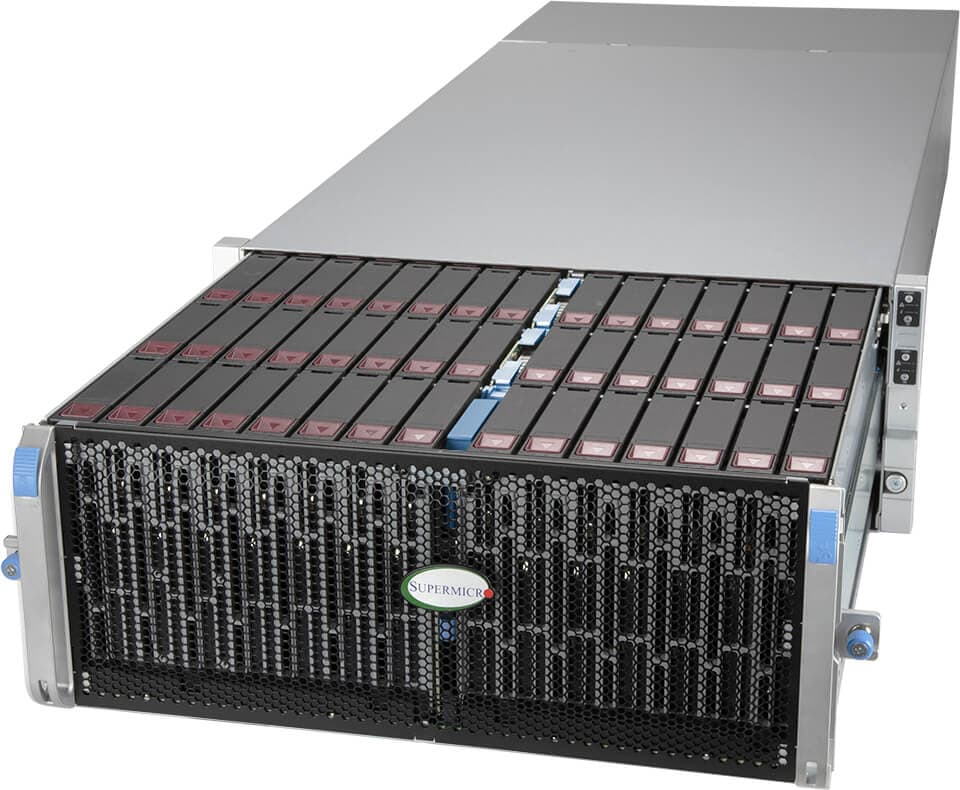

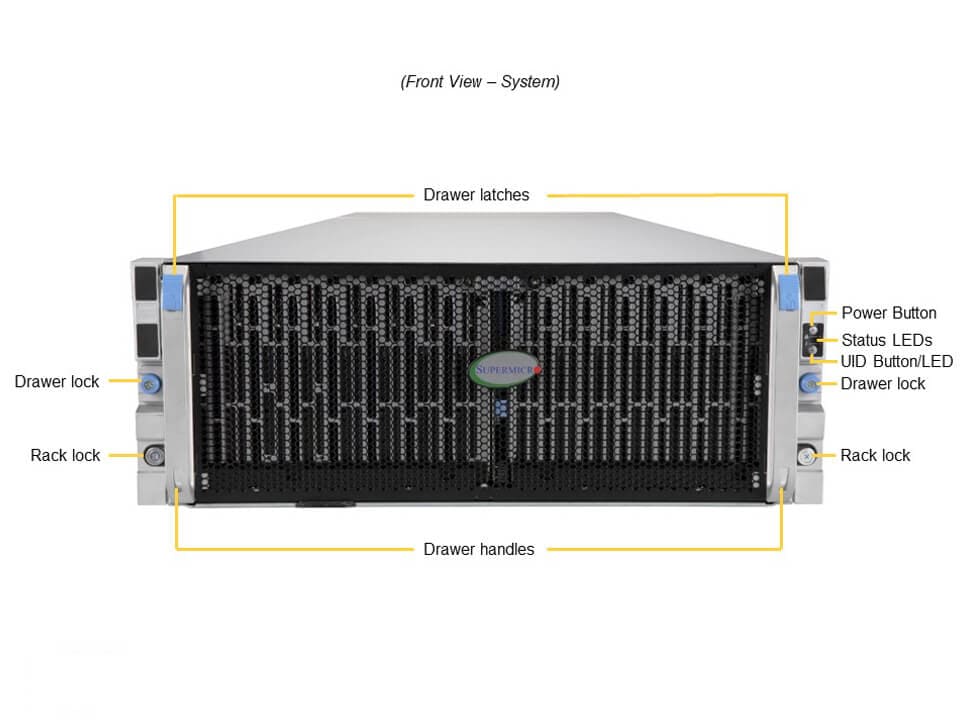

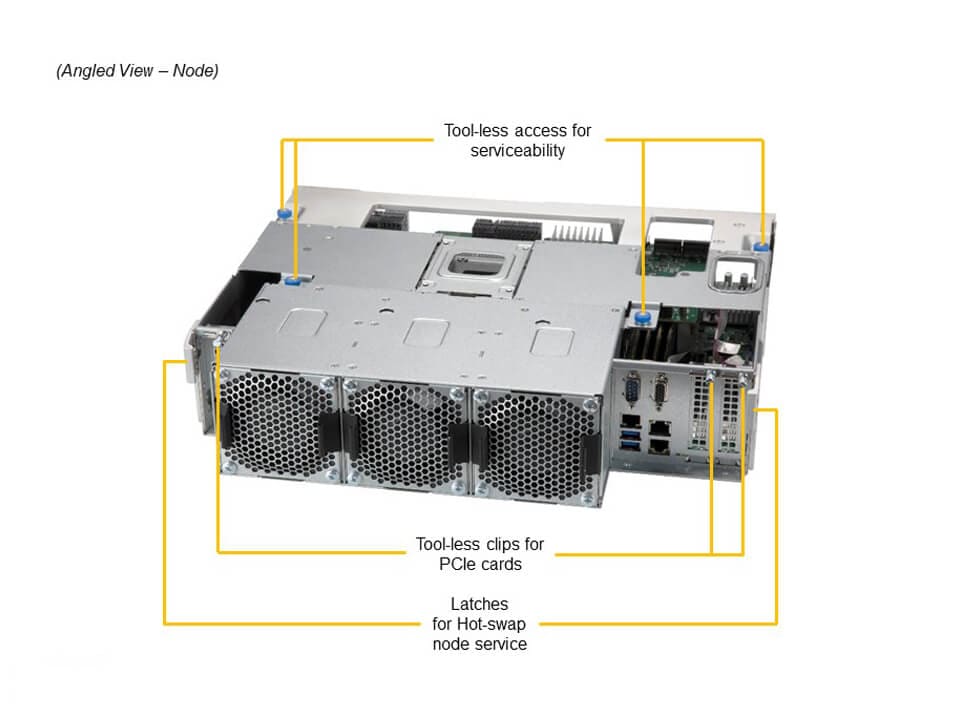

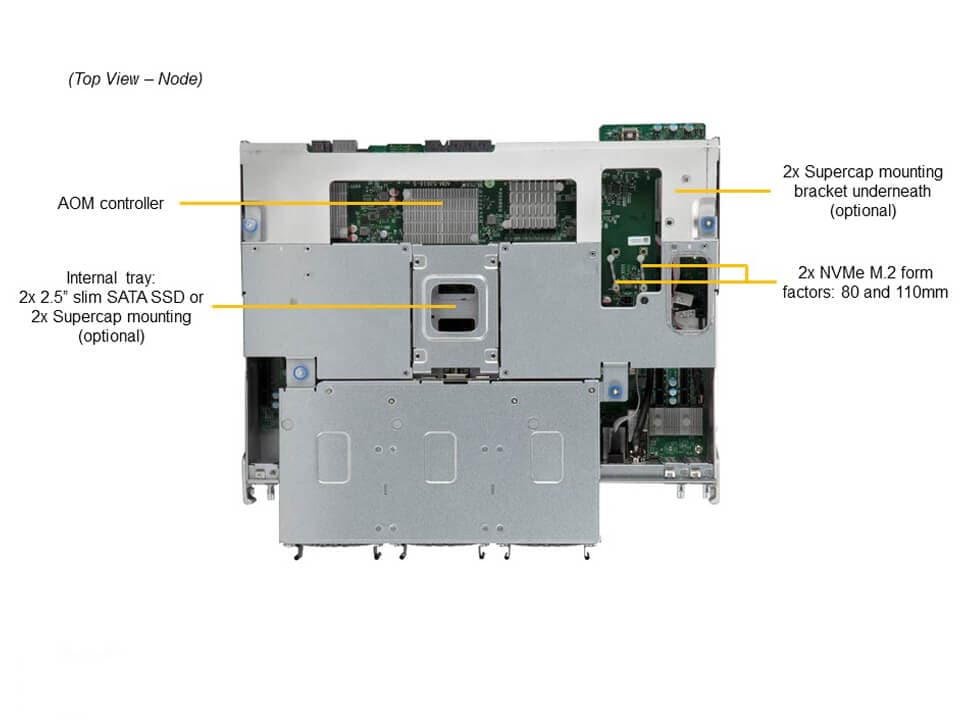

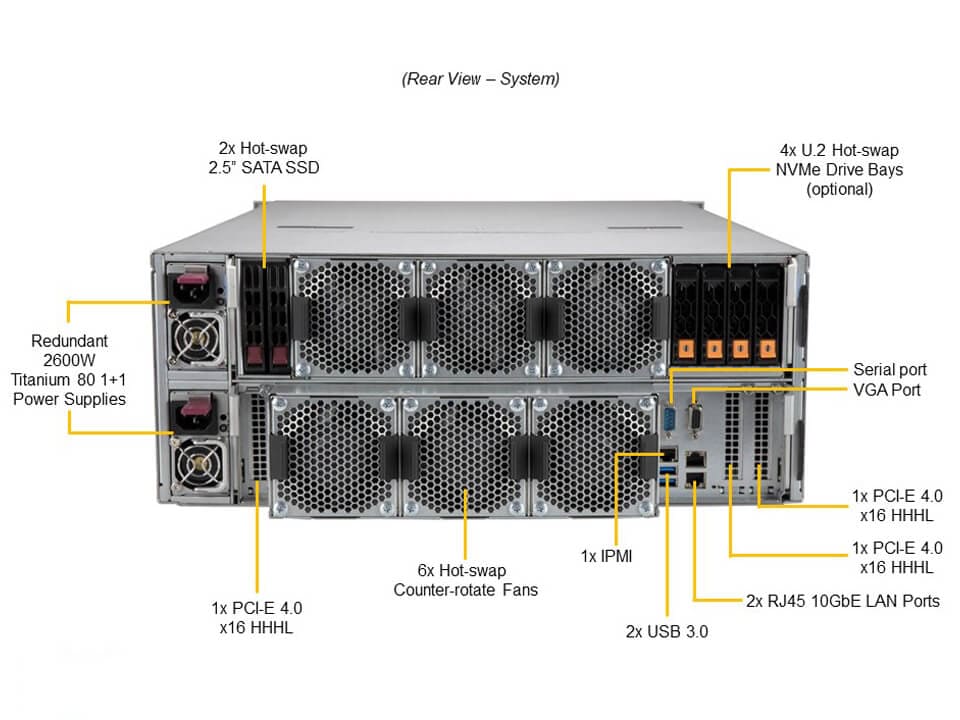

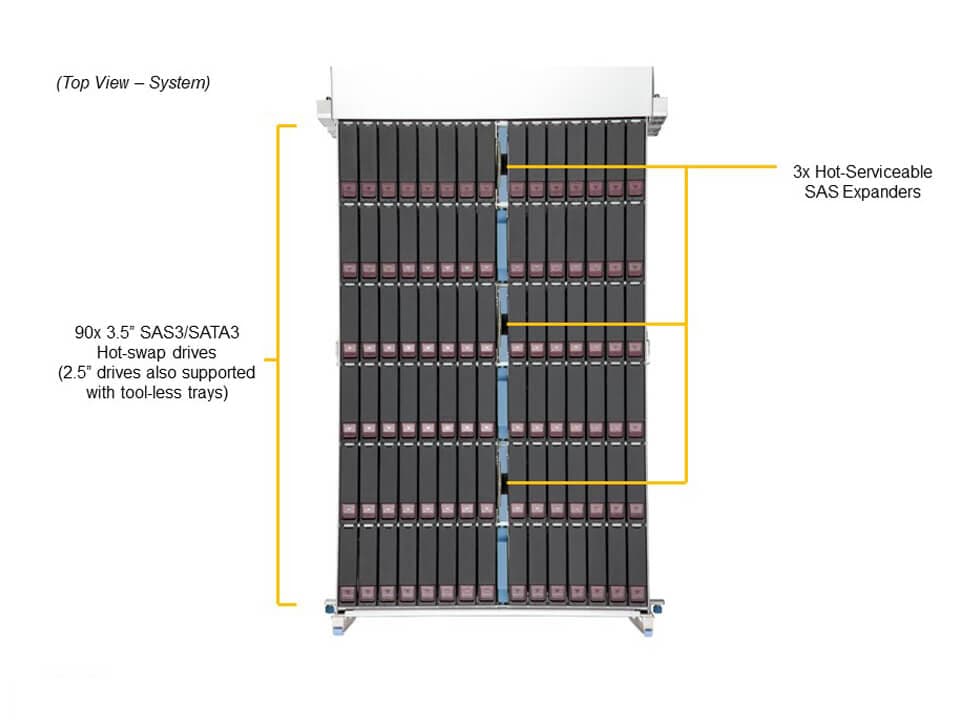

SSG-640SP-E1CR90 Main SSG-640SP-E1CR90 Angle SSG-640SP-E1CR90 Top SSG-640SP-E1CR90 Node SSG-640SP-E1CR90 Front SSG-640SP-E1CR90 Rear SSG-640SP-E1CR90 Side
Integrated Board: X12DSC-6
Learn more

Key Applications

  • Big Data & Analytics, Data Lake
  • HPC and AI/ML Workloads
  • Telco & Cloud Service Providers
  • Financial Services & Healthcare Image Archives
  • Content Repositories
  • Government Data Protection

Key Features

  1. 16 ECC DDR4-3200: LRDIMM/RDIMM
  2. 3 x PCIe 4.0 x16 HHHL PCIe slots
  3. 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
  4. 6 x 8cm hot-swap counter-rotate redundant PWM cooling fans
  5. 2600W Redundant Power Supplies Titanium Level (96%)
  6. Drive Controller support via Broadcom® 3916 or 3616
    Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SSG-640SP-E1CR90 (Black)
Motherboard
Super X12DSC-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports 120W - 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ-45 10Gbase-T ports
USB
  • 2 USB 3.0 port(s) (2 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSV-947HTS-R2K63P
Dimensions and Weight
Height
  • 7"
Width
  • 17.6"
Depth
  • 42.1"
Package
  • 29.92" (H) x 35.82" (W) x 53.15" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 240 lbs (108.86 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap
  • 90x 3.5" hot-swap SATA3/SAS3 drive bays (4x 2.5" NVMe dedicated)
  • 2x 2.5" 7mm drive bays
M.2
  • 2 M.2 NVMe
System Cooling
Fans
  • 6 Heavy Duty 8cm Fan(s)
Power Supply
2600W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 2600W: 200-240Vac / 50-60Hz
  • 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Resources
Component Options
Drive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
Manuals
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesExpander FirmwareOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DSC-6

CSV-947HTS-R2K63P 		1

1 		Super X12DSC-6 Motherboard

4U Chassis
Backplane BPN-ADP-30SAS3-1 3 Adapter board between Expander and HDD BPN for CSE-947H,RoHS
BPN-ADP-947SB 1 BPN-ADP-947SB,RoHS
BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
BPN-SAS3-947EB 6 HDD Backplane (15-slot) for CSE-947H 60/90-bay top load chassis/server.,RoHS
BPN-SAS3-947EL 3 SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS
BPN-SAS3-947SB 1 Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS
Cable CBL-0066 1 39" 9 PIN COM PORT EXTENSION CABLE
CBL-0082L 1 Y SPLIT SATA POWER ADAPTER, PB FREE
CBL-0212L 1 4-PIN POWER CABLE FOR SC808 S809, ST TO RA, 20CM
CBL-0234L 1 Y CABLE FOR 4-PIN HDD
CBL-0473L 4 21CM 30AWG SATA CBL, S-S
CBL-CDAT-0841 1 2X4F to 2X4F,PH2.54,round SGPIO cable,81CM,28AWG,RoHS
CBL-OTHR-1062-25 1 CBL,VGA,DP15/F, to 2X7F/P2.0,25CM,RoHS
CBL-OTHR-1100 1 90-single,SlimlineULP x12 to SlimlineLP x8,FFC,100 OHM
CBL-PWCD-0376-IS 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
CBL-PWEX-1100-25 1 MicroFit 2x2F/PH3.0 to 1x4F/PH5.08,25cm,10A/pin,16AWG,R
CBL-PWEX-1265 2 2x4,PH3.0 to 2x4,PH4.2,20CM,16AWG,9.5A/pin,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078PR 2 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers
Optional Parts List
Part Number Qty Description
HBA option AOM-S3616-S-O 1 Storage 3616 controller for serviceable 60/90 bay systems. This has two 3616 controller chips, PCI switch, 2x NVMe M.2 (Form factors: 2280 and 22110), RoHS (One per Node)
HW RAID option AOM-SADPT-S 1 Bypass card for 60/90 bay systems
AOC-S3916L-H16IR 1 AOC with SAS3916 controller (U3) and 240PD RAID Key (U39)
CBL-SAST-1300-100 1 NCSI,2X Slimline x8 (STR) to 2X Slimline x8 STR,14Z14cm (One per Node)
Network Cards More - AOC Compatibility Matrix (Select Storage & X12)
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
NVME kit (only 1 is needed) CBL-SAST-1049 2 [NR] SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,R
CBL-PWEX-1093-26 1 [NR]MicroFit,2x2, PH3.0,F to MicroFit,2x2,PH3.0,F,26CM,10A/p
MCP-220-00178-0B • 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
BPN-NVMe4-228N-S4 1 2U 4-Slot SFF BPN supports 4x NVMe Storage Devices
SuperCap Kit (Need Both items) BTR-CVPM05 1 Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)
MCP-240-94711-0N 1 SC947 MB Node Supercap holder module,RoHS (Optional)
TPM Module AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
Storage SuperServer SSG-640SP-E1CR90 (Complete System Only )
