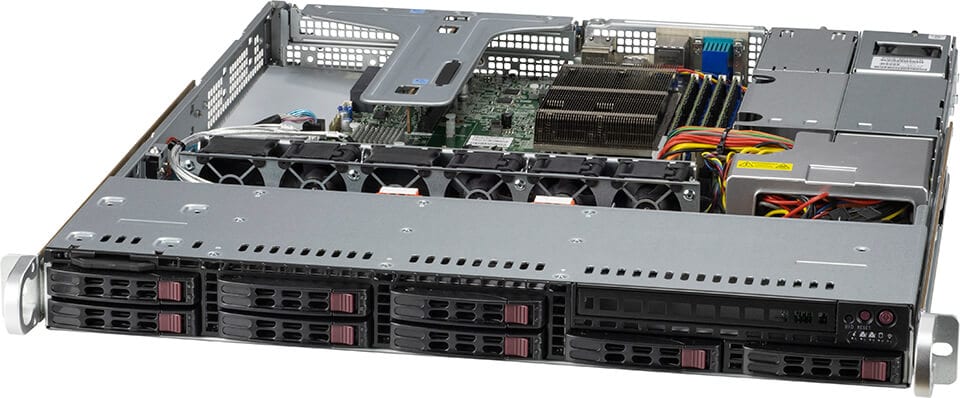

SuperServer SYS-110T-M

Key Applications

  • Web/Hosting Application
  • Database Processing and Storage
  • Encoding Decoding

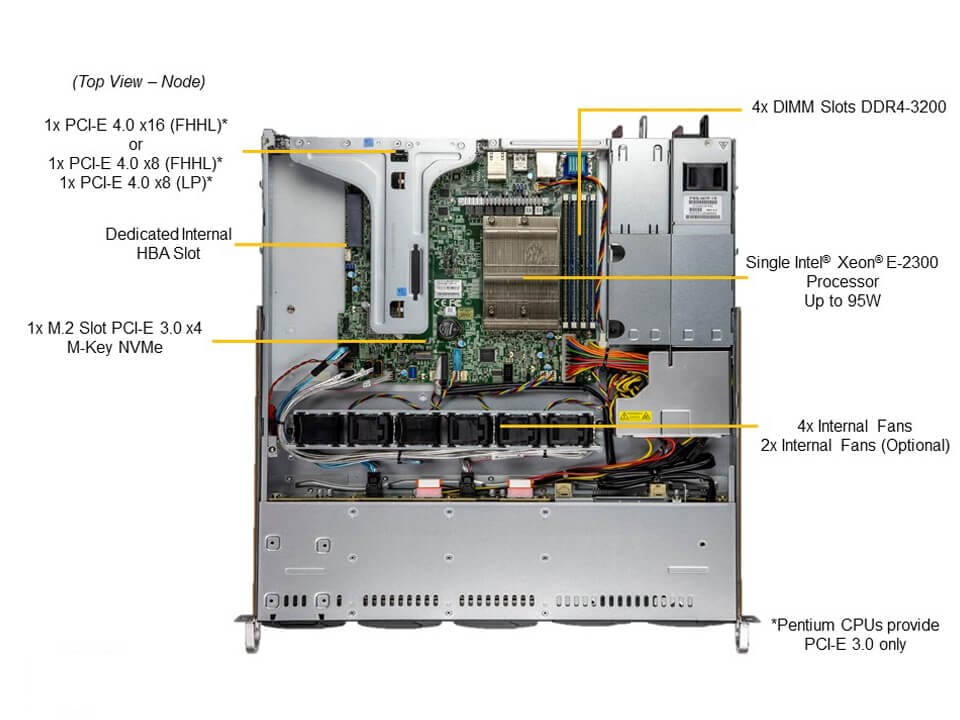

Key Features

  1. Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
  2. 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
  3. 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHHL);
    1 Dedicated Internal HBA slot
  4. Intel® Ethernet Controller i210 2x 1GbE RJ45
  5. 8x Hot-swap 2.5" SATA3 drive bays, SAS3 w/ additional SAS controller card; Onboard 1x NVMe M.2
  6. Default single Platinum 400W Power Supply; Optional redundant power by adding 1x Power Supply Module
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-110T-M (Black)
Motherboard
Super X12STH-SYS
Processor
CPU
  • Single Socket H5 (LGA 1200)
  • Support Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
  • Support CPU TDP 95W
Cores
  • Up to 8C/16T; Up to 16MB Cache
System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128GB: 4x 32 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • Yes
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support (Port 0-5)
Chipset
  • Intel® C256
Network Connectivity
  • 2x 1GbE BaseT with Intel® i210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

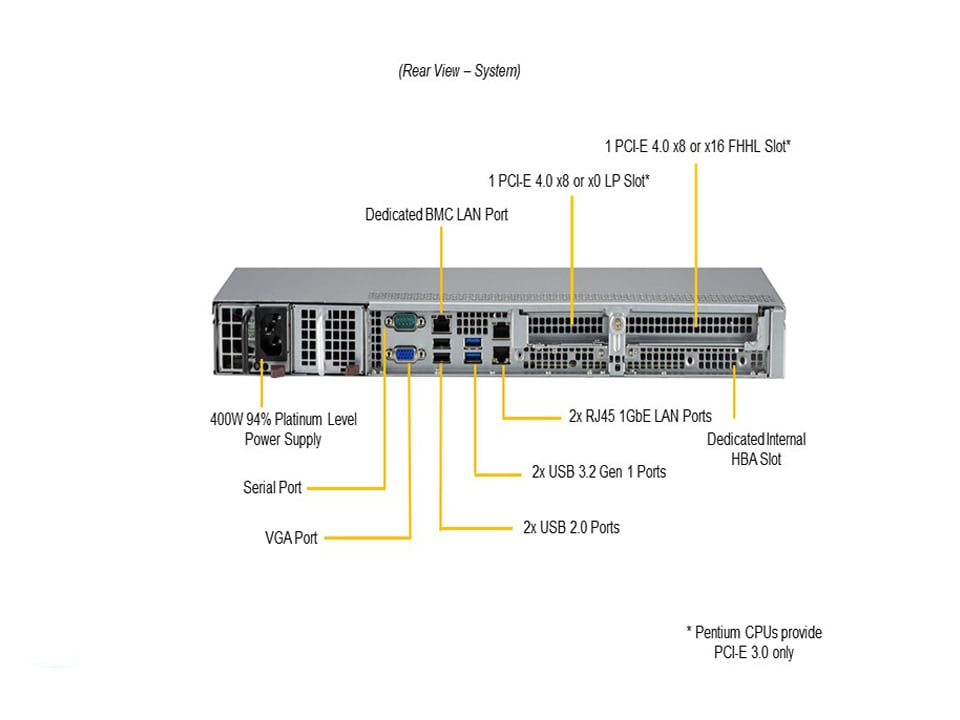

Input / Output
SATA
  • 8 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
  • 6 USB 2.0 port(s) (4 headers; 2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • 6 + 2 + 1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-113MFTS-407RCBP-1P
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.98" (507mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Net Weight: 17.6 lbs (8 kg)
  • Gross Weight: 30.4 lbs (13.8 kg)
Available Color
  • Black

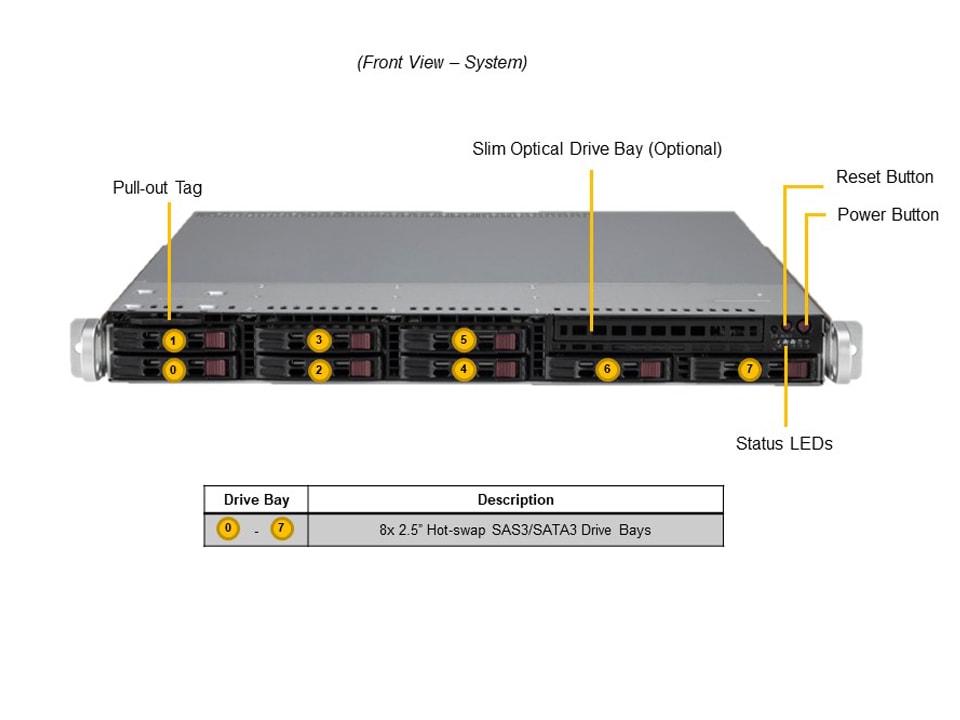

Front Panel
Buttons
  • Power On/Off
  • System Reset
  • UID button
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 1 PCIe 4.0 x16 or x8 slot(s)
  • 1 PCIe 4.0 x0 or x8 (LP) [Auto Switch with Slot 1] slot(s)
  • 1 Dedicated Internal HBA Slot slot(s)


  • (Pentium CPUs provide PCIe 3.0 only.)

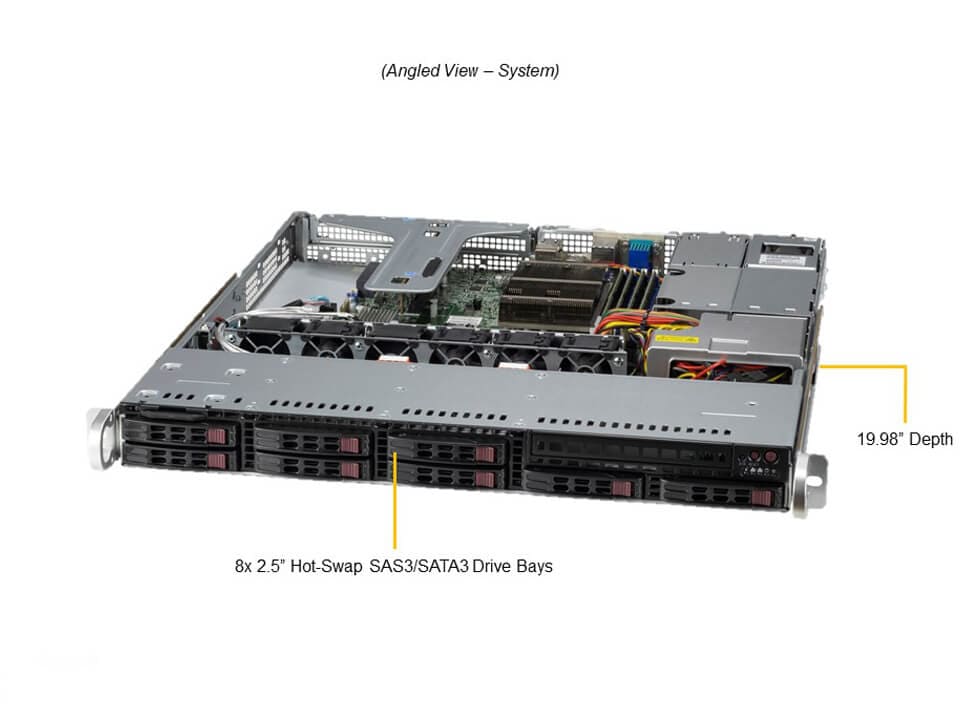

Drive Bays / Storage
Drive Bays
  • 8x 2.5" SATA drive bays
M.2
  • 1x PCIe 3.0 x 4
  • M-key, 2280, 22110
System Cooling
Fans
  • 2 AOC cooling Fan(s) (optional)
  • 4 middle cooling PWM 40x40x28mm Fan(s)
Power Supply
AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
Total Output Power
  • 400W
Dimension

(W x H x L)
  • 54.5 x 40.25 x 220 mm
AC Input
  • 400W: 100-240Vac / 3A-6A / 50-60Hz
+12V
  • Max: 33A / Min: 0.5A
5V SB
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector
Certification Platinum Level Certified94%+   Platinum Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12STH-SYS

CSE-113MFTS-407RCBP-1P
1

1
Super X12STH-SYS Motherboard

1U Chassis
Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3 Storage Devices
Cable CBL-0296L 1 9" 4 PIN FAN PWS EXTENSION CORD, PBF
CBL-SAST-0568 1 Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
CBL-SAST-0631 1 Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Air Shroud MCP-310-81307-0B 1 Mylar Air Shroud for SC813MF2/SC113MF_RCB with X12STH
Manual MNL-2421-QRG 1 110T-M Quick Reference Guide
Riser Card Proprietary Riser Card 1 1U RHS Standard Riser card with one PCIe 4.0 X16 and one PC
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention Proprietary Heatsink 1 Proprietary 1U Passive CPU HS, Rocket Lake (SKT-H5 LGA-1200)
*Power Supply PWS-407P-1R 1 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
MCP-250-00016-0V 1 Redundant Silver plastic PDB cover for SC813M,113M
MCP-250-00018-0N 1 PWS dummy cover for 1U redundant power suppy w/ handle (54.5mm wide)
*Power Distributor PDB-PT813M-S2424 1 Power distributor with shorter 24pin for SC813M chassis
*Fan FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
*Front Panel FPB-FP112 1 Front control board for SC113,113M (U/C share
*Drive Tray(s) MCP-220-00047-0B 8 Black gen 3rd hot-swap 2.5inch HDD tray
*Rear Window MCP-240-00195-0N 1 Non-C Rear window Assy for SC813MF2/SC113MF_RCB redundant PWS
*Rail Set MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
MCP-290-00102-0N 1 Outer rail, quick-release type, 25.6
MCP-290-00108-0N 1 set Inner rail, front, short, quick-release type
MCP-290-00110-0N 1 Inner rail, extension (quick) for 1U 17.2
*Peripheral Drive MCP-290-00036-0B 1 Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
*Parts MCP-290-00037-0N 1 SC113 Control panel module (w/o DVD)
MCP-340-00001-01 2 Dummy fan 40x28mm
*Fan Holder MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
CacheVault BTR-CV3108-U1 + MCP-240-81305-0N (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed location
BTR-L3-00099-02 + MCP-240-81305-0N (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for internal fixed location
Cooling Fan(s) FAN-0154L4 - 40x40x28 mm, 22.5K RPM, Middle Cooling Fan
DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVD-ROM Accessory CDM-USATA-G + 1x CBL-0341L 1 Slim SATA DVD USB adapter & USB Cable
Front Bezel MCP-210-11601-0B 1 Black Front Bezel
Inlet Thermal Sensor MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
Power Supply PWS-407P-1R 1 Optional redundant power supply
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1264-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3108L-H8iR-16DD + 1x CBL-SAST-0568 1 Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8I + 1x CBL-SAST-0568 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
Storage Control Card and Cable(s) (HBA) AOC-S3808L-L8IT + 1x CBL-SAST-1264-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
AOC-S3008L-L8E + 1x CBL-SAST-0568 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
TPM AOM-TPM-9671H-O 1 TPM 1.2, horizontal form factor
AOM-TPM-9670H-O 1 TPM 2.0, horizontal form factor
