SuperServer SYS-540A-TR

UP full-tower workstation for AI/DL/ML development

SYS-540A-TR Main SYS-540A-TR Angle SYS-540A-TR Front SYS-540A-TR Rear SYS-540A-TR Side
Integrated Board: X12SPA-TF
Learn more

Key Applications

  • Deep Learning/AI/Machine Learning Development

Key Features

  1. Supports 3rd Gen Intel® Xeon® Scalable or Xeon® W-3300 Processors with TDP up to 270W
  2. 7 PCIe 4.0 Slots
  3. 1x 10GBase-T, 1x 1GbE, and 1x dedicated IPMI LAN ports
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperWorkstation SYS-540A-TR
Motherboard
Super X12SPA-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 4 single-width GPU(s)
Supported GPU
Certification
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® C621A
Network Connectivity
  • 1 RJ45 1GbE with Intel® I210-AT
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 1 RJ45 10GbE with Marvell® AQC113
  • View AOC Options
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

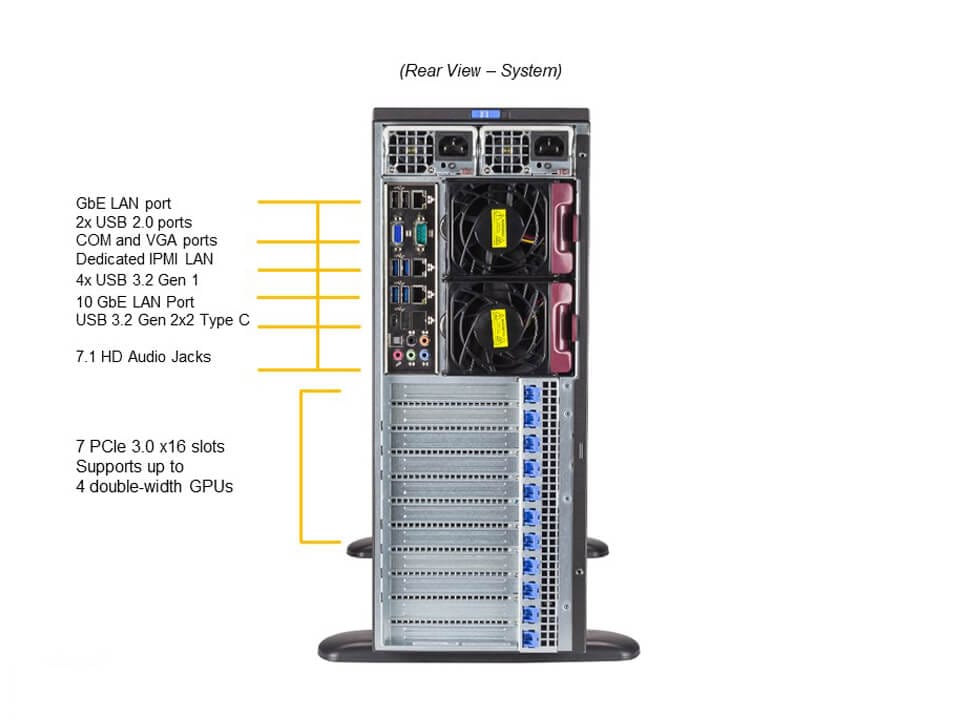

Input / Output
USB
  • 2 USB 2.0 port(s) (header)
  • 2 USB 2.0 port(s) (rear)
  • 2 port(s) (header)
  • 4 port(s) (rear)
Video
  • 1 VGA port(s)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Chassis
Form Factor
  • Full-Tower
Model
  • CSE-747BTS-R2K20BP

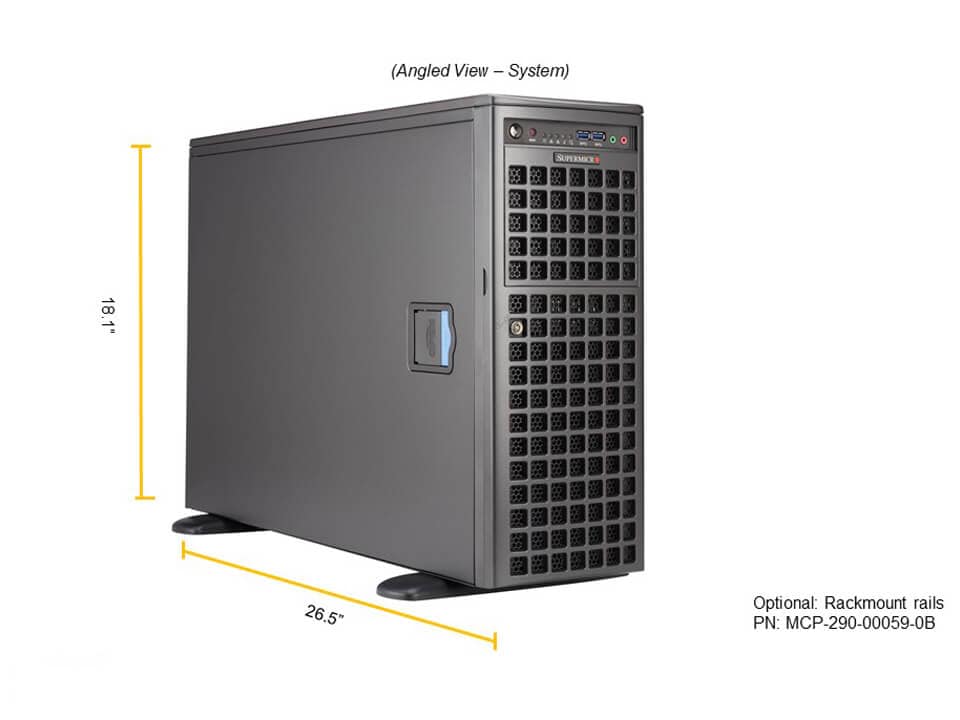

Dimensions and Weight
Height
  • 18.1" (460 mm)
Width
  • 7" (178 mm)
Depth
  • 26.5" (673 mm)
Package
  • 12.7" (H) x 27" (W) x 37.5" (D)
Weight
  • Gross Weight: 57 lbs (25.85 kg)
  • Net Weight: 52.9 lbs (24 kg)
Available Color
  • black

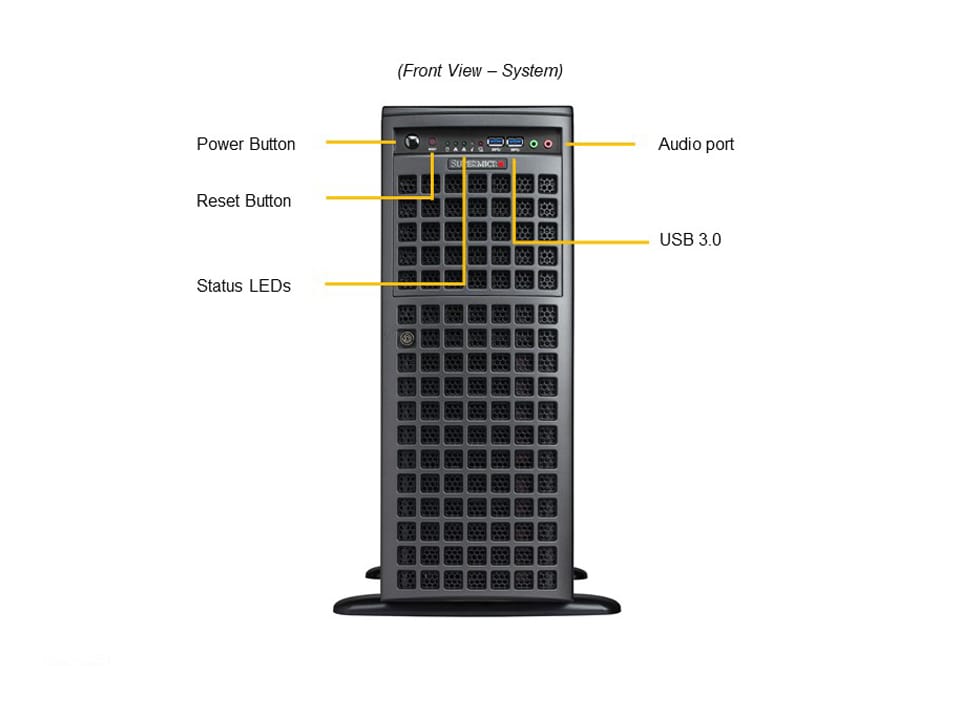

Front Panel
LED
  • HDD activity
  • Network activity
  • Power On
  • System Overheat / Fan Fail LED
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
Peripheral Bays
  • 3 5.25" bay(s)

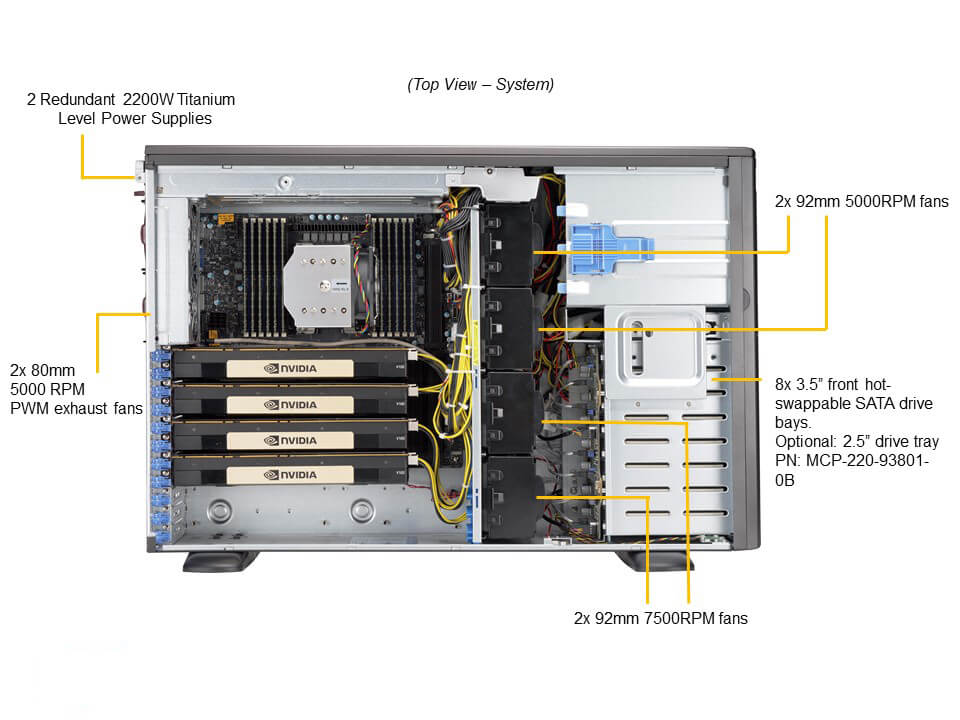

System Cooling
Fans
  • 2x 80mm Fan(s)
  • 4x 92mm Fan(s)
Power Supply
2200W Redundant Titanium Level power supplies
Dimension (WxHxL)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac)
  • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB
  • Max: 1A / Min: 0A
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 230-240Vdc / 50-60Hz (for CCC only)
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPA-TF

CSE-747BTS-R2K20BP
1

1
Super X12SPA-TF Motherboard

Full-Tower Chassis
Backplane BPN-SAS3-747TQ-N4 1 8-port 4U/Tower SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Cable CBL-0484L 8 7pin SATA (STR to STR), 55cm, PBF
CBL-CDAT-0661 2 8 Pin to 8 Pin Round SGPIO Cable, 40cm, 28AWG, Pinout 1-1
CBL-PWEX-1040 4 PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-0160L 2 US POWER CORD 16AWG, PB FREE
CBL-0216L 4 4 TO 4 PIN FAN POWER CABLE, 210MM
CBL-0286L 2 4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)
Parts MCP-260-00148-0N 1 STD I/O Shield for X12SPA-TF with EMI Gasket
MCP-290-74701-0B 1 Black plastic top cover for SC747
MCP-290-74702-0N 1 GPU Card Holder (11 slots) for SC747TQ, SC842
MCP-290-74703-0B 1 fixed 3.5" dummy cover for SC747
MCP-290-74709-0B 1 Plastic feet (2 pcs/set) for 4U tower chassis, black color
Manual MNL-2328-QRG 1 540A-TR Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-C0121L-1 4 22W x 129.65L x 4.35H mm, Al., Screws, Pad, Anodized, X11SPA 2280 M.2 HS with single package
SNK-P0081AP4 1 4U Active CPU Heat Sink for X12 Generation UP Gaming and Workstations
*Power Supply PWS-2K20A-1R 2 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Power Distributor PDB-PT747-6824 1 Power Distributor Board is for 4U GPU solution using regular
*Fan FAN-0082L4 2 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
Fan-0114L4 2 92x38mm 4-PIN PWM FAN W/ HUS for SC747
FAN-0138L4 2 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
*Front Bezel MCP-210-74701-0B 1 SC747 plastic front bezel
*Drive Tray(s) MCP-220-00073-0B 3 Black 5.25 drive tray w/o rail (SC747)
*Front Panel MCP-280-74702-0N 1 SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
DVD Kit CBL-SAST-0624 1 70cm SATA Cable S-S 30AWG
DVM-TEAC-DVDRW24-HBT 1 BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE
CBL-0082L 1 Y SPLIT SATA POWER ADAPTER
Fan Kits for Various GPU Population MCP-320-74704-0N-KIT 1 Fully-populated with Low-profile Single-width Passive GPU cards
MCP-310-74706-0B 1 Fully-populated with Full-height Double-width Active GPU cards (30°C operating temp.)
MCP-320-74703-0N-KIT 1 Fully-polulated with Full-height Double-width Passive GPU cards
Front Bezel MCP-210-74703-0B 1 Front bezel cover (for 5.25" bay) for rackmount
HDD Converter MCP-220-93801-0B 1 Black Hotswap Gen 6 3.5 to 2.5 HDD Tray
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives
Mounting Rails MCP-290-00059-0B 1 Chassis Mounting Rails for Rackmount
