SuperServer 1029P-N32R (Complete System Only)

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   [ 1029P-N32R ]





Integrated Board
X11DPS-RE
X11DPS-RE
Coming Soon

Key Features
  - High Throughput Ingest
  - High Density Hot Storage
  - HPC / Data Analytics
  - Media/Video Streaming
  - Content Delivery Network (CDN)
  - Big Data Top of Rack Storage

1. Dual socket P (LGA 3647) supports
    Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
2. Up to 3TB ECC RDIMM, up to
    DDR4-2666MHz; 24 DIMM slots
3. 2 PCI-E 3.0 x16 Low-profile slots
4. Dual Drawer/Tray with a total
    of 32 NVMe 2.5" SSDs
5. 2x 10GBase-T LAN ports
6. Built in Intel QAT for Crypto/Compression
7. 8x 40x56mm PWM fans
8. 1600W Redundant Power Supplies
    Platinum Level

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs and 4 NVMe). Please contact your Supermicro sales rep for special requirements.

 Drivers & Utilities   BIOS   IPMI   Tested Memory
 Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix

Product SKUs
SYS-1029P-N32R
  • SuperServer 1029P-N32R (Black)

Motherboard

Super X11DPS-RE

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP up to 140W
Cores
  • Up to 22 Cores with Intel® HT Technology

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset
  • Intel® C627 chipset
Network Connectivity
  • Intel® X550 Dual Port 10GBase-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

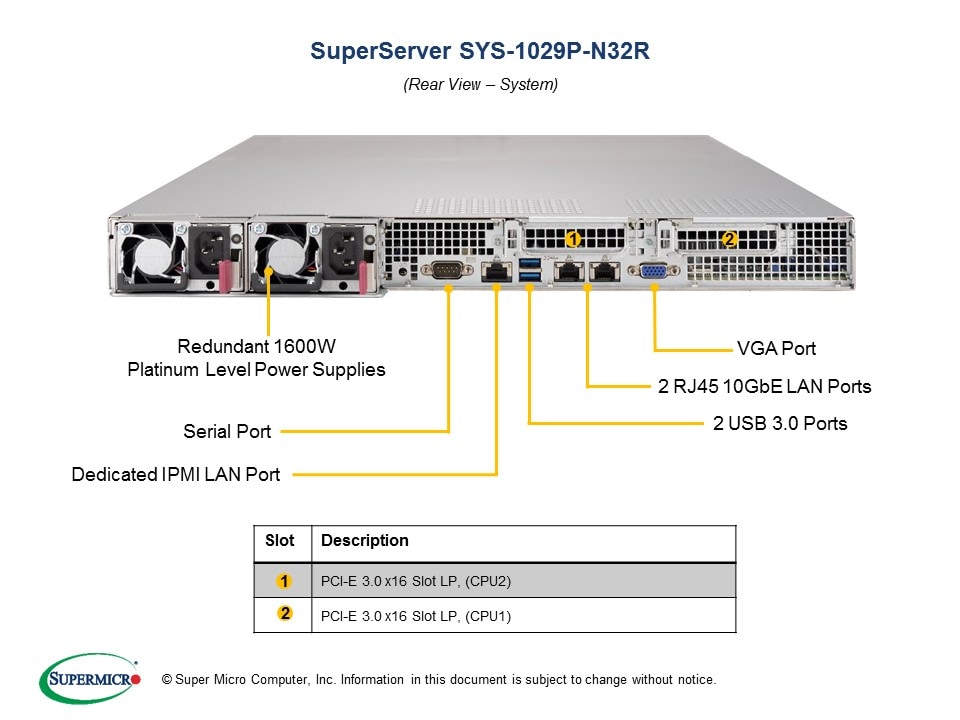

Input / Output
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
Serial Header
  • 1 COM port (header)

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-136HTS-R1K69P-U2

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.26" (438mm)
Depth
  • 35.95" (913mm)
Weight
  • Net Weight: 58 lbs (26.3kg)
  • Gross Weight: 93 lbs (42.2kg)

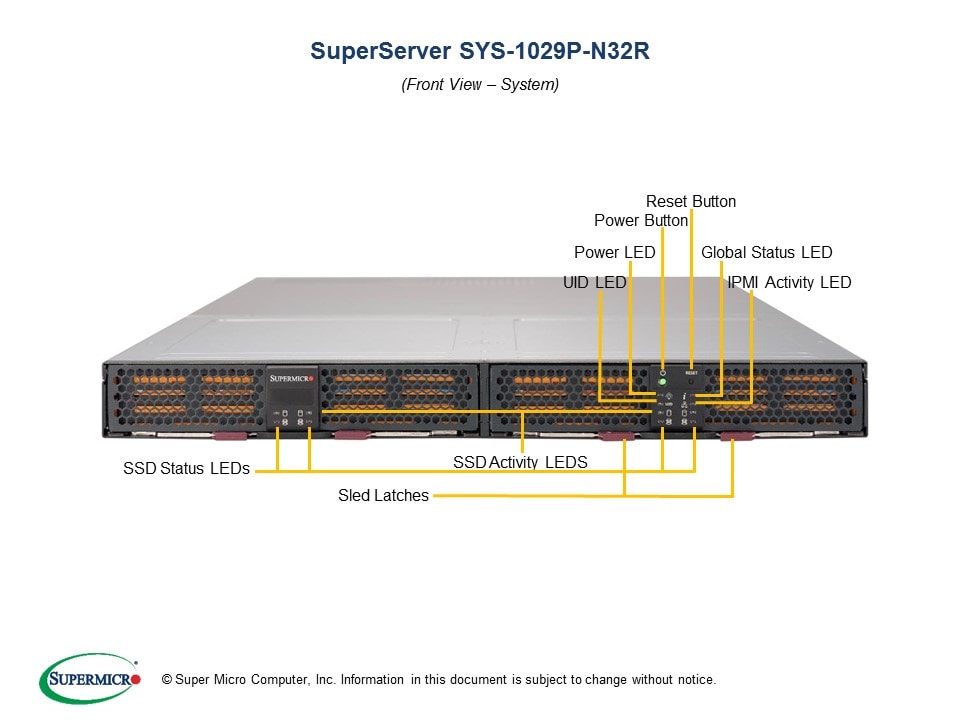

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 Low-profile slots
M.2
  • M.2 Interface: 2 PCI-E 3.0 x2, RAID 0, 1
  • M.2 Form Factor: 2260/2280/22110
  • M.2 Key: M-Key

Drive Bays
Hot-swap
  • Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs

System Cooling
Fans
  • 8x 40x56mm PWM fans

AC/DC240V Input Redundant Power Supply
1000 / 1600W 1U Redundant Power Supply
Total Output Power
  • 1000W / 1600W
Dimension
(W x H x L)
  • 73.5 x 40 x 185 mm
Input
  • 100 -- 127Vac / 13.8A / 47-63Hz
  • 200 -- 240Vac / 9.6A / 47-63Hz
  • 200 -- 240Vdc / 8.5A (CCC Only)
+12V
  • Max: 83A / Min: 0A (1000W)
  • Max: 132A / Min: 0A (1600W)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification Platinum Level Certified    UL/cUL/CB/BSMI/CE/CCC/BIS/KC
  Platinum Certified


Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 30°C (50°F ~ 86°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
