SuperServer 2029GP-TR

  Products  Systems   GPU   [ 2029GP-TR ]

2U Dual Processor (Intel) System with 6 PCIe GPUs





Integrated Board
X11DPG-SN

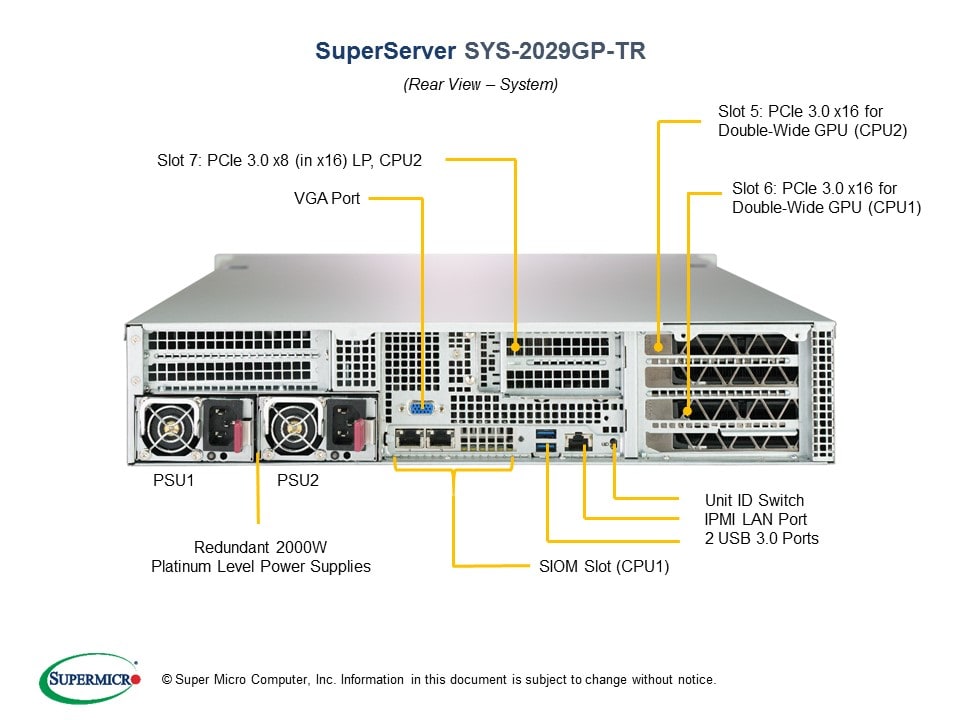

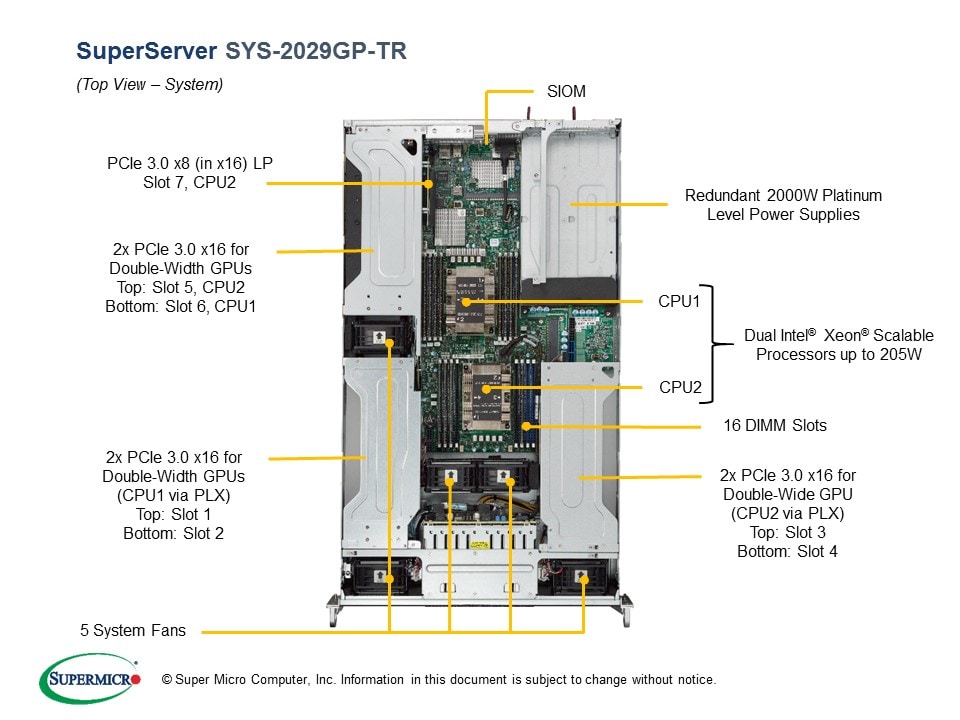

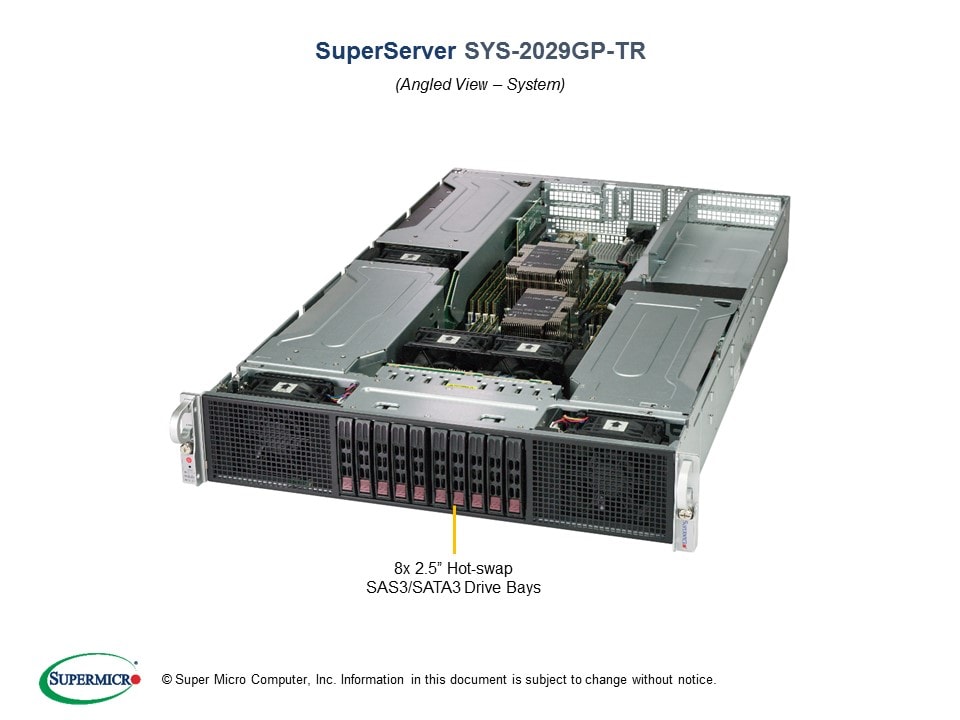

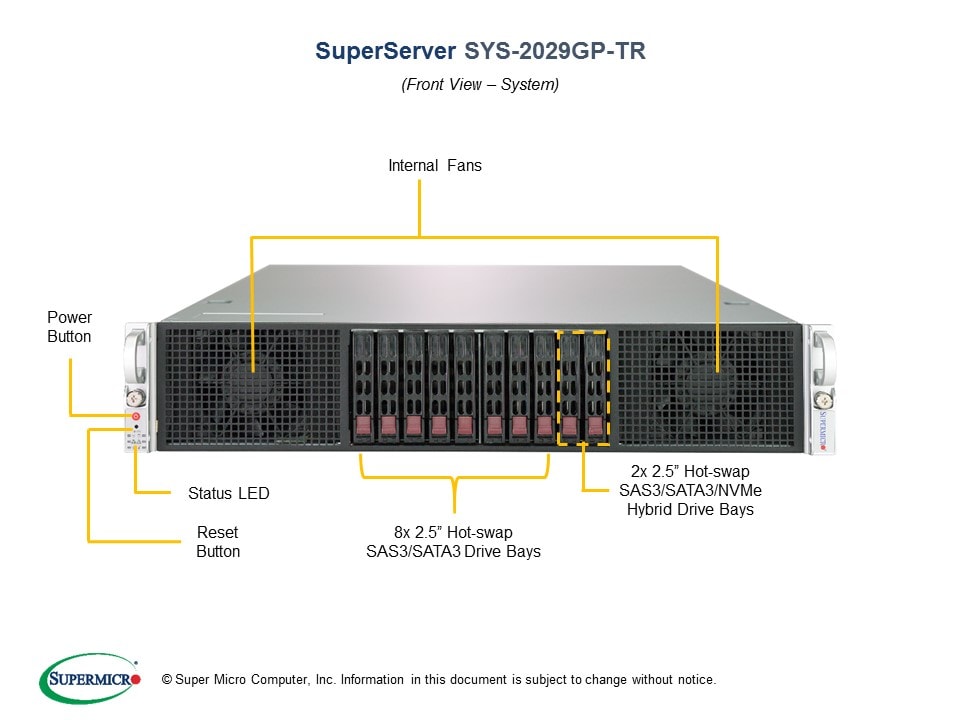

Views: | Angled View | Top View |
| Front View | Rear View |

Key Applications
  - 2D/3D and CAD Applications
  - Big Data Analytics
  - Edge Computing
  - VDI
  - Cloud Computing
  - Virtualization



Key Features
1. Supports up to 6 GPUs
2. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
3. 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
4. 6 PCI-E 3.0 x16 slots (FHFL),
    1 PCI-E 3.0 x8 (in x16) slot (LP)
5. 8 Hot-swap 2.5" SAS/SATA
    drive bays, 2 Hot-swap 2.5"
    SATA/NVMe drive bays
6. 1 SIOM for flexible Networking
7. 5x 80mm heavy duty fans with
    optimal fan speed control
8. 2000W (1+1) Redundant Power Supplies
    Platinum Level (94%)

Barebone or Complete System requires SIOM or network adapter

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Drive Options   NVMe Options   Manuals   OS Certification Matrix   Compatible GPU List

Product SKUs
SYS-2029GP-TR
  • SuperServer 2029GP-TR (Black)

Motherboard

Super X11DPG-SN

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU
Supported GPUs
  • 6 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
  • NVIDIA V100, M10, T4, Quadro RTX
  • Compatible GPU list
CPU-GPU Interconnect
  • PCI-E Gen 3 x16 Switch CPU-GPU Interconnect

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
Serial Header
  • 1 Fast UART 16550 header

System BIOS
BIOS Type
  • AMI 256Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218GH-R2K03B

Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 31" (787mm)
Package
  • 26.5" (H) x 11" (W) x 44.5" (D)
Weight
  • Net Weight: 39.5 lbs (17.9 kg)
  • Gross Weight: 54 lbs (24.5 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express
  • 6 PCI-E 3.0 x16 (FHFL) slots - supporting up to 6 GPUs
  • 1 PCI-E 3.0 x8 (in x16, LP) slot

Drive Bays
Hot-swap
  • 8 Hot-swap 2.5" SAS/SATA drive bays
  • 2 Hot-swap 2.5" SATA/NVMe drive bays

System Cooling
Fans
  • 5x 8cm Heavy duty fans with optimal fan speed control

Power Supply
2000W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 - 120Vac
  • 1800W: 200 - 220Vac
  • 1980W: 220 - 230Vac
  • 2000W: 230 - 240Vac
  • 1980W: 200 - 240Vac (UL/cUL only)
  • 2000W: 200 - 240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-10.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 10-9.8A (UL/cUL only)
  • 200-240Vdc / 10-9.1A (CCC only)
+12V
  • Max: 83.3A / Min: 0.1A (100-120Vac)
  • Max: 150A / Min: 0.1A (200-220Vac)
  • Max: 165A / Min: 0.1A (220-230Vac)
  • Max: 166.7A / Min: 0.1A (230-240Vac)
  • Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level Certified94%+  Platinum Level
    [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPG-SN
CSE-218GH-R2K03B
1
1
Super X11DPG-SN Motherboard
CSE-218GH-R2K03B Chassis
Backplane BPN-SAS3-218GH-N2 1 2U 10-Port Hybrid Backplane Supports 8 x 2.5" SAS3/SATA3 HDD/SSD and 2 x 2.5" SAS3/SATA3/NVMe Storage Device for GPU Platform,HF,RoHS
Cable 1 CBL-0157L 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
Cable 2 CBL-PWEX-1028 6 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 3 CBL-PWEX-1064 1 8pin CPU 12V to 4pin x 2pcs 280mm,16AWG,RoHS
Cable 4 CBL-SAST-0624 2 SATA,INT,ROUND,ST-ST,70CM,30AWG
Cable 5 CBL-SAST-0974-1 2 OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
Cable 6 CBL-SAST-1014 2 MINI SAS HD(RA)-MINI SAS,INT,70CM,30AWG,RoHS
Riser Card RSC-G2B-A66-X1 1 2U Rear Left hand side Active GPU riser card with two PCI-E
Riser Card RSC-G2F-A66-X1 1 2U Front LHS Active GPU riser card with two PCI-E x16 slots
Riser Card RSC-G2FR-A66 1 RSC-G2FR-A66-O-P
Riser Card RSC-R2UG-E16R-X9 1 RSC-R2UG-E16R-X9
Heatsink / Retention SNK-P0068PS 1 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0068PSC 1 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-2K03P-1R 2 1U 2000W Redundant Power Supply Platinum 73.5mm width.,RoHS/REACH
Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, for 17.2" W
Optional Parts List
  Part Number Qty Description
Bracket Set MCP-120-21807-0N 1 set CSE-218GH Nvidia T4 GPU Bracket Set (2x per set)
Storage Control Card and Cable(s) AOC-S3008L-L8e
& 2x CBL-SAST-0593
AOC-S3008L-L8e+
& 2x CBL-SAST-0593
AOC-S3008L-L8i
& 2x CBL-SAST-0593
AOC-S3108L-H8iR
& 2x CBL-SAST-0593
AOC-S3108L-H8iR-16DD
& 2x CBL-SAST-0593
- Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter
Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter with IPMI support
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD,
RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD,
RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD,
RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
Super Cap for LSI 3108 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 - Supercap mounting bracket for PCI-E location
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1
1
1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
2.5" NVMe Drive Trays MCP-220-00121-0B
MCP-220-00167-0B
- Black Gen-3 2.5" NVMe or drive tray, orange tab with lock
Tool-less balck hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design)
TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
