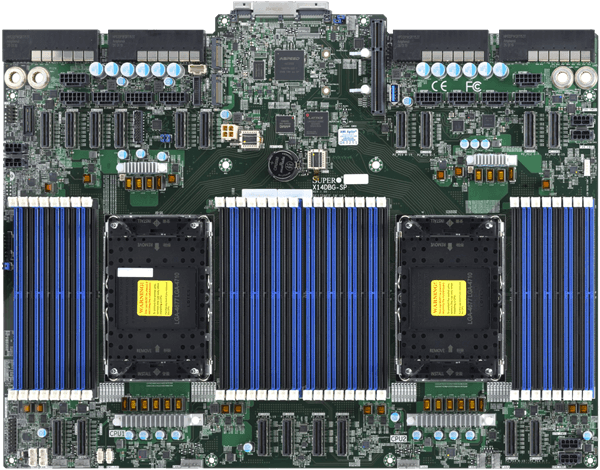

X14DBG-SP (Nur für SuperServer)

X14DBG-SP
X14 DP GPU

Key Features


  1. Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Dual Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W
  2. Support DDR5 6000MT/s in 32 DIMM slots
  3. Support DDR5 6400MT/s in 16 DIMM slots
  4. 18 PCIe 5.0 x8 MCIO connectors
  5. 1 PCIe 5.0 x8 slot for IO riser card
  6. 2 M.2 PCIe5.0 x4
  7. 1 AIOM slot
...
...

Optimized Servers


SYS-422GB-NRT
Specifications Resources
Specifications
Product SKUs
MBD-X14DBG-SP
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 17" x 12.78" (43.18cm x 32.47cm)
Processor
CPU
System Memory
Memory
  • Slot Count: 32 DIMM Slots/16 Channels
  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2600 BMC
Input / Output
TPM
  • 1 TPM 2.0 onboard
Expansion Slots
M2
  • 2 M.2 PCIe 5.0 x4 slots (M-key 2280(default)/22110)
System BIOS
BIOS Type
  • AMI 64MB UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
PC Health Monitoring
Voltage
  • +12V,+3.3V,+3.3V standby,+5V,+5V standby,ACPI power management,BMC/IPMI Heartbeat LED,DIMM temperature,GPU temperature,Low noise fan speed control,Monitors CPU Core Voltages,Peripheral temperature,Platform Environment Control Interface (PECI)/(TSI),System temperature,Vcore,Vmem
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • CPU thermal trip support
Other Features
  • Control of power-on for recovery from AC power loss
Resources
Servers (Optimized for X14DBG-SP)
SYS-422GB-NRT
...
Component Options
Geprüfte AOC-Liste
Liste der getesteten HDDs/SSDs
Getestete Speicherliste
Software
Treiber-CD herunterladen
Laden Sie die neuesten Treiber und Dienstprogramme herunter
OS-Kompatibilität
Documentation
Motherboard-Handbuch
Kurzreferenz
Parts List

X14DBG-SP (For SuperServer Only) Coming Soon
