Supermicro | Hyper

Single-socket Arm AGI CPU server with 64, 128, or 136 cores and up to 3TB of memory for cloud and edge computing.

Key Applications

  • Edge Computing
  • AI Inference and Machine Learning
  • Cloud Computing
  • Hyperscale Cloud Applications
  • Content Delivery Network (CDN)

Key Features

  1. Single Arm AGI Neoverse V3 processor server with 64/128/136 cores and a base TDP of 300W
  2. 12 DIMMs supporting up to 3TB DDR5-8800 in 1DPC
  3. Flexible PCIe Gen 6 slots with support for two double-width GPU cards
  4. Support for OCP 3.0 TSFF via AIOM slot
  5. Flexible storage options of E1.S (9.5/15/25mm) or U.2 NVMe drives
  6. Redundant 2000W or 3200W (Optional for GPU) power supplies
...
...

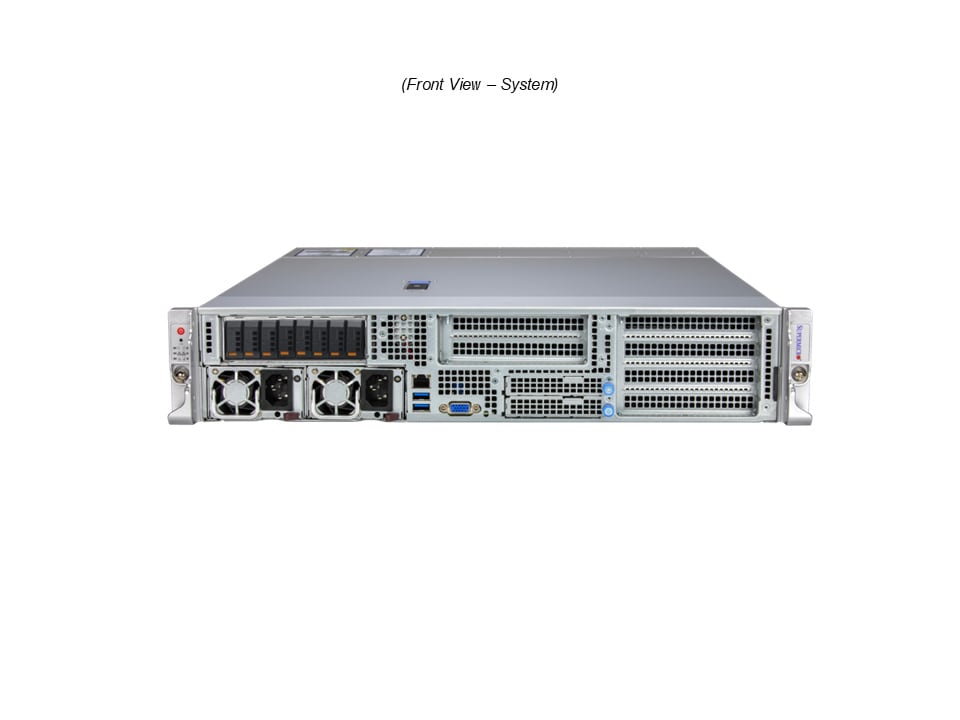

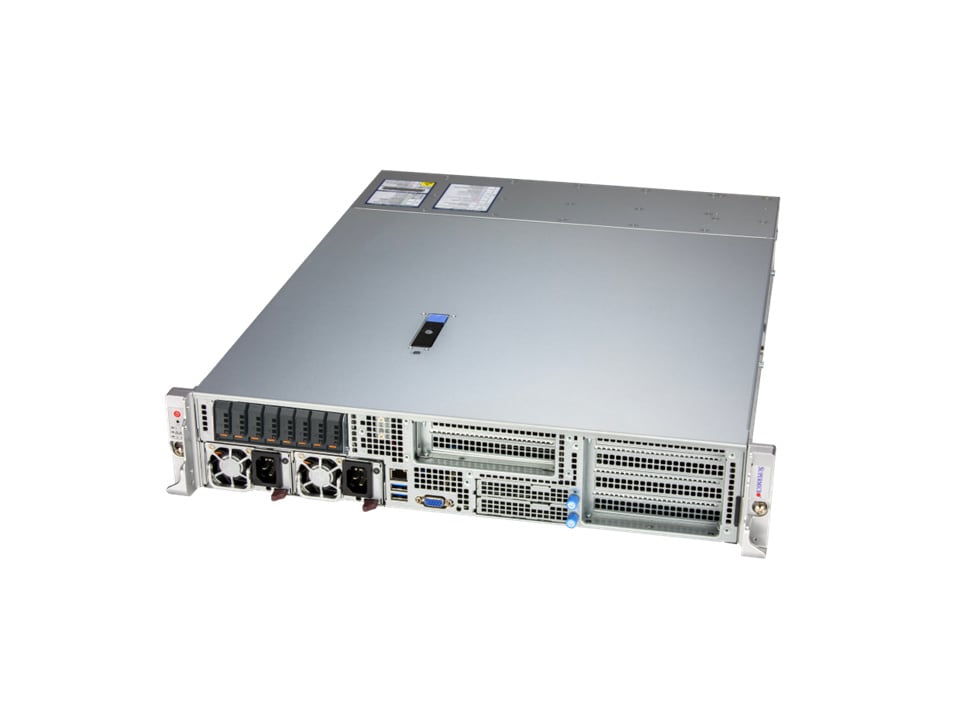

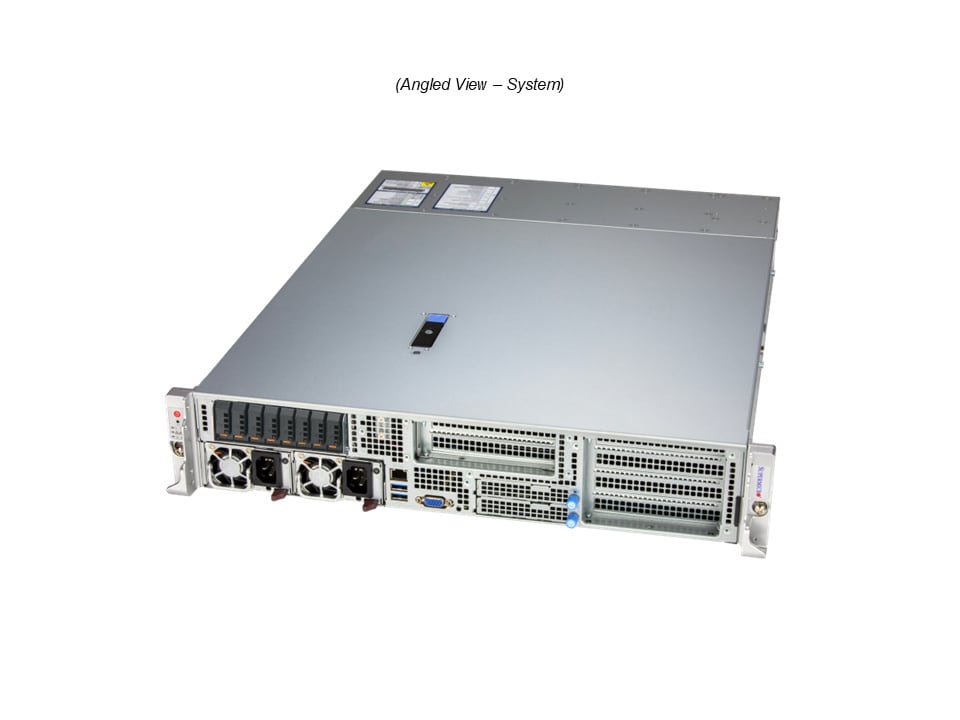

ARS-212HE-FNR
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
ARS-212HE-FNR
Motherboard
Super AR3SPD
Processor
CPU
  • Single processor(s)
  • Arm AGI CPU Neoverse V3 with 64/128/136 cores
Core Count
  • Up to 136C/136T; Up to 128MB Cache
Note
  • Supports up to 420W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 ports(front)
Video
  • 1 VGA port(Front)
System BIOS
BIOS Type
  • AMI 1024MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HE211
Dimensions and Weight
Height
  • 3.5" (88.9 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 22.6" (574 mm)
Package
  • 9.7" (H) x 23.5" (W) x 36.9" (D)
Weight
  • Gross Weight: 47.4 lbs (21.5 kg)
  • Net Weight: 34.4 lbs (15.6 kg)
Available Color
  • Silver
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 3 PCIe 6.0 x16 FHFL double-width slots
    • 1 PCIe 6.0 x8 FHFL slot
    • 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option A
    • 4 PCIe 6.0 x16 FHFL slots
    • 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B
    • 1 PCIe 6.0 x16 FHFL slot
    • 4 PCIe 6.0 x8 FHFL slots
    • 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap E1.S NVMe drive bays
  • Option A: Total 6 bays
    • 6 front hot-swap E1.S NVMe drive bays
  • Option B: Total 6 bays
    • 6 rear hot-swap 2.5" NVMe drive bays
M.2
  • 1 M.2 PCIe 4.0 x1 NVMe slot (M-key 2280/22110)
System Cooling
Fans
  • Up to 6 Heavy duty counter-rotating 6cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 2000W
2x 2000W Redundant (1 + 1) Titanium (certification pending) Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 203 mm
Input 1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for China only)
+12V Max: 83A / Min: 0A (100Vac-127Vac)
Max: 83A (100Vac-127Vac)
Max: 150A (200Vac-220Vac)
Max: 165A (220Vac-230Vac)
Max: 166A / Min: 0A (200Vac-240Vac)
Max: 166A (230Vac-240Vac)
12V SB Max: 3.5A
Output Type Backplanes (gold finger)
2x 3200W
2x 3200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 203 mm
Input 1400W: 100-127Vac / 50-60Hz
2900W: 200-207Vac / 50-60Hz
3000W: 207.1-219Vac / 50-60Hz
3200W: 219.1-240Vac / 50-60Hz
3200W: 240Vdc / 50-60Hz (for CQC only)
+12V Max: 116.6A / Min: 0A (100Vac-127Vac)
Max: 241.6A / Min: 0A (200Vac-207Vac)
Max: 250A / Min: 0A (207.1Vac-219Vac)
Max: 266.6A / Min: 0A (219.1Vac-240Vac)
12V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
