SuperServer SSG-641E-E1CR24H

4U front-loading storage server with 24 hot-swap 3.5" SAS/SATA bays (6 optional NVMe hybrid, SAS hardware RAID) and PCIe 5.0

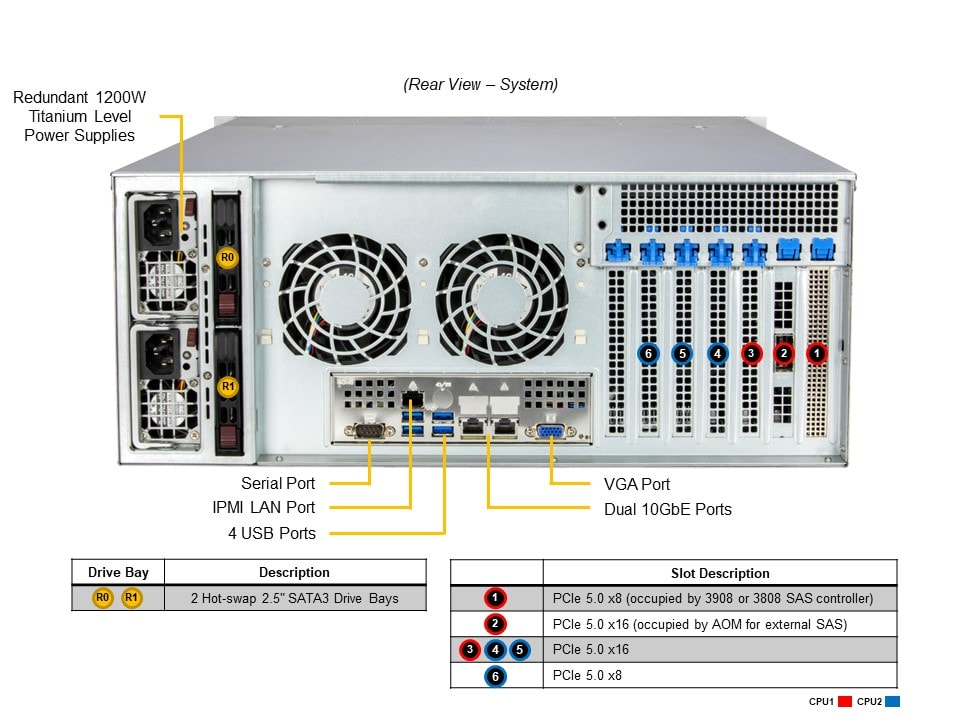

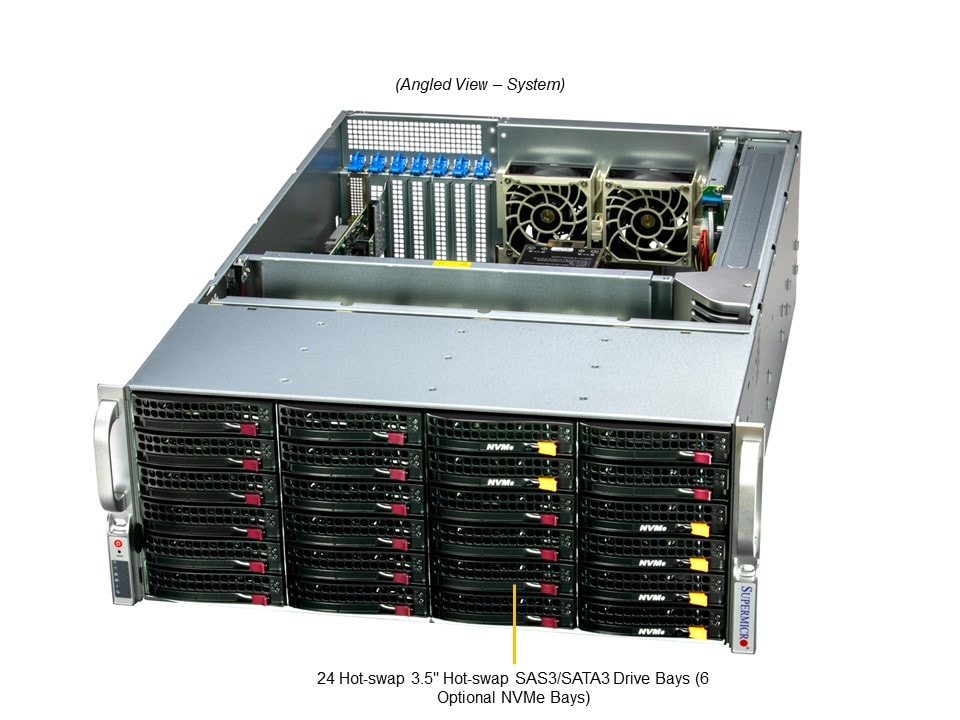

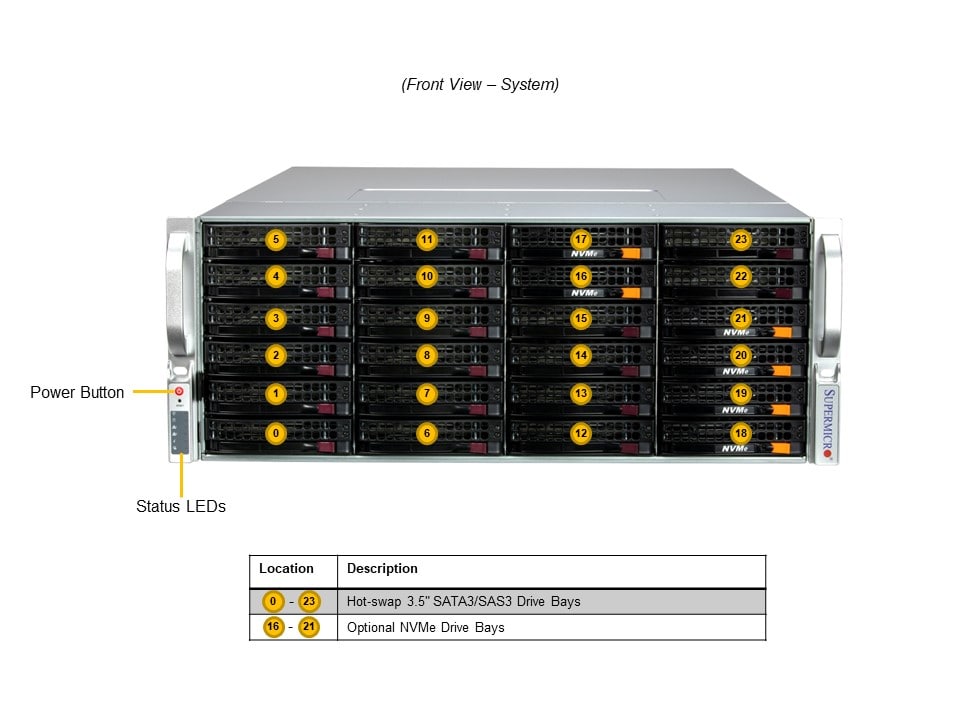

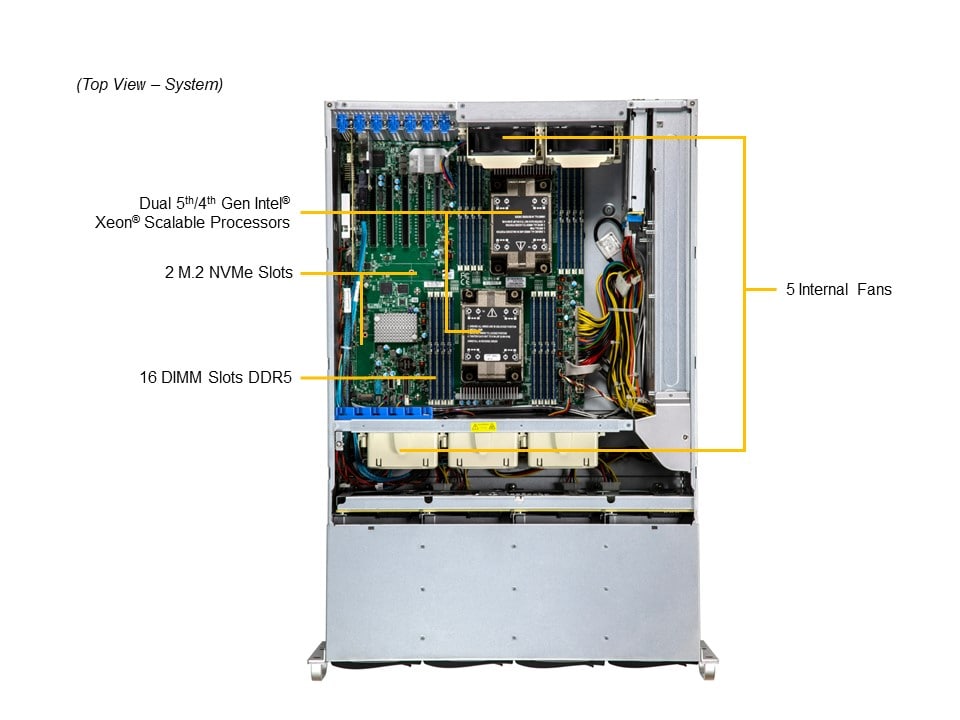

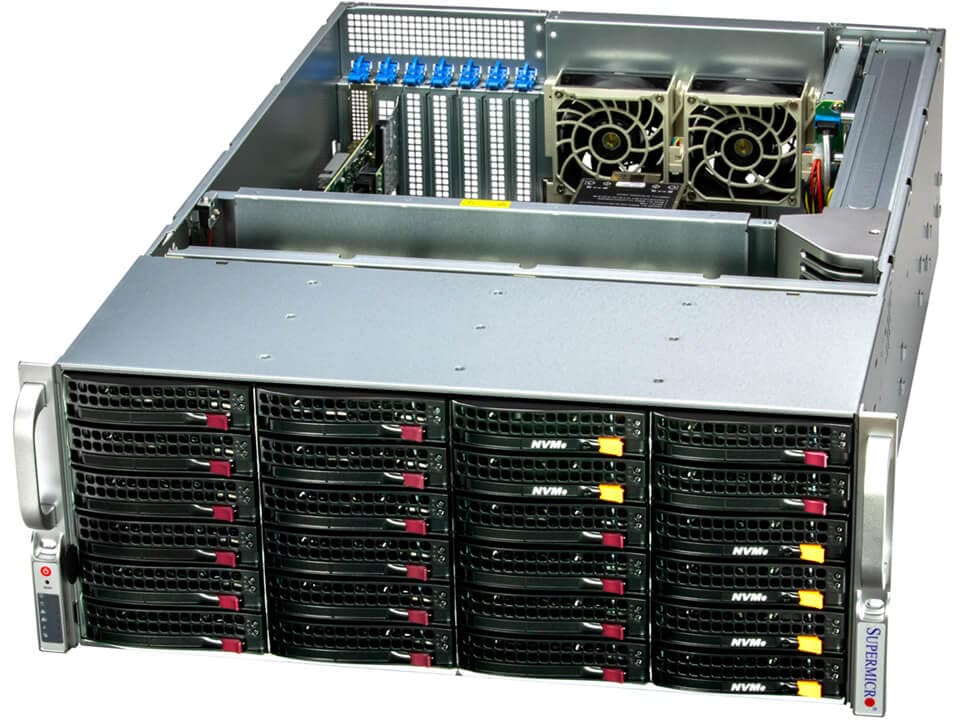

SSG-641E-E1CR24H Main SSG-641E-E1CR24H Angle SSG-641E-E1CR24H Top SSG-641E-E1CR24H Front SSG-641E-E1CR24H Rear
Integrated Board: X13DEI-T
Learn more

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
  3. 2x 10 GbE onboard via Broadcom BCM57416
    1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  4. 24x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
  5. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 1200W Redundant Power Supplies Titanium Level (96%)
  7. HW RAID support via Broadcom® 3908
...
...
SSG-641E-E1CR24H
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-641E-E1CR24H
Motherboard
Super X13DEI-T
Processor
CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1)
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port(Rear)
Serial
  • 1 COM port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-846BTS-R1K23BP5
Dimensions and Weight
Height
  • 7"
Width
  • 17.2"
Depth
  • 26"
Package
  • 15" (H) x 27" (W) x 39" (D)
Weight
  • Gross Weight: 92 lbs (41.7 kg)
  • Net Weight: 55 lbs (24.9 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 (in x16) FHHL slots
    • 2 PCIe 5.0 x8 (in x8) FH/10.5"L slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 26 bays
    • 24 front hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SATA drive bays
  • Option A: Total 6 bays
    • 6 front hot-swap 3.5" NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 1200W
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DEI-T

CSE-846BTS-R1K23BP5 		1

1 		Super X13DEI-T Motherboard

4U Chassis
Add-on Card / Module AOC-S3908L-H8IR-P 1 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHS
AOM-SAS3-8I8E 1 8-port Mini SAS HD Int-to-Ext Cable Adapter w/FH Bracket
Backplane BPN-SAS3-846EL1-N8-1 1 4U 24-Port LFF Expander Backplane support up to 16 SAS3/SATA
Cable CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-PWEX-0645 1 Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm
CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
CBL-SAST-1285-100 2 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-0160L 2 US POWER CORD 16AWG, PB FREE
CBL-PWEX-1078 5 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Parts MCP-260-00042-3N 1 STD I/O shield for X13 server MB with venting holes
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
MCP-290-84604-0N 1 SC846 PDB Cover
*Power Distributor PDB-PT846-H2824 1 4U support redundant powers 1.6KW output Power Distribute Bo
*Fan FAN-0166L4-2 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SYS-740A-T, R
FAN-0212L4 2 80x80x32 mm, 9.7K RPM Rear Exhaust Fan for SC836B and SC846B
*Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
*Drive Tray(s) MCP-220-00075-0B 24 Black gen 5.5 hot-swap 3.5" HDD tray
*Rear Window MCP-240-84604-0N 1 X12 846B rear window support 2 X 2.5"HDD and PCIe holder
*Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2" W
MCP-410-00007-0N 1 Rail screw bag
*Air Shroud MCP-310-49003-0N 1 SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable - for NVMe in main drive bay CBL-MCIO-1260M5 • 3 MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
Cable Management Arm MCP-120-82503-0N • 1 Cable Arm Adapter
MCP-290-00073-0N • 1 Supermicro Cable Management Arm
Converter Tray MCP-220-00043-0N • 1 2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY
Converter Tray - orange NVMe tab MCP-220-00138-0B • 1 Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
Network Cards AOC-S25G-b2S-O 1 Std LP 2-port 25G SFP28, Broadcom BCM57414
AOC-S25G-i2S-O 1 Std. Low Profile 25G dual port SFP28, based on Intel XXV710
AOC-S25G-m2S-O 1 Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN
AOC-STG-b2T-O 1 Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
AOC-STGS-i2T-O 1 Std LP 2-port 10G RJ45, Intel X550
Power Cord CBL-PWCD-0579 1 Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 1 Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS 1 PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
Supercap BTR-CVPM05 1 Cachevault supercap for storage controller
MCP-240-00203-0N 1 PCIe plastic battery holder with FH/LP-bracket
TPM AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor, provisioned for server
VROC AOC-VROCSTNMOD 1 Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS
AOC-VROCPREMOD • 1 Intel VROC Premium, RAID0,1,5,10,HF,RoHS

Storage SuperServer SSG-641E-E1CR24H
