Highest Density x86 Multi-Node Server for Enterprise Cloud, HPC Applications

Overview

Highlights
Available in 8U, 6U and 4U enclosures with hot-swap NVMe support
Advanced networking including HDR/EDR, InfiniBand and 25 Gigabit Ethernet
Available in air and direct liquid cooling

Innovations

Resource Saving Architecture
A shared cooling, power and networking infrastructure is key to the high density and server efficiency offered by blade solutions. 6U SuperBlade takes our resource saving initiative even further with Supermicro's innovative Disaggregated Server Design that enables the independent upgrades of the compute modules without replacing the rest of the blade server components for optimal TCO.
Data Center Friendly Design and Features
The SuperBlade family comes in a variety of form-factors and can be easily deployed in almost any data center environment. This is complemented by data center friendly features and designs, including free-air cooling, Battery Backup Power (BBP®), Supermicro RSD with Redfish RESTful APIs, redundant AC or DC power supply options and more.

Product Features

Enclosures

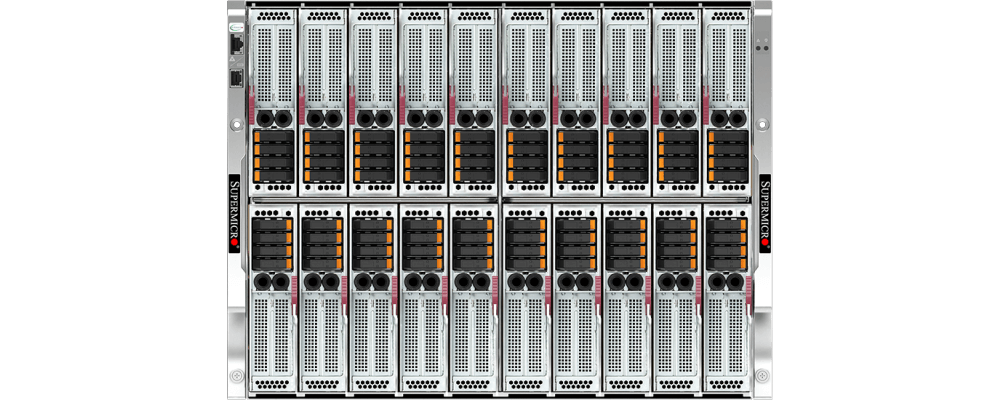

Supermicro SBE-820C 4 Hot-pluggable Ethernet Switches with Add-on Card

8U

Blade Support	Up to 20x 1-socket or 2-socket blade servers Up to 10x 4-socket blade servers Support mixed blade servers in a single enclosure
CPU Support	3rd Gen Intel® Xeon® Scalable processors 3rd Gen AMD EPYC™ processors
Networking	Up to 4 hot-pluggable 25G Ethernet switches with add-on card Single HDR/EDR InfiniBand switch with add-on card
Management	Up to dual redundant management modules
Power Supply	Power Supply Up to 8 hot-pluggable 2200W AC Up to 8 hot-pluggable 2000W DC Battery Backup Power Up to 4 hot-pluggable 1200W BBP® modules *

Show more Show less

Available blades Enclosure detail

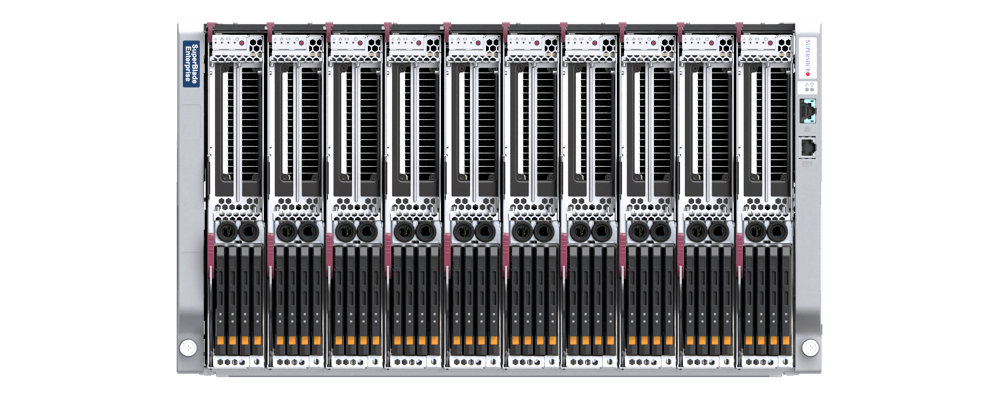

Supermicro SBE-610J 4 Hot-pluggable Ethernet Switches

6U

Blade Support	Up to 10x 1-socket or 2-socket blade servers Up to 14x 1-socket or 2-socket blade servers
CPU Support	3rd Gen Intel® Xeon® Scalable processors Intel® Xeon® W processors
Networking	Up to 4 hot-pluggable 25G/10G/1G Ethernet switches
Management	Up to dual redundant management modules
Power Supply	Power Supply Up to 8 hot-pluggable 2200W AC Battery Backup Power Up to 4 hot-pluggable 1200W BBP® modules *

Show more Show less

Available blades Enclosure detail

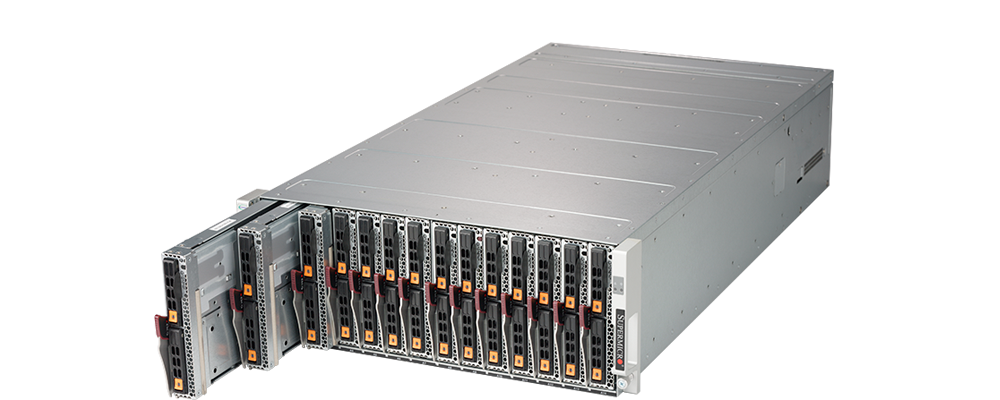

Supermicro SBE-414E 2 Hot-pluggable Ethernet Switches

4U

Blade Support	Up to 14x 2-socket blade servers
CPU Support	3rd Gen Intel® Xeon® Scalable processors
Networking	Up to 2 hot-pluggable 25G/10G/1G Ethernet switches
Management	Single hot-pluggable management module
Power Supply	Power Supply Up to 4 hot-pluggable 2200W AC Battery Backup Power Up to 2 hot-pluggable 1200W BBP® modules *

Show more Show less

Available blades Enclosure detail

* Supported on selected enclosure model(s) and configuration(s)

Options

Resources

Supermicro SuperBlade® Powered by AMD EPYC™ Processors Excel at Scaling Distributed AI and ML Training

GPU-accelerated SuperBlade servers are ideal for running converged AI/ML and HPC workloads, as evidenced by excellent Horovod AI/ML workload performance and the ability to scale training across multiple nodes.

View the solution brief

Supermicro SuperBlade 8U Review

By Brian Beeler - Fri, 10/08/2021 - 10:00

The Supermicro SuperBlade systems have been around for quite some time. The popular blade chassis come in a variety of form factors, including 4U, 6U, and 8U. Each size gives customers a different set of choices when ultimately selecting the blades that go inside.

See the product review

Scale Up Your HPC, AI, and ML Workloads with Supermicro SuperBlade

Put up to 1.68 petaFLOPs per rack of supercomputing capacity into your data center with our performance and density-optimized solution with a resource-saving architecture

View the solution brief

Red Hat® OpenShift® on Supermicro® SuperBlade®

Supermicro® SuperBlade® Simplifies and Accelerates Your Private Cloud Deployment Journey

View the white paper

Innovations in High Density Computing in HPC - Supermicro SC21 TECHTalk with IDC

Presented by Luis Garcia, Director, Blade Solutions; Supermicro Michael Ocampo, Product Manager, Supermicro; Peter Rutten, Research Director, Infrastructure Systems, IDC

Play the video

Osaka University Creates AI Supercomputer with Supermicro SuperBlades Utilizing 3rd Gen Intel Xeon Scalable Processors

New Features Enable Faster Results and AI Research

[View Japanese Version]

View the success story

Supermicro TECHTalk: Highest-Density Multi-Node Server

SuperBlade systems enable data centers with the highest compute density for cloud-based applications. In this TechTalk, we show how the latest SuperBlade systems leverage the latest 3rd Gen Intel® Xeon® Scalable processors and high-speed networking technologies to provide unlimited data center configurability.

Play the video

Mission Critical Server Solutions

Supermicro's Comprehensive Server, Storage and Networking product lines Optimized for IT, Data Center, Embedded, HPC and Cloud Computing and Supporting 3rd Gen Intel Xeon Scalable Processors (Ice Lake)

View the brochure

SuperBlade® and MicroBlade® Brochure

SuperBlade® and MicroBlade® Server Solutions

View the brochure

4-Socket SuperBlade - SAP HANA TDI Certified Blade Server Solution

Supermicro 4-socket blade server SBI-8149P series is designed for the most demanding, low-latency SAP applications that require the highest level of performance, scalability and reliability. Even the most complex SAP HANA 7+1 scale-out architecture can be easily deployed within a single 8U SuperBlade enclosure with 100G networking.

View the datasheet

Achieving Exceptional TCO Savings with 8U SuperBlade®

Supermicro high performance, density optimized and energy efficiency blade server solutions can significantly reduce initial capital and operational expenses for many organizations. In particular, Supermicro's new generation SuperBlade® product portfolio has been designed to optimize key components of TCO for today's datacenters, such as free-air cooling, power efficiency, node density and networking management.

View the white paper

4U SuperBlade®

Cost and Density Optimized with Lowest Initial Hardware Acquisition Cost

View the manual

6U SuperBlade®

6U SuperBlade: Disaggregated Resource Saving Design for Optimal TCO

View the manual

8U SuperBlade®

Designed for High-Performance Computing and Most Demanding Enterprise Workloads

View the manual

7U SuperBlade®

Industry's Most Versatile Blade Portfolio for Enterprise, Data Center, HPC and Cloud Computing

View the manual

BBP® for MicroBlade®/SuperBlade® - Battery Backup Power Solution - Evolutionary Design to Replace UPS!

The Supermicro BBP® modules are designed for high availability and easy maintenance. They are entirely self-contained, hot-swappable units, charging and delivering power to the system through an internal connector.

View the flyer
