SuperServer SBI-421E-1T3N

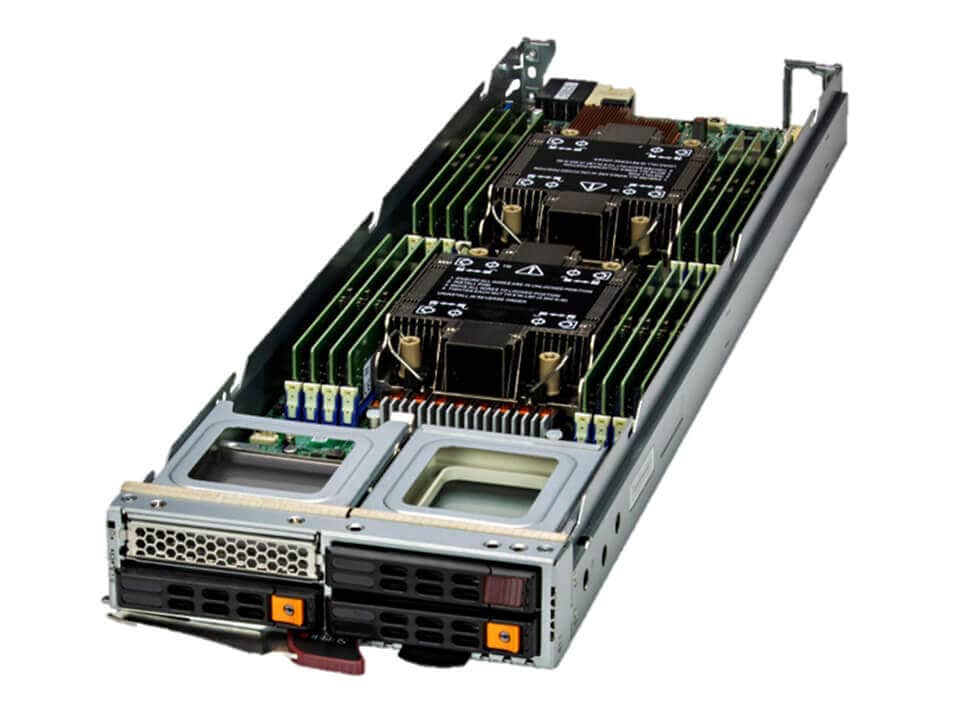

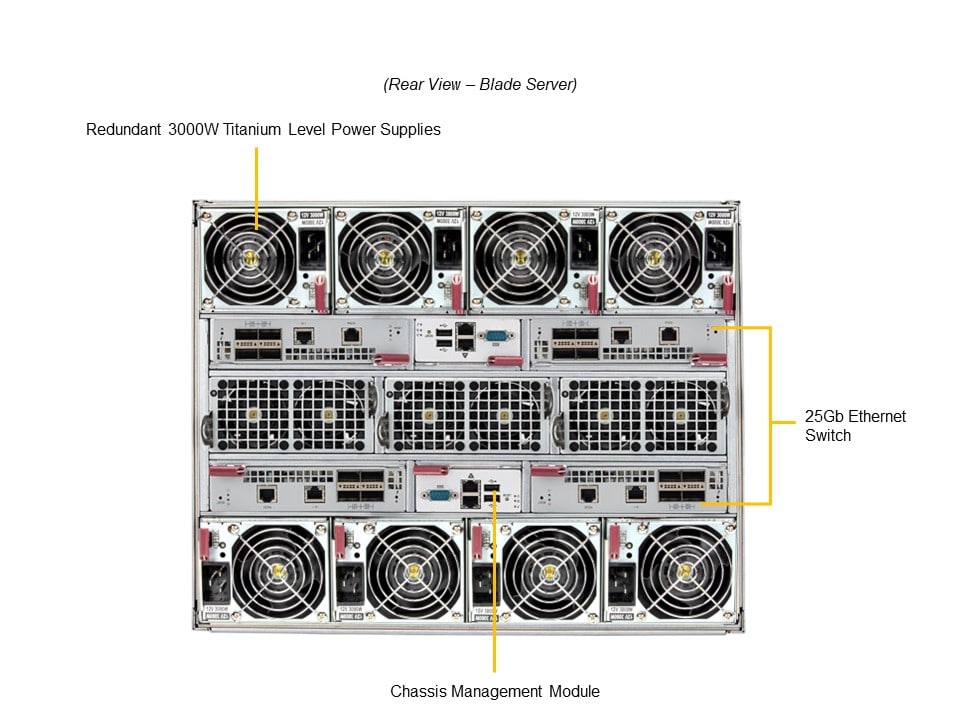

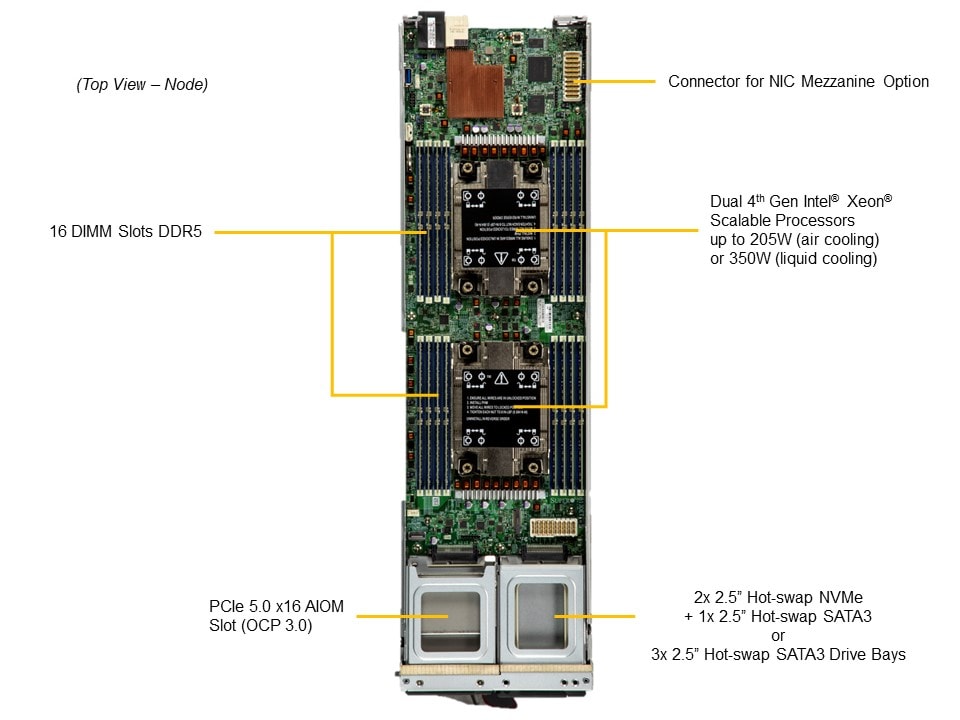

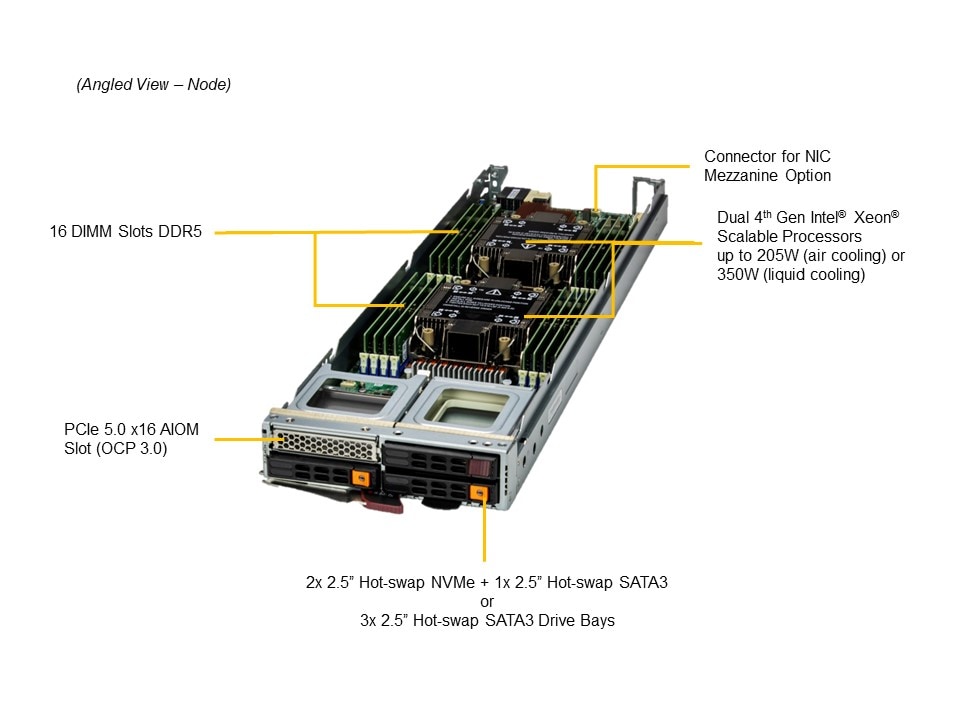

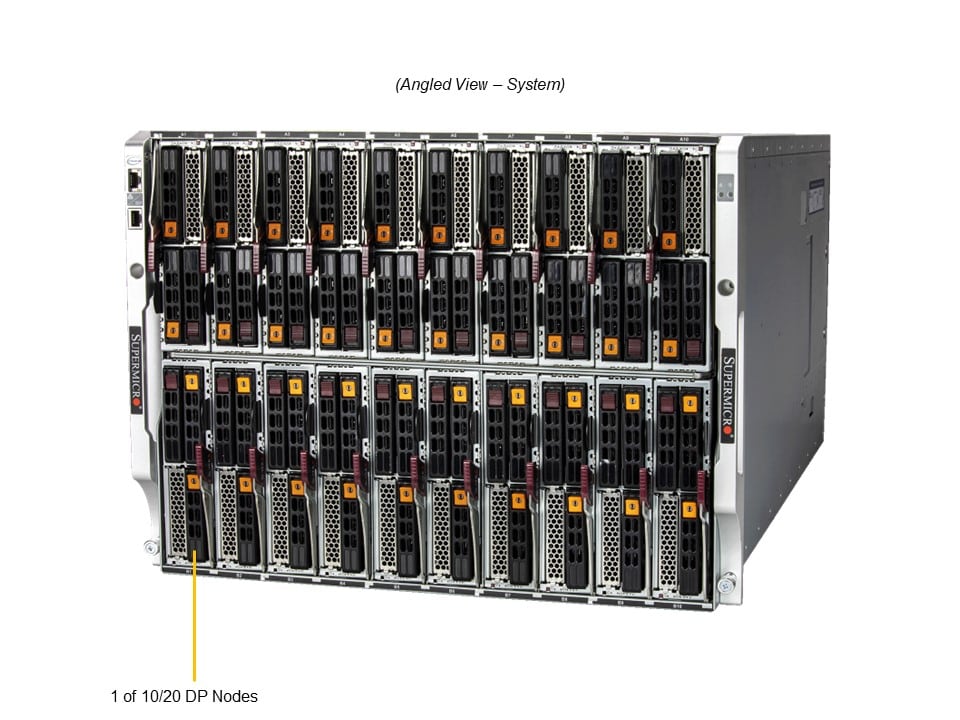

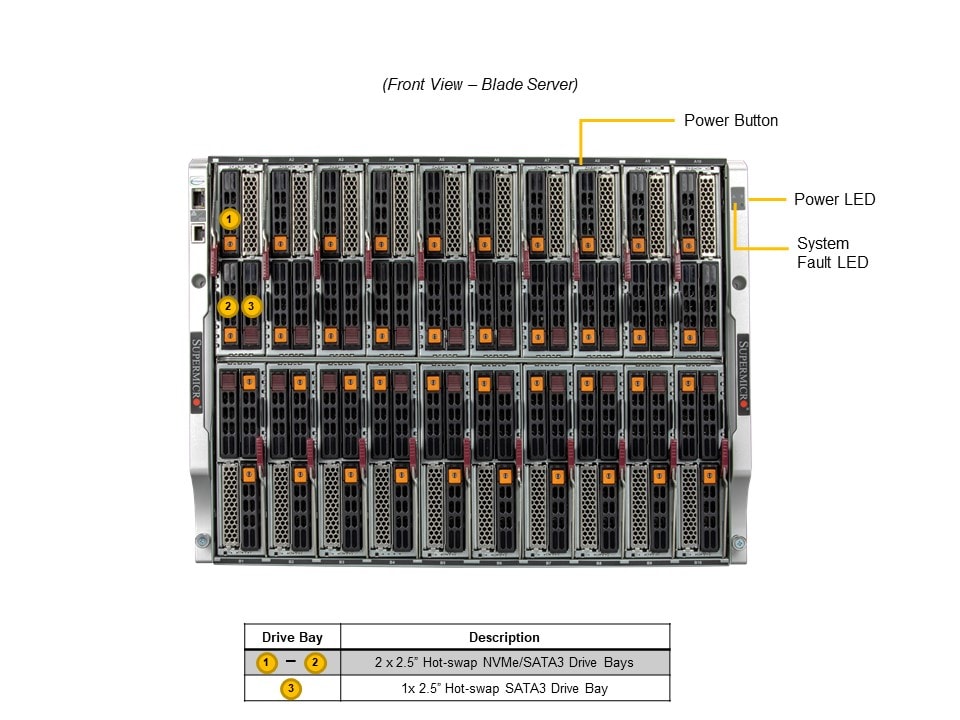

SBI-421E-1T3N Main SBI-421E-1T3N Angle SBI-421E-1T3N Top SBI-421E-1T3N Node SBI-421E-1T3N Front SBI-421E-1T3N Rear SBI-421E-1T3N Opt1
Integrated Board: B13DET
Learn more

Key Applications

  • Data center
  • High-performance Computing (HPC)

Key Features

  1. 200 CPUs per 42U Rack
  2. Dual sockets supports 4th Gen Intel® Xeon® Scalable processors
  3. Intel® C741
  4. 16 DIMMs; up to 4TB 3DS ECC DDR5-4800MHz RDIMM/LRDIMM
  5. Dual 25G onboard Ethernet
  6. 2 Hot-plug 2.5" NVMe/SATA3 drive bays; 1 Hot-Plug 2.5" SATA3 drive bay, 1 NVMe M.2
  7. Graphics: Aspeed AST2600
  8. IPMI 2.0, KVM over IP, Virtual Media over LAN
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SBI-421E-1T3N
Motherboard
Super B13DET
Processor
CPU
  • Certain CPUs with TDP higher than 220W may be supported only with liquid colling kit SNK-P3021A.
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Memory Type: 4800MHz ECC DDR5 RDIMM
On-Board Devices
NVMe
  • NVMe via Intel® PCH 741; RAID 0/1/5/10 support
Chipset
  • System on Chip
Network Connectivity
  • 2x 25GbE with Mellanox CX-4 Lx En (optional)
  • No NIC option supported
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
BIOS Features
  • ACPI up to 3.0
  • PCI 2.2
  • Plug and Play (PnP)
  • USB Keyboard support
Management
Software
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
Chassis
Form Factor
  • 8U
Model
  • CSE-8U
Dimensions and Weight
Height
  • N/A
Width
  • N/A
Depth
  • N/A
Package
Weight
Available Color
  • N/A
Expansion Slots
PCI-Express (PCIe)
  • 12 0 slot(s)
Drive Bays / Storage
Hot-swap
  • 3x 2.5" hot-swap drive bays (2x 2.5" NVMe hybrid)
M.2
  • 1 M.2 NVMe
  • M-key, 2280
System Cooling
Fans
  • 3 Dual counter rotating 6cm Fan(s)
Power Supply
Certification

  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       °C ~ °C (°F ~ °F)
  • Non-operating Temperature:
       °C to °C (°F to °F)
  • Operating Relative Humidity:
       % to % ()
  • Non-operating Relative Humidity:
       % to % ()


Resources
Component Options
AIOM MatrixDrive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Software
Drivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-B13DET

CSE-8U 		1

1 		Super B13DET Motherboard

8U Chassis
Add-on Card / Module AOM-SB1-SATA31-P 1 Single SATA3 hard drive supporting expansion card for B11DPT
Cable CBL-0488L 1 55cm SATA Cable S-RA 30AWG
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P1046V 1 1U Prop. Passive HS for Intel B13 Blade Series
SNK-P1046VM 1 1U Prop. Passive HS w/Middle Air Channel for Intel B13 Blade
Optional Parts List
Part Number Qty Description
Component AOC-VROCSTNMOD - Intel VROC HW key (RSTe) standard upgrade module
Add-on Card / Module AOM-B-4M - 4 x M.2 NVMe mezzanine card, 4x 110(80)
AOC AOC-VROCPREMOD • - Intel VROC Premium, RAID 0, 1, 5, 10
Heatsink / Retention SNK-P1044V - Heatsink for Rear CPU
SNK-P0077V • - Heatsink for Front CPU

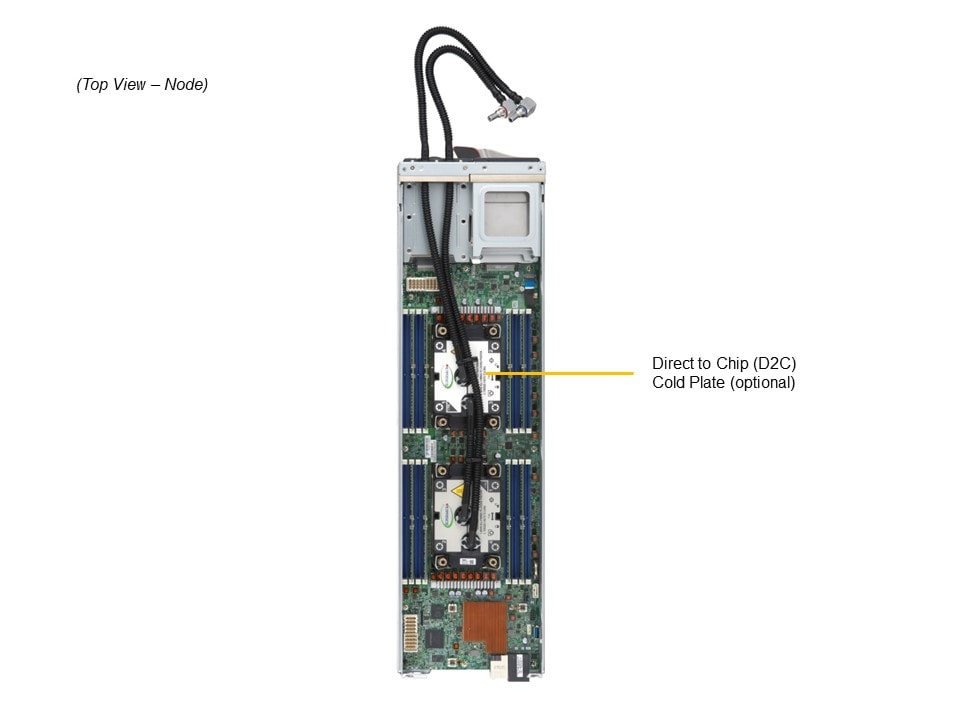

Liquid Cooling Module (OEM only) SNK-P3021A - 1U Liquid Cooling Module for Blade B12DPT 8U20N
Networking AOC-IBH-X6HS-B - SuperBlade InfiniBand HDR one port Mezzanine card with mounting bracket
AOC-IBH-X4ES-B - Mezzanine Card for InfiniBand EDR Single Port with mounting bracket
AOC-B25G-X4D-B - SuperBlade 2-port 25GbE Mezzanine Card (Mellanox ConnectX-4 Lx EN)
Software SFT-DCMS-Single - DataCenter Management Package (per node license)
TPM security module AOM-TPM-9671V - TPM module (Vertical) TPM 1.2.
AOM-TPM-9670V - TPM module (Vertical) TPM 2.0
