A+ Server 4023S-TRT
A+ Products Systems Tower [ 4023S-TRT ]




Integrated Board
H11DSi-NT

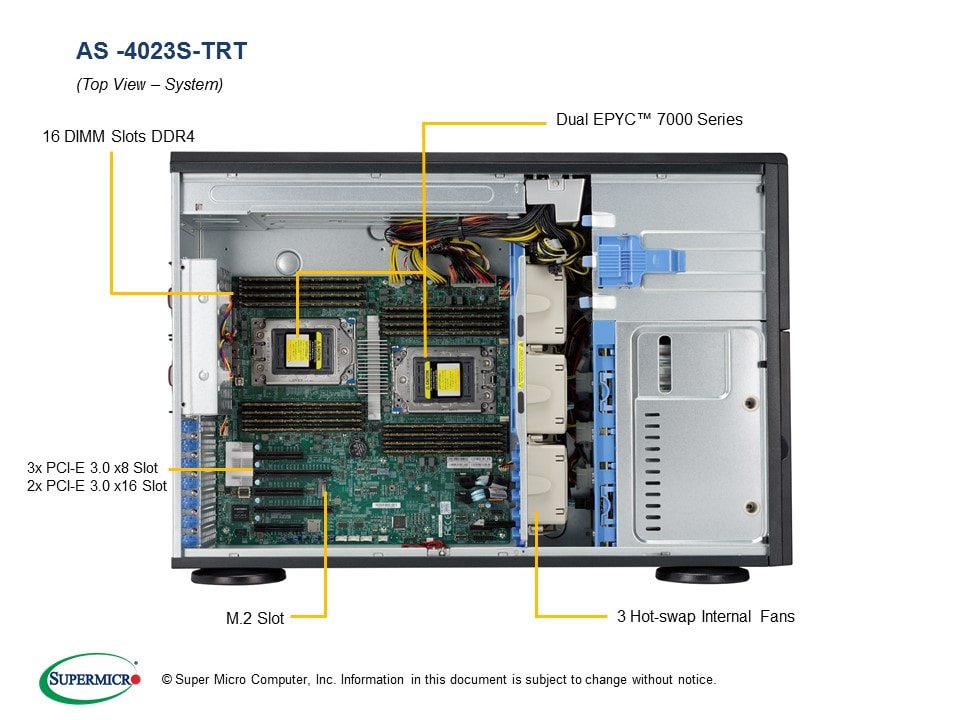

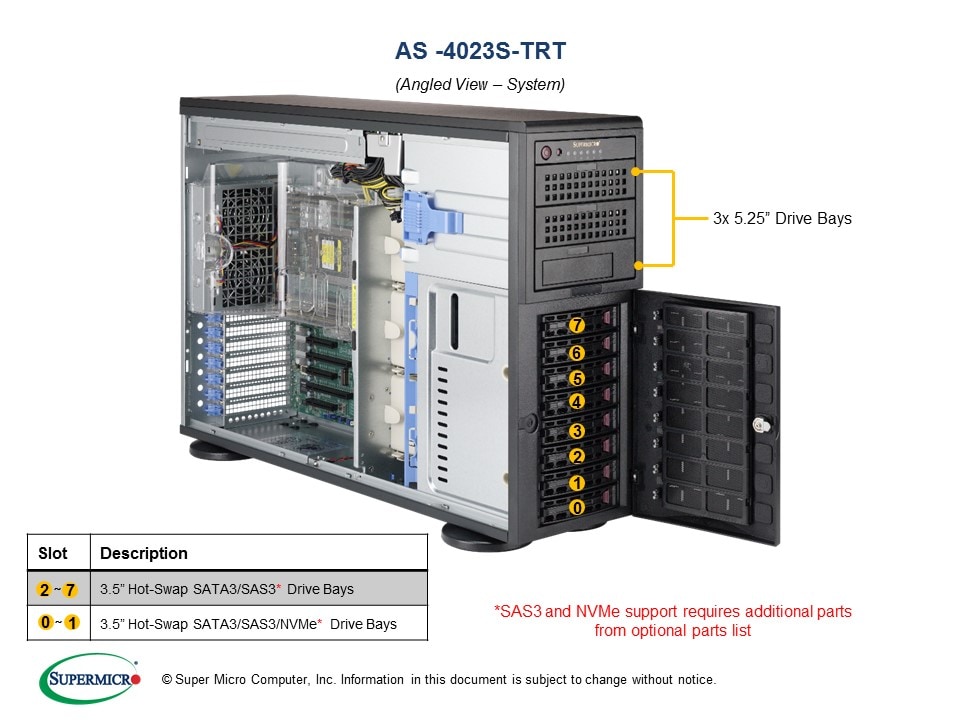

Views: | Angled View | Side View |

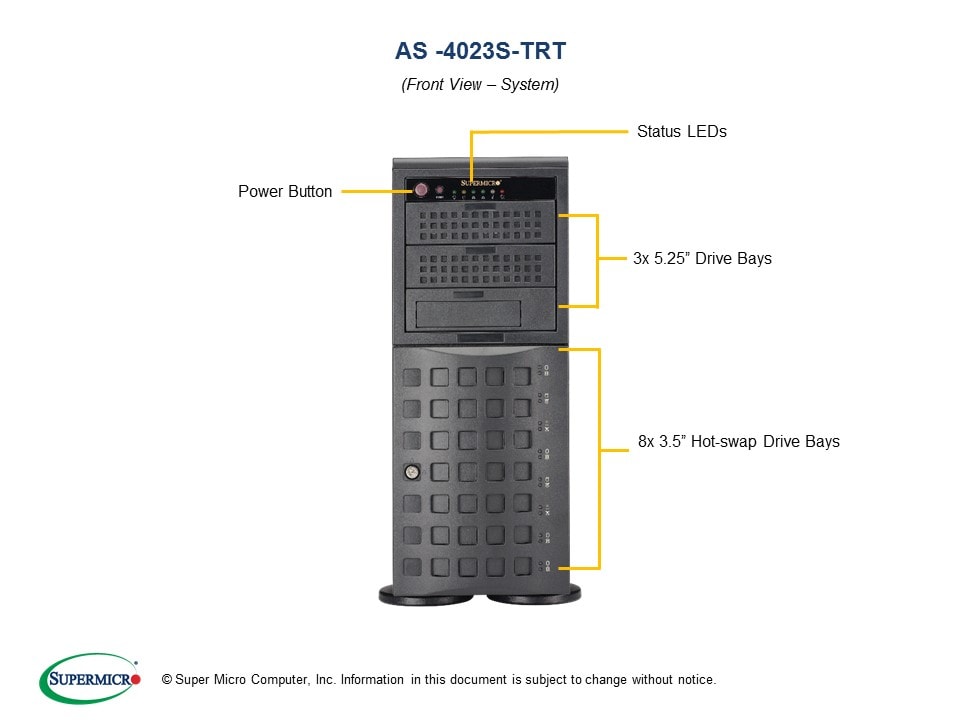

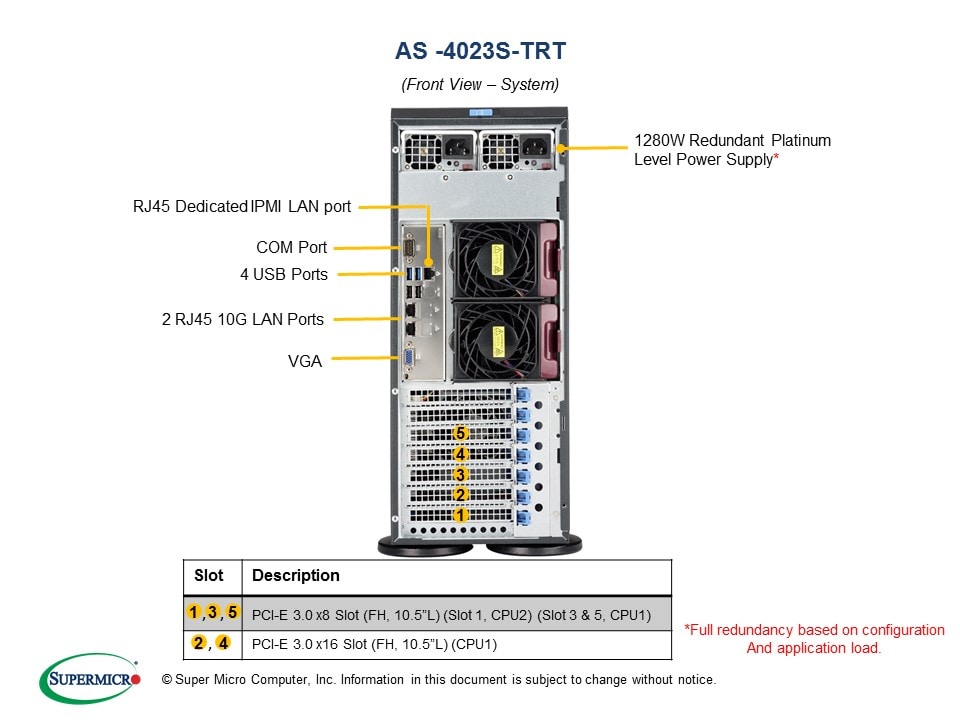

| Front View | Rear View |

Key Features
• Cloud Computing
• Data Center
• General purpose, SMB, Web Hosting
1. Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors)
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
3. Expansion slots:
2 PCI-E x16 slots
3 PCI-E x8 slots
M.2 Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. Dual 10G LAN ports
6. 8 hot-swap 3.5" SATA3 drive bays;
3 peripheral 5.25" drive bays;
1 M.2 NVMe SSD supported
7. 1280W Redundant Power Supplies
Platinum Level
(Full redundancy based on configuration and application load)

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Compatible GPU List Quick-References Guide Drive Options


Product SKUs
AS -4023S-TRT
  • A+ Server 4023S-TRT
Motherboard
H11DSi-NT
Processor/Chipset
CPU
  • Dual AMD EPYC™ 7001/7002* series Processors
    (* Board revision 2.x required)
  • Socket SP3
  • Supports CPU TDP 225W / cTDP up to 240W*
Cores
  • Up to 32 Cores (Board revision 1.x + 7001 Processors)
  • Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset
  • System on Chip (SoC)
System Memory
Memory Capacity
  • 16 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
    (* Board revision 2.x required + 7002 Processors)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • 2 Intel® X550 10GBase-T Ethernet Controllers
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC
Expansion Slots
PCI-Express
  • 2 PCI-E x16 slots
  • 3 PCI-E x8 slots
M.2
  • Interface: 1 SATA/PCI-E 3.0 x2
    (Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
  • Form factor: 2280, 22110
  • Key: M-key
Input / Output
SATA
  • 10 SATA3 (6 Gbps) ports
LAN
  • Dual 10G LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
VGA
  • 1 VGA port
SAS
  • 8 SAS3 ports support via optional Add-on Card
NVMe
  • 2 NVMe support with optional cables
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • Tower / 4U Rackmountable
Model
  • CSE-745BTS-R1K28BP2
Dimensions
Height
  • 17.8" (452mm)
Width
  • 7" (178mm)
Depth
  • 25.5" (647mm)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • 8 hot-swap 3.5" Drive Bays:
    • 8 SATA3 by default
    • or 8 SAS3
Peripheral Drives
5.25"
  • 3 peripheral 5.25" drive bays
Backplane
HDD Backplane
  • Supports 8 SATA3 or 8 SAS3 HDD
System Cooling
Fans
  • 3 internal hot-swap 9400 RPM fans
  • 2 external rear hot-swap 9400 RPM fans
Power Supply
1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input
  • 1000W Output @ 100-140V, 8-12A, 50-60Hz
  • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification Platinum Level Certified95%+
Platinum Certified
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I2C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List - (Items Included)
Part Number Qty Description
Motherboard MBD-H11DSi-NT 1 Super H11DSi-NT Motherboard
Chassis CSE-745BAC-R1K28BP2 1 4U Chassis
Backplane BPN-SAS3-743A-N4 1 8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices
Cable CBL-SAST-0508-01 2 Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF
Heat Sink SNK-P0063P 2 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
IO Shield MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Power Supply PWS-1K28P-SQ 2 1U 1280W, redundant single output power supply
Software SFT-OOB-LIC 1 OOB Management Package (per node license)

Optional Parts List
Part Number Qty Description
NVMe support kit MCP-220-00080-0B - 3.5" to 2.5" HDD tray - ADD QTY 1 per drive (Hot swap not supported)
CBL-SAST-0818 OCuLink v.91,INT,PCIe NVMe SSD, 55CM - ADD QTY 1 per drive
DVD Drive Kit DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
1x CBL-SAST-0624 SATA,INT,ROUND,ST-ST,70CM,30AWG
1x CBL-0082L Y split, big 4 pin to two RA SATA power extension 15cm, 18AWG
Mounting Rails CSE-PT26L-B - 4U Chassis Rail Kits SC743,745 (w/ 2pcs Black Chassis Ears)
Tray MCP-220-00044-0N - Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
3.5" to 2.5" HDD tray Converter MCP-220-00080-0B - Black hot-swap gen 2 3.5" to 2.5" HDD tray – ADD QTY 1 per drive
Storage Control Card and Cable(s) AOC-S3008L-L8e - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
2x CBL-SAST-0593 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
AOC-S3008L-L8i - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
2x CBL-SAST-0593 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
AOC-S3108L-H8iR - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
2x CBL-SAST-0593 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9655V-S - Based on AOM-TPM-9655V with Server TXT package
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
AOM-TPM-9665V-S - Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
Global Services & Support OS4HR3/2/1
 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
