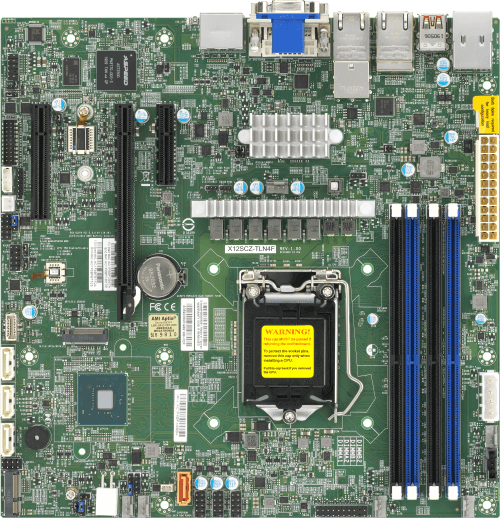

Key Features

1. 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors
   Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
2. Intel® W480E
3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
4. 1 PCIe 3.0 x16,
   1 PCIe 3.0 x4 (in x8 slot),
   1 PCIe 3.0 x4
   1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
   1 M.2 E-Key CNVi/PCIe 3.0 x1, 2230
5. Intel® W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
6. Dual LAN with Intel® X550 10GBase-T Ethernet Controller
   Single LAN with Intel® PHY I219LM LAN controller
   Single LAN with Intel® Ethernet Controller I210-AT
7. 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
