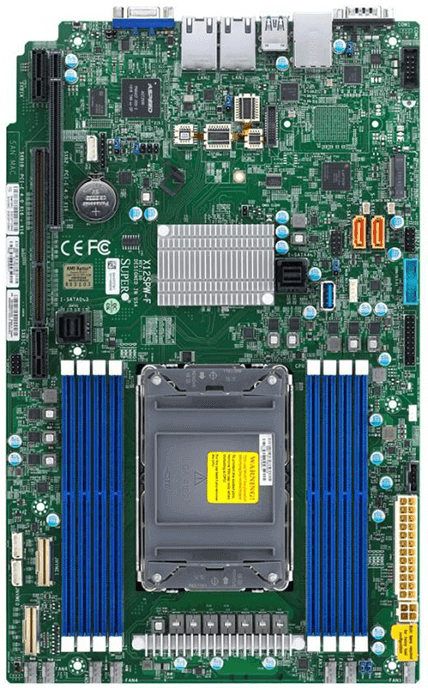

X12SPW-F

WIO
3 AOC in 1U
Dual 1GbE

Key Features

  1. 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  2. Intel® C621A
  3. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
    Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
  4. 1 PCI-E 4.0 x16 Right Riser Slot,
    1 PCI-E 4.0 x32 Left Riser Slot,
    4 PCI-E 4.0 NVMe x4 Internal Port(s)
    M.2 Interface: PCI-E 3.0 x4 and SATA
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
  5. Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with 1GbE with Intel® I210
  7. I/O: 1 VGA, 2 COM, TPM header
  8. 2 SuperDOM with built-in power




Specifications
Product SKUs
MBD-X12SPW-F
  • X12SPW-F

Physical Stats
Form Factor
  • Proprietary WIO
Dimension
  • 8" x 13" (20.32cm x 33.02cm)

Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
  • Up to 40 cores

System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type
  • ECC 3DS , DDR4 LRDIMM, RDIMM
DIMM Sizes
  • 3DS LRDIMM: 128GB, 256GB
  • LRDIMM: 64GB, 128GB
  • RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with 1GbE with Intel® I210

Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 4.0 x16 Right Riser Slot,
  • 1 PCI-E 4.0 x32 Left Riser Slot
M.2
  • M.2 Interface: PCI-E 3.0 x4; SATA
  • Form Factor: 2280, 22110
  • Key: M-Key

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or later

Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, IPMI2.0, Watchdog
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management

PC Health Monitoring
Voltage
  • VBAT, Supports system management utility, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL
  • UID
  • RoHS
  • Control of power-on for recovery from AC power loss
  • ACPI power management

Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SPW-F 1 X12SPW-F Motherboard
CPU carrier SKT-1205L-P4IC-FXC 1 CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SPW-F 1 X12SPW-F Motherboard
CPU carrier SKT-1205L-P4IC-FXC 1 CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
QRG MNL-2246-QRG 1 Motherboard Quick Reference Guide
Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
Chassis (Optimized for X12SPW-F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCLB16AC2-R504W
SCLA15TQC-563W
SCLA15TQC-R504W
SC815TQC4-R504WB3
SC815TQC4-605WB2
SC116AC10-R706WB3
SC825BTQC-R609WB
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
