SuperServer SSG-110P-NTR10 (Complete System Only)

Key Applications
- Virtualization
- Cloud Computing
- All Flash Storage
- CDN Optimized

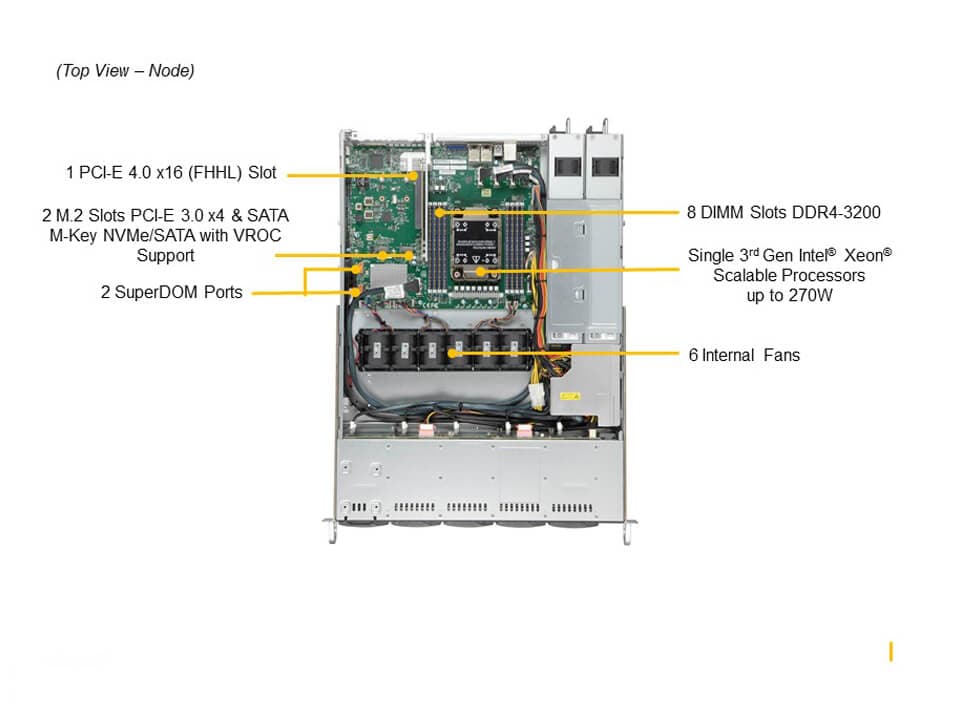

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 1 PCI-E 4.0 x16 (FHHL) slot
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 10x Hot-swap 2.5'' All NVMe Gen 4 tool-less drive bays; Onboard 2x NVMe Gen 3/SATA M.2
  6. Redundant Platinum 860W Power Supply
...
...
Resources
Specifications
Product SKUs
SSG-110P-NTR10
  • SuperServer SSG-110P-NTR10 (Black)

Motherboard


Super X12SPO-NTF

Processor
CPU
  • Single Socket P+ (LGA 4189)
  • Support Intel® 3rd Gen Xeon® Scalable Processors
  • Support CPU TDP 270W

System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.25 V
Error Detection
  • Yes

On-Board Devices
NVMe
  • NVMe Gen 4 via MB onboard controller; RAID 0, 1, 5, 10 support (with additional VROC module)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

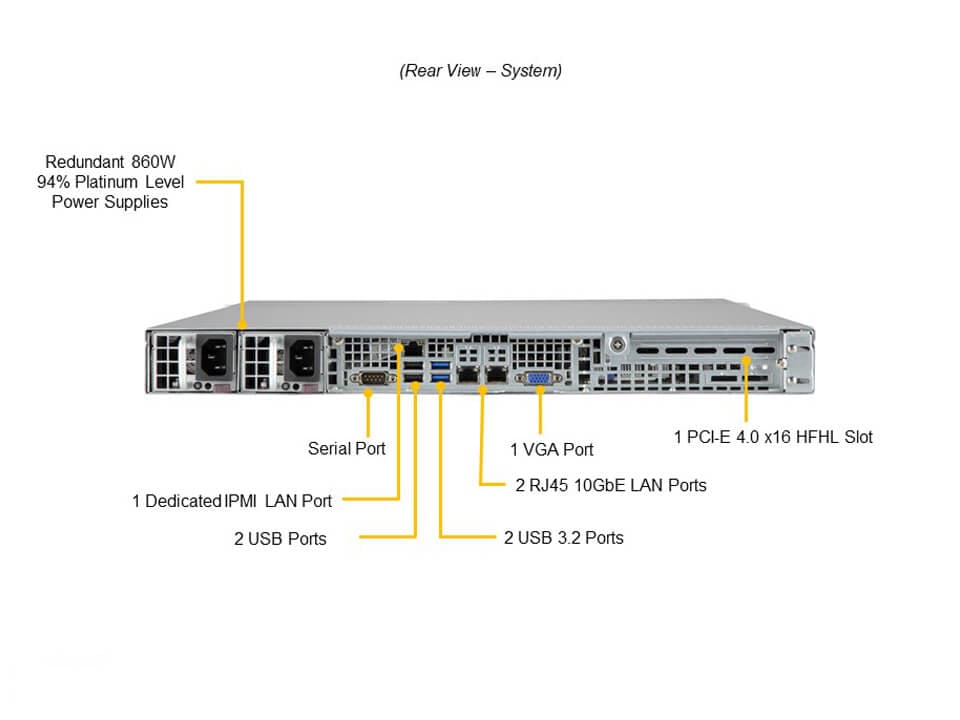

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10GBase-T LAN ports
USB
  • 5 USB 3.2 Gen 1 port(s) (2 front; 2 rear; 1 Type A)
  • 4 USB 2.0 port(s) (2 headers; 2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI/APM Power Management

PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator module (VRM)
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R860CBP-N10

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 8" (H) x 24" (W) x 32" (D)
Weight
  • Net Weight: 25 lbs (11.34 kg)
  • Gross Weight: 38 lbs (17.24 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHHL

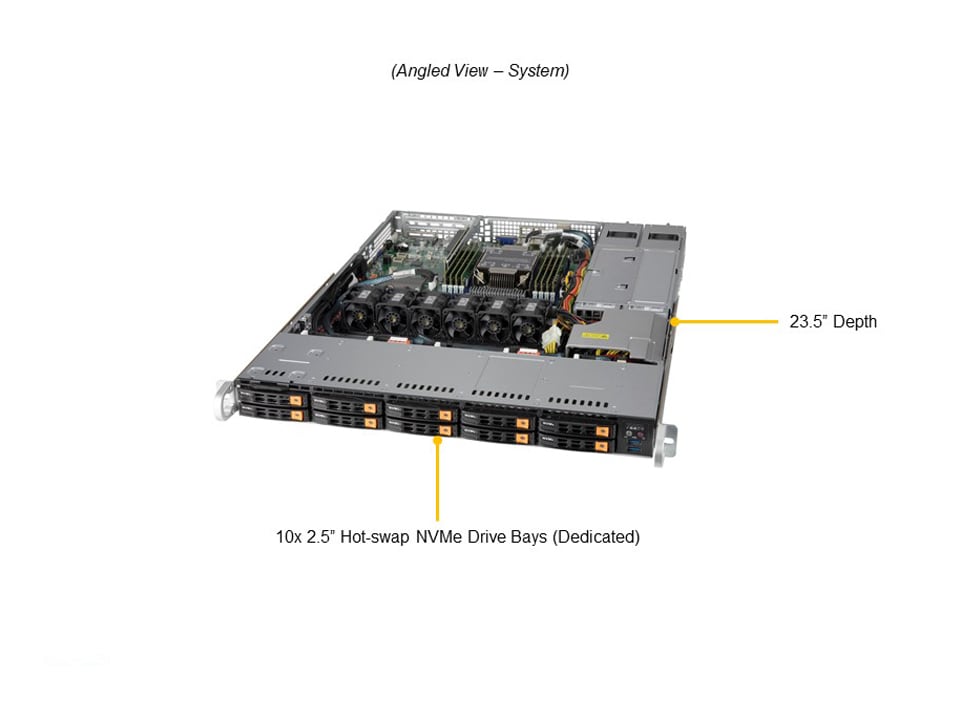

Drive Bays / Storage
Hot-swap
  • 10x 2.5" hot-swap NVMe drive bays (10x 2.5" NVMe dedicated)
M.2
  • 2x PCI-E 3.0 x4 and SATA
  • Form Factor: 2280, 22110
  • Key: M-key

System Cooling
Fans
  • 6x (4cm x4cm x5.6cm) heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)

Power Supply
AC 860W, Platinum Level, Redundant Power Supply, 54.5mm width
Dimension

(W x H x L)
  • 54.5 x 40.25 x 320 mm
Output Type
  • Gold Finger
Certification Platinum Level Certified94%+   Platinum Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
