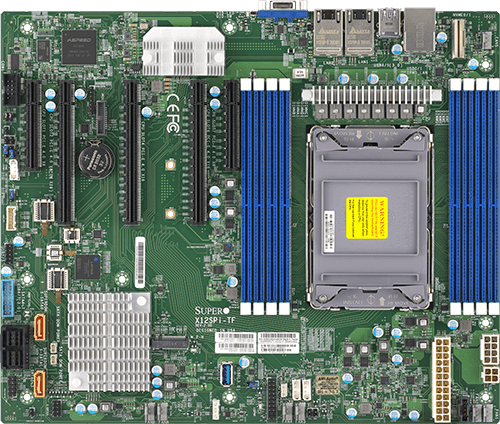

X12SPI-TF

Print
High Performance

Key Features


  1. 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  2. Intel® C621A
  3. Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB LRDIMM, DDR4-3200MHz
    Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
  4. 2 PCI-E 4.0 x16,
    2 PCI-E 4.0 x8,
    1 PCI-E 4.0 x8 (in x16 slot),
    1 PCI-E 4.0 NVMe x8 Internal Port(s)
    M.2 Interface: 1 SATA/PCI-E 3.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  5. Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with 10GBase-T with Intel® X550



Resources
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
Motherboard Manual
OS Compatibility
Quick Reference Guide
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Update Your BIOS
Optimization
Specifications
Product SKUs
MBD-X12SPI-TF
  • X12SPI-TF

Physical Stats
Form Factor
  • ATX
Dimension
  • 12.1" x 10" (30.73cm x 25.4cm)

Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
  • Up to 40 cores

System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 2TB ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
Memory Type
  • ECC , DDR4 LRDIMM, RDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550

Input / Output
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 4.0 x16,
  • 1 PCI-E 4.0 x8 (in x16 slot),
  • 2 PCI-E 4.0 x8
M.2
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7

Management
Software
  • SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection

PC Health Monitoring
Voltage
  • VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • UID, RoHS, Dual Cooling Zones, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header

Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SPI-TF 1 X12SPI-TF Motherboard
CPU carrier SKT-1205L-P4IC-FXC 1 CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables CBL-0044L • 2 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00042-1N 1 -
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SPI-TF 1 X12SPI-TF Motherboard
CPU carrier SKT-1205L-P4IC-FXC 1 CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables CBL-0044L • 2 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00042-1N 1 -
QRG MNL-2225-QRG 1 -
Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9671V
AOM-TPM-9670V		 1
1		 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
Chassis (Optimized for X12SPI-TF)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCLA26E1C4-R609LP
(Heatsink1 :SNK-P0078AP4 )
SCLA25TQC-R609LP
(Heatsink1 :SNK-P0078AP4 )
SC826BAC12-R802LPB
(Heatsink1 :SNK-P0078AP4 )
 SC847BE1C-R1K23LPB
(Heatsink1 :SNK-P0078AP4 )
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X12SPI-TF)
Server Name
SSG-520P-ACTR12H
SSG-520P-ACTR12L
SSG-540P-E1CTR36H
SSG-540P-E1CTR36L
SSG-540P-E1CTR45H
SSG-540P-E1CTR45L
SSG-540P-E1CTR60H
SSG-540P-E1CTR60L
X12SPI-TF
