Supermicro SuperStorage Solutions

New-generation X11 Supermicro SuperStorage systems support node-based deployment strategies where CPU and HDD capacity scale together, or deployments can be expanded using JBODs for improved economy. Low-latency SSD applications, large media files requiring massive capacity and enterprise workloads looking for the highest performance will benefit from Supermicro's SAS 3.0 (12 Gbps) support which provides low-latency and maximum data bandwidth. The Supermicro SuperStorage systems offer a no-compromise storage platform with flexible market entry points from 2U, 3U, and 4U form factors using 2.5" or 3.5" SSDs/HDDs. SuperStorage servers support up to: 1TB 3DS ECC LRDIMM or 256GB ECC RDIMM memory, PCI-E 3.0 slots, NVMe, flexible networking options such as 10G SFP+, 10GBase-T LAN ports and IPMI 2.0 and KVM with dedicated LAN, and have support for the latest Intel® Xeon® Scalable processors.

Supermicro SuperStorage solutions present a number of key benefits to customers working with CPU-Intensive Storage, Virtual Storage, Single-Instance Storage and Data Deduplication, Data Replication and Business Continuity, and Virtual Tape Library customer environments.

Key Benefits:

  • Complete Portfolio of open industry standard storage offerings optimized for Microsoft, VMWare, RedHat and Software-Defined Storage solutions
  • Maximum Performance – Full NVMe support, in hybrid expander and direct-attach storage backplane with up to 20 GB/s throughput
  • Maximum Efficiency – High capacity 2U, 3U and 4U form factors with industry-leading density. Highest efficiency platinum-rated power supplies (95% power efficient)
  • Mission Critical Reliability – Fully redundant, fault-tolerant architecture with hot-swappable drive bays, power supplies and cooling fans. The active-active capable JBOD hardware is perfect for mission critical applications

Resources

  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s

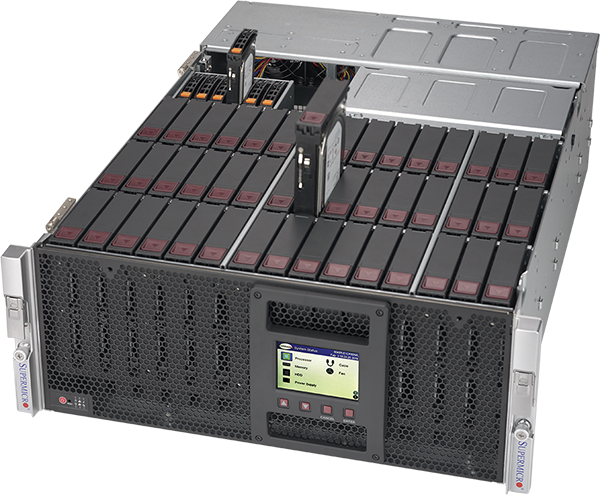

  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays, 6 optional NVMe bays
  • Storage Options:
    • SSG-6049P-E1CR45L+ – SAS3 via Broadcom 3616 AOM
  • 24 DIMMs; up to 3TB ECC 3DS LRDIMM, up to DDR4 2666MHz
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card slot
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 1600W Redundant Platinum Level Power Supplies
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays, 6 optional NVMe bays
  • Storage Options:
    • SSG-6049P-E1CR45H – SAS3 via Broadcom 3108 AOM
    • SSG-6049P-E1CR45L – SAS3 via Broadcom 3008 AOM
  • 24 DIMMs; up to 3TB ECC 3DS LRDIMM, up to DDR4 2666MHz
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card slot
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 1600W Redundant Platinum Level Power Supplies
  • Backup Storage, Cold Storage; Database Applications; Data Warehousing, Archiving
  • Single Socket P (LGA 3647) support: Intel® Xeon® Scalable processors
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays (NVMe/SATA optional)
  • Storage Options:
    • SSG-5049P-E1CR45H – SAS3 via Broadcom 3108 AOC
    • SSG-5049P-E1CR45L – SAS3 via Broadcom 3008 AOC
  • 8 DIMMs; up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2 GbE LAN ports via Intel i210, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 5 Hot-swap 8cm redundant PWM fans
  • 1600W Redundant Platinum Level Power Supplies
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays
  • Storage Options:
    • SSG-6049P-E1CR60L+ – SAS3 via Broadcom 3616 AOM
  • 24 DIMMs; up to 3TB ECC 3DS LRDIMM, up to DDR4 2666MHz
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays
  • Storage Options:
    • SSG-6049P-E1CR60H – SAS3 via Broadcom 3108 AOM
    • SSG-6049P-E1CR60L – SAS3 via Broadcom 3008 AOM
  • 24 DIMMs; up to 3TB ECC 3DS LRDIMM, up to DDR4 2666MHz
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies
  • IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyperconverged Infrastructure / Scale-out Architectures
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors
  • 32 Hot-swap NF1 drive bays, 4 hybrid PCI-E NF1 or SATA3 M.2 drive bays
  • 24 DIMMs; up to 3TB ECC 3DS LRDIMM, up to DDR4 2666MHz
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 8x 4cm counter-rotating cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
32 NVMe support • (2 sleds with • 16 drives per sled)

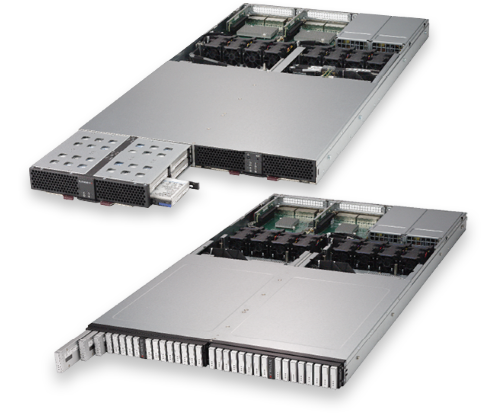

  • 1U 32 NVMe JBOF Storage Enclosure
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • 32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled)
  • 4 PCI-E x16 IO ports, 2 PCI-E x16 slots
  • 2 RJ45 Dedicated IPMI LAN ports, support for IPMI v.2.0
  • 8x 40mm Hot-swap cooling fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
32 NVMe Ruler SSDs
  • 1U 32 NVMe Ruler SSD JBOF Storage Enclosure
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • 32 Hot-swap NVMe Ruler SSDs
  • 4 PCI-E x16 IO ports, 2 PCI-E x16 slots
  • 2 RJ45 Dedicated IPMI LAN ports, support for IPMI v.2.0
  • 8x 40mm Hot-swap cooling fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
12 Hot-swap 3.5" • SAS3/SATA3 + 4 Hot- • swap 2.5" NVMe/SATA
  • High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" NVMe/SATA drive bays
  • 12 DIMMs; up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 6x 4cm 20.5K RPM cooling fans
  • 600W Redundant Platinum Level Power Supplies
12x 3.5" SATA3 drive bays
  • Warm storage, CDN, Web or DB Server, Multi-access Edge Computing, VM and SMB Servers
  • Intel® Xeon® processor D-2146NT (8-Core)
  • 12x 3.5" SATA3 Drive Bays, SAS3 support by AOC
  • 4 DIMMs, up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM, DDR4-2133MHz memory
  • 1 PCI-E 3.0 x8 (FH), M.2: M Key and B Key
  • 2x 10GBase-T, 4x 1GbE, 2x 10G SFP+ ports, 1x dedicated IPMI LAN port
  • I/O ports: 1 VGA, 1 COM, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 6x 40mm 4-pin fans
  • 400W Redundant Platinum Level Power Supplies
48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
  • Storage Options:
    • SSG-2029P-E1CR48H – SAS3 via Broadcom 3108 AOC
    • SSG-2029P-E1CR48L – SAS3 via Broadcom 3008 AOC
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4 2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 2.5" SAS3/SATA3
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-2029P-ACR24H - SAS3 via Broadcom 3108 AOC
    • SSG-2029P-ACR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 2.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays
  • Storage Options:
    • SSG-2029P-E1CR24H - SAS3 via Broadcom 3108 AOC
    • SSG-2029P-E1CR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
  • Storage Options:
    • SSG-6029P-E1CR24H – SAS3 via Broadcom 3108 AOC
    • SSG-6029P-E1CR24L – SAS3 via Broadcom 3008 AOC
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4 2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3 (via Broadcom 3108)/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • 16 DIMMs; up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 1 occupied by controller)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
12 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6029P-E1CR12H - SAS3 via Broadcom 3108 AOC
    • SSG-6029P-E1CR12L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 3.5" SAS3 (via Broadcom 3108)/SATA3 drive bays
  • 16 DIMMs; up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 1 occupied by controller)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
16 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6039P-E1CR16H - SAS3 via Broadcom 3108 AOC
    • SSG-6039P-E1CR16L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24" Hot-swap 3.5 SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6049P-E1CR24H - SAS3 via Broadcom 3108 AOC
    • SSG-6049P-E1CR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
36 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 36 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6049P-E1CR36H - SAS3 via Broadcom 3108 AOC
    • SSG-6049P-E1CR36L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
12 Hot-swap 3.5" SAS3/SATA3
  • Application and data serving, Connectivity/Storage Compute Nodes, High Availability Storage Appliance Platform
  • Single Socket P (LGA 3647) support: Intel® Xeon® Scalable processors
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional NVMe/SATA (rear)
  • SAS3 via Broadcom 3008 controller
  • 8 DIMMs; up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2x 10GBase-T ports via X557, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 3 High-performance 80mm PWM fans
  • 800W Redundant Titanium Level (96%) Power Supplies
36 Hot-swap 3.5" SAS3/SATA3
  • Connectivity/Storage Compute Nodes, Database Processing & Storage Appliance Platform
  • Single Socket P (LGA 3647) support: Intel® Xeon® Scalable processors
  • 36 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional NVMe/SATA (rear)
  • SAS3 via Broadcom 3008 controller
  • 8 DIMMs; up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz
  • 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2x 10GBase-T ports via Intel X722 + X557, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 7 High-performance 80mm PWM fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
45 Hot-swap Top-Loading drive bays, 6 opt. NVMe, Broadcom 3108
  • Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear), 6 Optional NVMe bays
  • SAS3 via Broadcom 3108, HW RAID
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • Front 3.5" LCD display
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm rear exhaust cooling fans
  • 1600W Redundant Platinum Level Power Supplies
45 Hot-swap Top-Loading drive bays, 6 opt. NVMe, Broadcom 3008
  • Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear), 6 Optional NVMe bays
  • SAS3 via Broadcom 3008, IT mode controller
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • Front 3.5" LCD display
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm rear exhaust cooling fans
  • 1600W Redundant Platinum Level Power Supplies
60 Hot-swap Top-Loading, 6 opt. NVMe, Broadcom 3108
  • High capacity File and Object storage, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 60x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" Hot-swap drive bays (rear), 6 Optional NVMe bays
  • SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • Front 3.5" LCD display
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 80mm hot-swap rear exhaust cooling fans
  • 2000W Redundant Titanium Level (96%)Power Supplies
60 Hot-swap Top-Loading, 6 opt. NVMe, Broadcom 3008
  • Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 60x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" Hot-swap drive bays (rear), 6 Optional NVMe bays
  • SAS3 via Broadcom 3008, IT mode controller
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • Front 3.5" LCD display
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 80mm hot-swap rear exhaust cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies
90 Hot-swap • Top-Loading • Broadcom 3008
  • Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 90 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
  • SAS3 via 2 Onboard Broadcom 3008 SAS3 controllers
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • I/O: SIOM card for multiple IO options
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 8cm redundant PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
48 NVMe support • 2 rear 2.5" drive bays
  • IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 48 Hot-swap 2.5" NVMe bays; 2 Hot-swap 2.5" drive bays (rear) Cable-arm for second row drives' hot-swap access
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
  • SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
  • SAS3 via Broadcom 3008, IT mode controller
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
  • SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
  • SAS3 via Broadcom 3008, IT mode controller
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • I/O: SIOM for flexible networking options, 2 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
72 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3008 controller; IT mode
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 72 Hot-swap 3.5" SAS3/SATA3 drive bays,
    2 Hot-swap 2.5" drive bays (rear)
  • SAS3 via Broadcom 3008 controller, IT mode
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (3 slots occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 7 Hot-swap 92mm cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies
24 Hot-swap 2.5" SAS3/SATA3 • 3 Broadcom 3108(H) / • 3 Broadcom 3008(L)
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 direct attached drive bays;
    2 optional Hot-swap 2.5" rear side drive bays
  • SAS3 via 3 Broadcom 3108 AOC; HW RAID (2028R-ACR24H)
  • SAS3 via 3 Broadcom 3008 - IT mode; SW RAID (2028R-ACR24L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1-3 occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
24 Hot-swap 2.5" SAS3/SATA3 • Broadcom 3108(H) / Broadcom 3008(L)
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays;
    2 optional Hot-swap 2.5" rear side drive bays
  • SAS3 via Broadcom 3108 AOC; HW RAID (-E1CR24H)
  • SAS3 via Broadcom 3008 - IT mode; SW RAID (-E1CR24L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6x PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
24 Hot-swap 2.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
16x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16x 3.5" Hot-swap SAS3/SATA3 drive bays (SAS3 via Broadcom 3108)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots
  • I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm hot-swap redundant PWM cooling fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
12x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" optional Hot-swap drive bays (rear)
  • SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR12H)
    SAS3 via Broadcom 3008 controller, IT mode (-E1CR12L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3x heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
    2 optional Hot-swap 2.5" drive bays (rear)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 920W Redundant Platinum Level Power Supplies
16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays,
    2 optional Hot-swap 2.5" drive bays (rear)
  • SAS3 via Broadcom 3108 AOC; HW RAID (-E1CR16H)
    SAS3 via Broadcom 3008 controller; IT mode (-E1CR16L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 3 PCI-E 3.0 x8 (-E1CR16L: slot 3 & 4 occupied)
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 (-E1CR16H: slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 920W Redundant Platinum Level Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
    2 optional Hot-swap 2.5" drive bays (rear)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 920W Redundant Platinum Level Power Supplies
24 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays,
    2 optional Hot-swap 2.5" drive bays (rear)
  • SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR24H);
    SAS3 via Broadcom 3008 controller, IT mode (-E1CR24L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 (slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 920W Redundant Platinum Level Power Supplies
36 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 36 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
    4 internal fixed 2.5" drive bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
  • I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2 Hot-swap 80mm rear exhaust PWM cooling fans
  • 1280W Redundant Platinum Level Power Supplies
36x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 36x 3.5" Hot-swap SAS3/SATA3 drive bays, 4x 2.5" internal fixed drive bays; 2x 2.5" optional Hot-swap drive bays (rear)
  • SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR36H)
    SAS3 via Broadcom 3008 controller, IT mode (-E1CR36L)
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
  • I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 2x 80mm Hot-swap rear exhaust PWM cooling fans
  • 1280W Redundant Platinum Level Power Supplies
6x 3.5" SAS3 per U • 2 Rear Optional 2.5" • SAS3 via Broadcom 3008
  • 2U Storage Server – Expansion / Capacity / Cost per TB
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" SAS3 HDD Bays (SAS3 via Onboard Broadcom 3008 to SAS3 backplane); 2x Rear optional 2.5" Hot-swap HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 (x8/4, x16/8, x8) + 2 PCI-E 2.0 (x8/4, x4/2)
  • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 920W Redundant Platinum Level Power Supplies
Storage Powerhouse • 24 Front + 12 Rear • SAS3 via Broadcom 3008
  • 4U Storage Server (Double-sided) – Expansion / Capacity / Cost per TB
  • Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 36 Hot-swap 3.5" SAS3 HDD Bays (SAS3 via Onboard Broadcom 3008 to SAS3 backplane); Optional 2 Rear 2.5" Hot-swap HDD Bays
  • 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
  • 4 PCI-E 3.0 (x8/4, x16/8, x8) + 2 PCI-E 2.0 (x8/4, x4/2)
  • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0, 2 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty fans w/ optimal fan speed control
  • 1280W Redundant Platinum Level Digital Power Supplies
12x 3.5" SAS2/SATA3 drive bays
  • 1U High-density Storage Server
  • Socket FCBGA 1283 support Intel Atom® processor C2750
  • 12x 3.5" SAS2/SATA3 Drive Bays
  • Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
  • 4 DIMMs, up to 64GB, up to 1600MHz DDR3 memory
  • 1 PCI-E 2.0 x4 (in x8, Low-profile) slot
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 6x 40x28mm PWM cooling fans
  • 400W Redundant Short-Depth Gold level Power Supplies
12x 3.5" SAS2/SATA3 drive bays
  • 1U High-density Storage Server
  • Socket FCBGA 1667 support Intel® Pentium® processor D1508 (2-Core)
  • 12x 3.5" SAS2/SATA3 Drive Bays
  • Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
  • 4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
  • 1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
    Mini-PCIe w/ mSATA support
  • I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40mm middle fans
  • 400W Redundant Short-Depth Power Supplies
12x 3.5" SAS2/SATA3 drive bays
  • 1U High-density Storage Server
  • Socket FCBGA 1667 support Intel® Xeon® processor D1518 (4-Core)
  • 12x 3.5" SAS2/SATA3 Drive Bays
  • Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
  • 4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
  • 1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
    Mini-PCIe w/ mSATA support
  • I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40mm middle fans
  • 400W Redundant Short-Depth Power Supplies
12x 3.5" SAS2/SATA3 drive bays
  • 1U High-density Storage Server
  • Socket FCBGA 1667 support Intel® Xeon® processor D1537 (8-Core)
  • 12x 3.5" SAS2/SATA3 Drive Bays
  • Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
  • 4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
  • 1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
    Mini-PCIe w/ mSATA support
  • I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5x 40mm middle fans
  • 400W Redundant Short-Depth Power Supplies
