SuperServer 1029U-TN12RV (Complete System Only)

  Products  Systems   Ultra   [ 1029U-TN12RV ]





Integrated Board
X11DPU-V

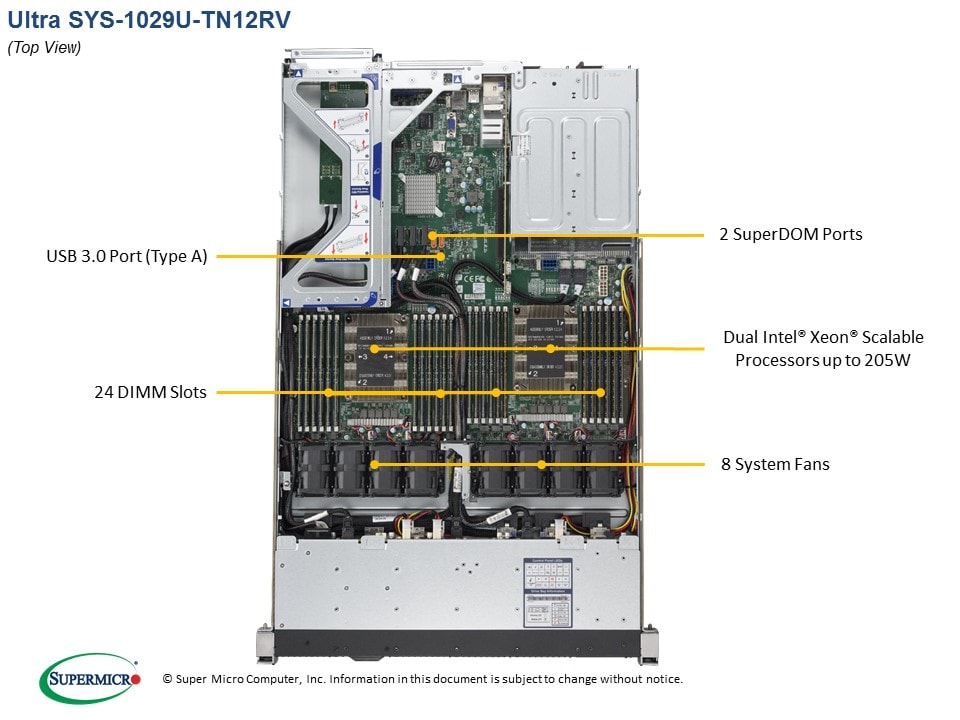

Views: | Angled View | Top View |
| Front View | Rear View |

 Key Applications
• Virtualization
• Cloud Computing
• High End Enterprise Server

Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 1 PCI-E 3.0 x16 (FH, 10.5"L),
    1 PCI-E 3.0 x8 (LP), 1 internal
    PCI-E 3.0 x16
    (for SMCI storage controller)
4. Flexible networking options,
    up to 25GbE via Ultra Riser card
5. 12 Hot-swap 2.5" NVMe/SATA3 drive bays
6. 8 Heavy duty fans w/ optimal
    fan speed control
7. 1200W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*, and 1x 2.5" drive). *NIC adapter requirement includes either 1 Ultra Riser card with integrated NIC or 1 Ultra Riser card AOC-URN4 with 1 standard PCI-E NIC adapter.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Drive Options   Manuals   Quick-References Guide  OS Certification Matrix   Compatible GPU List  Network Card (AOC) Matrix

Product SKUs
SYS-1029U-TN12RV
  • SuperServer 1029U-TN12RV (Black)

Motherboard

Super X11DPU-V

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
  • 2666 ECC DDR4 NVDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps)
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
NVMe
  • 6 NVMe/SATA ports (NVMe from CPU 1)
  • 6 NVMe/SATA ports (NVMe from CPU 2)
LAN
  • Networking options provided via Ultra Riser card
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 1 USB 3.0 (front)
Video
  • 1 VGA port
Serial Port
  • 1 Serial header
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UHTS-R1K22HP-T

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 29.1" (739mm)
Gross Weight
  • 48 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • UID LED

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 (FH, 10.5"L)
  • 1 PCI-E 3.0 x8 (LP)
  • 1 Internal PCI-E 3.0


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays / Storage
Hot-swap
  • 12 Hot-swap 2.5" NVMe/SATA drive bays
  • Optional SAS support via SAS storage controller
M.2
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)

System Cooling
Fans
  • 8 Heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud

Power Supply
1200W Redundant Hot-swap Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1200W: 200 – 240Vac
  • 1200W: 200 -240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7.5 - 6A / 50-60Hz
  • 200-240Vdc / 7.5 - 6A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
    [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DPU-V
CSE-119UHTS-R1K22HP-T 		1
1		 Super X11DPU-V Motherboard
CSE-119UHTS-R1K22HP-T
Add-on Card / Module AOC-SLG3-4E4R-P 1 NVMe AOC by 16,HF,RoHS/REACH
Backplane BPN-SAS3-119A-N12 1 1U Hybrid BPN for 12x2.5"; SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-CDAT-0190 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,30CM,28AWG
Cable 2 CBL-PWEX-0781 1 PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),65/65CM,18AWG,RoHS
Cable 3 CBL-PWEX-1067 1 PWEX,2X2F/P4.2 TO 2x4F/P4.2,BLK*2,YEL*1,RED*1,61CM,16AWG
Cable 4 CBL-SAST-0655 1 (SATA 8-11) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
Cable 5 CBL-SAST-0656 1 (SATA 4-7) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,39CM,SB,30AWG
Cable 6 CBL-SAST-0657 1 (SATA 0-3) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
Cable 7 CBL-SAST-0856-1 1 (NVMe 8-9) SLIMLINE SAS x8 (LS) to 2x MINI SAS HD x4,INT, 74CM,32AWG
Cable 8 CBL-SAST-0857-1 1 (NVMe 10-11) SLIMLINE SAS x8 (LS) to 2x MINI SAS HD x4,INT, 80CM,32AWG
Cable 9 CBL-SAST-0821-1 1 (NVMe 6-7) SLIMLINE x8 (LE) to 2x Oculink x4, 46/50CM,85 OHM
Cable 10 CBL-SAST-0822-1 1 (NVMe 0-1) SLIMLINE x8 (RE) to 2x Oculink x4, 63/63CM,85 OHM
Cable 11 CBL-SAST-1149-85 1 SLIMLINE SAS x8 (RE) to 2x Oculink x4,INT, 49CM, 85 OHM
Cable 12 CBL-SAST-1154-85 1 (NVMe 2-3) SLIMLINE x8 (RE) to 2x Oculink x4,INT, 54CM, 85 OHM
Drive Tray(s) MCP-220-00178-0B 12 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Air Shroud MCP-310-11601-0B 1 (CPU2) Mylar air shroud for SC116U (X11 24DIMM, left side)
Air Shroud MCP-310-11906-0B 1 (CPU1) Right side air shroud with foam air block
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-1K22A-1R 2 1U 1200W/800W Titanium Redundant Power Supply CRPS 73.5x203x40mm,RoHS/REACH
* Cable 13 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 14 CBL-CDAT-0218 1 CBL,CNTL PANEL CONVERTER,FOR 809H and CSE119UH,FFC,20PIN,15C
* Cable 15 CBL-CUSB-0996 1 USB 3.0(F) Type A, RA to USB3.0 20pin,60CM,26/30AWG,RoHS
* FAN 1 FAN-0141L4 8 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
* Front Panel FPB-FP119UH 1 Front control board for 119UHTS 1U Ultra
* Rear Window MCP-240-81916-0N 1 Rear window for SC819U, 119U tool-less chassis (No opening)
* Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6\" to 33.05\"
* Rail Set MCP-290-00112-0N 1set Inner rail, extension, long (quick) for 1U 17.2
* Rail Set MCP-290-00120-0N 1set Inner rail, front, quick-release type (thumb screw appiled)
* Air Shroud MCP-310-81905-0B 1 Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Ultra Riser Card AOC-URN4-m2TS & MCP-240-81915-0N
AOC-URN4-b2XT & MCP-240-81909-0N
AOC-URN4		 1 2-port 25GbE SFP28, Mellanox CX-4 Lx EN
2-port 10GbE RJ45, Broadcom BCM57416
No Onboard NIC
Add-on Card for M.2 AOC-SLG3-2M2
RSC-UMR-8 & 1 CBL-SAST-0538		 1 Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M.2 NVMe Modules
1U RHS WIO Riser card with 1 PCI-E x8 slot and 1 M.2 NVMe slot and 1 M.2 SATA slot
Drive Trays MCP-220-00178-0B
MCP-220-00187-0B
 1~12 Tool-less black hot-swap 2.5" drive tray (orange tab)
Tool-less black hot-swap 2.5" drive tray (red tab)
Storage Control Card and Cable(s) AOC-S3008L-L8e &
2x CBL-SAST-0593
AOC-S3008L-L8i &
2x CBL-SAST-0593
AOC-S3108L-H8iR &
2x CBL-SAST-0593
AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593 		1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD SATA,12G,INT,60CM,60CM SB,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STGF-i2S
AOC-STG-i4S
AOC-STG-b4S
AOC-STG-i2T
AOC-STGS-i1/2T
AOC-STG-i4T
AOC-STG-i2
AOC-S25G-m2S
AOC-S40G-i2Q
More		 -
-
-
-
-
-
-
-
-
-
-
-		 Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N		 -
-
-
 		 CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location
TPM security module AOM-TPM-9670H-S
AOM-TPM-9671H-S		 1
1		 TCG 2.0 compliant trusted platform module (TPM), Horizontal FF
TCG 1.2 compliant trusted platform module (TPM), Horizontal FF
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD		 1
1
1		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
