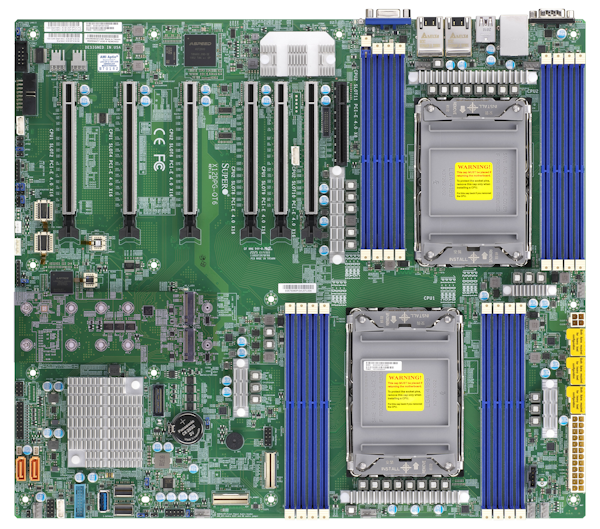

X12DPG-QT6

X12DPG-QT6
GPU Serverboard

Key Features


  1. 3rd Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
  2. Intel® C621A
  3. Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
  4. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
    Up to 6TB Intel® Optane™ Persistent Memory 200 Series, in 16 DIMM slots;
    Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode.
  5. 6 PCIe 4.0 x16,
    1 PCIe 4.0 x8
    M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key
  6. Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Dual LAN with Intel® X550 10GBase-T Ethernet Controller
  8. Integrated IPMI 2.0 and KVM with Dedicated LAN
  9. 5 USB 3.0 ports, 4 USB 2.0 ports
  10. HD Audio with optical S/PDIF
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12DPG-QT6
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 15.12" x 13.2" (38.43cm x 33.53cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
  • Up to 40 cores
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 6TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
  • Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode.
Memory Type
  • 3200/2933/2666MHz ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
  • LRDIMM: 128GB, 256GB
  • RDIMM: 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Audio
  • 1x 7.1 HD Audio Header port(s)7.1 HD Audio Header
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
USB
  • 10 USB 3.1 Gen1 port(s) (1 via header; 1 type A; 3 rear type A; 1 rear type C; 4 rear)
  • 2 USB 2.0 port(s) (2 via header)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with build power
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 4.0 x8,
  • 6 PCIe 4.0 x16
M.2
  • M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • Plug and Play (PnP)
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
Voltage
  • VBAT, Supports system management utility, HT, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, 5+1 Phase-switching voltage regulator, 10 -fan status
LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
FAN
  • 10x 4-pin fan headers (up to 10 fans)
  • Status monitoring for speed control
  • Pulse Width Modulated (PWM) fan connectors
Other Features
  • RoHS
  • Node Manager Support
  • CPU thermal trip support for processor protection
  • Chassis intrusion detection
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Resources
Servers (Optimized for X12DPG-QT6)
SYS-740GP-TNRT
...
Chassis
SC747BTS-R2K20BP
(Heatsink1 :SNK-P0080AP4 )
SC747BTQ-R2K04B
(Heatsink1 :SNK-P0080AP4 )
...
  1. = Optimized SuperServer Chassis
  2. = Optimized Global Chassis
  3. Blue color = Compatible Chassis
  4. = Compatible Global Chassis
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List
X12DPG-QT6
