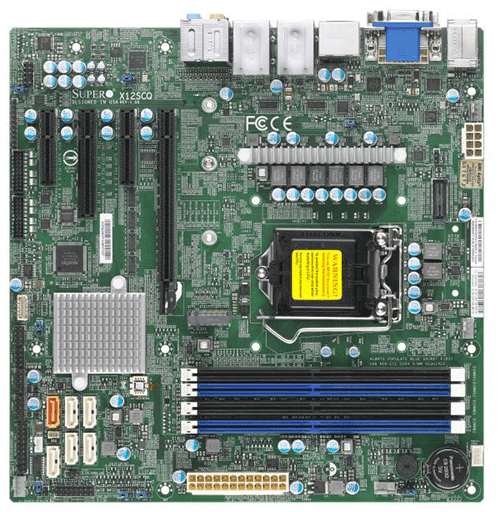

X12SCQ

Embedded
High Performance
vPro AMT

Key Features

  1. 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  2. Intel® Q470E
  3. Intel® Q470 controller for 6 RAID 0,1,5,10
  4. Single LAN with Intel® PHY I219LM LAN controller
    Single LAN with Intel® Ethernet Controller I210-AT
  5. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
  6. 1 PCI-E 3.0 x16 (in x16 slot),
    1 PCI-E 3.0 x8,
    2 PCI-E 3.0 x4
    M.2 Interface: 1 PCI-E 3.0 x4, RAID 0 & 1
    M.2 Form Factor: 2242/2280
    M.2 Key: M-Key
  7. 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port




Specifications
Product SKUs
MBD-X12SCQ
  • X12SCQ

Physical Stats
Form Factor
  • microATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU
  • 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
Memory Type
  • N/A
DIMM Sizes
  • N/A
Memory Voltage
  • N/A

On-Board Devices
Chipset
  • Intel® Q470E
SATA
  • Intel® Q470 controller for 6 ports; RAID 0,1,5,10
Graphics
  • Intel® HD Graphics
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210-AT

Input / Output
SATA
  • 6 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.1 Gen2 port(s) (2 via header; 2 rear type A; 2 rear type C)
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
Video Output
  • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Serial Port
  • 4 COM Port(s) (4 header)
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16 (in x16 slot),
  • 1 PCI-E 3.0 x8,
  • 2 PCI-E 3.0 x4
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2242/2280
  • Key: M-Key

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup

Management
Software
  • SuperDoctor® 5, SUM, AMT, vPro, Watchdog
Power Configurations
  • ATX Power connector

PC Health Monitoring
Voltage
  • VBAT, 4 fans with tachometer monitoring, 4 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
LED
  • Power LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • 4 fans with tachometer monitoring
Other Features
  • RoHS
  • M.2 NGFF connector
  • Chassis intrusion detection
  • ATX Power connector
  • ACPI power management

Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SCQ 1 X12SCQ Motherboard
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00125-1N 1 Standard I/O Shield
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SCQ 1 X12SCQ Motherboard
I/O Cables CBL-0044L 4 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00125-1N 1 Standard I/O Shield for X12SCQ with EMI Gasket
QRG MNL-2281-QRG 1 Motherboard Quick Reference Guide
Optional Parts List
Name Part Number Qty Description
COM Cable CBL-CDAT-0604 -- 40CM Dual Serial Port Cable with bracket
CBL-CUSB-0984 -- 20CM Dual Serial Port Cable
USB3.1 Cable CBL-CUSB-0835 -- Dual USB3.1 Type A Cable with Bracket
X12SCQ
