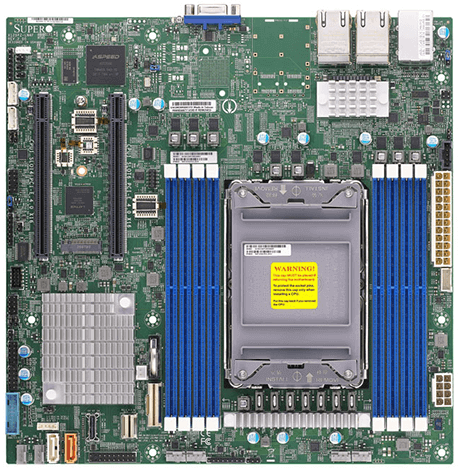

X12SPZ-LN4F

Embedded
Quad 1GbE LAN
High Performance

Key Features

  1. 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  2. Intel® C621A
  3. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
  4. 2 PCI-E 4.0 x16
  5. 1 PCI-E 4.0 NVMe x8 SlimSAS Internal Port
    1 PCI-E 4.0 NVMe x4 SlimSAS Internal Port
  6. 1 OCuLink Connector (4 SATA/PCI-E 3.0 x4)
    1 M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
  7. Quad 1G RJ45 with Intel® I350-AM4
  8. 4 USB 3.2 Gen 1 (2 Rear, 2 via Header),
    4 USB 2.0 (Headers)
  9. Supports 12V DC power input




Specifications
Product SKUs
MBD-X12SPZ-LN4F
  • X12SPZ-LN4F

Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
  • Up to 40 cores

System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type
  • 3200/2933/2666MHz ECC 3DS , DDR4 LRDIMM, RDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 6 SATA3 (6 Gbps) ports
  • 4 SATA ports via OCuLink; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Quad LAN with 1GbE with Intel® I350-AM4

Input / Output
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (4 via header)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCI-E
  • 2 PCI-E 4.0 x16
M.2
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4
  • Form Factor: 2242/2280
  • Key: M-Key

System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.2
  • UEFI 2.8
  • SMBIOS 2.8
  • SMBIOS 3.3 or later
  • Plug and Play (PnP)
  • PCI FW 3.0

Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • ACPI Power Management, ATX Power connector, +12V DC Power Input, M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL

PC Health Monitoring
Voltage
  • VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V
LED
  • UID/Remote UID
  • Power LED
Temperature
  • CPU thermal trip support
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • System level control
  • PWM fan speed control
  • Dual Cooling Zone
  • 6 fans with tachometer status monitoring
Other Features
  • RoHS
  • Node Manager Support
  • M.2 NGFF connector
  • Dual Cooling Zones
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
  • ACPI power management
  • 12V DC or ATX Power Source

Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SPZ-LN4F 1 X12SPZ-LN4F Motherboard
CPU Retention Module SKT-1205L-P4IC-FXC 1 Socket P4 LGA4189 Carrier
I/O Shield MCP-260-00154-0N 1 Standard I/O Shield for X12SPZ
SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SPZ-LN4F 1 X12SPZ-LN4F Motherboard
CPU Retention Module SKT-1205L-P4IC-FXC 1 Socket P4 LGA4189 Carrier
I/O Shield MCP-260-00154-0N 1 Standard I/O Shield for X12SPZ
QRG MNL-2291-QRG 1 Motherboard Quick Reference Guide
SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00155-0N -- Standard 1U I/O Shield with EMI Gasket
OCuLink to 4x SATA Cable CBL-SAST-0933 -- 50CM OCuLink to 4x SATA Cable
OCuLink to U.2 Cable CBL-SAST-0956 -- 55CM OCuLink to U.2 Cable with Molex Power Header
TPM security module AOM-TPM-9671V -- SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670V -- SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
x4 SlimSAS to U.2 Cable CBL-SAST-1240A-85 -- 40CM Slimline x4 to PCIe SFF-8639
x8 SlimSAS to 2x U.2 Cable CBL-SAST-0953-1 -- 55CM Slimline x8 to PCIe 2x SFF-8639
Chassis (Optimized for X12SPZ-LN4F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC113MFAC2-605CB
SC515M-R804
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
