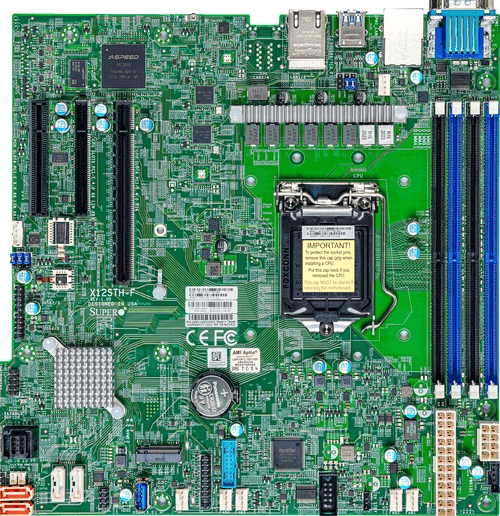

X12STH-F

Dual 1GbE

Key Features

  1. Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
  2. Intel® C256
  3. Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
  4. 1 PCI-E 4.0 x16
    1 PCI-E 4.0 x4 (in x8 slot)
    1 PCI-E 3.0 x4 (in x8 slot)
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
  5. Dual LAN with Intel® Ethernet Controller I210
  6. Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. 2 SuperDOM with built-in power
  8. I/O: 1 VGA, 2 COM, 1 TPM header
  9. 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)
  10. Gen12 iGPU support




Specifications
Product SKUs
MBD-X12STH-F
  • X12STH-F

Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU
  • 10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
  • Up to 8 cores, 16 threads

System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
  • 3200/2933/2666MHz SDRAM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C256
SATA
  • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210

Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x4 (in x8 slot),
  • 1 PCI-E 4.0 x16,
  • 1 PCI-E 4.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key

System BIOS
BIOS Type
  • 256MB UEFI
BIOS Features
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0

Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management

PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Thermal control tachometer fan connectors
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL
  • UID
  • Node Manager Support
  • M.2 NGFF connector
  • Dual Cooling Zones
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
  • Chassis intrusion header
  • Chassis intrusion detection
  • ACPI power management

Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12STH-F 1 X12STH-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00164-0N 1 STD I/O Shield for X12STH-F with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12STH-F 1 X12STH-F Motherboard
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00164-0N 1 STD I/O Shield for X12STH-F with EMI Gasket
QRG MNL-2367-QRG 1 Motherboard Quick Reference Guide
Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9671H
AOM-TPM-9670H
AOM-TPM-9671V
AOM-TPM-9670V
--
--
--
--
SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
