4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
Accelerated AI inferencing and computer vision in parallel without extra hardware
100% wide temp grade design and components applied
12-24V (10% tolerance) wide range power input support
Hailo-8™ powerful and efficient Edge AI solution integration ready
...
...
SpecificationsResourcesParts List
Specifications
Product SKUs

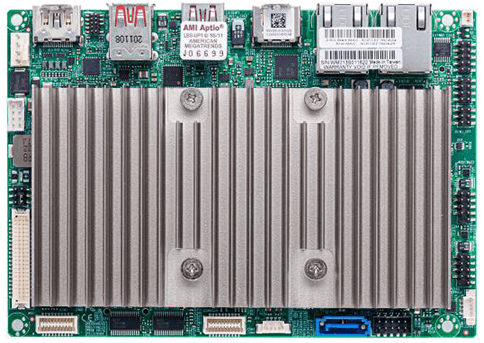

MBD-X12STN-H
Physical Stats
Form Factor
3.5" SBC
Dimension
5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU
11th Generation Intel® Core™ i7-1185GRE Processor
Single Socket FCBGA-1449 supported, CPU TDP supports Up to 28W TDP
Core
Up to 4 cores, 8 threads / 12MB Cache
System Memory
Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz
Memory Type
3200 MT/s non-ECC DDR4 Unbuffered ered 260pin SODIMM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
System on Chip
Audio
ALC 888S HD Audio
Graphics
1 Intel® Iris® Xe Graphics port(s)
Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 2.0b (max. resolution up to 4096x2160@60Hz), HDMI 1.4b (max. resolution up to 4096x2160@30Hz), DP (Alt mode, max. resolution up to 4096x2304@60Hz)
Network Controllers
Dual LAN with Intel® Ethernet Controller I225-IT
Input / Output
SATA
1 SATA3 (6Gbps) port(s)
LAN
2 RJ45 2.5 Gigabit Ethernet LAN port
USB
4 USB 2.0 port(s) (4 via header)
4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C)
ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
LED
Standby alert LED
Temperature
CPU thermal trip support
FAN
1x 4-pin fan header (up to 1 fan)
Thermal control tachometer fan connectors
System level control
PWM fan speed control
Low noise fan speed control
Fan speed control
Other Features
WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
Operating Environment
Operating Temperature Range
-40°C - 60°C (0°F - 140°F)
Non-Operating Temperature Range
-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
Resources
Component Options
Software
Documentation
Parts List
Standard Parts (Bulk Package)
Part Number
Qty
Description
DC IN Power cable
CBL-PWEX-1029
1
DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
Passive heatsink
SNK-C0146PL
1
X12STN passive heatsink with height 25mm
Standard Parts (Retail Package)
Part Number
Qty
Description
Audio Cable
CBL-OTHR-0986
1
Audio Cable 20cm
COM Cable
CBL-CDAT-0665
1
COM Cable 20cm
DC IN Power cable
CBL-PWEX-1029
1
DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
