SuperServer SYS-241H-TNRTTP (Complete System Only)

2U 4-socket system with 64 DIMMs and 8 NVMe/SAS/SATA drive bays

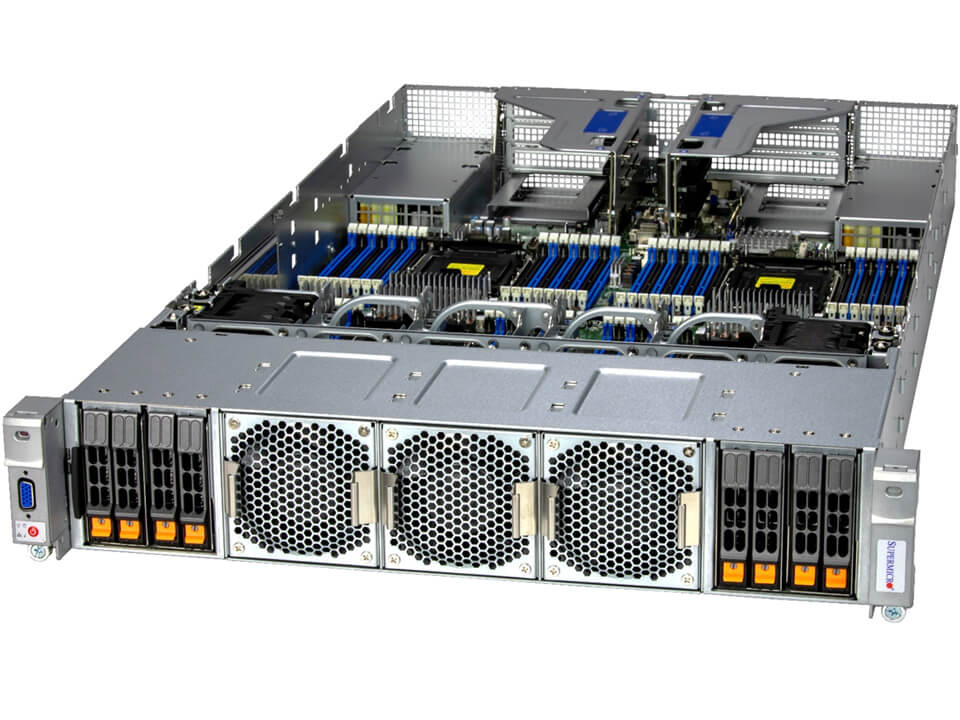

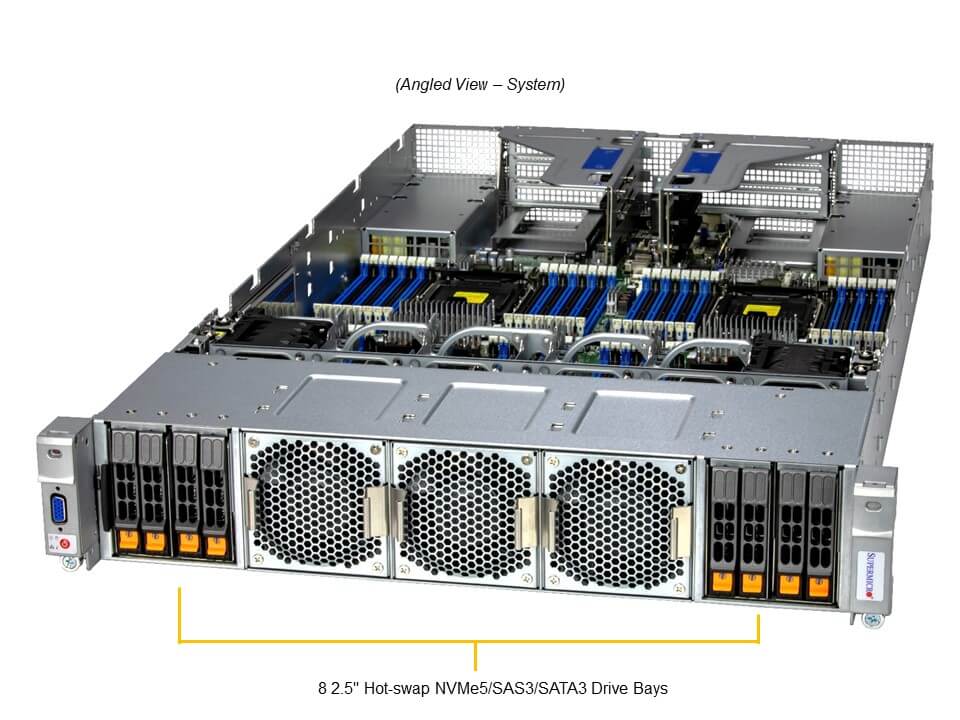

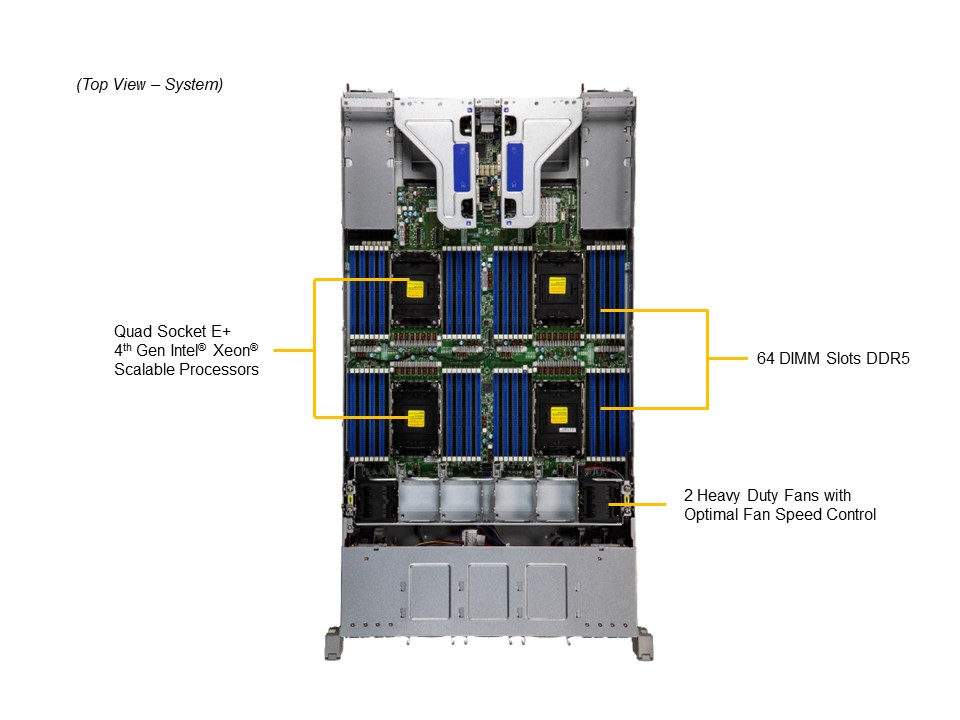

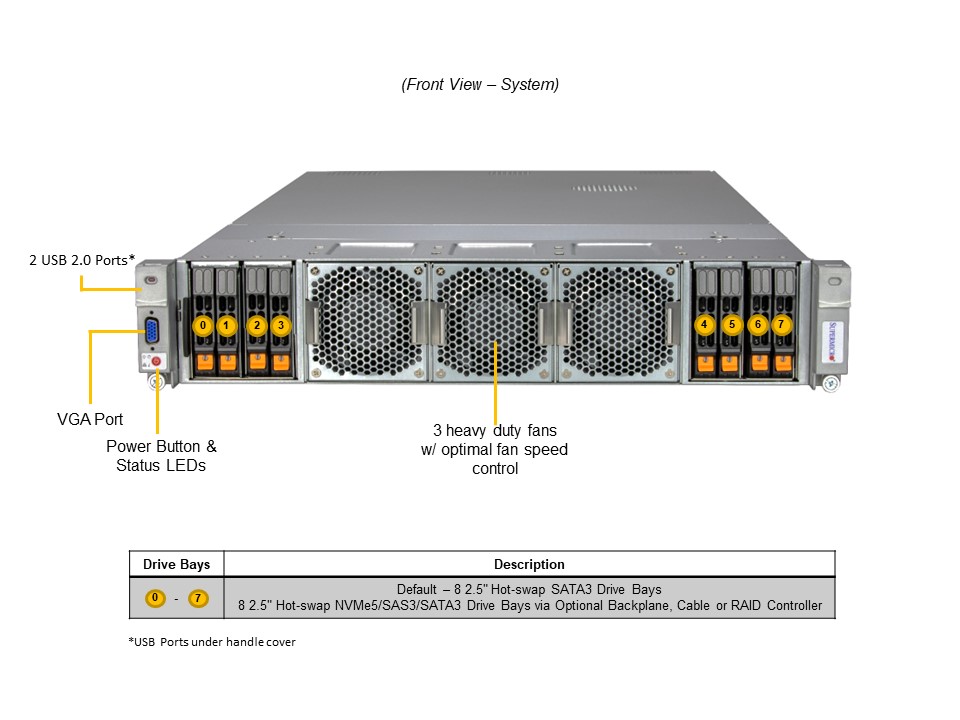

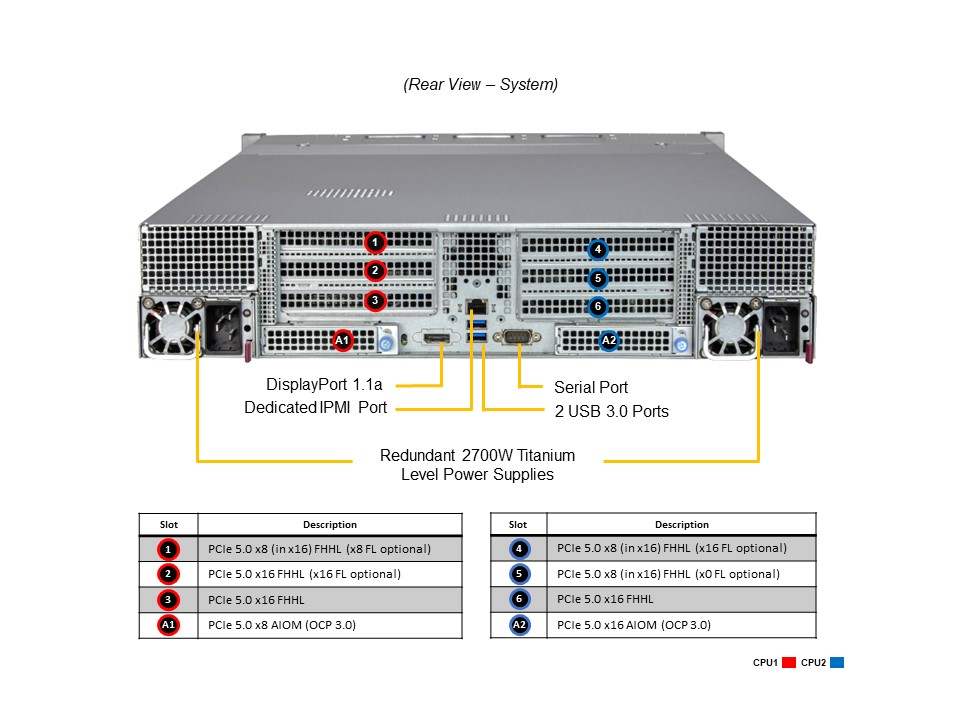

SYS-241H-TNRTTP Main SYS-241H-TNRTTP Angle SYS-241H-TNRTTP Top SYS-241H-TNRTTP Front SYS-241H-TNRTTP Rear
Integrated Board: X13QEH+
Learn more

Key Applications

  • Artificial Intelligence (AI)
  • Business Intelligence
  • ERP, CRM
  • Scientific Virtualization
  • In-Memory Database
  • HCI
  • SAP HANA

Key Features

  1. Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
  2. 64 DIMM Slots; Up to 16TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
  3. Optional PCIe configurations up to 12 PCIe slots with support for two double-width GPU/Accerlator cards
  4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 8x 2.5" Hot-swap NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays); 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card
  6. 5 heavy duty fans w/ optimal fan speed control
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-241H-TNRTTP
Motherboard
Super X13QEH+
Processor
CPU
Core Count
  • Up to 60C/120T; Up to 112.5MB Cache per CPU
Note
  • Supports 165W - 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPU(s)
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 64 DIMM slots
  • Max Memory (1DPC): Up to 8TB 4800MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 16TB 4400MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 2 USB 2.0 port(s) (front)
Video
  • 1 VGA port(s)
  • 1 DisplayPort port(s)
Serial
  • 1 COM port(s) (Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218H2TS-R2K7AWP
Dimensions and Weight
Height
  • 3.5" (87.9 mm)
Width
  • 17.3" (438.4 mm)
Depth
  • 32" (812.9 mm)
Package
  • 9.75" (H) x 26.5" (W) x 43.5" (D)
Weight
  • Gross Weight: 71.5 lbs (32.43 kg)
  • Net Weight: 45.5 lbs (20.64 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 3 PCIe 5.0 x8 (in x16) FHHL slot(s)
    • 3 PCIe 5.0 x16 FHHL slot(s)
    • 1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • Option A
    • 2 PCIe 5.0 x16 FHFL double-width slot(s)
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • Option B*
    • 3 PCIe 5.0 x8 (in x16) FHHL slot(s)
    • 3 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 4.0 x8 (in x16) LP slot(s)
    • 2 PCIe 4.0 x16 LP slot(s)
    • 1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • Option C*
    • 2 PCIe 5.0 x16 FHFL double-width slot(s)
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 4.0 x8 (in x16) LP slot(s)
    • 2 PCIe 4.0 x16 LP slot(s)
    • 1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 2.5" SATA drive bay(s)
  • Option A: Total 8 bay(s)
    • 8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
System Cooling
Fans
  • 2 Internal Heavy duty counter-rotating 6cm Fan(s)
  • 3 Heavy duty counter-rotating 8cm Fan(s)
Power Supply
2x 2700W Redundant (1 + 1) Titanium Level power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
+12V
  • Max: 225A / Min: 0A (200Vac-240Vac)
  • Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB
  • Max: 4A / Min: 0A
AC Input
  • 2700W: 200-240Vac / 50-60Hz
  • 2700W: 240-240Vdc / 50-60Hz (for CQC only)
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13QEH+

CSE-218H2TS-R2K7AWP
1

1
Super X13QEH+ Motherboard

2U Chassis
Backplane BPN-SAS3-826TQ-B2B 4 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable CBL-MCIO-1215M5RR 1 MCIO x8 (RA to RA),15CM,85ohm,RoHS
CBL-MCIO-1223M5RR 4 MCIO x8 (RA to RA),23cm,30AWG,G5,RoHS
CBL-PWEX-0947Y-30 2 MicroFit 2x2,PH3.0 to 2 1X4,PH5.08,30cm,9.5A/p,16AWG,RoH
CBL-SAST-1280QT4S2-100 2 SlimSASx4 STR to 4xSATA w/2SB,80CM,100Ohm,RoHS
CBL-CDAT-0679-66 1 [NR] FRONT CNTL,20 TO 20 PIN,PH0.5, FFC,FLAT,66CM,STD
CBL-CDAT-0681-70 1 [NR] I-PEX,Frnt Ctrl,(2X10F to 2X10F),PH0.5,70CM,40AWG,RoHS
CBL-PWCD-0376-IS 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
CBL-PWEX-1069 2 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
CBL-PWEX-1252Y-25 3 [NR] FAN,2x4 to 2x 1x4,PH2.54,5A/pin,25CM,22/24AWG,RoHS
Drive Tray(s) MCP-220-00155-0B 8 Metallic black gen-3 hot-swap tool-less 2.5 HDD tray
Air Shroud MCP-310-21815-0B 2 Mylar front CPU air shroud for X13QEH+ in SC218H2
MCP-310-21816-0B 2 Mylar rear CPU air shroud for X13QEH+ in SC218H2 with 2U HS
MCP-310-21821-0B 8 Mylar memory air shroud for X13QEH+ in SC218H2
Riser Card RSC-D2-666G5 1 2U LHS DCO Riser card with three PCIe 5.0 X16 slots,HF,
RSC-S2R-668G5 1 2U RHS Standard Riser card with two PCIe 5.0 X16 and on
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
SNK-P0089P 2 1.5U Passive 45 mm Tall CPU Heat Sink for X13 SYS-241H/E
*Power Supply PWS-2K70A-1R 2 1U 2700W Redundant Titanium w/PMBus power supply, W73.5xH39/40xL203 mm, C20 inlet
*Fan FAN-0219L4 3 80x80x80 mm, 14.2K-15K RPM Counter-rotating, Hot-swappable F
FAN-0237L4 2 60x60x56 mm, 17K-17K RPM, Counter-rotating Cooling Fan for S
*Front Panel FPB-FP826-TUV 1 Chassis front control board for SC826 with VGA, 2xUSB
*Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2" W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
MCP-290-00115-0N 1 Inner rail, quick-release type
MCP-290-00117-0N 1 Outer rail, quick-release type
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
CPU 270W and above support SNK-P2088P 2 2U Passive EVAC CPU Heat Sink for X13 241H/E Series Servers
CPU Carrier (Require 4pcs of one PN only) SKT-1424L-001B-LTS 4 Intel SPR 64xxH Socket E E1B carrier LGA 4677 W/SHIM SPR MCC, DG1.0 ,RoHS (Brand LOTES)
SKT-1424L-001B-FXC 4 Intel SPR 64xxH Socket E E1B carrier LGA 4677 W/SHIM SPR MCC, DG1.0, RoHS (Brand FOXCONN)
SKT-1333L-0001-LTS 4 Intel SPR 84xxH Socket E LGA4677, E1A XCC carrier, DG 1.0, NO SHIM, (Brand LOTES)
SKT-1333L-0000-FXC 4 Intel SPR 84xxH Socket E LGA4677, E1A XCC carrier, DG 1.0, RoHS (Brand FOXCONN)
GPU DW FL Support Kit MCP-310-21820-0B 2 1U Evac CPU Air Shroud
MCP-240-21828-0N 1 GPU card bracket set for DW full length GPU (Supports 2x DW GPUs)
SNK-P2087PV-2 1 1U Right EVAC CPU Heat Sink
SNK-P2087PV-1 1 1U Left EVAC CPU Heat Sink
GPU Power Cable(s) CBL-PWEX-1148-50 1/GPU 8-pin CPU power connector (Example A6000, A100, A40 and etc.)
CBL-PWEX-0962Y-50 1/GPU 16-pin power connector (Example H100)
CBL-PWEX-1040 1/GPU 8-pin CPU to 8-pin PCIe power connector (Requires 1x CBL-PWEX-1148-50)
Intel 6434H High Frequency Support SNK-P2088P 2 2U Passive EVAC CPU Heat Sink for X13 241H/E Series Servers
Low Profile Riser Kit(Per side) RSC-H2-68G4 1 Hyper riser card w/ one PCIe 4.0 x16 and one PCIe 4.0 x8
MCP-240-21825-0N 1 Low profile riser bracket for RSC-H2-68G4
CBL-PWEX-1136YB-40 1 MicroHi (2x4 to 2x2Y), PH3.0,40cm,8.5A/p,18AWG,RoHS
CBL-MCIO-1270L4 3 MCIO x8 STR to SlimSAS LP x8 STR,G4,70CM,RoHS
NVMe Intel VROC Controller AOC-VROCSTNMOD 1 Intel VROC HW key (RSTe) standard upgrade module
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
NVMe Support Kit MCP-220-00196-0B 2,4,6 or 8 Metallic black gen-3 hot-swap 2.5" NVMe tool-less tray (2pc for each BPN-NVME5-826N-B2B)
CBL-PWEX-1137YB-30 1 ~ 2 NVMe BPN power cable (1pc supports 2x BPN-NVME5-826N-B2B)
CBL-MCIO-1210M5 1 ~ 4 MCIO x8 (STR to STR),10CM,85OHM,RoHS (1pc per BPN-NVME5-826N-B2B)
BPN-NVME5-826N-B2B 1 ~ 4 2 slot PCIe Gen 5 U.2 NVMe SSD Storage Backplane (system supports 4 max)
RAID Controller (SATA3/SAS) AOC-S3908L-H8IR-16DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP
CBL-SAST-1295T8S4-100 1 SlimSAS x8 to 8x SATA 7pin w/ 4*SIGPO, 95/95cm,RoHS
RAID Controller CacheVault(s) BTR-CV3916-U1 1 CacheVault Supercap with chassis sidewall mounting kit
MCP-240-00127-0N 1 BTR-CVPM05 Supercap mounting bracket for above power supply (support 1 BTR)
MCP-240-00203-0N 1 BTR-CVPM05 Supercap mounting bracket for PCIe location (Support up to 2 BTR)
BTR-CVPM05 1 CacheVault for Broadcom RAID Controller (Ex. S3908/S3916)
Rail w/ Cable Arm Support Kit MCP-290-00128-0N 1 Gen2 cable arm for Ultra 2U
MCP-290-00127-0N 1 39" rail set, quick/quick, 17.2"W, for 2U Gen2 cable arm
TPM Security Module AOM-TPM-9672V-FIPS 1 TPM 2.0 with 10 pins SPI support FIPS 140,RoHS (Vertical)
AOM-TPM-9670V 1 SPI TPM 2.0 using SLB9670 (Vertical)
AOM-TPM-9672V 1 TPM 2.0 with 10 pins SPI,RoHS (Vertical)
